GE IS420UCSBH4A Mark VIe Series Controller Turbine Control Performance

Product Overview

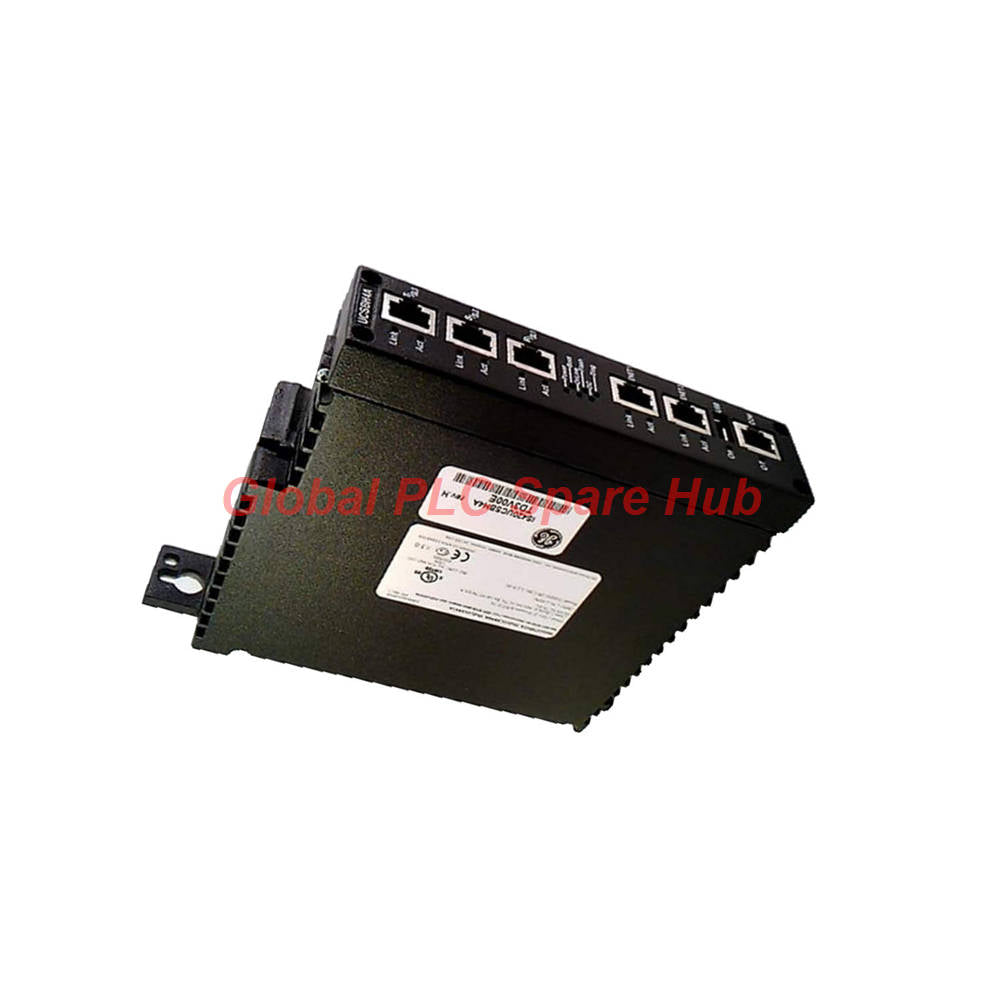

The IS420UCSBH4A acts as a high-performance Controller Module within the General Electric Mark VIe distributed control architecture. Engineered for demanding industrial environments, this unit leverages a 1066 MHz Intel EP80579 processor to execute complex control logic with deterministic precision. Unlike legacy controllers, the IS420UCSBH4A eliminates backplane I/O hosting, centralizing intelligence while providing seamless connectivity across IONet interfaces. This module ensures high-availability operations for critical gas and steam turbine systems.

Engineering Specifications

• Part Identifier: IS420UCSBH4A
• Series Ecosystem: Mark VIe
• Computing Core: 1066 MHz Intel EP80579 Processor
• Operating Environment: -30 °C to +65 °C
• Memory Architecture: 256 MB DDR2 SDRAM
• System OS: QNX Neutrino Real-Time OS
• Network Connectivity: 5 Ethernet Ports (Dedicated IONet interface)
• Power Requirements: 28 VDC, 1.1 Amp
• Safety Compliance: UL E207685 (Class I, Div 2, Groups A-D)

Advanced Operational Capabilities

• High-Speed Execution: Delivers rapid processing for complex control rungs and block-based algorithms.
• Deterministic Synchronization: Utilizes IEEE 1588 protocol to achieve clock synchronization within 100 microseconds across R, S, and T IONets.
• Redundancy Logic: Supports TMR (Triple Modular Redundant) and dual-system configurations to prevent single-point failures.
• Online Maintainability: Enables minor control software adjustments without requiring system reboots.
• Thermal Efficiency: Fanless design reduces mechanical failure points, ensuring long-term hardware reliability.

Logistics and Warranty

• Quality Assurance: Every IS420UCSBH4A is backed by a 12-month comprehensive warranty.
• Global Dispatch: Rapid 24-48 hour processing for urgent industrial requirements.
• Shipping Partners: Reliable door-to-door delivery via FedEx, UPS, and DHL.
• Packaging: ESD-safe, industrial-grade protective shielding ensures arrival in pristine condition.

Global PLC Spare HUB’s Technical Insight

The IS420UCSBH4A is the backbone of modern turbine management. Global PLC Spare HUB identifies this module as the preferred choice for facilities upgrading from older Mark platforms to the higher-density Mark VIe standard. It is essential for operators requiring SIL 2/3 functional safety loops and high-speed data voting in critical power generation clusters.

Recommended Application Scenarios

• Primary control for utility-scale gas and steam turbines.
• Industrial power distribution and excitation control loops.
• Distributed control systems (DCS) requiring high-speed network integration.
• Retrofitting mission-critical safety instrumented systems (SIS).

Professional FAQ & Selection Guide

• How does the boot LED assist in field diagnostics?
• The boot LED serves as your first point of reference; a steady light indicates normal operation, while specific blink patterns denote runtime firmware errors or hardware-level blocks during the initialization sequence.
• What is the main advantage of the QNX Neutrino OS in this controller?
• QNX provides a true real-time, multitasking environment that minimizes latency and jitter, which is non-negotiable when managing the sub-millisecond response times required in turbine protection.
• Does the IS420UCSBH4A require specific battery maintenance?
• No, this module features a battery-less design, which significantly reduces long-term maintenance overhead and prevents common electrolyte leakage issues found in older controller generations.
• Selection Guide: How do I ensure this module is compatible with my current rack?
• Verify your system revision level in ToolboxST; while the IS420UCSBH4A is highly versatile, ensure your existing IONet switch fabric is configured to support the 1066 MHz processor throughput to avoid communication bottlenecks.
• What should I look for if the module fails to connect to the IONet?
• Prioritize checking the physical integrity of the five Ethernet ports and ensure the IP assignment within your ToolboxST application matches the physical port configuration; frequently, connection issues stem from mismatched R/S/T network cabling.
