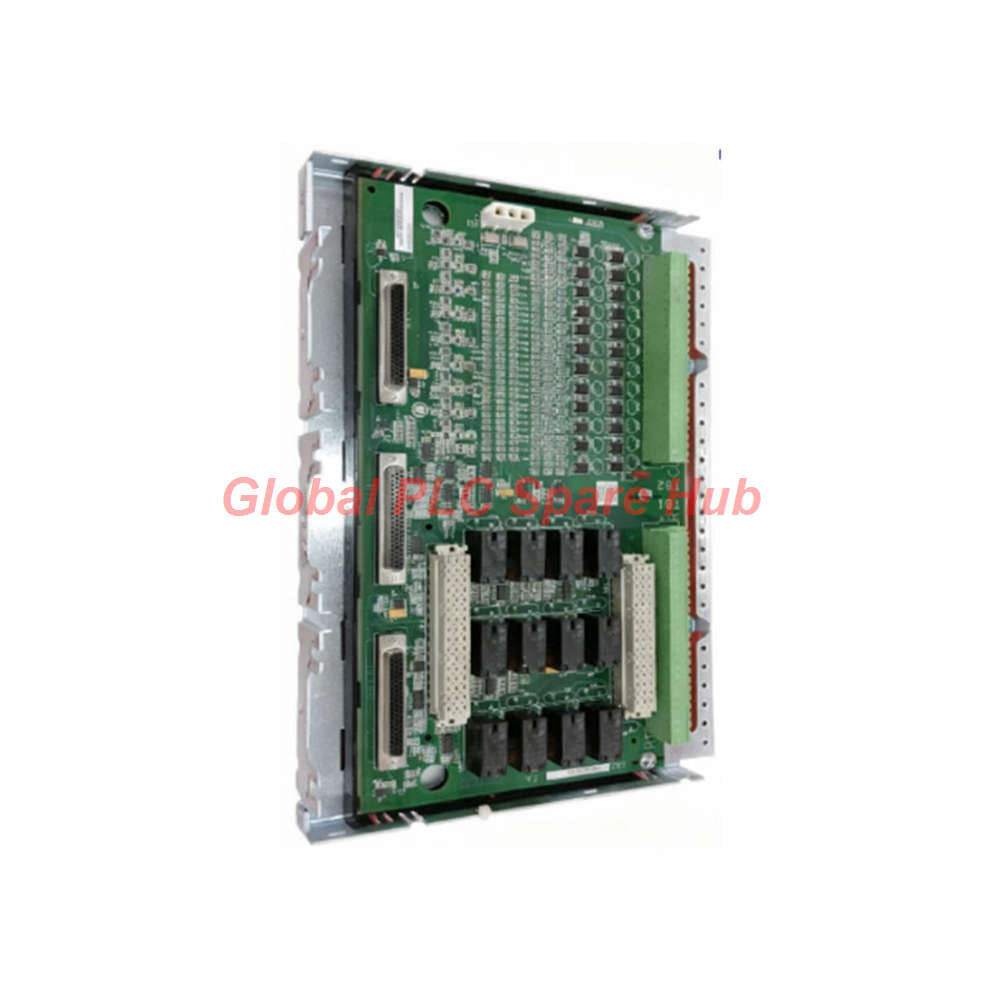

GE IS230TDBTH2A Discrete Input/Output Module Mark VIe TMR System

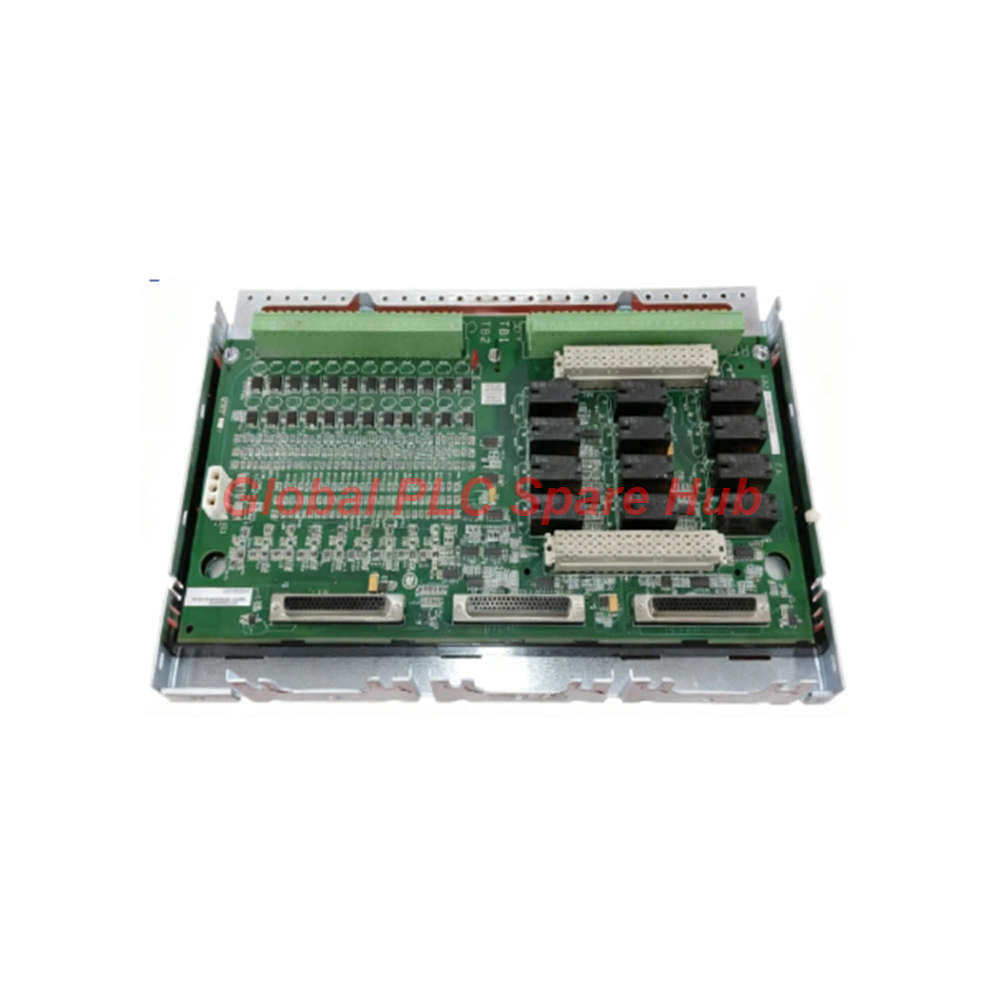

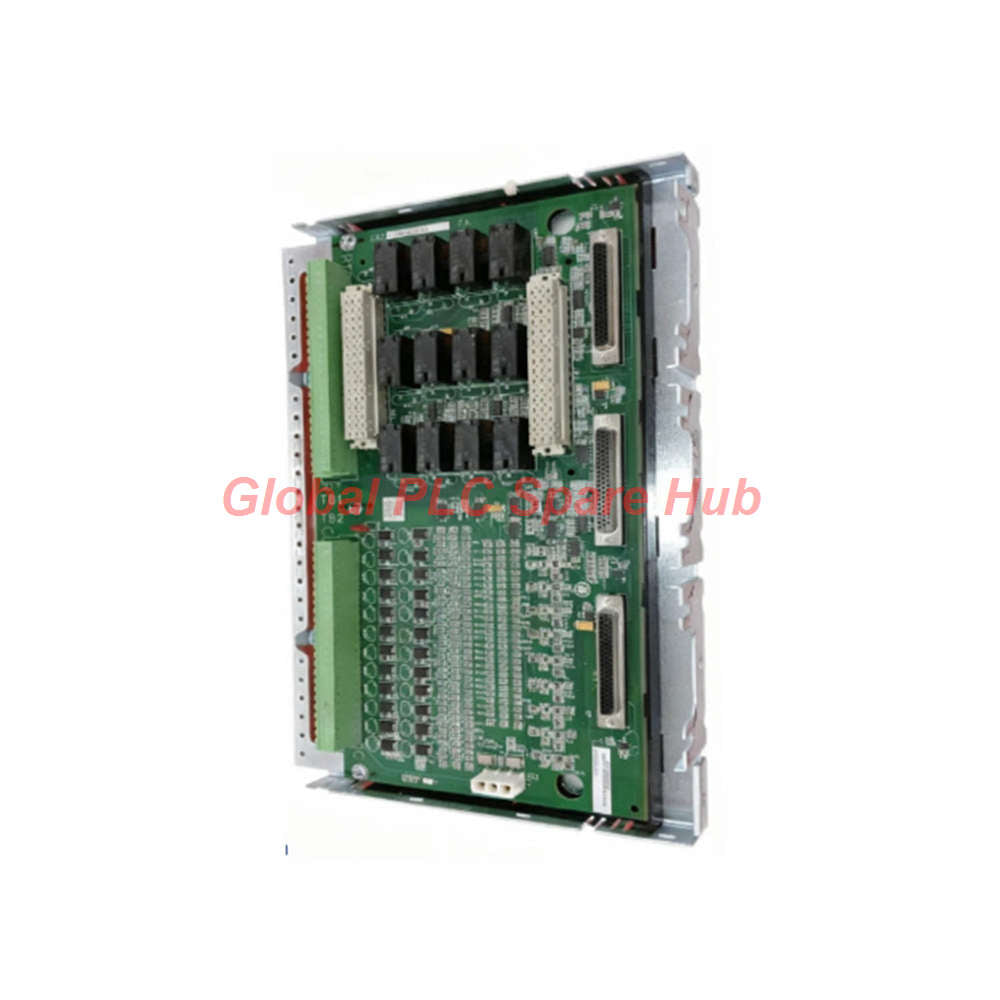

Engineered Precision: The IS230TDBTH2A Discrete I/O Module

The IS230TDBTH2A serves as the backbone for high-availability signal processing within the GE Mark VIe distributed control architecture. This specialized terminal board integrates sophisticated signal conditioning with Triple Modular Redundant (TMR) capabilities, ensuring seamless input/output management for mission-critical turbine operations. Designed for environments requiring rigorous uptime, the IS230TDBTH2A bridges the gap between field-level discrete contact inputs and high-speed controller logic.

Technical Specifications

• Core Part Number: IS230TDBTH2A
• System Series: GE Mark VIe
• Module Architecture: TMR (Triple Modular Redundant) Discrete I/O Terminal Board
• Input Capacity: 24 isolated contact inputs with integrated surge suppression
• Relay Output: 12 Form-C relay outputs with expansion capability (via IS200WROB option card)
• Wetting Voltage Ranges: 24 V, 48 V, 125 V dc
• Environmental Rating: -30°C to 65°C operating range
• Physical Dimensions: 17.8 cm x 33.02 cm (Standard DIN-rail or flat mount)
• Signal Processing: 4 ms input filter with optical isolation for noise immunity

Operational Framework and Connectivity

The IS230TDBTH2A requires three PDIO I/O packs to achieve full TMR functionality, utilizing dedicated JT1, JS1, and JR1 connectors. In a TMR setup, each PDIO pack maintains a unique network path to its respective controller. The board utilizes #18 AWG wiring across two 48-terminal blocks (TB1 for relays, TB2 for contact inputs) to simplify complex system integration. Its surface-mount technology and robust thermal management ensure long-term reliability in harsh power generation environments.

Global PLC Spare HUB's Insight

From an engineering perspective, the IS230TDBTH2A is distinguished by its intelligent circuit protection. The use of resettable polymer PTC fuses on the 24 V dc supply circuits prevents permanent board damage during transient field shorts. When troubleshooting, the board's design allows for granular signal verification through the PDIO pack interface, making it a preferred choice for rapid fault isolation in large-scale turbine control cabinets.

Logistics and Service Excellence

• Reliability Assurance: Every IS230TDBTH2A is backed by a 12-month performance warranty.
• Global Logistics: We provide prioritized shipping via FedEx, UPS, and DHL.
• Rapid Fulfillment: Guaranteed order processing and dispatch within 24-48 hours.

Diagnostic and Application Utility

This module excels in gas and steam turbine sequencing, emergency shutdown systems, and high-frequency discrete monitoring. Its onboard signal filtering effectively mitigates high-frequency noise common in industrial plants, while the threshold setting at 50% of the wetting voltage ensures high noise margin and reliable logic states.

Professional FAQ and Selection Guide

Can the IS230TDBTH2A function with only one PDIO pack?
No, this board is specifically architected for TMR applications and requires three PDIO packs to operate within system specifications.

What is the primary indicator of a field wiring issue on this module?
Persistent contact input errors often point to grounding issues or wetting voltage fluctuations; check for stable external power delivery to the TB2 terminal block.

Are there specific limitations regarding option boards?
Yes, this module is strictly compatible with the IS200WROB board; it will not support WROF or WROG series option cards.

How do I optimize the lifecycle of the unit?
Avoid exceeding the 0.5 A current limit on the 24 V supply and ensure all shielding is terminated properly on the designated bracket to prevent electromagnetic induction.

Selection Advice for Retrofits:
When replacing legacy terminal boards, verify that your existing cabinet footprint matches the DIN-rail mounting requirements and confirm the wetting voltage matches your field sensor output (24V/48V/125V).
