GE IS220PSVOH1B Servo Interface Module | Mark VIe Series Controller

Precision Dynamics: GE IS220PSVOH1B Servo Interface

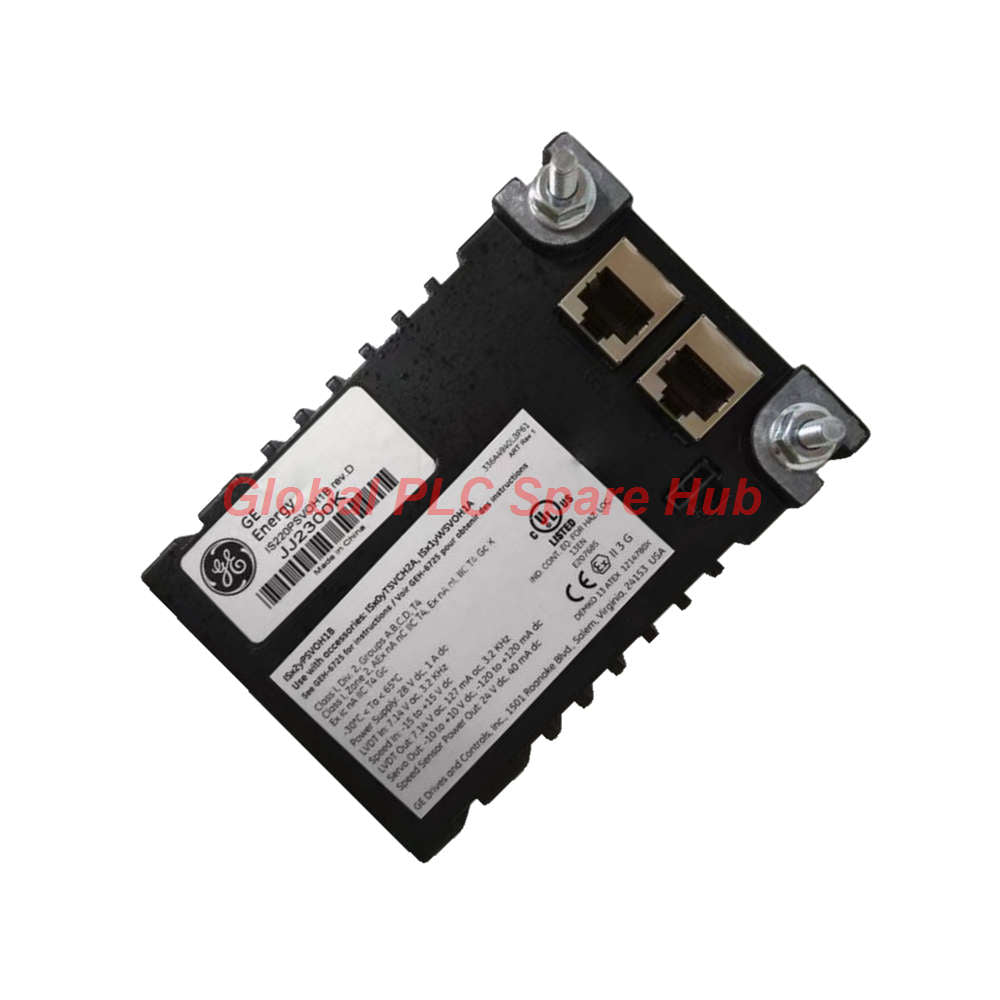

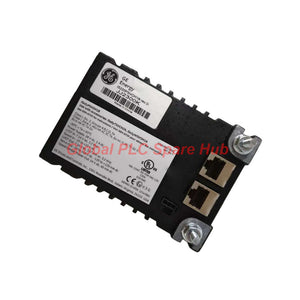

The IS220PSVOH1B is a specialized servo interface I/O pack within the General Electric Mark VIe control ecosystem. Engineered for high-fidelity motion control, this module facilitates the critical electrical interface between redundant I/O Ethernet networks and the TSVO servo terminal board. By leveraging the WSVO driver module, it enables rigorous management of two independent servo valve position loops.

Technical Architecture

• Model: IS220PSVOH1B
• System Class: Mark VIe I/O Pack (Servo Control)
• Network Connectivity: Dual I/O Ethernet support (ENet1/ENet2)
• Control Density: Dual-loop servo valve position management
• Onboard Memory: Integrated flash memory and RAM for parameter storage
• Local Diagnostics: Faceplate LED array for status monitoring (Power, Attn, ENA1/2, Link states)
• Interface Architecture: Hardware-level integration with the WSVO driver module

Global PLC Spare HUB's Insight

In our field analysis at Global PLC Spare HUB, the IS220PSVOH1B is a mission-critical component for steam and gas turbine electro-hydraulic actuators. We emphasize that firmware alignment between the I/O pack and the control application is vital. When upgrading or replacing this module, always verify the specific actuator stroke parameters to prevent initialization faults.

Diagnostic Capabilities & Application

• Real-time Monitoring: Integrated trend recorder tracks actuator response irregularities during calibration.
• Commissioning Modes: Supports automated stroke testing, position ramping, and step-current injection for precise valve tuning.
• Typical Usage: Industrial turbine flow control, heavy-duty hydraulic positioning systems, and high-response valve actuation.

Logistics & Support

• Dispatch: Rapid 24-48 hour fulfillment cycle.
• Carriers: Secure global shipping via FedEx, UPS, or DHL.
• Warranty: 12-month quality assurance on all hardware.
• Configurability: Full compatibility with Control System Toolbox for seamless parameterization.

Professional FAQ

How do I handle an I/O pack mismatch after replacement?
The module supports auto-reconfiguration; ensure the 'Auto-Reconfigure' setting is enabled in the ToolboxST Component Editor before powering up the new unit.

What is the purpose of the manual stroke testing mode?
Manual stroking allows engineers to isolate hydraulic issues by validating mechanical movement against electrical command signals without full system startup.

Is the front-facing infrared port used for field calibration?
No, the infrared port on the faceplate is not utilized; all configuration and diagnostics are performed via the Ethernet interface and ToolboxST software.

Selection Guide: How do I ensure compatibility with my TSVO terminal board?
Always cross-reference your TSVO hardware revision with the IS220PSVOH1B datasheet to ensure impedance matching for your specific servo valve type.

Why should I use the trend recorder during servo tuning?
The trend recorder captures high-speed response data that can reveal jitter or hydraulic lag, which are often invisible to standard diagnostic status indicators.
