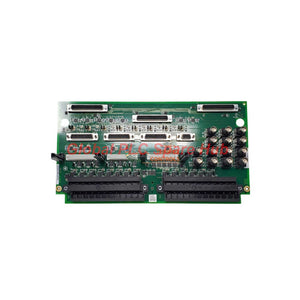

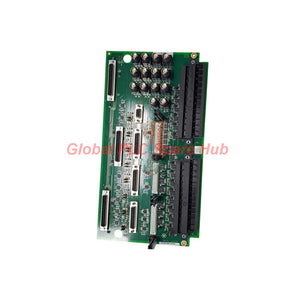

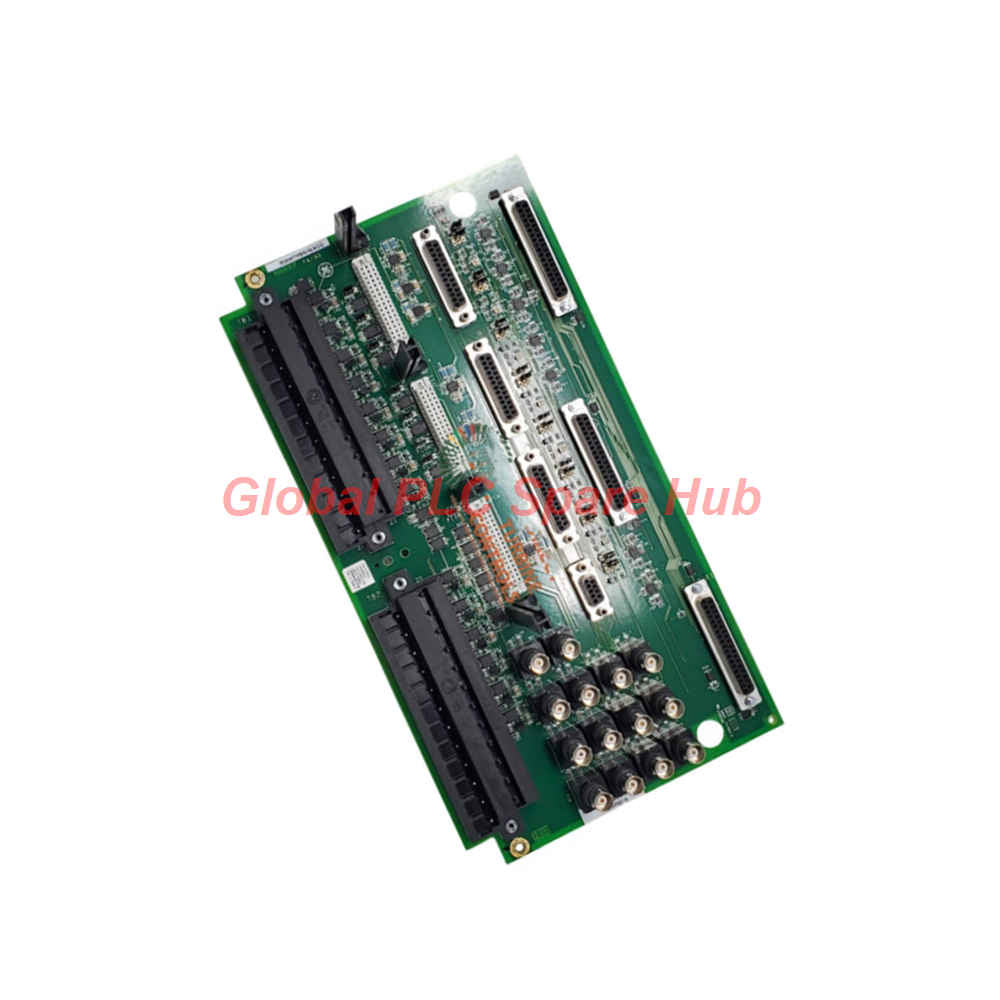

GE IS200TVBAH2AAA Vibration Monitoring Terminal Board Mark VIe Series

Technical Precision & Architecture

The IS200TVBAH2AAA is a dedicated Vibration Input Terminal Board engineered for seamless integration with the GE Mark VIe turbine control ecosystem. This hardware acts as a sophisticated signal interface, bridging the gap between field-installed vibration probes and the PVIB/YVIB I/O pack. Built to handle complex sensor suites, it provides robust EMI shielding and signal conditioning, ensuring that high-fidelity data reaches the control logic without interference.

Engineering Specifications

• Model Number: IS200TVBAH2AAA
• Series Platform: GE Mark VIe
• Input Capacity: 14 Sensor Channels (8 Vibration/Position, 4 Position-only, 2 Reference)
• Signal Compatibility: Proximitors, Seismic (Velocity), Velomitors, Accelerometers
• Processing Accuracy: Amplitude precision ± 0.1%
• Frequency Range: 2 Hz to 20 kHz MPU pulse rate
• Operating Voltage: 18–32 VDC (Internal WNPS conversion for -28V requirement)
• Environmental Rating: -30 °C to 65 °C
• Connectivity: 7 Sub-D pin connectors (9, 25, and 37-pin configurations)

Advanced Diagnostic & System Integration

• TMR & Simplex Versatility: Fully compatible with both high-redundancy TMR architectures and standard Simplex setups.
• Third-Party Connectivity: Integrated BNC and specialized 9/25-pin outputs allow direct interfacing with Bently Nevada 3500 systems and external monitoring hardware.
• Signal Integrity: Features active open-circuit detection and selectable pull-up biasing via JPxA jumpers.
• Onboard Power Conversion: Equipped with three removable WNPS daughterboards to generate necessary negative rail voltages from a standard +28V input.

Logistics & Quality Assurance

• Warranty: Every unit is backed by a 12-month quality guarantee against manufacturing defects.
• Shipping Logistics: Fast, trackable global transit via FedEx, UPS, or DHL.
• Lead Time: Optimized dispatch within 24-48 hours to minimize your facility's operational downtime.

Global PLC Spare HUB’s Technical Insight

The IS200TVBAH2AAA board is engineered for environments where mechanical stability is non-negotiable. Global PLC Spare HUB suggests this terminal board for power plants transitioning to digital vibration monitoring, as it simplifies the connection between complex field probes and modern DCS networks. It is particularly effective in high-speed rotating equipment clusters where EMI rejection is the primary hurdle to clear data acquisition.

Recommended Application Scenarios

• Turbine generator bearing vibration analysis.
• Monitoring seismic velocity and acceleration in power generation compressors.
• Interface management for Bently Nevada 3500 system upgrades.
• High-precision signal conditioning in gas/steam turbine excitation systems.

Professional FAQ & Selection Guide

• Why does this board utilize WNPS daughterboards?
• The Mark VIe system typically operates on positive +28V; the WNPS daughterboards are critical to locally convert this into the -28V power required by certain legacy sensors.
• What diagnostic indicators should I look for regarding signal bias?
• Use the JPxA jumpers to verify that your constant current feed is correctly applied for Velomitor-type sensors; if these are misconfigured, the I/O pack will register a false open-circuit fault.
• Can this board be used for true differential input?
• Yes, by configuring the JPxC jumper to the 'Open' position, you can isolate the PR0xL channel to support true differential signaling instead of a ground return.
• How can I prevent EMI issues when connecting third-party monitoring gear?
• Ensure that you utilize the shield termination points located immediately adjacent to the terminal blocks on the TVBA board to establish a low-impedance ground path.
• Selection Guide: Is the H2 version interchangeable with earlier iterations?
• The 'H2' designates specific revision enhancements; verify your Mark VIe software revision in the ToolboxST application to ensure the terminal board's hardware mapping matches your control logic file.
