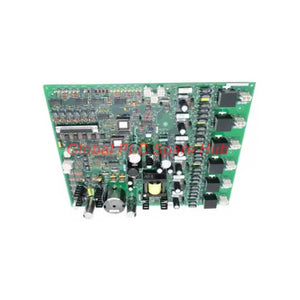

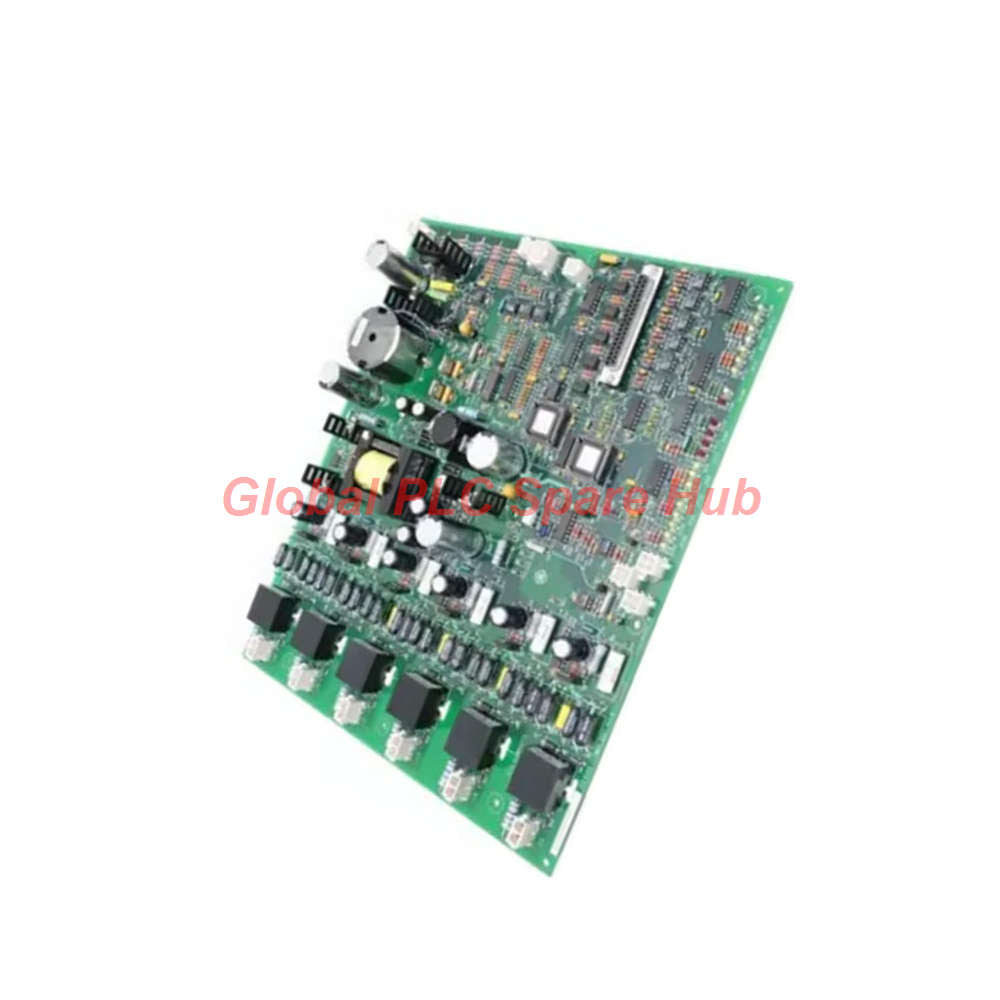

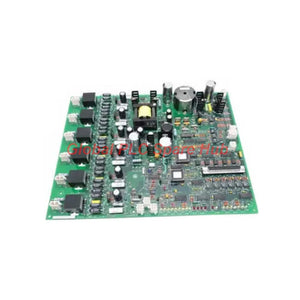

GE EX2100 IS200EHPAG1ABA High Voltage Pulse Amplifier Board
Manufacturer: GE
Product No.: IS200EHPAG1ABA
Condition： In stock
Product Type: Pulse Amplifier Board
Product Origin: USA
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Overview
The IS200EHPAG1ABA functions as a critical high-voltage pulse amplifier within the EX2100 excitation series. This module provides precise firing signals to Silicon-Controlled Rectifiers (SCRs) to ensure stable power conversion. It supports both simplex and redundant system architectures to maintain high availability. The robust design includes integrated diagnostic LED indicators for real-time status monitoring.
Technical Specifications
- Manufacturer: General Electric Industrial Systems
- Series: EX2100
- Model Number: IS200EHPAG1ABA
- Board Type: High Voltage Pulse Amplifier
- Connectivity: 14 total plug connectors (8x 2-plug, 4x 4-plug, 2x 6-plug)
- Component Density: 8 transformers and 10 transistors
- Daughterboard Support: 4 dedicated standoffs for optional expansion
- Diagnostic Indicators: 1 red LED, 5 green LEDs, 16 amber LEDs
- Environmental Resilience: Conformal coated components for protection
- Signal Integrity: Optimized for high-frequency SCR gate drive signals
Installation and Maintenance
- Inspect the board for physical damage before initiating installation.
- Handle the unit by the edges to protect delicate metal film connectors.
- Verify all 14 plug connectors match the system interface requirements.
- Secure the module using the provided mounting points within the EX2100 rack.
- Utilize the diagnostic LED array to verify successful communication post-installation.
- Clean terminal surfaces only with approved electronic-grade solvents.
Compatibility and Logistics
- System Compatibility: Fully compatible with EX2100 excitation control cabinets.
- Shipping Carriers: Reliable delivery via FedEx, UPS, and DHL.
- Lead Time: Orders typically ship within 24–48 hours.
- Package Includes: IS200EHPAG1ABA board and protective anti-static packaging.
- Warranty: Comprehensive 12-month quality assurance warranty included.
Applications and Diagnostics
- Core Application: Essential for industrial power generation excitation systems.
- Diagnostic Capability: Integrated LEDs allow technicians to isolate signal faults instantly.
- Global PLC Spare HUB Insight: This module serves as a critical bridge between digital control logic and high-power physical SCR switching. It ensures precise firing angles for optimal generator voltage regulation.
Frequently Asked Questions
- Question: What should I do if the red LED illuminates on the IS200EHPAG1ABA?
- Answer: A red LED indicates a fault in the firing pulse circuit. Check the SCR gate connections and verify control logic health immediately.
- Question: Can I use this board in a redundant EX2100 configuration?
- Answer: Yes, the board is specifically engineered to support both simplex and redundant system architectures.
- Question: How do I handle the board without damaging the metal film connectors?
- Answer: Always wear an anti-static wrist strap and handle the board by the PCB edges only.
Selection Guide
- Confirm your existing controller version matches the EX2100 series requirements.
- Review your current cabinet layout to ensure enough space for the 14-connector configuration.
- Contact our technical support if you require assistance with model compatibility or installation procedures.
