GE DS200PTCTG1BAA Transformer/Current Transformer Card – Mark V

Technical Precision & Architecture

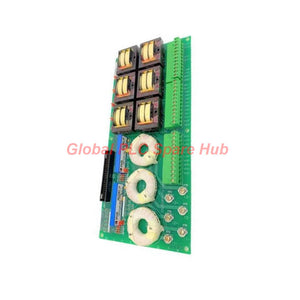

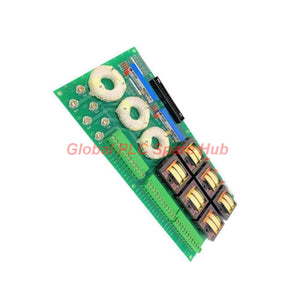

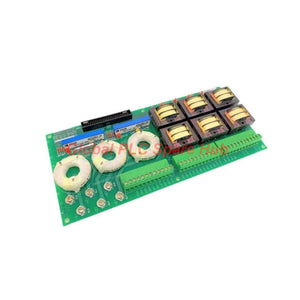

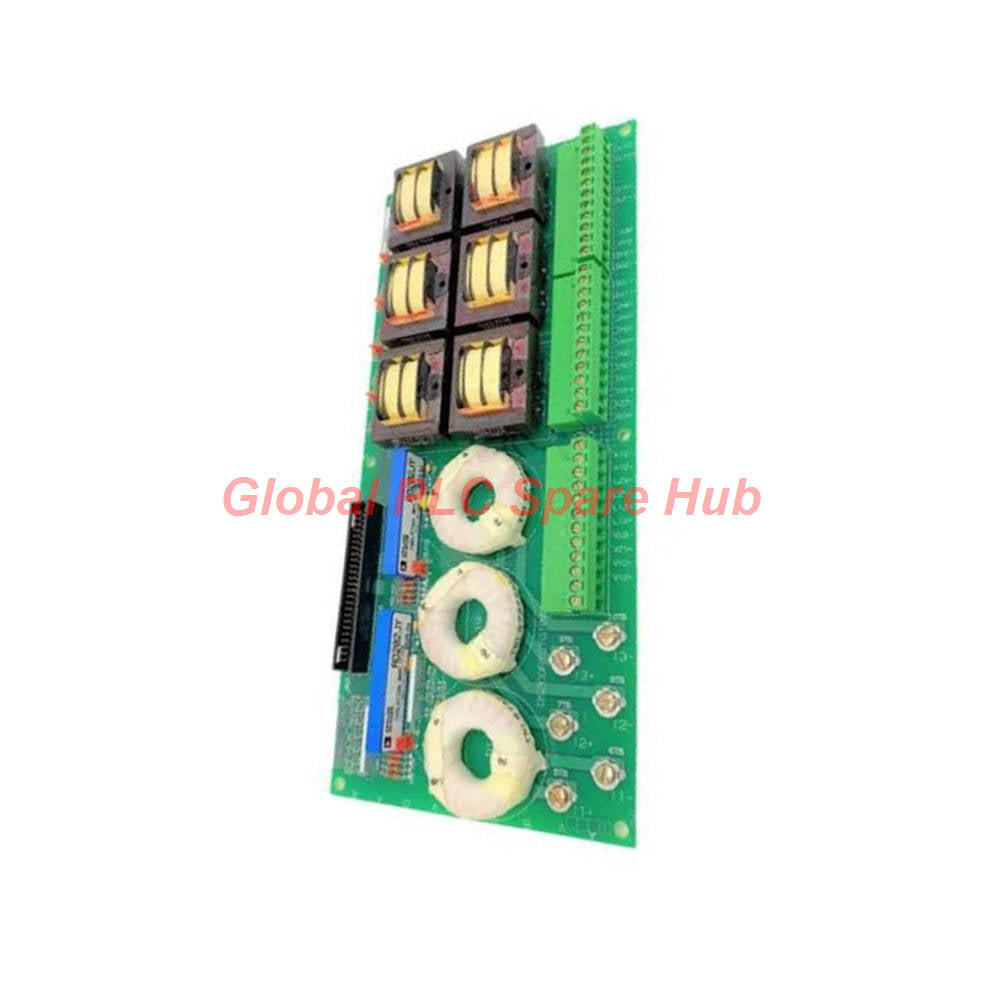

The DS200PTCTG1BAA is a specialized Potential Transformer (PT) and Current Transformer (CT) Signal Conditioner Board engineered for the General Electric Mark V turbine control architecture. This module serves as a critical bridge between high-voltage power sensing elements and low-voltage control circuitry. By scaling, isolating, and conditioning raw input signals, the board ensures that downstream metering and protection relays receive high-fidelity, EMI-shielded data for precise turbine management.

Engineering Specifications

• Part Identifier: DS200PTCTG1BAA
• Series Ecosystem: GE Mark V
• Power Requirements: +5 V DC @ 6 A
• Voltage Input: 120V AC (24V DC Supply Voltage)
• Frequency Range: 60 Hz System Frequency
• Processing Channels: 12 Relay Channels
• Dimensions: 15.9 cm x 17.8 cm
• Compliance: Surface Mount Technology, DIN-rail mounting compatible

Advanced Functional Capabilities

• Galvanic Isolation: Protects sensitive control equipment by creating a robust barrier against high-voltage transients.
• Noise Mitigation: Integrated filtering and signal conditioning remove unwanted harmonic distortion and high-frequency noise.
• Linear Signal Scaling: Maintains direct proportionality between primary inputs and processed outputs for precise A/D conversion accuracy.
• Cable Interference Management: Designed with high-density terminal blocks (72 signal wires) that support complex wiring schemes, provided signal/power cable routing guidelines are strictly followed.

Logistics & Quality Assurance

• Warranty: This product includes a comprehensive 12-month quality guarantee.
• Logistics: Fast, trackable global transit via FedEx, UPS, or DHL.
• Dispatch: Orders are processed within 24-48 hours to ensure minimal operational disruption.

Global PLC Spare HUB’s Technical Insight

The DS200PTCTG1BAA is a legacy-critical component for maintaining turbine protection loops. Global PLC Spare HUB emphasizes that the performance of this card is highly dependent on effective cable bundling practices. We recommend this module for facilities operating Mark V gas and steam turbines where accurate electrical feedback is essential for maintaining SIL/protection thresholds.

Recommended Application Scenarios

• Utility-scale gas and steam turbine generator excitation protection.
• Signal interface management for wind turbine automated drive assemblies.
• Data acquisition systems requiring galvanic isolation from PT/CT inputs.
• Replacement for legacy Mark V signal conditioning cards with B-rated hardware revisions.

Professional FAQ & Selection Guide

• How can I mitigate electromagnetic interference (EMI) on the terminal block?
• Route power cables at right angles to signal cables whenever possible and maintain separation distance proportional to the length of the parallel run; utilize shielded cabling for high-interference zones.
• What does the 'BAA' revision indicate regarding compatibility?
• The 'BAA' signifies a three-fold revision increase from the original parent board; always verify that your control cabinet software supports this specific hardware revision for correct I/O mapping.
• Are the terminal IDs on the board standardized?
• Yes, identifiers such as OUT1, OUT2, COM1, and P15 are consistent with Mark V logic; refer to manual GEI-100161 for exact signal-to-terminal correlation.
• Selection Guide: Can I replace a DS200PTCTG1 parent board with this model?
• Generally, yes, but you must account for the updated revision logic and hardware artwork configurations; ensure your system database is synced for the newer revision's impedance parameters.
• What is the primary sign that the board requires troubleshooting?
• Erratic signal feedback or loss of proportionality in relay channels often indicates a degradation of the onboard capacitors or rectifiers; perform a continuity check on the 72-wire terminal block before concluding hardware failure.
