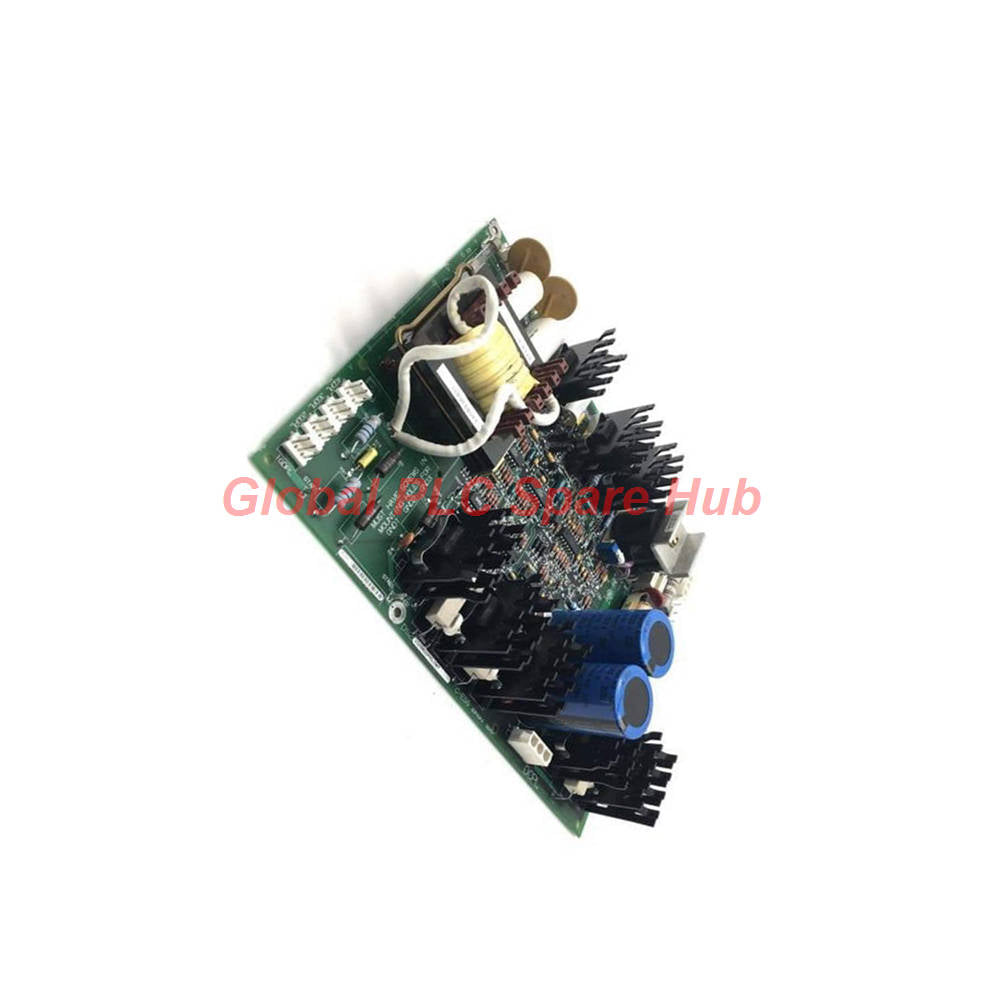

GE DS200GDPAG1AHE Mark V GDPA Power Supply Board

Product Overview

• The GE Mark V DS200GDPAG1AHE functions as a high frequency power supply board.
• General Electric developed this high-efficiency GDPA module for various industrial drives and exciters.
• This board delivers stable 600W to 700W power output.
• It converts input power efficiently using an advanced onboard 27 kHz inverter circuit.

Technical Specifications

• Brand: General Electric (GE)
• Model Number: DS200GDPAG1AHE
• Product Series: Mark V Speedtronic
• Module Type: High Frequency Power Supply Board (GDPA)
• Input Voltage Range (AC): 80 VAC to 132 VAC standard voltage
• Input Voltage Range (DC): 105 VDC to 140 VDC alternative input
• Output Configuration: 50 VAC output transformer and 120 VDC power supply
• Inverter Frequency: 27 kHz high frequency operation
• Isolation Protection: Fully isolated inputs prevent voltage spikes and signal interruptions
• Interference Resistance: Advanced protective circuits eliminate electromagnetic interference
• Environmental Tolerance: Industrial-grade components withstand high ambient temperature fluctuations
• Status Diagnostics: Four onboard LEDs and two neon-style diagnostic indicators

System Compatibility

• The DS200GDPAG1AHE integrates directly into the GE Mark V control cabinet architecture.
• Engineers use this GDPA board across a wide range of GE brand exciters.
• The card perfectly replaces the original parent DS200GDPAG1 model.
• This hardware features functional revisions A and H alongside artwork revision E.

Typical Application Scenarios

• Mark V Speedtronic turbine control system power distribution
• High-frequency power regulation in GE industrial drive cabinets
• Excitation control systems requiring isolated power sourcing
• Critical industrial automation control loops requiring uninterruptible supply voltages

Installation Guidelines

• Verify input voltage match before mounting the DS200GDPAG1AHE module.
• Follow the original GEI-100287 instruction manual parameters precisely.
• Ensure secure grounding of the drive chassis during hardware installation.
• Route control signal wires away from high-voltage AC cables.

Diagnostic Capabilities

• This Mark V board simplifies troubleshooting via its real-time optical indicators.
• The four LED indicators show the instant health of control power circuits.
• The two neon indicators monitor the high-voltage input rectify stages.
• These components provide immediate visual confirmation of normal operational status.

Diagnostics & Maintenance Convenience

• Onboard status lights allow rapid visual inspection without external meters.
• Test points facilitate fast voltage measurements during routine system checks.
• Plug-and-play terminal design ensures rapid module replacement during maintenance.

Shipping & Warranty Terms

• Packaging List: One GE DS200GDPAG1AHE high frequency power supply board inside anti-static packaging.
• Warranty Period: 12-month comprehensive warranty coverage against functional defects.
• Shipping Methods: Express delivery via FedEx, UPS, and DHL.
• Dispatch Time: Orders ship within 24 to 48 hours from order confirmation.

Buying Guide

• Check your existing module artwork revisions to ensure correct system matching.
• Confirm whether your system utilizes AC or DC supply configurations.
• Review the GEI-100287 manual to verify cabinet space requirements.
• Always purchase certified hardware to guarantee long-term system reliability.

FAQ

What is the main upgrade of this board compared to the parent model?

The DS200GDPAG1AHE incorporates functional revisions A and H plus artwork revision E for enhanced performance stability.

Can I run this power supply module using DC voltage?

Yes, this versatile Mark V board accepts DC voltage inputs ranging from 105 VDC to 140 VDC.

How do the onboard neon indicators assist maintenance teams?

The neon indicators illuminate to show active high-voltage presence across the input rectifier stage immediately.

Global PLC Spare HUB's Insight

• From an engineering perspective, the GE Mark V DS200GDPAG1AHE represents a highly resilient power distribution solution.
• The 27 kHz inverter frequency minimizes harmonic distortion inside the drive cabinet.
• Isolated inputs safeguard sensitive control level circuits from damaging power surges.
• This module provides essential reliability for critical power generation assets and heavy industrial drive systems.
