GE DS200FCGDH1BAA Gate Distribution and Status Card | LCI Series
Manufacturer: GE
Product No.: DS200FCGDH1BAA
Condition： In stock
Product Type: I/O Control Board
Product Origin: USA
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Overview

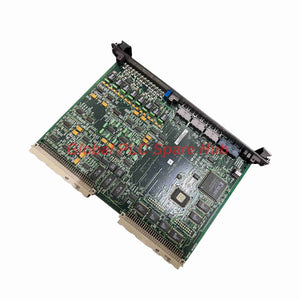

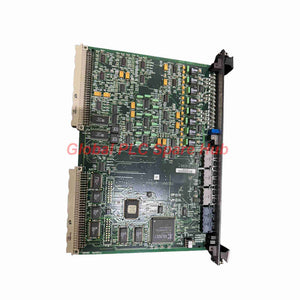

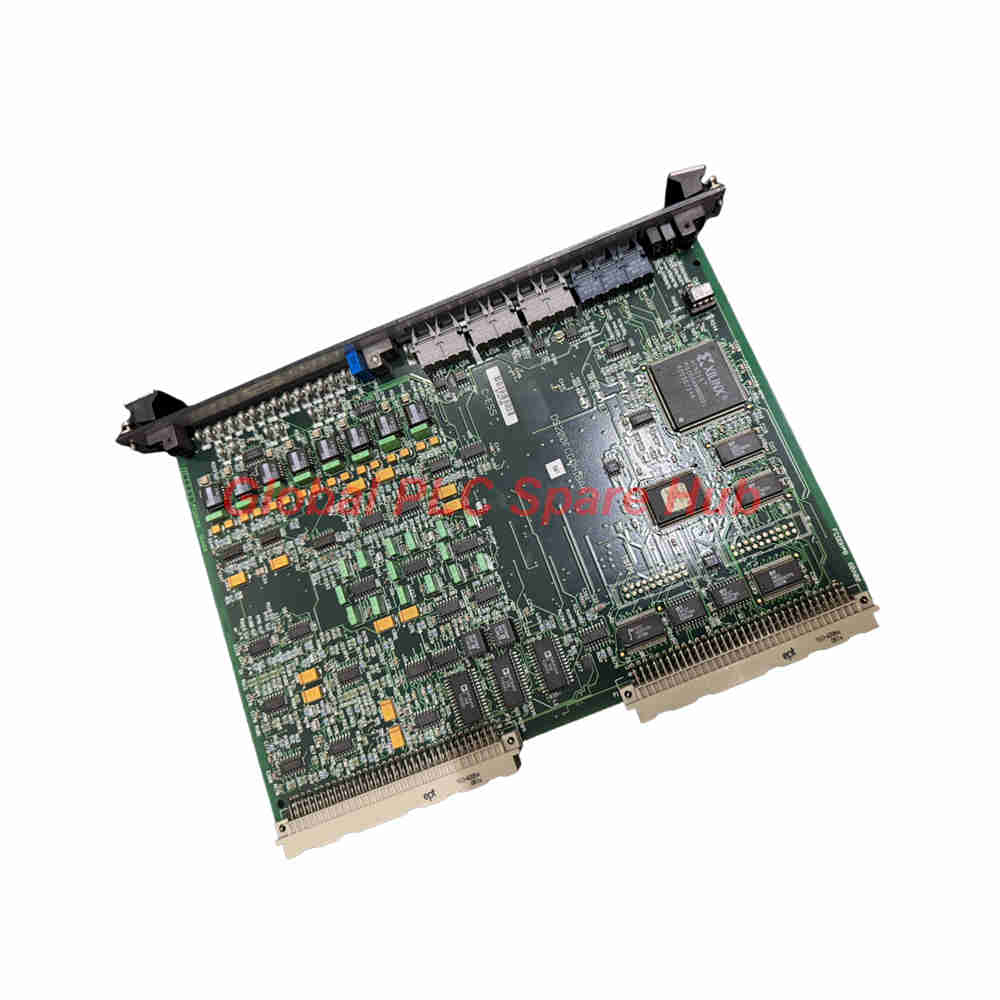

The DS200FCGDH1BAA acts as a sophisticated Gate Distribution and Status Card designed for the GE LCI (Load Commutated Inverter) series. This module facilitates critical communication between the DSPC (Digital Signal Processor Card) and the bridge assembly. It maintains system integrity by managing SCR firing sequences and processing complex feedback data. The unit ensures stable, high-performance control within industrial turbine and drive environments.
Technical Specifications
- Brand: General Electric (GE)
- Model Number: DS200FCGDH1BAA
- Series: LCI
- Product Type: Gate Distribution and Status Card
- Form Factor: 6U VME standard (9.2 x 6.3 inches)
- Frequency Response: Optimized for 6-pulse bridge phase control
- Operating Temperature: Designed for standard industrial control room thermal profiles
- Environment Tolerance: Conformal coated for increased environmental protection
- Interference Resistance: Enhanced shielding via VME backplane integration
- Weight: 12 ounces
- Compatibility: Fully compatible with Speedtronic Mark V control ecosystems
Key Functionality & Operational Excellence
- Precision Firing Management: Directs fiber-optic firing signals to six cell strings via a programmable firing mask register.
- Advanced Diagnostics: Reports real-time health data through the VME backplane for proactive system troubleshooting.
- Bridge Monitoring: Decodes multiplexed cell status and scales critical feedback, including voltage, frequency, and current.
- Safety Heartbeat: Monitors operational status via an 8ms heartbeat limit, triggering automatic safety gating disables upon detection of anomalies.
Installation, Maintenance, & Logistics
- Installation: Utilize the two front faceplate clips for secure VME rack mounting.
- Maintenance: Monitor the "IMOK" green LED on the front faceplate for immediate visual confirmation of board health.
- System Reset: Power-up sequences automatically reset registers to default values to prevent residual data errors.
- Logistics: We prioritize rapid delivery via FedEx, UPS, or DHL with a standard 24-48 hour dispatch window.
- Warranty: This component includes a 12-month quality assurance warranty.
Frequently Asked Questions
What happens if the heartbeat signal exceeds 8 milliseconds?
The system triggers a safety protocol, extinguishes the "IMOK" LED, and disables gating to protect the bridge.
How does the board handle signal distribution?
It uses fiber-optic transmitters controlled by the host CPU via the firing mask register.
Is this board suitable for my existing Mark V system?
Yes, the DS200FCGDH1BAA is engineered specifically for integration into established Speedtronic Mark V and LCI drive architectures.
Buying Guide
When selecting the DS200FCGDH1BAA, verify your existing board revision and ensure your rack configuration supports the 6U VME standard. Always consult the original equipment technical manuals for specific wiring and register configuration requirements. This board is an essential upgrade for maintaining the precise timing and diagnostic capabilities required for non-reversing bridge systems.
Global PLC Spare HUB's Insight
According to Global PLC Spare HUB, the DS200FCGDH1BAA is a cornerstone component for any technician maintaining legacy turbine control systems. Its ability to bridge high-speed signal processing with physical SCR gate distribution makes it irreplaceable in LCI drive applications. We recommend this module for operators focused on maximizing the uptime of heavy industrial power generation and large-scale drive assemblies.
