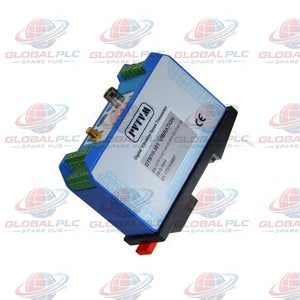

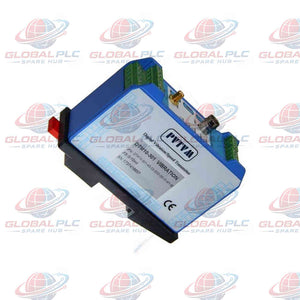

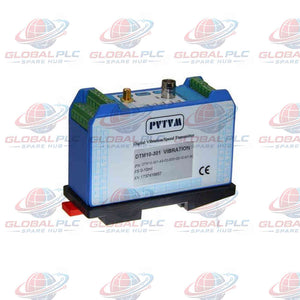

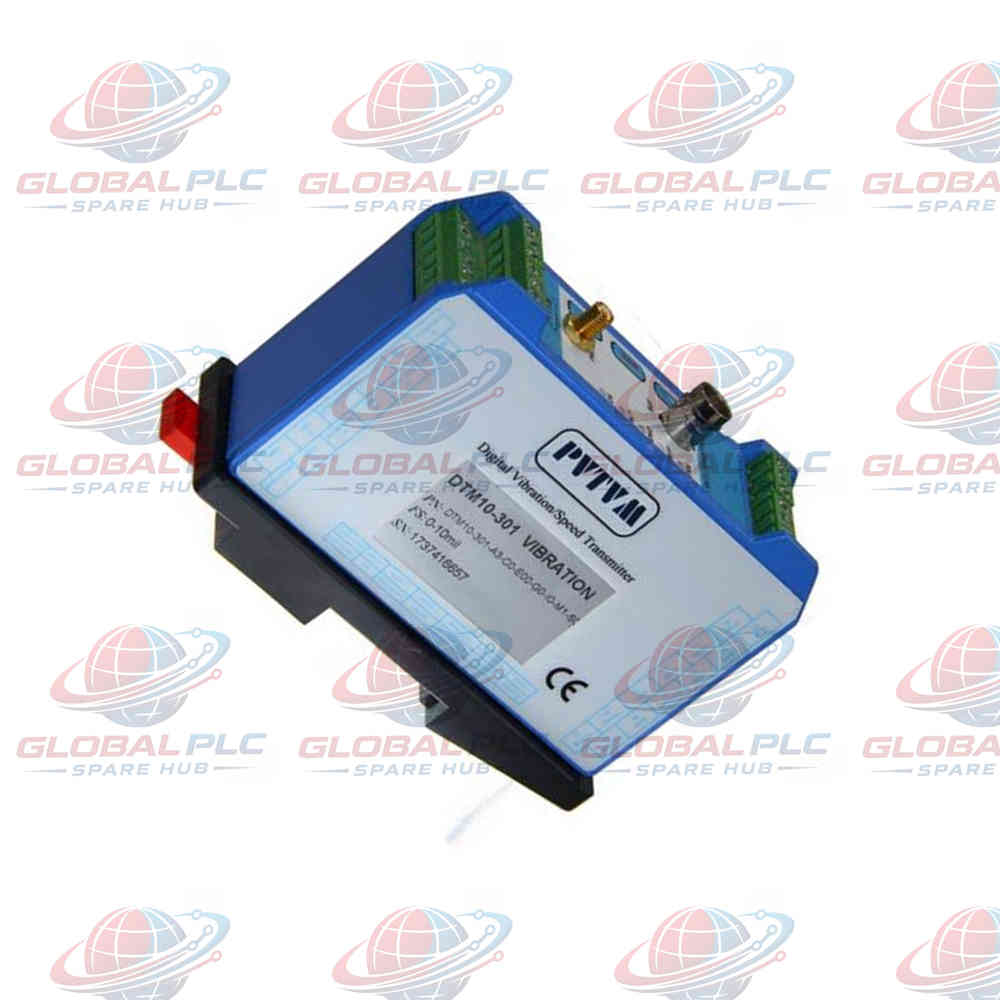

DTM10-502-A5-C1-E13-F01-G1-S1 ProvibTech DTM10 Monitor Speed Transmitter

Engineering Overview

The DTM10-502-A5-C1-E13-F01-G1-S1 represents an advanced DTM10 series distributed transmitter monitor by ProvibTech. This factory pre-configured unit delivers precision speed and phase reference monitoring with a built-in probe driver for critical industrial rotating machinery.

Configuration Breakdown & Suffix Specifications

Technical Architecture & Core Metrics

• Power Supply: 22 to 30 VDC, 150 mA consumption.
• Frequency Response: 4 Hz to 3.0 kHz (Nominal); 0.5 Hz to 100 Hz (Low frequency).
• Proximity Interface Sensitivity: 4 mV/um (100 mV/mil) for 11 mm probes.
• Buffered Output: Unfiltered original signal, 150 Ohm impedance, up to 300 m distance.
• Current Output: Dual 4-20 mA sourced outputs, maximum load resistance 380 Ohm.
• Physical Enclosures: Aluminum case, dimensions 75 mm height, weight 0.9 lb (0.4 kg).

Target Equipment & Industrial Application Scenarios

• Turbine and compressor shaft speed monitoring and phase reference tracking.
• Heavy-duty industrial generator rotor vibration and rotational velocity protection.
• High-speed centrifugal pump and blower mechanical health surveillance.
• Petrochemical plant critical rotating asset condition monitoring systems.

Built-in Diagnostics & LED Status Indicators

The DTM10-502-A5-C1-E13-F01-G1-S1 features five diagnostic LEDs: OK (System health), ALT (Vibration over ALERT threshold), DNG (Vibration over DANGER threshold), BYP (System in bypass mode), and TRX (Digital transmission active via RS485 Modbus RTU).

Global PLC Spare HUB's Insight

Global PLC Spare HUB observes that grounding the shield of the proximity probe cable exclusively at the monitor end prevents ground loops in high-noise turbine environments. Technicians should verify that the 24 VDC power supply ripple stays within acceptable limits to maintain stable 4-20 mA loop outputs during rapid speed transients.

Fulfillment & Quality Assurance

• Global Dispatch: Fast 24 to 48-hour shipping turnaround window.
• Logistics Carriers: Secure international delivery via FedEx, UPS, and DHL.
• Protection Guarantee: Comprehensive 12-month quality warranty included.

Model Selection Comparison & Recommendation

When selecting monitoring hardware, compare your specifications with alternative configurations such as the DTM10-302-A0-C1-E08-G0-S1. While the current DTM10-502-A5-C1-E13-F01-G1-S1 targets high-speed applications up to 50,000 rpm using an 11 mm probe setup, alternative models feature distinct full-scale ranges and probe driver options tailored for lower-velocity machinery.

Technical FAQ & Selection Guide

Question: How does the buffered output behave when connected to external diagnostic tools?

Answer: The buffered output provides an unfiltered, raw vibration and speed signal identical to the sensor sensitivity with a 150 Ohm output impedance.

Question: What is the purpose of the Modbus RS485 interface on this unit?

Answer: It enables digital transmission using Modbus RTU protocol for remote condition monitoring, though it is non-isolated and may require a DTM96 isolator.

Question: Can parameters be adjusted locally without software?

Answer: Yes, local push buttons permit alert and danger set-point configuration along with ZERO calibration directly on the device.

Question: What causes an unexpected alert trigger on industrial turbines?

Answer: Unexpected triggers usually stem from target runout, loose probe brackets, or electromagnetic interference on unshielded signal cables.

Question: How should expansion wiring be handled for relay contacts?

Answer: Ensure resistive loads do not exceed 2.0 A at 24 VDC or 0.2 A at 240 VAC to protect the epoxy-sealed SPDT relay contacts.

Selection Guide: Verify your machinery maximum operational speed, required probe tip diameter (such as 11 mm for E13), and hazardous area rating (CE/CSA/ATEX) before finalizing your configuration of the DTM10-502-A5-C1-E13-F01-G1-S1.
