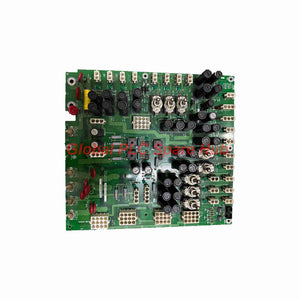

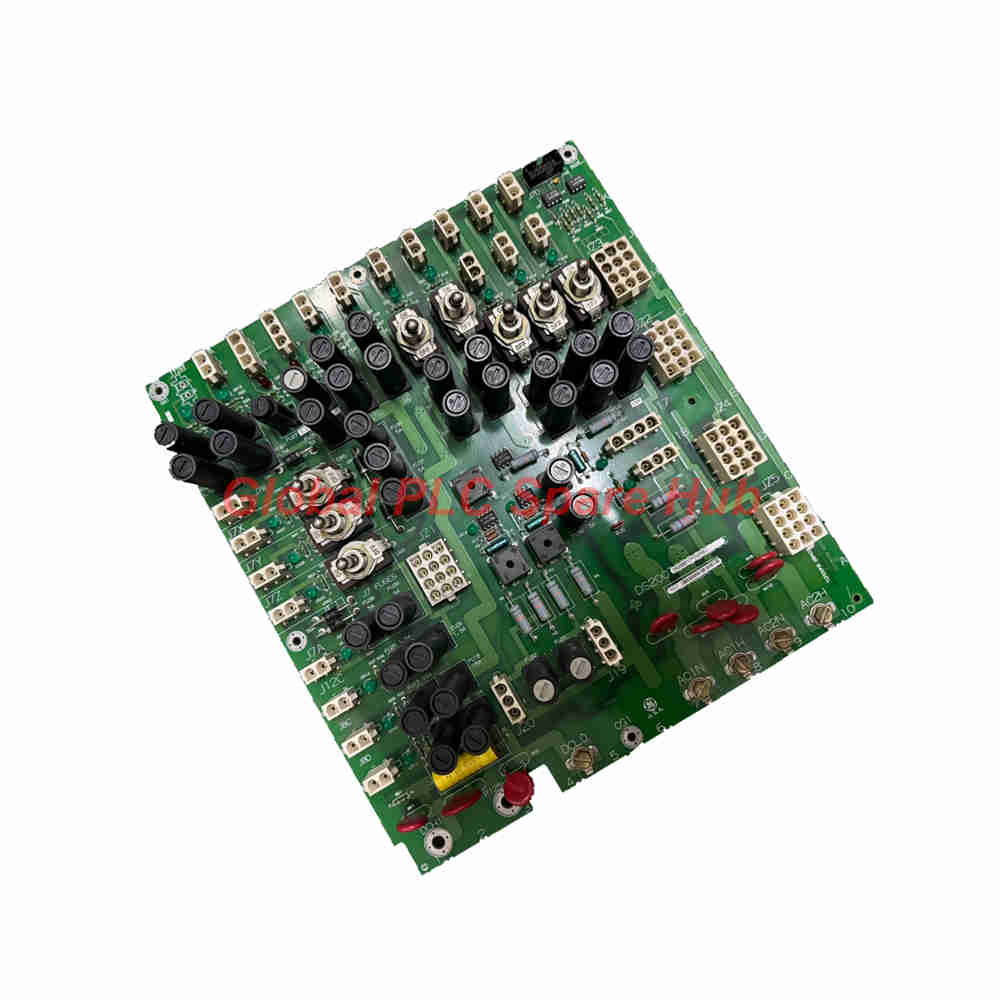

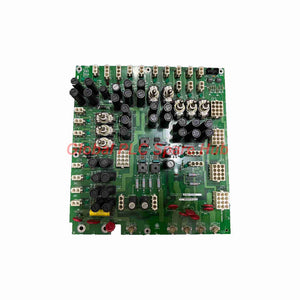

DS200TCPDG2BEC General Electric Mark VI Power Distribution Module

Product Overview

The DS200TCPDG2BEC is a heavy-duty Power Distribution Board (TCPD) designed by General Electric for the Mark VI gas and steam turbine control platforms. Positioned within the core Power Distribution (PD) cabinet, this module acts as the primary backbone for routing critical 125VDC and 120/240VAC power. It distributes steady DC voltage directly to the TCPS boards across multiple I/O cores, the main Control Engine core, and the specialized TCEA protection boards located in the P1 core.

To provide maximum maintenance flexibility, the DS200TCPDG2BEC integrates a specialized array of structural toggle switches. These manual switches enable field engineers to completely isolate and power down individual control cores for service without disrupting power to adjoining operational zones. The architecture also powers auxiliary DTBC and DTBD terminal boards, which drive field solenoid outputs and high-energy ignition transformers.

Global PLC Spare HUB's Insight

The operational excellence of the DS200TCPDG2BEC lies in its versatile dual-source power handling and diagnostic feedback loops. Turbine environments demand continuous availability; this board facilitates direct 125VDC feed-in alongside independent 115/230VAC utility lines routed through the heavy-duty TB1 terminal strip. By utilizing the JPD monitoring connector linked to the CTBA board in the R5 core, the Mark VI system obtains real-time tracking of both AC and DC output stability. This design exposes power drop anomalies before they manifest as critical processor faults, ensuring continuous uptime for power generation infrastructure.

Technical Specifications

• Brand: General Electric (GE)
• Model: DS200TCPDG2BEC
• Series: Mark VI Turbine Control System
• Module Type: Central Power Distribution Board (TCPD)
• Primary DC Input/Distribution: 125VDC nominal via internal bus routing
• AC Auxiliary Interface: 115V/230VAC input for ignition transformer matching and conversion
• Core Power Toggle Switches: 8 heavy-duty rocker switches (SW1 through SW8)
• Grounding Isolation: Physical BJS hardware jumper for isolating external reference ground configurations
• Software Parameters: Zero firmware dependencies (pure hardware-level power execution)
• High-Voltage Outlets: JZ5 connector dedicated to high-energy ignition transformer rails
• Auxiliary Backup Input: JZ4 connector interface for Black Start Inverters and isolated UPS hookups

Hardware Switching & Power Routing Topology

• SW1 / SW2 / SW3: Controls direct 125VDC rail power distribution for the R1, R2, and R3 cores.
• SW4 / SW5: Manages primary power feeds for the R5 core and the centralized R core processor rack.
• SW6 / SW7 / SW8: Controls independent power branches for channels X, Y, and Z within the P1 protection core.
• J1R to J1D Connectors: Routes isolated 125VDC current directly to the respective TCPS boards in the control engine.
• J8A to J8D Ports: Supplies heavy-duty 125VDC solenoid power to the digital I/O sub-cores (Q11, Q21, Q51 via DTBC/DTBD).
• J12A / J12B Headers: Delivers stabilized 125VDC wetting voltage for field contact inputs.

Target Equipment & System Compatibility

• GE Mark VI Speedtronic control panels running triple modular redundant (TMR) processing architectures.
• Utility-scale gas and steam turbine systems requiring dedicated ignition transformer sequencing power.
• Heavy industrial solenoid actuation manifolds and emergency fuel isolation valve loops.
• Black Start generator systems utilizing isolated uninterruptible power supply (UPS) safety buses.

Field Installation & Replacement Procedure

• Completely isolate all incoming external AC and DC power links before handling the cabinet chassis.
• Note the distinct identification labels on the high-voltage wire terminals including AC1N, AC1H, AC2N, and AC2H.
• Apply resilient, high-visibility wire markers to every landing wire matching the exact terminal ID before removal.
• Loosen the terminal screw clamps using an insulated screwdriver to free the existing wire leads.
• Insert the marked wires into the identical terminal positions on the replacement DS200TCPDG2BEC card.
• Tighten the screw terminals securely and exert a gentle physical tug on each conductor to confirm positive retention.

Procurement & Selection Guidance

• Cross-reference the exact alpha-numeric suffix (G2BEC) to confirm correct mechanical mounting and connector layout matching.
• Evaluate external grounding paths; ensure the BJS jumper position matches your plant schematic for reference grounds.
• Verify that external resistor banks are properly sized when using the JZ1 port to step down voltage for TCEA protection cards.

Logistics, Packaging & Warranty

• Package Contents: One static-shielded, factory-tested DS200TCPDG2BEC Power Distribution Card.
• Warranty Protection: Extended 12-month total warranty coverage covering component performance and circuitry.
• Fulfillment Schedule: Secure packaging protocol finishes and dispatches within 24 to 48 hours.
• Shipping Coordination: Express international priority distribution managed through FedEx, UPS, and DHL networks.

Frequently Asked Questions

Question: Are the digital I/O cores Q11, Q21, and Q51 powered directly from this main board?

Answer: No, the digital I/O cores draw their primary power from their associated main I/O core, though this board does supply the specialized solenoid and wetting voltages to their terminal blocks.

Question: When should an instrument technician insert or remove the onboard BJS hardware jumper?

Answer: The BJS jumper should be inserted only when the system utilizes an external reference that requires a solid ground reference point to operate correctly.

Question: What role does the specialized JZ4 auxiliary connector play during a total plant blackout sequence?

Answer: The JZ4 terminal acts as the landing point for an isolated UPS or Black Start Inverter, allowing the turbine control panel to boot independently of the grid.

Question: Why do the lines running to terminals IN1 through IN8 require isolated routing away from high-power phase cables?

Answer: Parallel routing near high-power lines induces capacitive coupling, generating phantom leakage currents that can compromise voltage thresholds.

Question: Does this power distribution module require any initial firmware flashing or software scaling during a field swap?

Answer: No, this is a hardware-driven power distribution card featuring zero software configuration parameters, allowing direct drop-in replacement.
