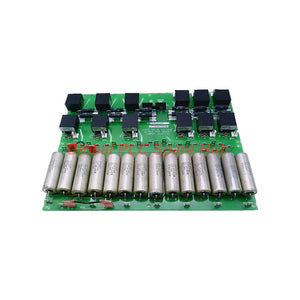

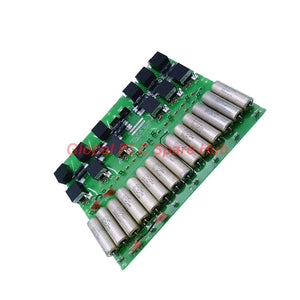

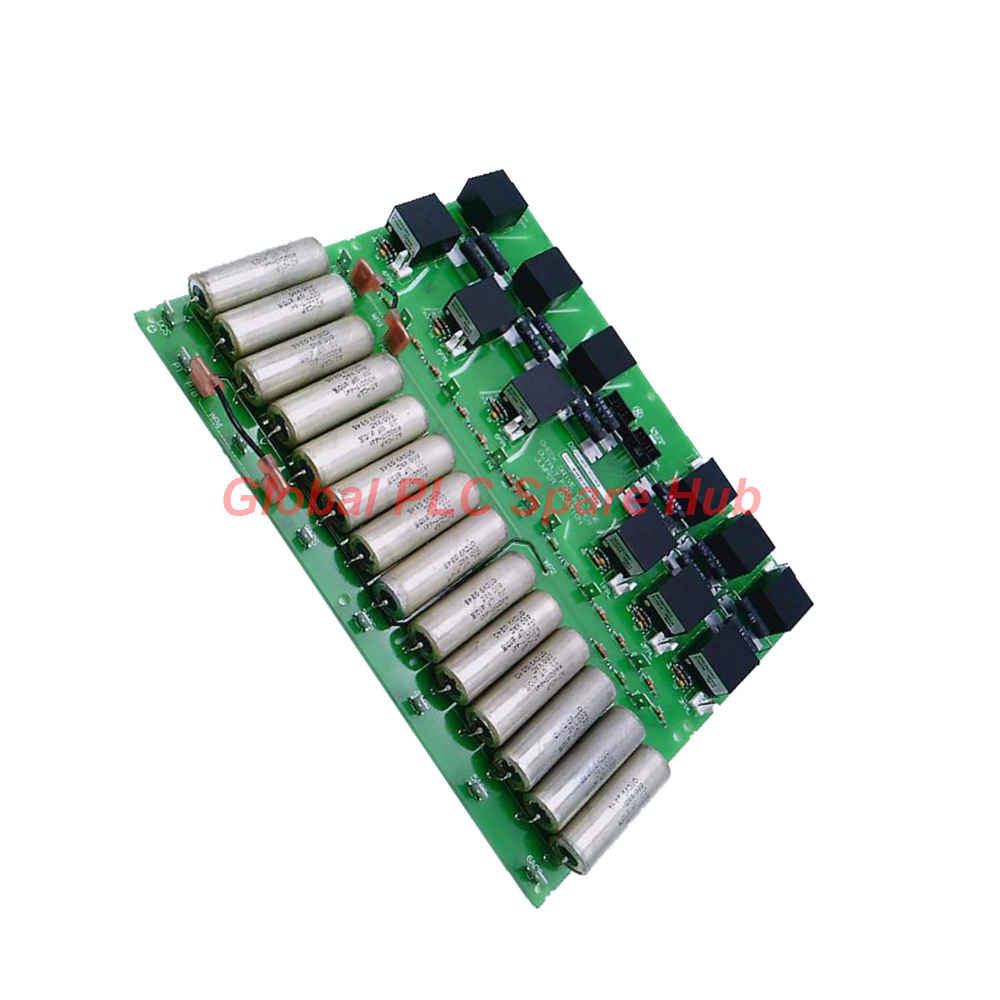

DS200PCCAG1ADB GE EX2000 Power Connect Card | SCR Bridge Interface

Engineering Overview

The DS200PCCAG1ADB functions as a critical Power Connect Card (PCCA) within the General Electric EX2000 and Mark V turbine control and drive excitation architectures. It serves as the primary electrical interface between the control circuitry and the SCR (Silicon Controlled Rectifier) power bridge. By utilizing high-frequency pulse transformers, this module ensures reliable gate-firing signals, facilitating efficient power conversion in both regenerative and non-regenerative drive configurations.

Technical Specifications

• Part ID: DS200PCCAG1ADB
• Series Compatibility: EX2000 / Mark V
• Core Processor: Intel Ultra Low Voltage Celeron 650 MHz
• System OS: QNX Neutrino
• Operating Temperature: 0 °C to 60 °C
• Input Current Rating: 240 V rms
• Dimensions: 15.875 cm x 10.795 cm
• PCB Coating: Industrial Normal Protective Coating

Operational Features & Configuration

• SCR Gate Pulse Delivery: Equipped with 12 specialized plug connectors (1RPL-6RPL and 1FPL-6FPL) for precise forward and reverse gate pulse management.
• Configurable Snubbers: Integrated AC/DC snubber circuits designed to dampen transient voltage spikes; scalability based on drive horsepower requirements.
• Jumper-Selectable Scaling: Features JP1, JP2, WP3, and WP4 wire jumpers to define armature voltage scaling and feedback synchronization based on board group (G1-G10).
• Frame Flexibility: Fully compatible with both C and G style Mark V turbine control system frames.

Logistics & Warranty

• Quality Assurance: Purchase with confidence, backed by our 12-month comprehensive warranty.
• Logistics: Secure, expedited global shipping via FedEx, UPS, or DHL.
• Handling: Priority 24-48 hour order processing to ensure rapid equipment replacement.

Global PLC Spare HUB’s Technical Insight

The DS200PCCAG1ADB is vital for maintaining the longevity of legacy EX2000 excitation systems. Global PLC Spare HUB highlights that proper jumper configuration is the most common factor in successful field deployment. We recommend this card for facilities managing heavy-duty automated drives where precise SCR firing timing is critical to preventing costly production downtime.

Recommended Application Scenarios

• Regenerative drive systems requiring 240V–630V armature scaling.
• Non-regenerative industrial excitation control for steam and gas turbines.
• Large-scale automated drive assembly maintenance.
• Integration within existing Mark V drive carrier cabinets.

Professional FAQ & Selection Guide

• What is the primary indicator of a board group mismatch?
• Incorrect voltage feedback or instability in the SCR bridge usually points to mismatched jumpers (JP1/JP2) for the specific system group (G1-G10).
• How are snubber circuits handled in high-horsepower applications?
• In higher-rated systems, board-level snubbers may be bypassed in favor of external system components; always verify your manual (GEI-100161B) against your specific drive horsepower.
• Is the PCCA board field-repairable for blown gate circuits?
• We advise against component-level board repair; the PCCA uses pulse transformers critical to firing timing, and replacing the module is the standard procedure to ensure system safety.
• Selection Guide: How do I identify the correct board group?
• Locate your existing board's group suffix and system voltage rating (e.g., G1 for 240-630V regenerative systems) and ensure the new module matches these specific parameters exactly.
• Do I need specialized equipment for installation?
• Yes, installation requires high-voltage safety clearance, ESD-compliant wrist straps, and standard drive cabinet access tools; follow your facility's lockout/tagout procedures during replacement.
