DS200IPCDG1ABA GE Mark V IGBT Snubber Card Drive Protection
Manufacturer: GE
Product No.: DS200IPCDG1ABA
Condition： In stock
Product Type: Snubber Card
Product Origin: USA
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout

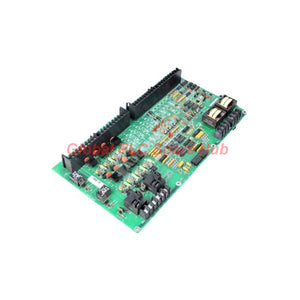

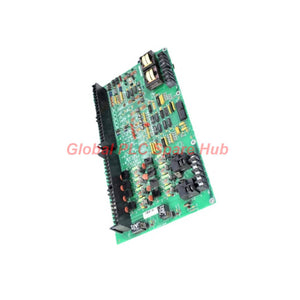

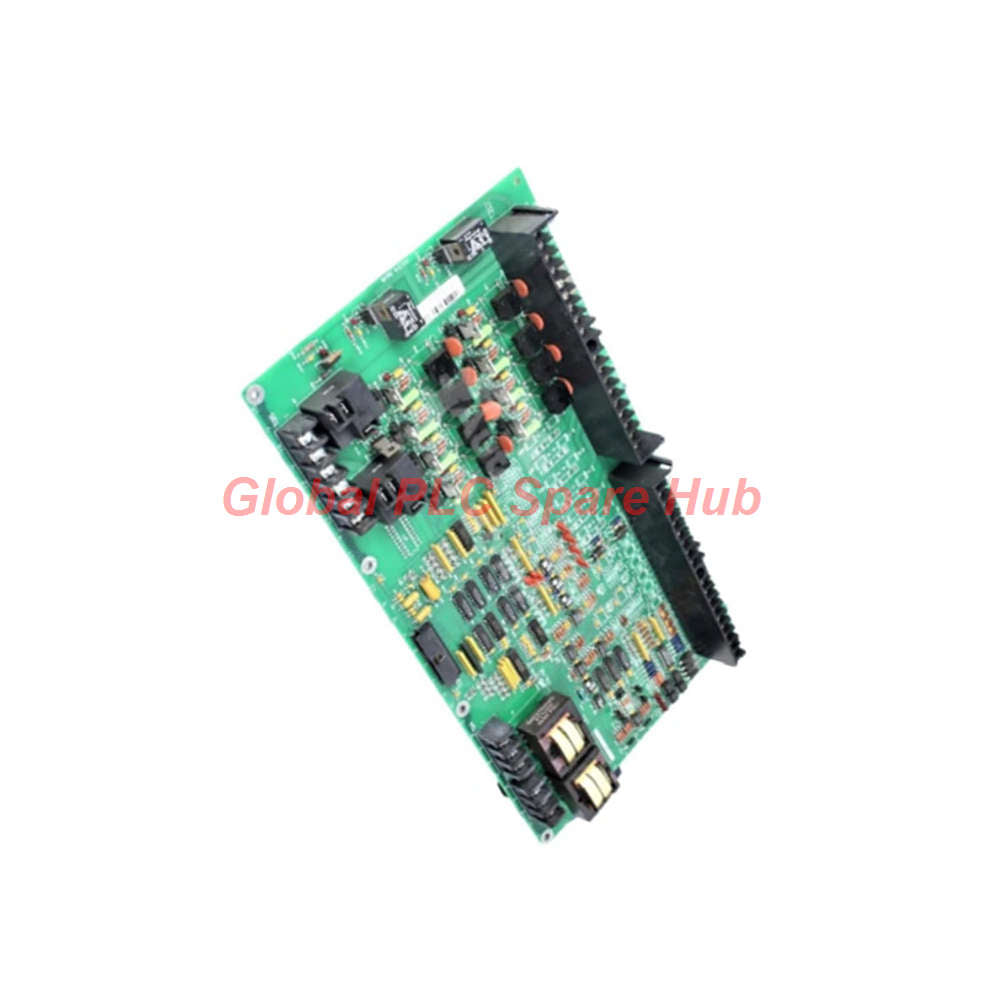

GE DS200IPCDG1ABA Mark V IGBT P3 DB Snubber Card
The DS200IPCDG1ABA is a precision-engineered IGBT P3 Dynamic Braking Snubber Card, specifically designed for General Electric Mark V control systems. It plays a pivotal role in protecting power electronics by suppressing harmful voltage spikes during high-speed switching operations.
Technical Specifications
- Manufacturer: General Electric
- Series: Mark V
- Part Number: DS200IPCDG1ABA
- Function: IGBT Snubber / Transient Voltage Suppression
- Connection: 1 x 4-pin connector
- Installation: 7-screw mounting system
Safety & Environmental Requirements
- Mandatory Protocol: Work must be performed by qualified personnel only.
- Live Power: Always assume the system is live; verify total energy dissipation before contact.
- Environment: Keep the area free of moisture, oil, and grease to prevent arc-overs.
- Assistance: Follow the "two-person" rule for all maintenance procedures.
Global PLC Spare HUB's Insight
The DS200IPCDG1ABA is a key defensive asset for heavy-duty drive cabinets. It is perfectly suited for industrial applications involving dynamic braking, such as large-scale material handling, centrifugal pumps, and metal processing equipment. We recommend replacing this card as part of a proactive maintenance schedule to prevent catastrophic IGBT failure.
Logistics & Quality Assurance
- Warranty: 12-month performance guarantee.
- Dispatch: Rapid shipping within 24-48 hours.
- Carriers: FedEx, UPS, and DHL.
Professional FAQ
What is the role of this snubber card?
It protects IGBTs by absorbing high-frequency voltage transients created during braking, ensuring long-term semiconductor health.
How do I diagnose a potential snubber card issue?
Look for frequent IGBT trips or thermal damage on the board; verify electrical continuity across the snubber network during machine downtime.
Can I install this alone?
No, safety regulations and industrial best practices mandate that you work with an assistant to manage emergency stop procedures.
What is the significance of the 7-screw layout?
These screws provide both the physical mounting and the critical low-resistance electrical path required for effective transient suppression.
Selection advice for the DS200IPCDG1ABA?
Always verify your drive’s "P" rating (e.g., P3) to ensure this snubber card is compatible with your specific power module configuration.
