DI814 ABB S800 Series Digital Input Module 3BUR001454R1
Manufacturer: ABB
Product No.: DI814
Condition： In stock
Product Type: Digital Input Module
Product Origin: SE
Payment: T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Overview

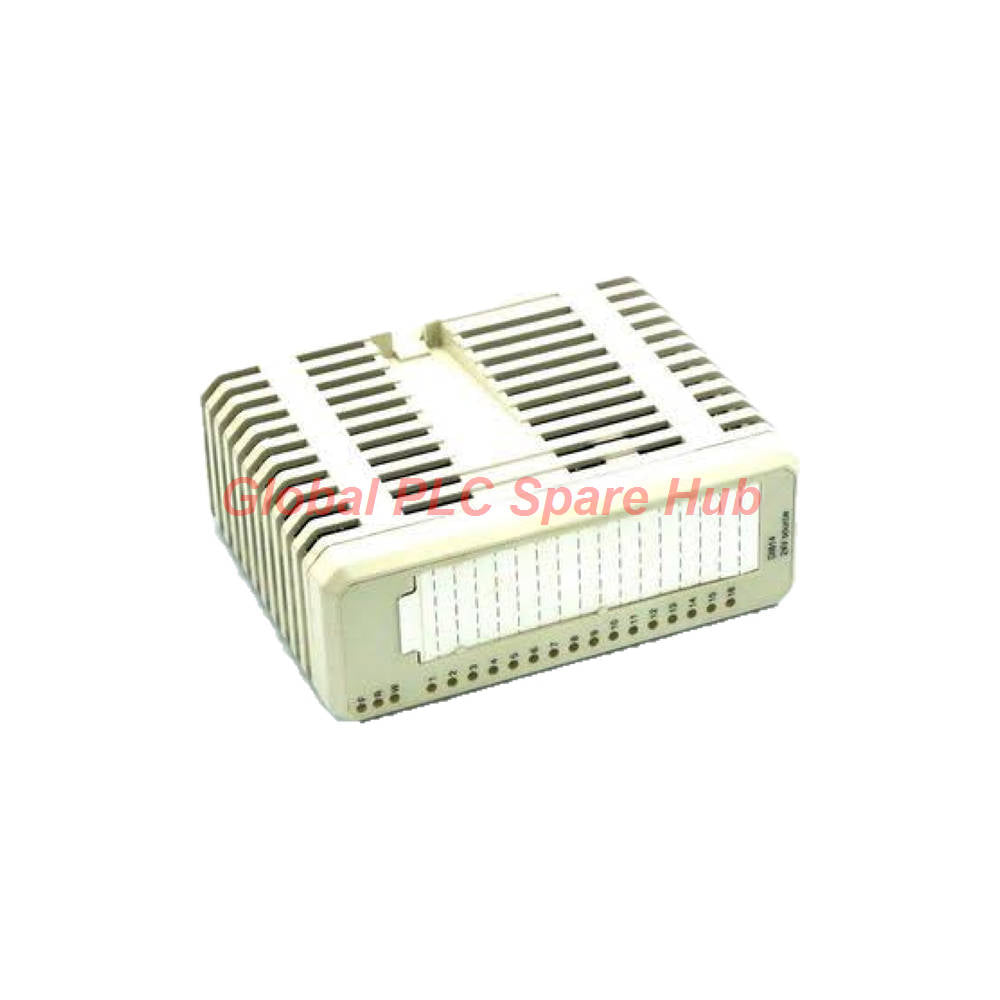

The DI814 (Catalog No. 3BUR001454R1) is a high-reliability Digital Input Module engineered by ABB for the S800 I/O Series. This 16-channel module features two individually isolated groups with built-in voltage supervision, designed for demanding process automation environments requiring robust 24V DC signal monitoring.
Technical Specifications Matrix
| Brand | ABB |
| Model / Article Number | DI814 / 3BUR001454R1 |
| Product Series & Type | S800 I/O / Digital Input Module |
| Number of Channels | 16 channels (divided into 2 isolated groups of 8) |
| Input Signal Specification | 24 VDC current sourcing (18 to 30 VDC operating range) |
| Input Voltage Thresholds | Off-state: -30 to 5 VDC; On-state: 15 to 30 VDC |
| Input Impedance & Current | 3.5 kΩ impedance; 6 mA typical input current at 24 VDC |
| Selectable Filter Times | Configurable digital filtering (2, 4, 8, or 16 ms) |
| ModuleBus Power Consumption | 50 mA at +5 VDC (0 mA at +24 VDC ModuleBus and external) |
| Operating Temperature Range | 0°C to +55°C (32°F to +131°F); G3 harsh corrosion protection |
Configuration and Architecture Breakdown
Installation Guide
Mount the DI814 module onto an approved S800 Modular Terminal Unit (MTU) such as the TU810V1. Verify that the mechanical keying code matches (BE). Ensure proper vertical or horizontal clearance, noting that vertical mounting in compact MTUs restricts maximum ambient temperature to 40°C (104°F).
Commissioning and Maintenance Convenience
Selectable digital filter times (2 ms to 16 ms) allow technicians to tune signal response and suppress field noise chatter easily. Front panel LED indicators provide clear visual status for module run, warnings, faults, and individual channel states ("0" or "1").
Compatibility Notes
This module supports standard S800 DIN rail mounting frameworks and communicates seamlessly over the ModuleBus. It complies with marine standards including DNV, BV, LR, and ABS, alongside hazardous location ratings (Class I Division 2 / Zone 2).
Certifications and Warranty Terms
Manufactured under strict ISO quality systems, meeting EN 61010-1 and UL 61010-1 electrical safety standards with ISA-S71.04 G3 corrosion resistance. Backed by a comprehensive 12-month factory warranty.
Shipping and Logistics
Global fulfillment is executed rapidly through premier carriers including FedEx, UPS, and DHL. Verified stock items dispatch within 24 to 48 hours to minimize plant turnaround downtime.
Application Scenarios and Diagnostics
Deploys effectively in oil and gas refineries, chemical processing plants, and offshore marine skids requiring high-density 24V DC discrete monitoring. Built-in process voltage supervision instantly detects field supply dropouts and transmits channel error flags directly over the ModuleBus.
Global PLC Spare HUB's Insight
Our instrumentation engineers deployed the DI814 in a offshore oil production platform subject to heavy electromagnetic interference from variable frequency drives. Configuring the digital input filter to 16 ms completely eliminated erratic signal bouncing on long 400-meter field runs, while the group voltage supervision feature alerted operators immediately when an upstream auxiliary fuse failed.
