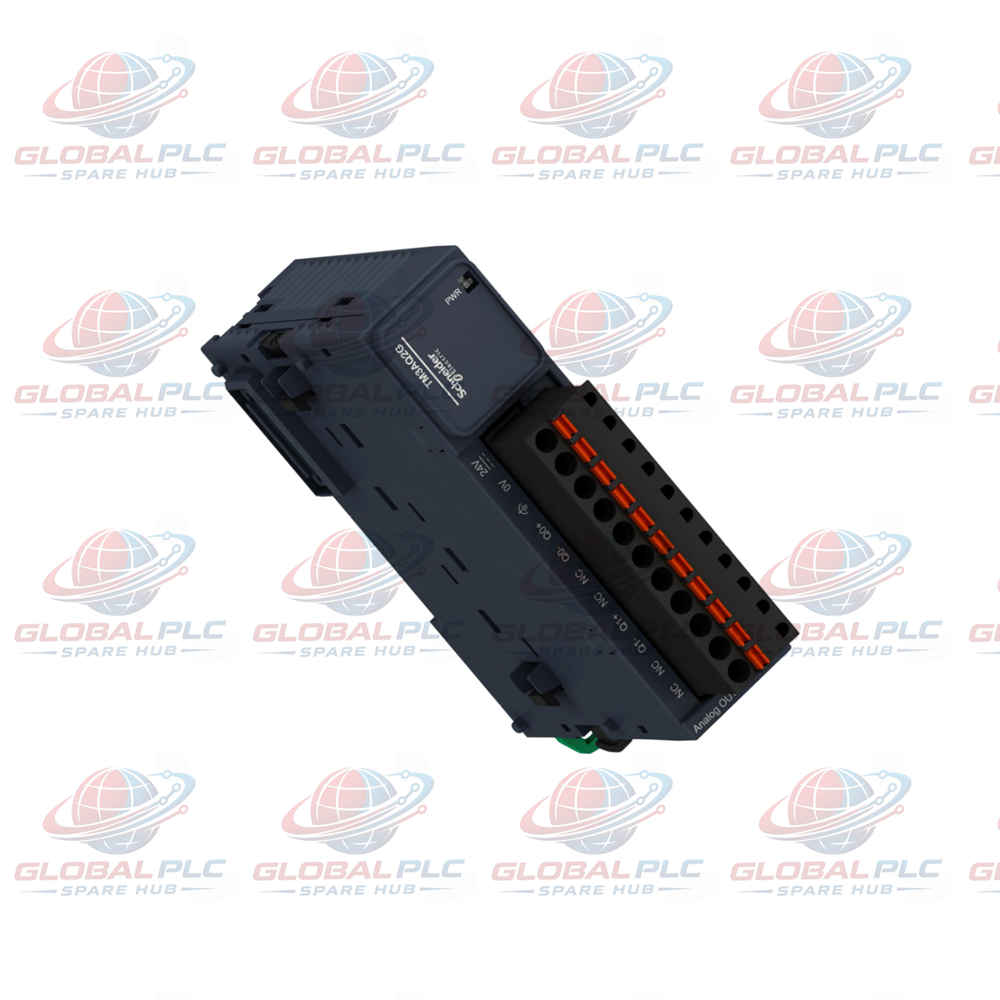

Buy TM3AQ2G Schneider Electric Modicon TM3 Analog Output Module
Manufacturer: Schneider Electric
Product No.: TM3AQ2G
Condition： In stock
Product Type: Analog Output Module
Product Origin: FR
Payment: T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Engineering Overview
The **TM3AQ2G** is a high-precision analog output expansion module developed by **Schneider Electric** under the **Modicon TM3** series. Designed to integrate smoothly with modern controller platforms, it provides dual independent analog channels with spring-clamp terminal connections for fast and secure industrial wiring.
Technical Architecture & Specifications
| Manufacturer & Series | **Schneider Electric** **Modicon TM3** |
| Model Designation | **TM3AQ2G** |
| Output Channels | 2 analog output channels (configurable for voltage or current) |
| Output Signal Types | -10...10 V, 0...10 V tension, 0...20 mA, and 4...20 mA current loops |
| Converter Resolution | 11 bits plus sign (12 bits total) |
| Conversion Time | 1 ms + 1 ms per active channel + 1 controller cycle |
| Absolute Accuracy Error | +/-0.1% of full scale at 25 °C; +/-1% full scale across operating envelope |
| Electrical Isolation | 500 V AC between outputs and internal logic; 1500 V AC between outputs and power supply |
| Physical Dimensions | 90 mm (H) × 23.6 mm (W) × 70 mm (D); Weight: 0.1 kg |
Global PLC Spare HUB Insight & System Integration Strategy
Global PLC Spare HUB specialists emphasize that matching controller compatibility is vital when deploying the **TM3AQ2G** module. It interfaces directly with Modicon M221, M241, and M251 logic controllers. When wiring long analog loops, engineers must utilize shielded twisted-pair cables limited to 30 meters and maintain proper grounding discipline to prevent induced electromagnetic noise from distorting output scaling.
Target Equipment & Application Capabilities
System integrators deploy this analog module in automated process control loops, variable frequency drive (VFD) speed referencing setups, proportional valve regulation, and temperature control systems. Its fast conversion speed and reliable spring-clamp termination enable advanced diagnostic capabilities, closed-loop feedback tracking, and real-time actuation monitoring in harsh manufacturing environments.
Logistics, Warranty & Express Fulfillment
- Courier Network: Rapid and secure global dispatch via FedEx, UPS, and DHL.
- Shipping Window: Prompt order processing and fulfillment within 24 to 48 hours.
- Warranty Assurance: Fully backed by a robust 12-month industrial replacement warranty.
- Packaging Standards: Factory-sealed anti-static packaging designed to prevent mechanical transit damage.
Frequently Asked Questions
Q: What controller families support direct bus connection with the **TM3AQ2G**?
A: It integrates seamlessly with Schneider Electric Modicon M221, M241, and M251 programmable logic controllers.
Q: How does the spring-clamp terminal design benefit field wiring?
A: The 5.08 mm pitch spring terminal blocks provide quick, vibration-resistant wire insertion without requiring torque screwdrivers.
Q: What is the maximum permissible load impedance for current output modes?
A: The module supports a maximum ohmic load impedance of 300 ohms for current loops and 1 kohm for voltage outputs.
Q: How should maintenance engineers manage thermal limits in high-density enclosures?
A: Ensure horizontal installation keeps ambient temperatures between -10°C and 55°C, or limit to 35°C if mounted vertically.
Q: What selection factors determine whether to use voltage or current output configurations?
A: Choose current loops (4-20 mA) for long-distance signal transmission to eliminate voltage drop degradation over extended wire runs.
