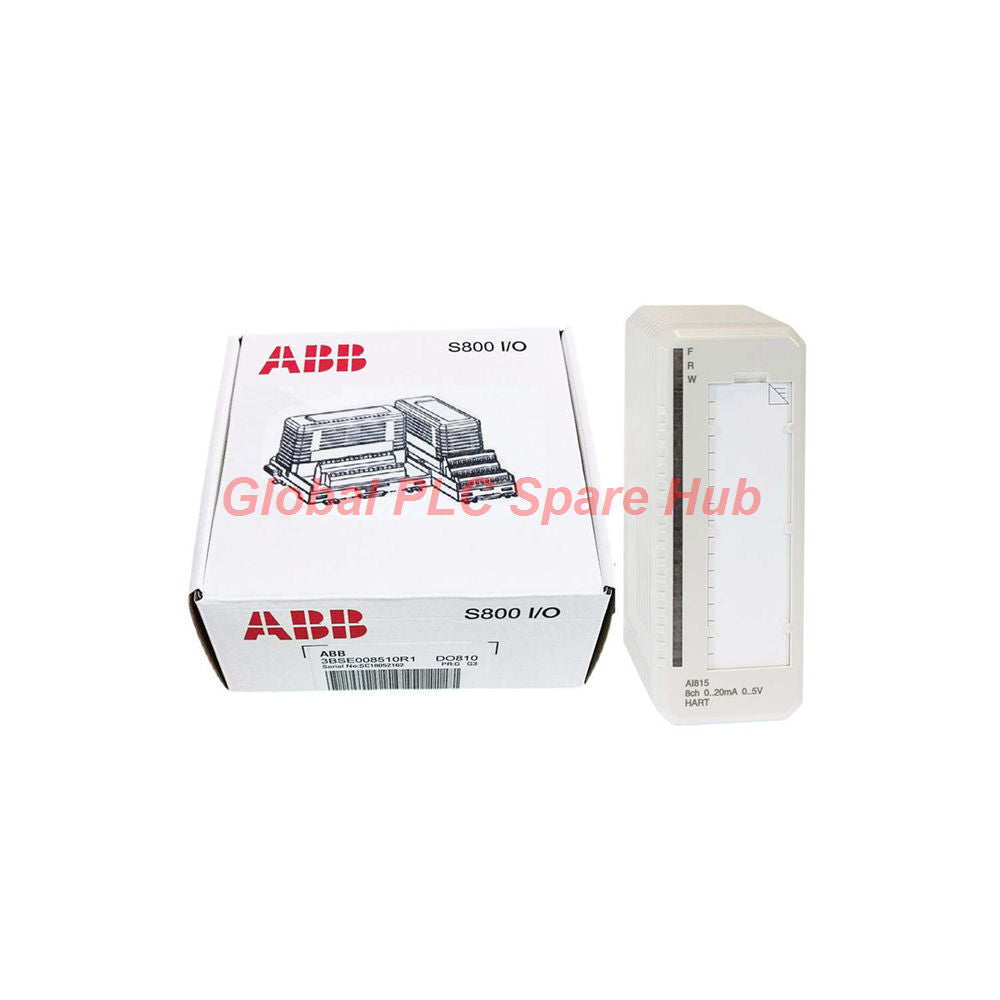

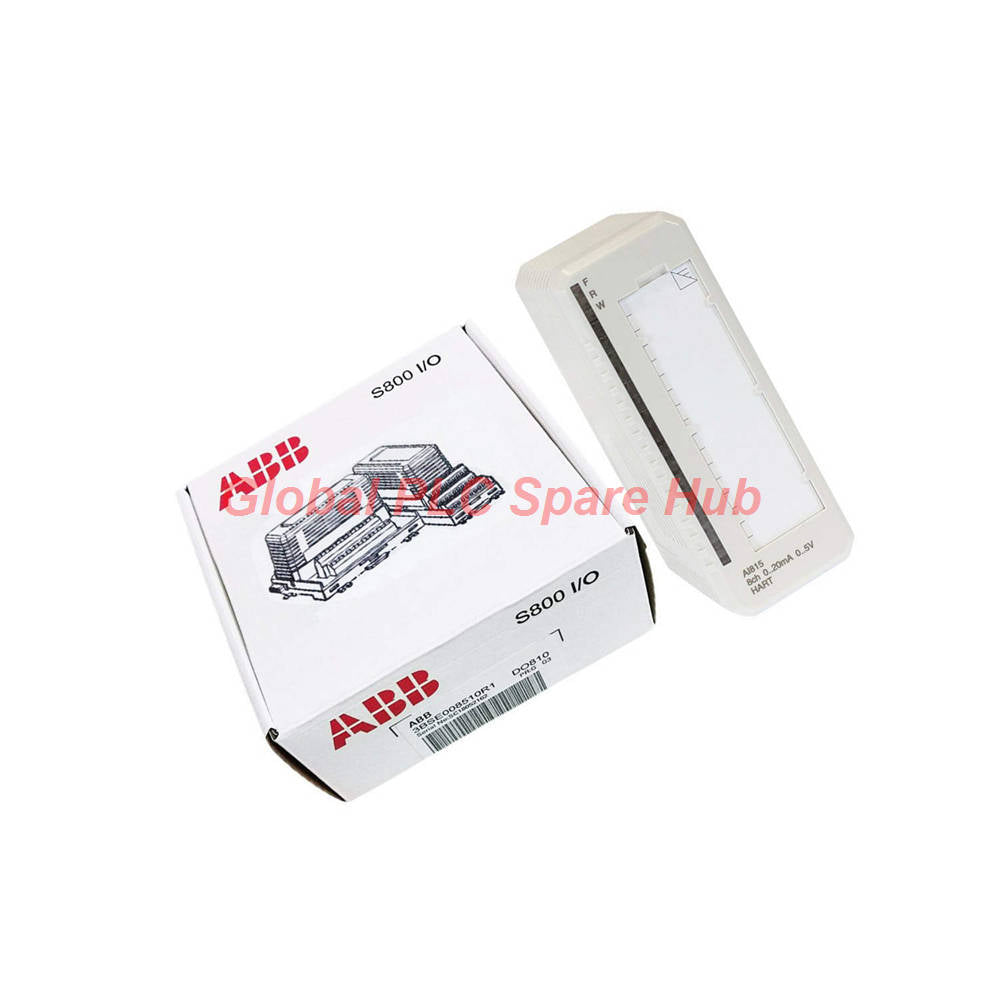

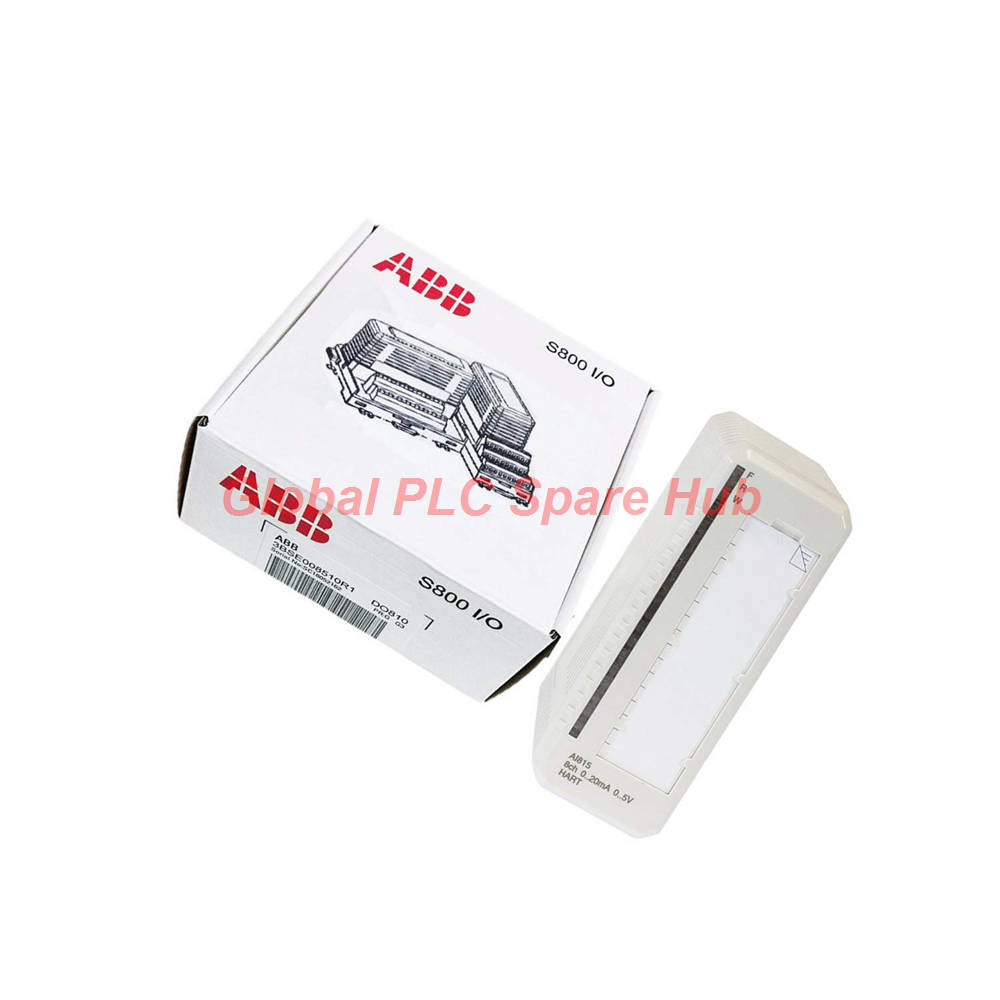

Distributed control architectures running ABB S800 I/O demand high-integrity analog signal conditioning for critical measurement loops. The AI815 module provides eight unipolar single-ended channels supporting both voltage and current inputs with integrated HART pass-through communication. Field engineering experience demonstrates that while the module safely distributes current-limited power to 2-wire or 3-wire transmitters, mixing current and voltage signal types on the same block is strictly prohibited by hardware architecture rules.

Configuration Breakdown Tree

• Base Product Series: ABB S800 I/O Hardware Platform (Article No: 3BSE052604R1)
  • Module Type: Analog Input Module (Unipolar Single-Ended)
  • Channel Count: 8 channels grouped in 1 isolated block from ground
  • Signal Ranges: 0 to 20 mA, 4 to 20 mA, 0 to 5 V, and 1 to 5 V DC
  • Input Impedance: 10 Megaohms for voltage inputs; 250 ohms for current inputs
  • Compatible MTUs: TU810, TU812, TU814, TU830, TU833, TU835, TU838 (Keying Code: CC)

Technical Specifications Matrix

Logistics, Warranty, and Compliance

• Fulfillment Carriers: Secure, expedited global shipping managed through FedEx, UPS, and DHL.
• Dispatch Window: Fast processing ensures warehouse dispatch within 24 to 48 hours.
• Quality Assurance: Backed by an industry-standard 12-month operational warranty.
• Directives Compliance: Fully compliant with RoHS (2011/65/EU) and WEEE environmental directives.

Compatible Equipment and Target Application Scenarios

• Compatible Control Systems: ABB AC 800M and S800 distributed control system nodes.
• Process Instrumentation: Monitoring 4-20mA pressure transmitters, level sensors, and flow meters.
• Chemical Processing Plants: G3-corrosion resistant monitoring in caustic or sulfur-heavy environments.
• Hazardous Oil & Gas Facilities: ATEX Zone 2 certified installations on offshore production platforms.

Selection Guide and Engineering Advice

When engineering S800 I/O racks, always verify that your Terminal Unit (MTU) selection matches the AI815 CC keying code requirements (such as TU810V1). Ensure that vertical mounting configurations do not exceed the 40 degrees Celsius ambient temperature limit if operating in compact enclosures without forced ventilation.

Frequently Asked Questions

Can voltage and current signals be mixed across different channels on the AI815 module?

No, current and voltage signals cannot be mixed on the same I/O module; all active channels must use the same signal category.

How does the module handle transmitter power supervision and short-circuit protection?

The module features built-in current-limited transmitter power distribution per channel, automatically flagging external power supply or transmitter errors via front LEDs.

What is the maximum allowable field cable length for connected sensors?

The system supports a maximum field cable length of up to 600 meters (656 yards) while maintaining noise rejection ratios above 40 dB.

How do front LED diagnostics assist technicians during troubleshooting?

Front-panel LEDs display real-time status for Fault (F), Run (R), and Warning (W), instantly indicating internal watchdog, checksum, or channel-level faults.

What precautions are necessary when mounting this module in vertical configurations?

Field engineering guidelines dictate lowering the max ambient temperature threshold to 40 degrees Celsius when installing vertically in compact MTU arrangements.
