AI825 ABB S800 I/O Isolated Analog Input Module Buy

ABB AI825 S800 Distributed I/O Module Architecture

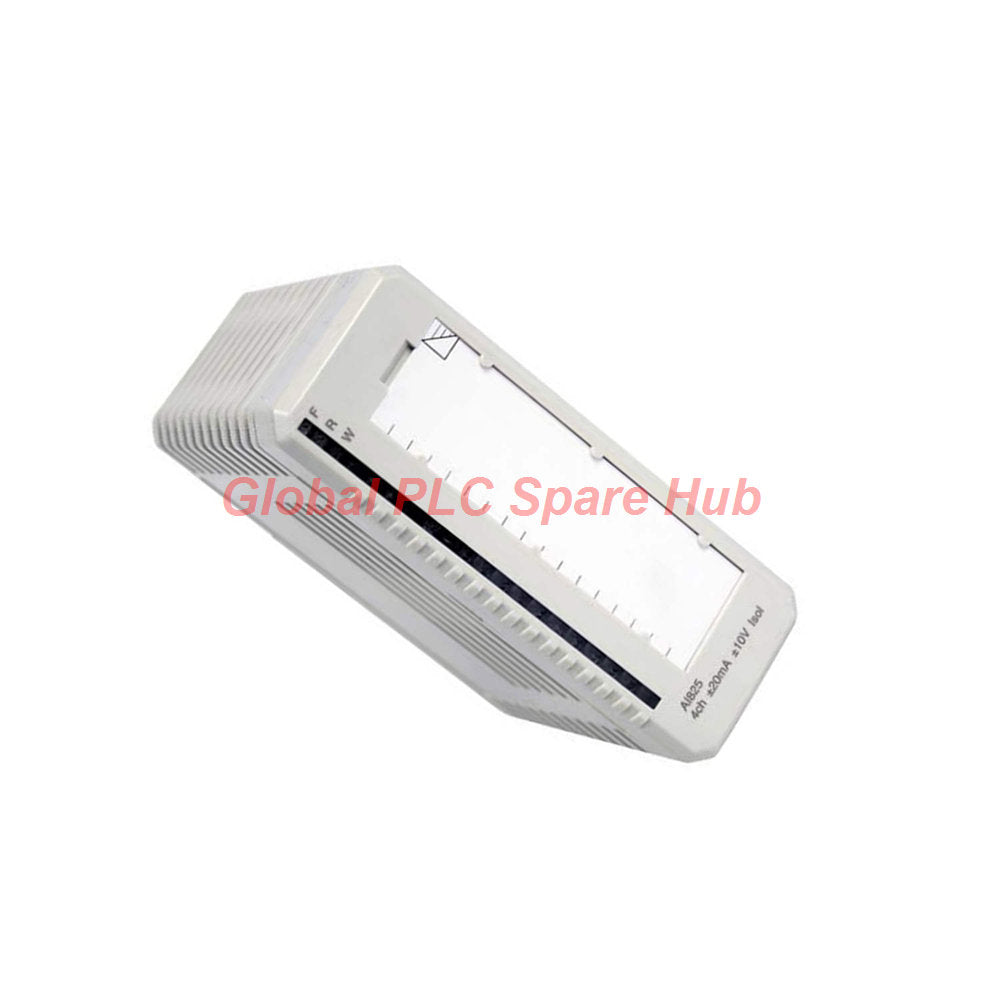

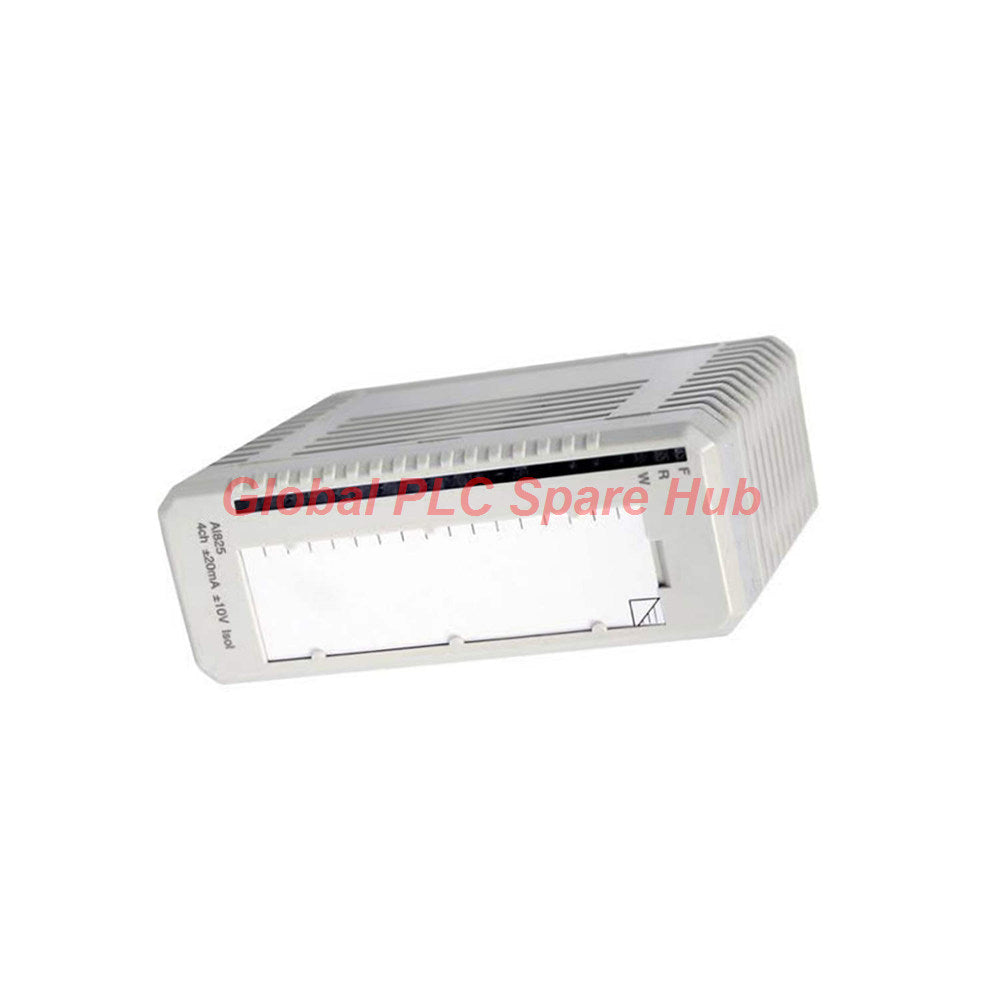

The ABB AI825 (Article Number: 3BSE036456R1) is a high-precision, 4-channel analog input module designed for the S800 I/O distributed system architecture. Engineered with individual channel-to-channel galvanic isolation, this module processes bipolar voltage and current field signals across noisy industrial processing environments. Automation engineers utilize this unit to digitize high-accuracy process variables while eliminating ground loops between field sensors and the central control system backplane.

Each input channel accommodates configurable signal ranges, including ±20 mA, 0–20 mA, 4–20 mA, ±10 V, 0–10 V, and 2–10 V, with 14-bit plus sign conversion resolution. Power to the internal analog stages is converted directly from the 24 V DC ModuleBus rail, providing stable field excitation. Current inputs feature dual protective stages: a direct input rating up to 6.3 V DC and a secondary over-voltage protected shunt input rated up to +30 V DC, limited via internal Positive Temperature Coefficient (PTC) thermistors.

AI825 Technical Parameters & Performance Specifications

System Diagnostics & Operational Supervisory Features

The ABB AI825 incorporates hardware and firmware monitoring routines that continuously validate module health and signal integrity. Front panel LED indicators give field technicians visual status during commissioning and maintenance activities:

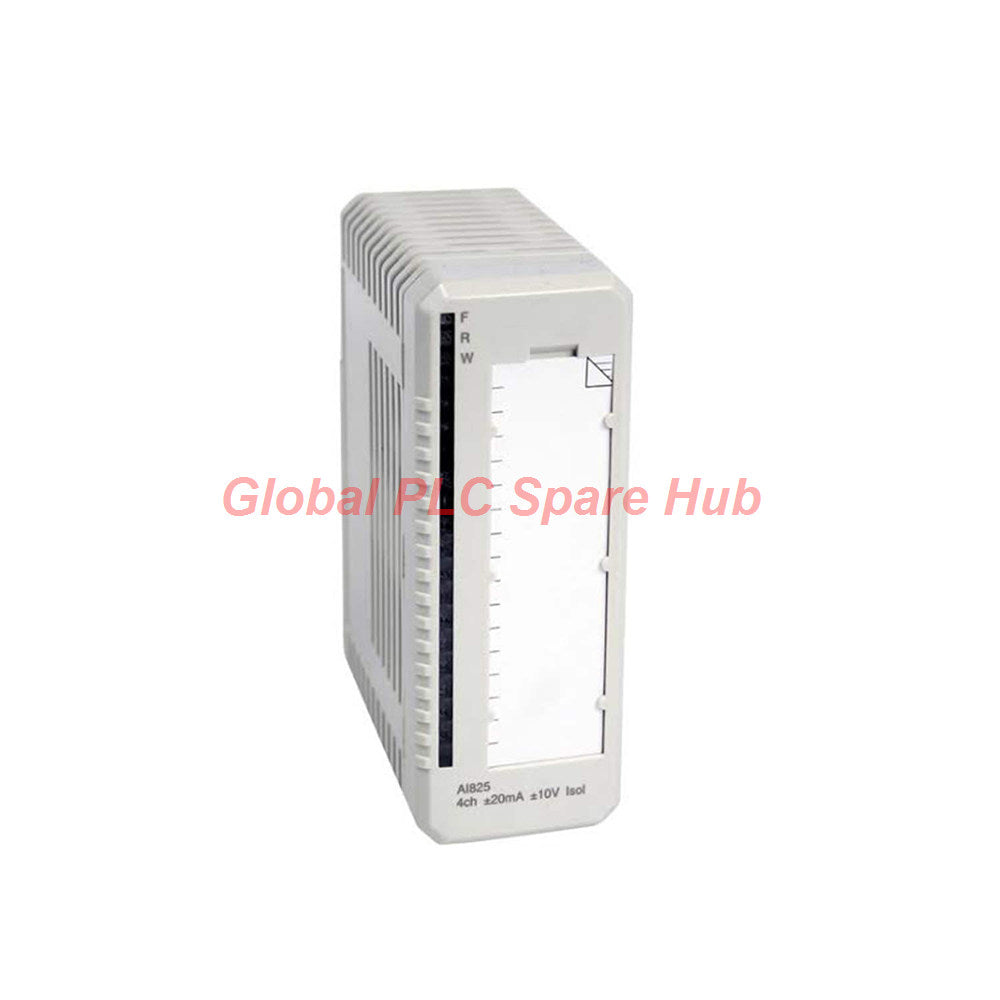

• Front LED Diagnostics: Features dedicated tri-color status LEDs on the front fascia: F (Fault), R (Run), and W (Warning).
• Internal Power Supervision: Onboard supervisory circuits track internal conversion rail voltages derived from the 24 V ModuleBus, flagging system alarms if operating thresholds drop.
• Structured Error Flagging: Software status flags differentiate between Module Error, Module Warning, and individual Channel Error states inside System 800xA or Control Builder environments.
• HART Protocol Compatibility: While the hardware does not pass digital HART data frames to the controller, the analog input stages withstand overlaid HART frequency communication without signal distortion.

Target Systems & Application Environments

• Power Plant Turbine Instrumentation: Converting bipolar ±10V valve positioning feedback signals in noisy electrical generator halls.
• Metals & Heavy Rolling Mills: Digitizing dynamic tension transducer inputs where heavy motor drives generate large ground potential differences.
• Chemical Process Isolation Skids: Reading 4–20 mA transmitters across sub-systems requiring 250V rated insulation between field channels.
• Water Treatment Distribution Nodes: Long-distance instrument drops up to 600 meters (656 yards) using standard field cabling.

Logistics, Packaging & Guarantee Terms

• Package Condition: Factory-packaged ABB AI825 (3BSE036456R1) unit in original antistatic industrial packaging.
• Express Logistics: Dispatch occurs within 24 to 48 hours via fast express carriers (FedEx, UPS, DHL).
• 12-Month Guarantee: Includes a full 12-month operational replacement warranty starting from the date of dispatch.

Global PLC Spare HUB Field Engineering Insight

In field applications involving the ABB AI825, paying close attention to thermal layout and terminal unit selection is critical for continuous operation. During a recent maintenance audit at a paper mill, commissioning teams reported over-temperature warnings on an S800 I/O rack. Inspection revealed that several high-density modules were mounted vertically inside a compact MTU enclosure operating at ambient temperatures above 40°C without adequate clearance.

Our engineering team recommends observing ambient thermal limits: while standard horizontal DIN-rail mounting permits operation up to 55°C (131°F), vertical mounting inside compact MTU configurations reduces the maximum ambient limit to 40°C (104°F) due to thermal convection airflow paths. Furthermore, when wiring current loops, ensure the field cabling is connected to the PTC-protected terminals to safeguard the internal 50 Ω shunt resistors against accidental +30 V DC field shorts.

Frequently Asked Questions & Practical Field Advice

Q: What is the main operational difference between the AI825 and standard S800 analog input modules like the AI810?

A: The key distinction is channel isolation and signal polarity. The AI825 provides individual channel-to-channel galvanic isolation (1900 V DC rating) and supports true bipolar ranges (±10V, ±20mA), whereas standard modules like the AI810 share a common return ground across channels and handle unipolar signals only.

Q: How do I choose the correct Module Termination Unit (MTU) when ordering this input module?

A: The AI825 uses mechanical keying code DA and is compatible with MTU models TU811, TU811V1, TU813, and TU831. Select the TU811/TU811V1 for standard compact wiring setups or the TU831 when extended field ground terminals are required.

Q: What happens if an over-voltage surge hits a 4–20 mA current channel on the module?

A: Current inputs feature internal PTC thermistor protection rated to withstand sustained over-voltages up to +30 V DC. When a fault occurs, the PTC resistance increases rapidly to limit fault current, protecting the internal 50 Ω precision shunt resistor from burning out.

Q: Why does the module specification state HART "No" under General Info if the input withstands HART communications?

A: "HART No" means the module cannot pass or process digital HART protocol variables into the control system software. However, the analog input filter circuit is designed so that the overlaid 1.2/2.2 kHz HART FSK signal does not cause ripple or measurement errors in the analog 4–20 mA reading.

Q: What is the maximum field wiring distance supported by the AI825 analog input channels?

A: The module supports field cable runs up to 600 meters (656 yards). For long runs approaching this limit, use twisted-pair shielded cable to maintain high Common Mode Rejection Ratio (CMRR >120 dB) and shield against electromagnetic interference.
