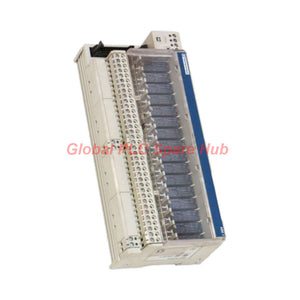

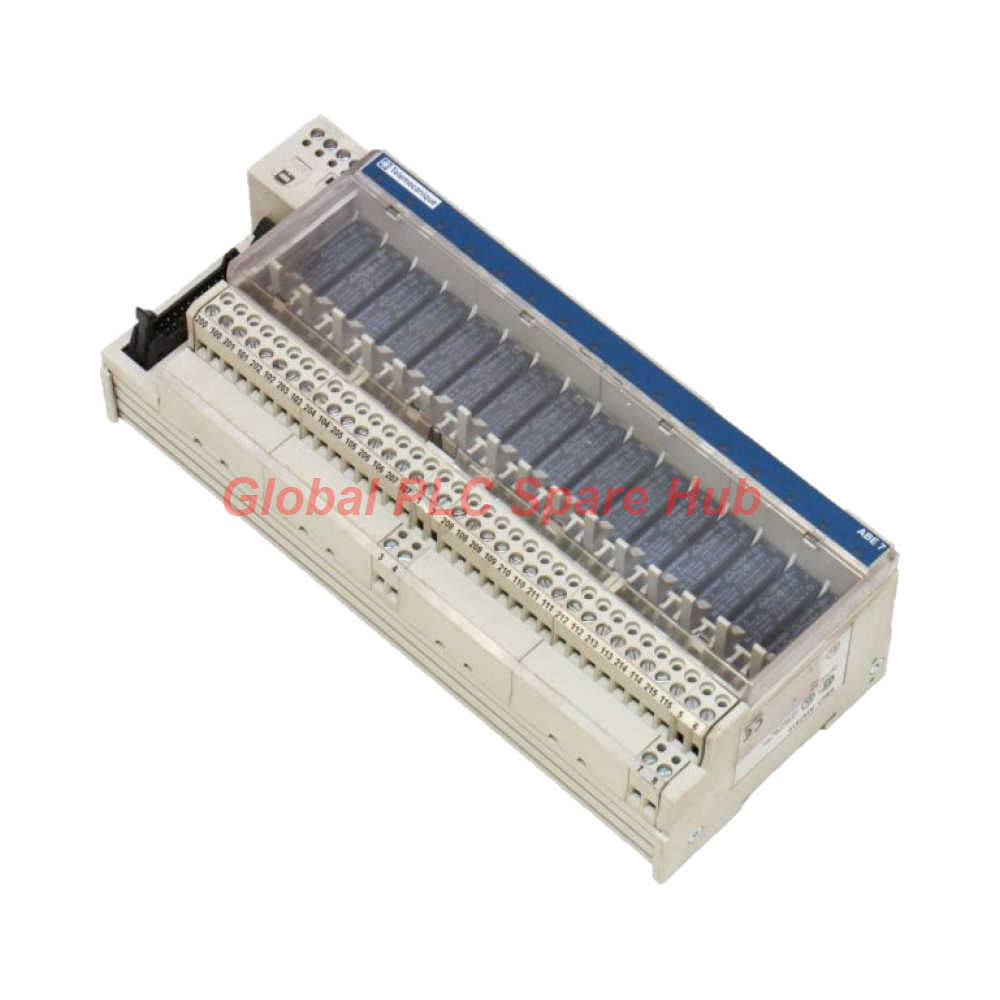

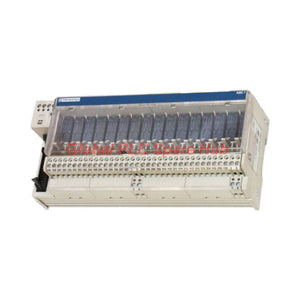

ABE7R16T210 Schneider Telefast Interface ABE7 Series 16-Channel Relay Unit
Manufacturer: Schneider Electric
Product No.: ABE7R16T210
Condition： In stock
Product Type: Relay Unit
Product Origin: FR
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Engineering Architecture
The ABE7R16T210 sub-base unit belongs to the trusted ABE7 interface series by Schneider Electric. This 16-channel electromechanical relay module bridges controller outputs with high-load field devices seamlessly.
Core Technical Specifications Matrix
| Engineering Parameter | Operational Detail |
|---|---|
| Part Model & Brand | ABE7R16T210 by Schneider Electric |
| Product Series | ABE7 (Telefast Range) |
| Channel Capacity | 16 independent channels with 1 CO (SPDT) contact per path |
| Switching Rating | 5 A at 250 VAC maximum contact rating |
| Control Coil Voltage | 24 VDC nominal coil excitation |
| Mechanical & Electrical Life | 10,000,000 mechanical cycles; 100,000 AC-15 electrical cycles |
| Physical Footprint | 88 mm × 200 mm × 71 mm on 35 mm DIN rail |
Target Industrial Equipment & Applications
- PLC digital output isolation panels and interposing relay racks.
- Automated manufacturing line solenoid valve and actuator control banks.
- Heavy-duty industrial machinery safety interlock switching circuits.
- Process control systems requiring signal amplification from low-voltage controllers.
Built-in Diagnostics & Circuit Protection
The ABE7R16T210 features an integrated 1 A protective fuse on every individual channel alongside built-in LED status indicators. Operators verify relay coil activation instantly at a glance, while blown fuse isolation prevents systemic control cabinet downtime during unexpected overloads.
Global PLC Spare HUB's Insight
Global PLC Spare HUB notes that when driving inductive loads like heavy solenoid valves through the ABE7R16T210, engineers should install external freewheeling diodes or RC snubbers across the load terminals. This simple practice extends the plugin relay contact lifespan significantly beyond standard operating thresholds.
Fulfillment & Quality Assurance
- Global Dispatch: Fast 24 to 48-hour shipping turnaround window.
- Logistics Carriers: Secure international delivery via FedEx, UPS, and DHL.
- Protection Guarantee: Comprehensive 12-month quality warranty included.
Technical FAQ & Selection Guide
Question: How are channel-level fuses replaced if an overcurrent event occurs?
Answer: Each channel on the ABE7R16T210 includes an easily accessible plug-in internal fuse that technicians swap out without dismounting the entire base unit.
Question: Can individual plug-in relays be replaced independently?
Answer: Yes, individual electromechanical relays plug directly into the sub-base sockets, allowing fast replacement without rewiring field connections.
Question: What wire gauges are compatible with the terminal blocks?
Answer: The terminal blocks accommodate solid wire from 0.14 to 2.5 mm² and flexible wire from 0.09 to 1.5 mm².
Question: Why does the unit experience chattering on noisy DC lines?
Answer: Voltage drops or severe ripple on the 24 VDC supply line can cause relay chatter; ensure your power source maintains clean regulation.
Question: What indicates that a channel fuse has blown during operation?
Answer: The corresponding channel LED indicator fails to illuminate when the controller attempts to energize the coil while control power is present.
Selection Guide: Verify that your control system utilizes 24 VDC sinking or sourcing logic compatible with standard Telefast wiring layouts and ensure your switching loads do not exceed the 5 A limit before deploying the ABE7R16T210.
