ABE7CPA31E Schneider Electric Telefast Analog Input Sub-Base ABE7 Series

Product Architecture Overview

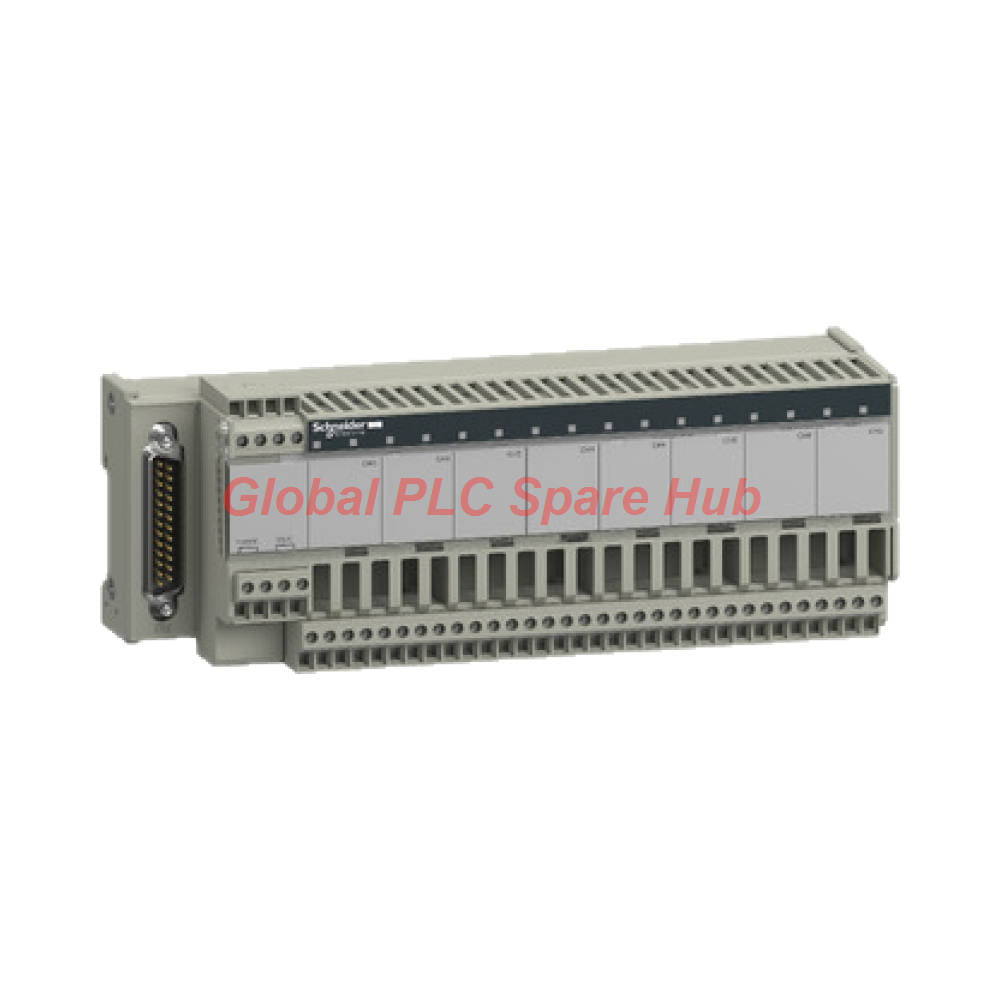

The ABE7CPA31E is a high-density connection sub-base engineered by Schneider Electric within the established Telefast ABE7 product family. Designed to streamline signal conditioning between field field instrumentation and controller input cards, the ABE7CPA31E links up to eight isolated analog input channels through a robust SUB-D 25 pin interface. Industrial control technicians rely on this sub-base to simplify multi-wire sensor terminations and maintain galvanic isolation across complex automation loops.

Technical & Environmental Parameters

• Manufacturer Brand: Schneider Electric
• Product Line Series: ABE7 (Telefast range)
• Catalog Model Number: ABE7CPA31E
• Module Classification: Analog Input Connection Sub-Base
• Channel Capacity: 8 isolated analog input channels
• Control Voltage Rating: 24V DC
• System Interface Connector: SUB-D 25-way port
• Sensor Compatibility: Supports 1-wire, 2-wire, 3-wire, and 4-wire analog field transmitters
• Terminal Wire Cross-Section: 0.14 to 2.5 mm² solid, 0.09 to 1.5 mm² flexible (spring clamp design)
• Physical Mounting: Standard 35 mm DIN rail clips or direct screw mounting

Installation & Wiring Best Practices

• Snap the ABE7CPA31E securely onto a standard 35 mm DIN rail inside your industrial control enclosure.
• Connect the multi-core controller cable directly into the SUB-D 25 port, ensuring locking thumbscrews are fully tightened.
• Terminate field sensor wiring into the spring-clamp terminals, adhering to the proper 1 to 4-wire configuration mapping.
• Verify that the external 24V DC control voltage rail is stable prior to powering up loop-powered instrumentation.

Diagnostic & Signal Monitoring Capabilities

• Monitor channel activity and power distribution instantly via the integrated front-panel LED status indicators.
• Isolate loop discrepancies quickly by verifying signal continuity across individual spring-clamp connection points.
• Ensure high-integrity signal transmission compatible with Premium PLC analog card architectures without ground loop interference.

Target Equipment & Deployment Scenarios

• Schneider Electric Modicon Premium PLC analog data acquisition racks.
• Process control skids requiring high-density analog signal marshalling.
• Industrial manufacturing plants monitoring temperature, pressure, and flow transmitters.
• Wastewater treatment instrumentation panels requiring reliable signal isolation.

Logistics, Supply, and Warranty Conditions

• Inventory Availability: Active stock ready for immediate order processing.
• Dispatch Window: Rapid 24-48 hour fulfillment cycle.
• Shipping Partners: Secure worldwide delivery via FedEx, UPS, and DHL.
• Warranty Protection: Comprehensive 12-month warranty included with every ABE7CPA31E purchase.

Global PLC Spare HUB's Insight

When marshalling analog signals in dense control cabinets, loose wire terminations or ground loops can introduce severe signal fluctuations into PLC data tables. Based on field expertise at Global PLC Spare HUB, technicians installing the ABE7CPA31E should always ensure that shielded analog cables are properly grounded at the enclosure entry point while keeping shield drains ungrounded at the field end to prevent circulating ground currents. Utilizing the spring-clamp wire insertion correctly also prevents intermittent contact failure caused by continuous industrial vibration.

Frequently Asked Questions

What PLC families are fully compatible with the ABE7CPA31E sub-base?

The unit is designed with isolated signal compatibility matching Schneider Electric Premium PLC platforms and associated analog input cards.

How many field sensors can be connected to a single sub-base unit?

The ABE7CPA31E supports up to 8 independent analog input channels with flexible 1, 2, 3, or 4-wire sensor configurations.

What selection and purchasing guidelines should engineers follow for replacement parts?

Verify that your controller card uses a SUB-D 25 connection interface, confirm your signal type requires 24V DC control voltage, and source from certified vendors offering a 12-month warranty.

What diagnostic tool is available directly on the module hardware?

The module features onboard LED status indication to provide immediate visual feedback on operational power and channel status.

What type of wire termination technology does this connection sub-base utilize?

It utilizes reliable spring-clamp terminals that accommodate solid wires from 0.14 to 2.5 mm² and flexible wires from 0.09 to 1.5 mm².
