ABB CP430B CP400 Classic HMI Control Panel 1SBP260183R1001

Product Overview

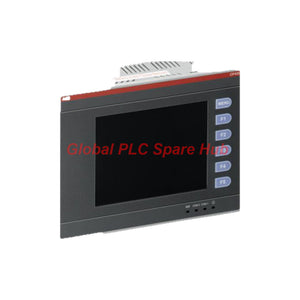

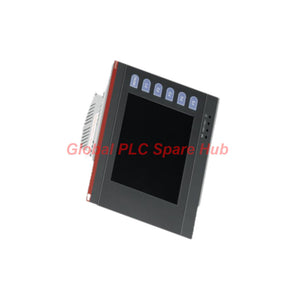

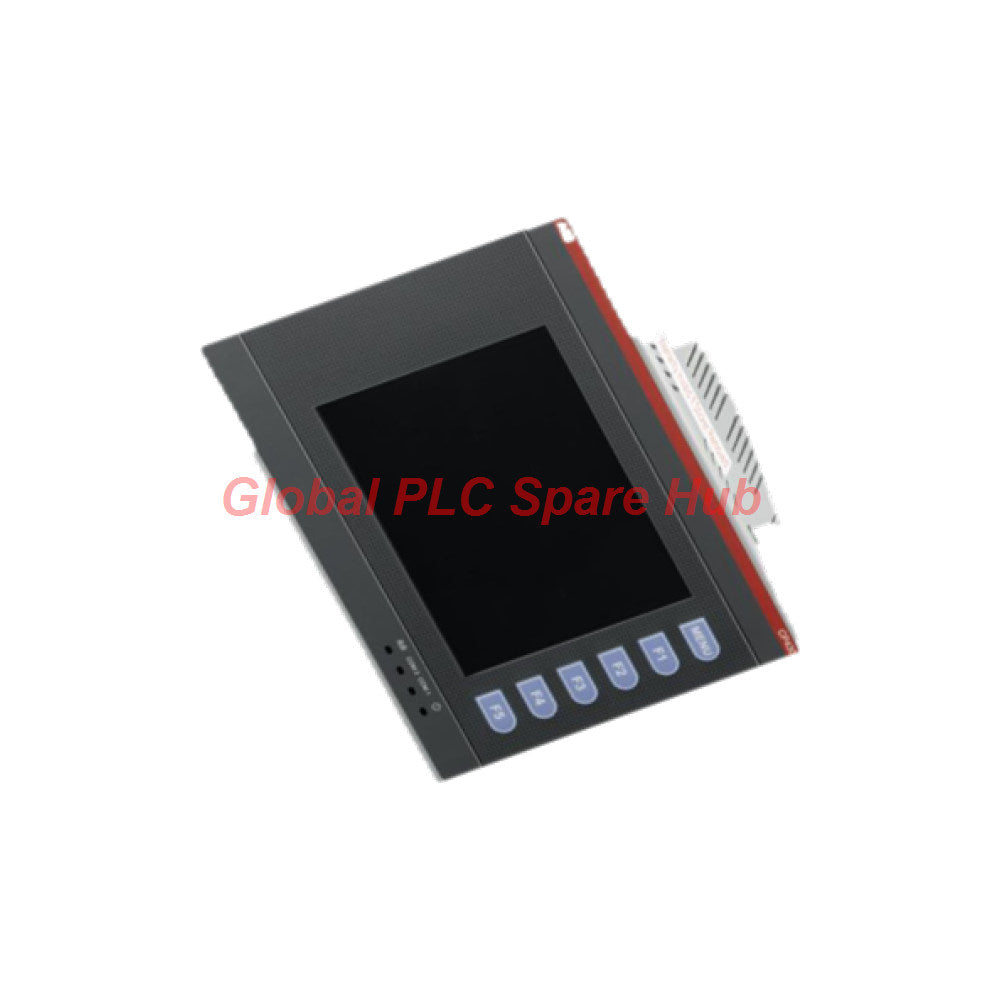

The ABB CP430B (Product ID: 1SBP260183R1001) is an advanced operator interface terminal engineered within the ABB CP400 Classic series. Designed specifically for industrial automation environments, this human-machine interface delivers reliable plant-floor visualization, tactile navigation, and seamless controller connectivity. As part of our comprehensive industrial hardware inventory, Global PLC Spare HUB provides fully tested units ready to integrate into your legacy or active control architectures.

Technical Specifications

Engineered for rigorous plant conditions, the hardware architecture of the ABB CP430B incorporates the following electrical and physical specifications:

• Brand & Series: ABB CP400 Classic Series Operator Panel
• Model & Part Number: CP430B (1SBP260183R1001)
• Display Technology: 5.7-inch STN Blue Grayscale Touch Screen supporting 16 blue levels
• Resolution: 320 x 240 pixels (4:3 aspect ratio)
• Active Viewing Area: 117.2 mm length x 88.4 mm height
• User Memory: 4 MB ROM (4000 kB user program memory)
• Input Configuration: 1 dedicated menu key and 5 programmable function keys
• Touch Technology: Resistive touch interface
• Supply Voltage: 24 V DC (Permissible range: 20.4 to 27.6 V DC)
• Power Consumption: 20 V·A
• Operating Temperature Range: 0 °C to +50 °C
• Storage Temperature Range: -10 °C to +60 °C
• Environmental Tolerance: Built to withstand standard industrial ambient conditions with integrated gG type short-circuit protective fuses
• Physical Dimensions: 195 mm width x 145 mm height x 60 mm depth
• Net Weight: 0.81 kg (Gross Weight: 1.25 kg)

Installation Guidelines

• Mounting Method: Front-face panel mounting designed for standard cabinet doors or control console cutouts.
• Mounting Orientation: Adjustable viewing angle positioning from 0 to 135 degrees to eliminate glare and optimize operator ergonomics.
• Power Connection: Ensure stable 24 V DC supply isolation before wiring to prevent transient voltage spikes on communication lines.
• Grounding: Connect the chassis ground terminal securely to the industrial enclosure ground bus to enhance electromagnetic interference (EMI) immunity.

Commissioning, Diagnostics & Software Compatibility

• Programming Environment: Configured using dedicated CP400 Soft programming software supporting alarm management, trend plotting, macro scripting, and ladder logic visualization.
• Diagnostic Capabilities: Real-time clock support paired with multi-level password security (up to 9 user levels) ensures secure access control and accurate event timestamping.
• Alarm & Trend Management: Built-in software functions allow engineers to track process variables and isolate communication timeouts or controller faults directly from the shop floor.

Compatibility & Communication Interfaces

• Serial Port 1: RS232 / RS485 communication interface
• Serial Port 2: RS232 / RS422 / RS485 multi-standard port
• Fieldbus Protocols: Supports Modbus RTU, Modbus ASCII, and variable industrial network topologies depending on the loaded driver configuration
• Communication Baud Rate: Adjustable from 4.8 to 187.5 kBd

Certifications & Compliance Standards

• Safety & Quality Standards: cUL Certified (1SAA960000-1709) and UL Listed (NRAQ.E240320)
• Directives: CE Declaration of Conformity (1SBD240576C1000)
• Environmental Compliance: RoHS compliant across the entire CP400 platform

Package Contents & Logistics

• Package Contents: 1 x ABB CP430B Control Panel unit, mounting clips, and standard documentation package.
• Warranty: Comprehensive 12-month warranty covering operational integrity.
• Fulfillment & Shipping: Rapid dispatch within 24-48 hours via reliable international carriers including FedEx, UPS, and DHL.

Typical Application Scenarios

• Discrete Manufacturing: Local machine control interfaces for automated assembly lines and material handling equipment.
• Process Control Systems: Operator visualization for water treatment skid units and pump station monitoring panels.
• Industrial Automation Upgrades: Direct replacement operator terminal for legacy ABB CP400 Classic control architectures requiring form-fit-function compatibility.

Global PLC Spare HUB's Insight

Based on our extensive industrial automation archiving experience, deploying legacy HMI panels like the ABB CP430B requires careful verification of communication drivers and cable pinouts, particularly when interfacing with non-ABB PLCs over RS485 networks. Engineers should verify that the project backup file matches the firmware release version (V10.10.10) prior to initiating an application transfer. Maintaining proper terminal grounding also prevents intermittent touch-register drift in high-electrical-noise environments.

Frequently Asked Questions (FAQ)

Q: Can the CP430B communicate directly with Modbus RTU slave devices?

A: Yes, the unit natively supports Modbus RTU and Modbus ASCII protocols through its configurable serial ports, provided the correct driver is selected in the programming software.

Q: What should I check if the touchscreen fails to register inputs after panel installation?

A: Verify that the front bezel mounting clips are not overtightened, as excessive mechanical stress on the resistive touch overlay can cause constant actuation points along the border.

Q: Is the backlight or display assembly field-replaceable?

A: The STN display assembly is rated for a typical service life of 50,000 hours. For optimal reliability, unit-level replacement is recommended by ABB guidelines when major display degradation occurs.
