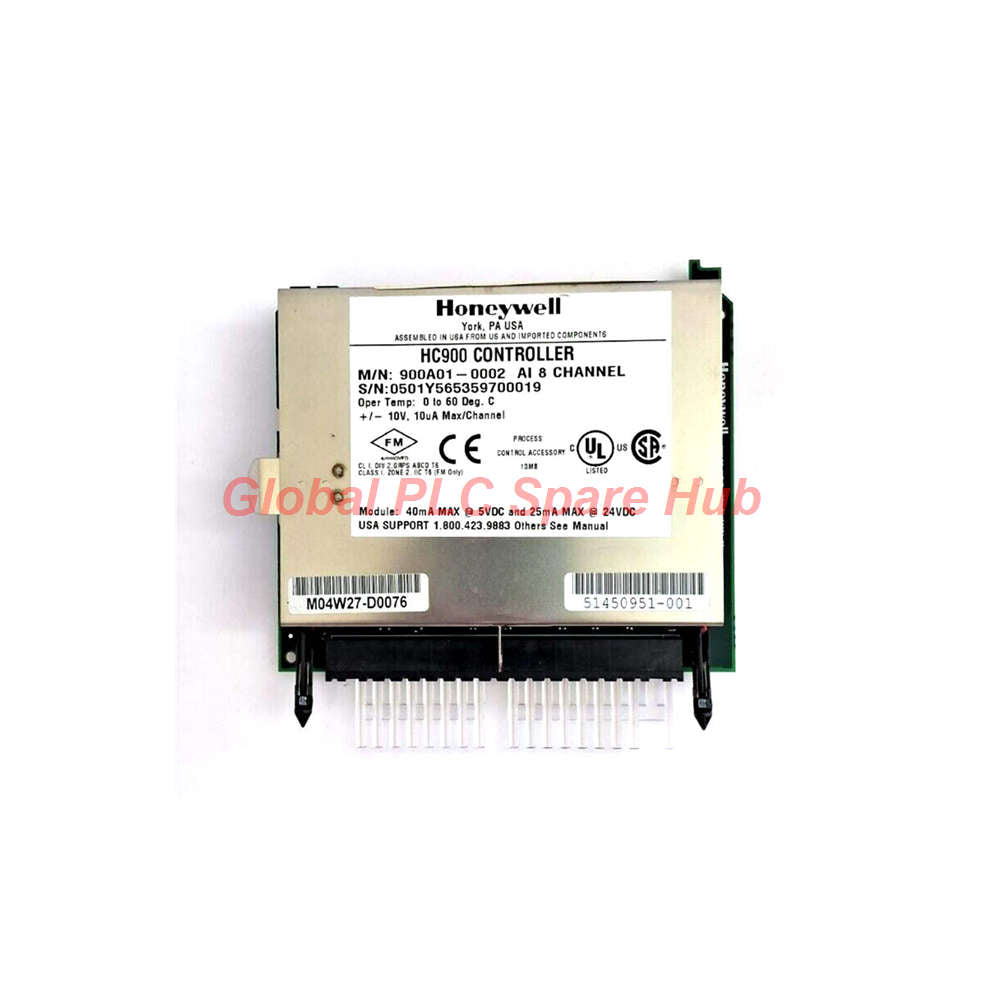

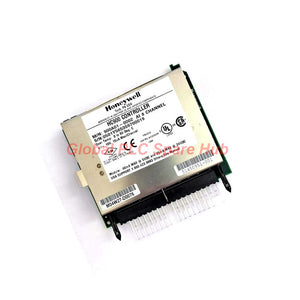

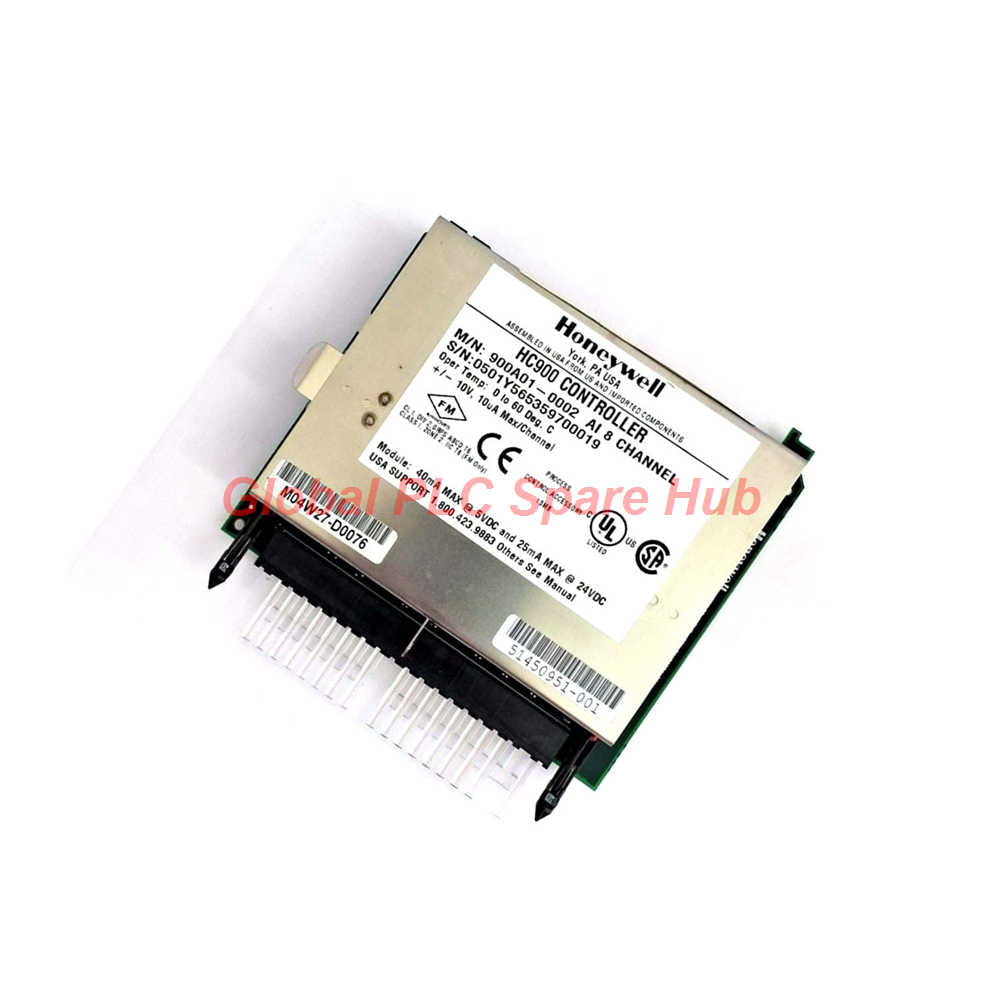

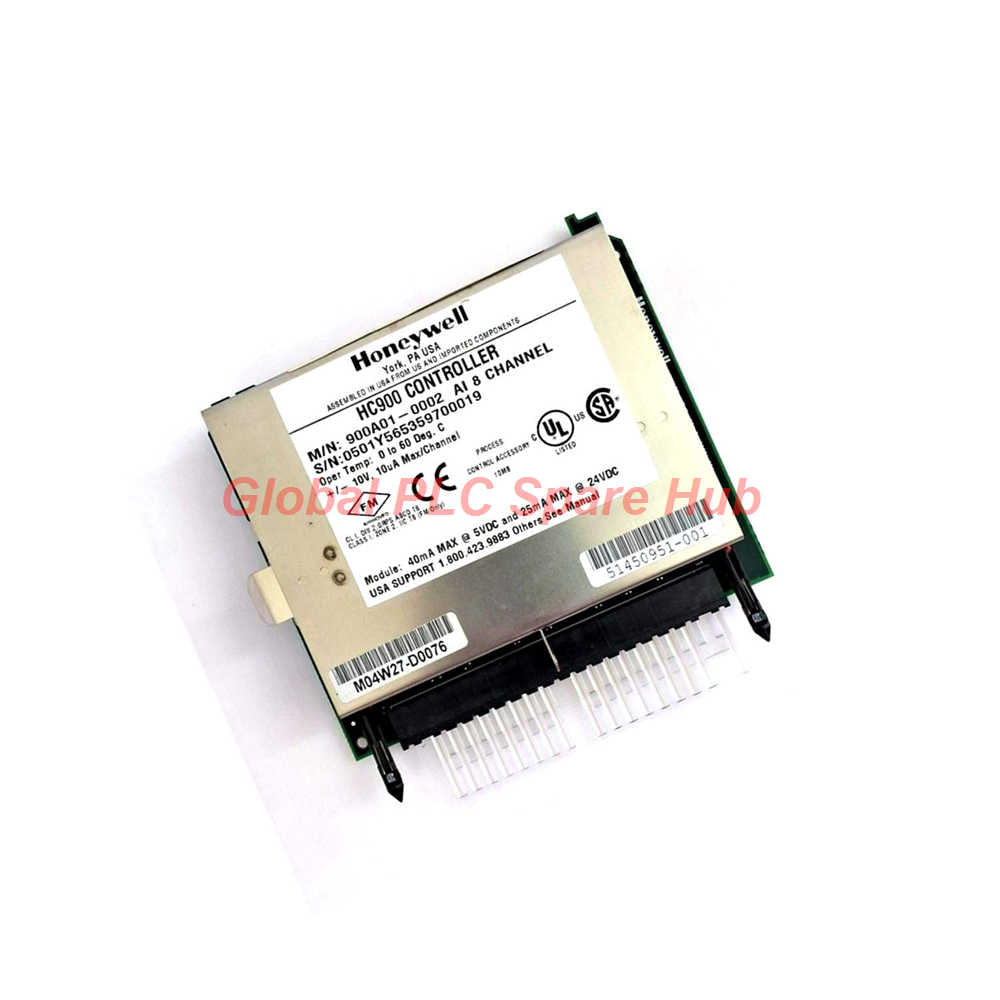

900A01-0002 Honeywell HC900 Universal Analog Input Module

Product Overview

The 900A01-0002 is an advanced 8-channel universal analog input module engineered exclusively for the Honeywell HC900 control platform. This high-flexibility hardware interfaces directly with diverse sensor types including thermocouples, RTDs, resistance signals, linear voltage, millivolt loops, current loops, and slidewire indicators. Point-by-point software configuration allows engineering teams to mix multiple sensor types across a single card footprint.

Designed for zero-latency data acquisition, the 900A01-0002 processes all analog-to-digital conversions in lockstep with the CPU control execution cycle. Parallel I/O processing ensures that adding modules to the chassis never impacts overall system scan times. Point-to-point electrical isolation paired with robust backplane separation guards the internal controller electronics from intense field transients.

Global PLC Spare HUB's Insight

The engineering value of the 900A01-0002 lies in its predictive maintenance capability for high-temperature sensor assemblies. Unlike standard input modules that only flag hard open-circuit failures, this HC900 card features an intelligent thermocouple degradation warning signal. By analyzing subtle resistance shifts in the thermocouple loop before a physical break occurs, instrument technicians can schedule proactive sensor replacements during planned shutdowns rather than responding to emergency mid-process trip states.

Technical Specifications

• Brand: Honeywell
• Model: 900A01-0002
• Series: HC900 Process Automation
• Module Type: 8-Point Universal Analog Input Card
• Input Type Support: Thermocouple, RTD, Resistance, V, mV, mA, Slidewire
• Channel Density: 8 fully isolated points per module
• Data Conversion: Synchronous parallel processing with controller CPU execution
• Failsafe Execution: Independent per-channel user-selectable safe state value configuration
• Operating Temperature Limits: 0 to 60 degrees Celsius ambient rating
• Logic Voltage Backplane Loading: 5VDC operation up to 40mA maximum
• Field Voltage Loop Demand: 24VDC operation up to 25mA/50mA maximum

Predictive Diagnostic Engine

• Onboard predictive intelligence monitors thermocouple loop health to trigger early maintenance alerts prior to total element failure.
• Dedicated sensor failure detection registers open-circuit or short-circuit anomalies instantaneously on a per-point basis.
• Continuous watchdog hardware continuously evaluates module configuration integrity and checks factory calibration baselines.
• A green blinking status LED provides positive visual indication that the central processor is scanning the hardware.
• An amber blinking status LED provides clear field warnings when input channel software registers have forced overrides active.
• A solid red diagnostic LED illuminates immediately if internal self-tests identify an internal hardware exception.

Target Equipment & Application Scenarios

• Multi-zone chemical reactor vessels requiring concurrent monitoring of type K thermocouples and Pt100 RTD elements.
• Heavy industrial glass melting furnaces running active three-wire slidewire position feedback loops on combustion dampers.
• Steam turbine bearing housings utilizing continuous RTD sensors to track local thermal expansion and friction profiles.
• Environmental chamber control systems matching millivolt humidity sensors with standard 4-20mA pressure transmitters.
• Petrochemical pipeline pumping stations managing remote instrumentation arrays with diverse mixed-signal topologies.

Procurement & Selection Guidance

• Ensure your control cabinet thermal management layout preserves an operating ambient profile under 60 degrees Celsius for this unit.
• Review sensor lead resistance constraints when applying high-accuracy three-wire RTD or slidewire instrumentation to this hardware block.
• Map your I/O assignment sheets to leverage the universal mixing capabilities to reduce total physical module inventory costs.

Logistics, Packaging & Warranty

• Package Contents: One factory-sealed Honeywell 900A01-0002 multi-signal universal input module.
• Warranty Term: Comprehensive 12-month electronic and mechanical warranty assurance plan.
• Fulfillment Turnaround: Inventory departs from our logistics hub within 24 to 48 hours from receipt of payment.
• International Dispatch: Global express shipping managed via priority carrier channels including FedEx, UPS, and DHL.

Frequently Asked Questions

Question: How does the module interface with 4-20mA loops given that it is listed as a universal input?

Answer: The module measures current signals by utilizing external terminal blocks with integrated shunt configurations or internal configuration depending on the specific terminal base selected.

Question: What specific parameter determines the difference between a thermocouple maintenance warning and a sensor failure?

Answer: The warning threshold activates when input impedance drift signals element thinning, whereas the failure alarm triggers when a complete loop break occurs.

Question: Can I change the sensor type configuration on channel 1 without disrupting the active measurement of channel 2?

Answer: Yes, because the configuration is mapped independently on a per-point basis, though downloads must conform to standard safety parameters.

Question: Why is parallel processing critical for high-density I/O configurations using this card?

Answer: Parallel conversion prevents the expansion of controller scan times as more inputs are added, keeping loop response fast and deterministic.

Question: Does the 12-month warranty cover damage resulting from field ground loops or overvoltage spikes?

Answer: The warranty covers manufacturing and component defects; external electrical overstress from faulty field wiring is excluded from standard warranty terms.
