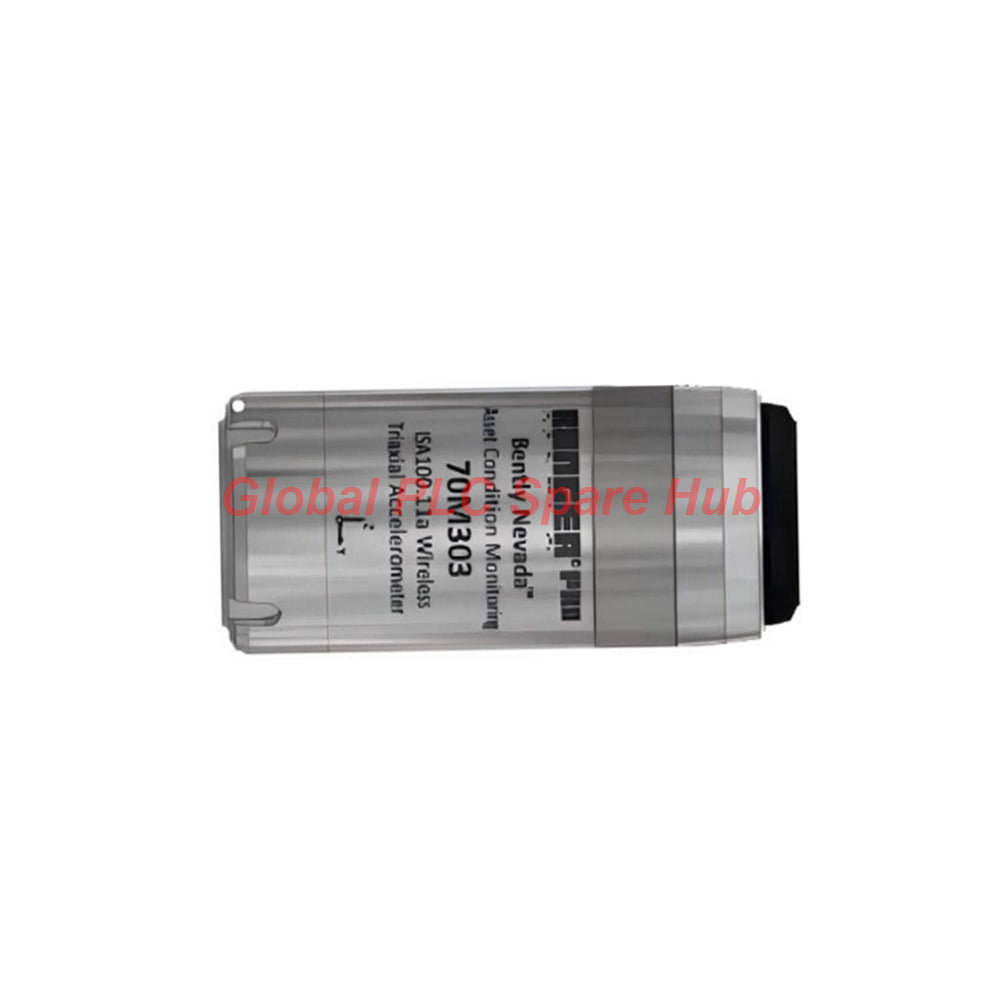

70M303-01-01-00-02 Bently Nevada Ranger Pro Tri-Axial Wireless Sensor
Manufacturer: Bently Nevada
Product No.: 70M303-01-01-00-02
Condition： In stock
Product Type: Accelerometer Sensor
Product Origin: USA
Payment: T/T, Western Union
Weight: 0g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Introduction & Engineering Overview
Continuous vibration monitoring on remote or hazardous plant assets requires reliable wireless infrastructure. The Bently Nevada 70M303-01-01-00-02 represents an advanced unit within the Ranger Pro Series tri-axial wireless accelerometer lineup, featuring an integrated temperature sensor for comprehensive asset health tracking. Global PLC Spare HUB Review highlights this wireless node for eliminating costly cable runs while maintaining precise multi-axis vibration metrics. Global PLC Spare HUB's Insight emphasizes that proper configuration of measurement intervals preserves battery longevity in extreme industrial environments.
Configuration Breakdown Matrix
| Part Segment | Code Identifier | Engineering Specification |
|---|---|---|
| Base Product Number | 70M303 | Ranger Pro Tri-Axial Wireless Accelerometer |
| Mounting Hardware Option | 01 | M6x1 to M8x1.25 tri-axial alignment stud |
| Radio Option | 01 | ISA100 or WirelessHART radio communication protocol |
| Battery Option | 00 | Shipped without internal battery cell |
| Agency Approval Option | 02 | ATEX and IECEx hazardous area classification |
Technical Specification Profile
| Engineering Parameter | Operational Metric |
|---|---|
| Brand | Bently Nevada |
| Model / Part Number | 70M303-01-01-00-02 |
| Series Family | Ranger Pro Series |
| Sensing Element | Piezoelectric ceramic (1 or 3 axis ISA100 / 3 axis WirelessHart) |
| Amplitude Range | Plus or minus 20 g peak (0 to 200 m/s2) |
| Acceleration Frequency Range | Z-axis: 5 Hz to 10 kHz; X and Y axis: 5 Hz to 4 kHz |
| Velocity Frequency Range | 5 Hz to 2000 Hz (0 to 50 mm/s or 0 to 2 in/s) |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Enclosure Protection | IP67 dust and water resistant with 316 stainless steel housing |
Mechanical Installation & Setup Hierarchy
- Stud Thread Engagement: Thread the M6x1 alignment stud into the 5mm deep internal mounting hole of the sensor, applying proper torque to ensure high-frequency vibration transmission.
- Surface Preparation: Spot face and clean the machine mounting surface down to bare metal to eliminate damping layers that distort high-frequency acceleration readings.
- Network Commissioning: Join the wireless node to the plant gateway using the ISA100 protocol, verifying packet transmission strength before final housing closure.
- Orientation Alignment: Align the sensor axes correctly with machine radial and axial centerlines to ensure accurate multi-dimensional vibration analysis.
Commissioning, Maintenance, and Diagnostics
- Interval Tuning: Program measurement intervals (ranging from 10 minutes to 6 hours) based on asset criticality to balance data resolution with battery preservation.
- PeakDemod Configuration: Set up PeakDemod parameters for bearing defect detection on slow-speed rotating machinery.
- Thermal Monitoring: Track internal temperature readings alongside vibration trends to catch early-stage gearbox friction or lubrication breakdown.
- Battery Audit: Monitor voltage sag parameters during wireless transmission bursts to anticipate scheduled power cell replacements.
Compatibility and Regulatory Compliance
- Directly integrates with standard ISA100 plant wireless gateways and Generic Client Interface (GCI) networks.
- Certified with ATEX and IECEx agency approvals for safe deployment in explosive hazardous zones.
- Constructed with chemical-resistant 316 stainless steel and UV-resistant PPS plastic for harsh outdoor plants.
Fulfillment, Shipping, and Warranty Terms
- Includes one verified 70M303-01-01-00-02 wireless vibration sensor unit.
- Expedited order processing with rapid dispatch in 24 to 48 hours.
- Global shipping capabilities fulfilled securely via FedEx, UPS, and DHL.
- Protected by a comprehensive 12-month standard industrial warranty.
Target Equipment & Industrial Application Scenarios
- Remote balance-of-plant cooling tower fan vibration and bearing surveillance.
- Unattended pipeline booster pump station health monitoring.
- Conveyor drive gearbox condition tracking in remote mining facilities.
- Outdoor petrochemical storage tank agitator stability analysis.
Frequently Asked Questions
Why does the 70M303-01-01-00-02 sensor ship with the battery option set to 00 (no battery)?
International hazardous material shipping regulations restrict the transport of lithium battery cells inside electronic devices. Customers must source compatible battery packs locally or install them upon site arrival.
How does the ISA100 radio option affect tri-axial measurement capabilities compared to WirelessHART?
The ISA100 protocol configuration supports either single-axis or full tri-axial data collection modes, whereas the WirelessHART configuration is locked strictly to 3-axis operation.
What diagnostic steps should I take if the sensor stops updating vibration data on the gateway?
Check the wireless signal path for newly erected metal structures or equipment blocking the line of sight to the gateway. Verify that the node has not entered low-voltage sleep due to an exhausted battery pack.
How do I select between 10-minute and multi-hour measurement intervals during site setup?
Use frequent intervals (10 to 30 minutes) for critical, high-speed rotating assets showing early wear signs, and longer intervals (4 to 6 hours) for balance-of-plant equipment to maximize battery service life.
Can this wireless accelerometer withstand direct chemical washdowns in food or chemical plants?
Yes, the housing combines a 316 stainless steel body with a high-temperature, solvent- and UV-resistant PPS top, providing robust resistance against harsh chemical washdowns while maintaining an IP67 rating.
