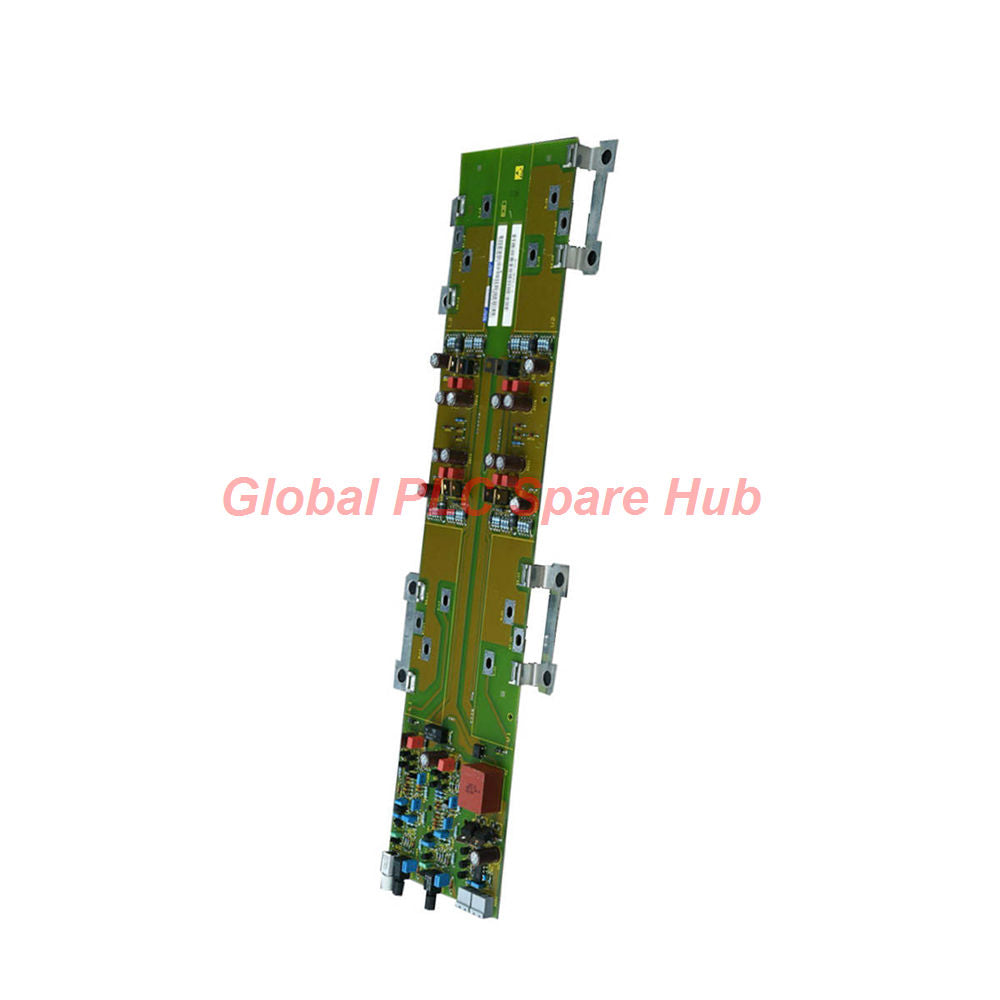

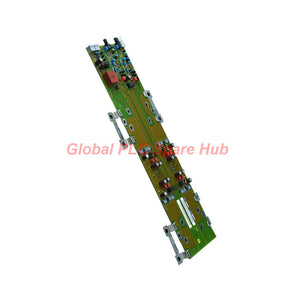

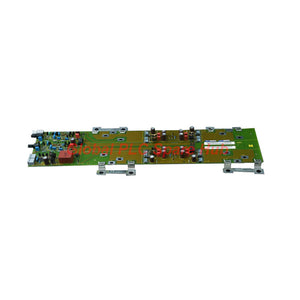

6SE7036-5GK84-1JC0 Siemens SIMOVERT MASTERDRIVES Inverter Control Module

Global PLC Spare HUB's Insight

The 6SE7036-5GK84-1JC0 inverter control module engineered by Siemens forms a vital gating and regulation link within high-power industrial drives. Serving the SIMOVERT MASTERDRIVES architecture, this IGD8 gate driver board handles high-voltage switching pulses for multi-megawatt drives operating across heavy manufacturing networks. Field replacement notes show that upgrading or swapping this module restores reliable firing pulses, eliminating intermittent phase-imbalance faults in heavy rolling mills.

Technical Specifications

Installation Guide

• Power down the master drive system completely and verify zero energy state on the DC intermediate circuit capacitors before handling.
• Ground yourself with an anti-static wrist strap to protect sensitive CMOS gate-firing components on the circuit board.
• Align the 6SE7036-5GK84-1JC0 module precisely into the designated rack slot inside the power section.
• Secure all optical fiber feedback loops and plug-in control terminal blocks firmly to prevent loose connections during high-vibration operation.

Commissioning and Maintenance Convenience

• Leverage integrated diagnostic LED indicators on the board faceplate to verify gate power supply health instantly.
• Perform quick-swap maintenance cycles during planned outages without replacing the entire power stack assembly.
• Check optical firing channels easily using standard troubleshooting scopes to confirm pulse transmission fidelity.
• Maintain minimal spare parts inventory by utilizing board-level retrofits for legacy high-capacity drive systems.

Compatibility Information

• Designed exclusively for high-power Siemens SIMOVERT MASTERDRIVES units rated for 860A and 1580A output currents.
• Fully compatible with 500V-690V AC grid configurations and 675V-930V DC bus architectures.
• Directly interchanges with system layouts configured for older revision hardware variants.
• Works alongside standard CUVC and CUVC2 control boards within the main drive rack.

Certification Information

• Manufactured under strict ISO 9001 industrial electronics quality assurance standards.
• Complies with international low-voltage directive safety and insulation clearance limits.
• Meets industrial electromagnetic compatibility (EMC) immunity requirements for high-noise environments.
• RoHS compliant construction adhering to environmental material restriction standards.

Package List and Warranty Terms

• One factory-inspected 6SE7036-5GK84-1JC0 inverter control module
• Anti-static protective packaging enclosure with moisture barrier protection
• Comprehensive 12-month replacement warranty covering component and workmanship defects

Shipping and Logistics

• Rapid order handling with dispatch execution within 24 to 48 hours
• Secure global air shipping options utilizing FedEx, UPS, and DHL networks
• Heavy-duty shock-absorbing industrial carton boxes designed to prevent transit damage

Target Equipment Applications and Diagnostic Capabilities

• Application Fit: Deployed in high-capacity mining conveyors, marine propulsion drives, heavy metal rolling mills, large municipal water pump stations, and industrial test rig dynamometers.
• Practical Example: In a cement plant kiln drive rated at 860A, replacing a degraded firing board eliminates intermittent gate-trigger jitter that previously triggered sudden overcurrent trips.
• Fault Diagnostics: Tracks internal gate power supply drops, optical link communication timeouts, and desaturation faults across high-power IGBT switches.
• Event Response: Immediately signals core processor trips to prevent catastrophic shoot-through conditions in high-voltage DC-link stacks.

Global PLC Spare HUB Review

Global PLC Spare HUB Review: The 6SE7036-5GK84-1JC0 control board delivers critical stability for heavy industrial drive architectures operating in harsh electrical conditions. Plant engineers rely on its precise gate-trigger timing to protect costly IGBT modules from thermal and voltage spikes. Sourcing verified replacement hardware ensures minimal downtime for critical multi-megawatt production lines.

Frequently Asked Questions

Q: What selection factors must be verified before replacing this IGD8 control module in an active drive line?
A: Confirm that your drive power section matches the 500V-690V AC or 675V-930V DC voltage class and operates at either the 860A or 1580A current tier, and verify whether your system requires the direct successor part number 6SE7036-5GK84-1JC2.

Q: What practical field guideline should be followed when handling this sensitive electronic board during installation?
A: Always wear a grounded ESD wrist strap, avoid touching exposed surface-mount soldering joints or optical fiber pins directly, and ensure the DC bus capacitors are fully discharged before unseating the old board.

Q: How can maintenance technicians diagnose a failing gate driver board before a complete system shutdown occurs?
A: Look for intermittent phase current asymmetry, check for error codes related to firing pulse supervision on the master control panel, and inspect the board's onboard LED status indicators for power rail faults.

Q: Can this control module handle both AC supply grids and DC bus configurations?
A: Yes, it is engineered to support 500V to 690V AC three-phase networks as well as 675V to 930V DC intermediate circuit systems within MASTERDRIVES setups.

Q: What is the standard dispatch and transit workflow for urgent replacement orders?
A: Orders are securely packed and dispatched from inventory within 24 to 48 hours, shipping globally via express priority couriers including FedEx, UPS, and DHL.
