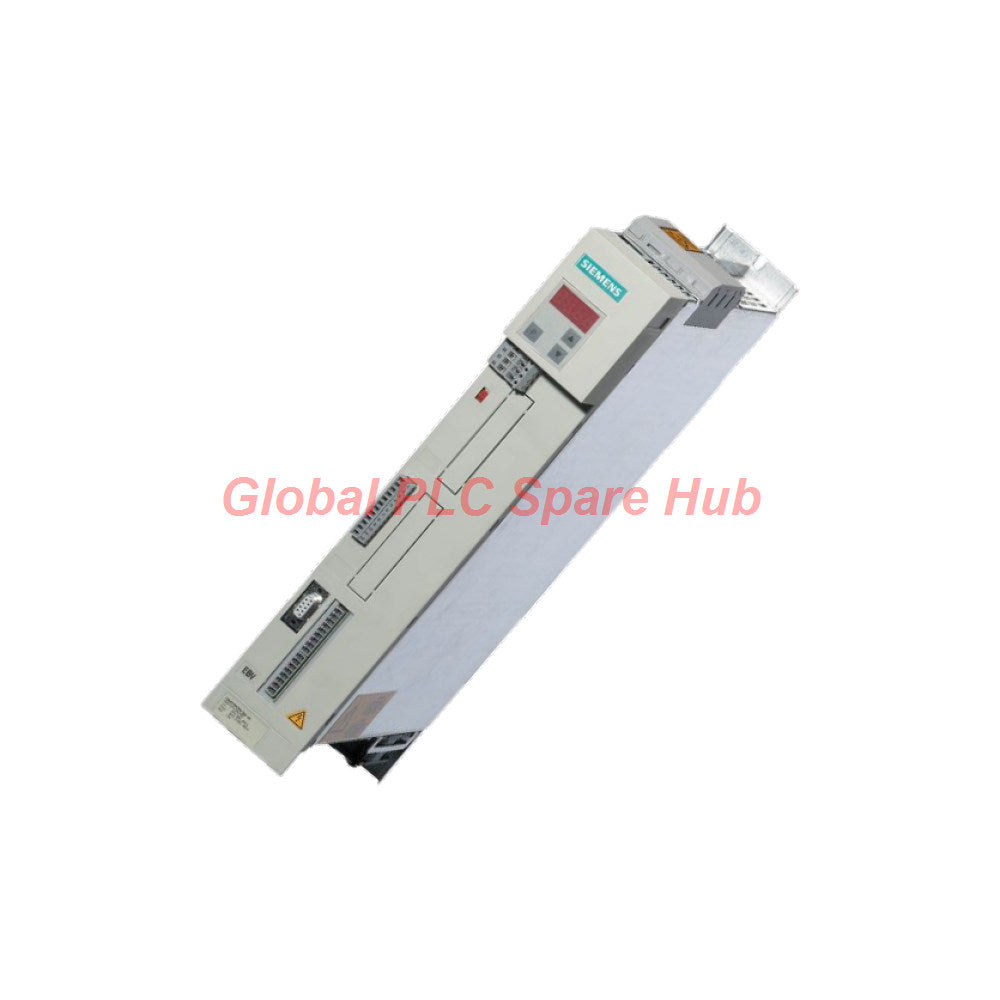

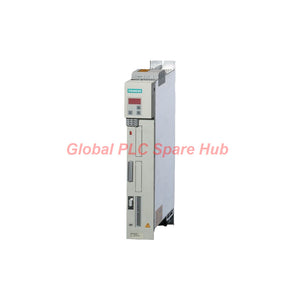

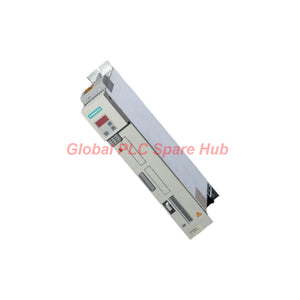

6SE7024-1EB85-0AA0 Infeed Unit Siemens SIMOVERT MASTERDRIVES 400V 3-Phase

Global PLC Spare HUB's Insight

The 6SE7024-1EB85-0AA0 power infeed unit developed by Siemens acts as a robust front-end rectifier converting standard AC utility power into a stable DC link voltage. Operating within the SIMOVERT MASTERDRIVES ecosystem, this 15kW module delivers reliable power conversion for multi-axis drive configurations. Practical field notes highlight that proper pre-charging circuit operation prevents high inrush currents during cabinet startup, preserving downstream inverter semiconductors.

Technical Specifications

Installation Guide

• Mount the 6SE7024-1EB85-0AA0 chassis securely to the backplate of an enclosed industrial control cabinet.
• Ensure adequate vertical clearance around the open-frame structure to promote natural thermal convection and airflow.
• Connect incoming 3-phase AC mains lines (380V-480V) to the designated primary input terminals using correctly sized copper conductors.
• Route the DC bus output bars (510V-620V) cleanly to neighboring inverter sections while torqueing all fastening bolts to manufacturer specifications.

Commissioning and Maintenance Convenience

• Inspect internal busbar connections and snubber circuit components periodically for signs of thermal stress.
• Verify intermediate circuit DC voltage stability using a calibrated multimeter before energizing downstream inverter drives.
• Utilize modular terminal layouts to streamline wiring checks without unbolting adjacent power stacks.
• Perform routine environmental dust removal using dry compressed air to maintain optimal open-frame cooling efficiency.

Compatibility Information

• Engineered specifically for integration into Siemens SIMOVERT MASTERDRIVES modular cabinet systems.
• Matches standard 400V class 3-phase industrial power distribution networks operating at 50Hz or 60Hz.
• Interfaced seamlessly with standard MASTERDRIVES control boards monitoring line voltage parameters.
• Accommodates standard multi-axis common DC bus configurations up to its 15kW rating threshold.

Certification Information

• Manufactured in accordance with international industrial electrical safety standards.
• Complies with CE low-voltage equipment directives for commercial manufacturing environments.
• Adheres to RoHS environmental guidelines regarding hazardous substance limitations.
• Meets IP20 protection constraints for integrated indoor control panel deployment.

Package List and Warranty Terms

• One factory-inspected 6SE7024-1EB85-0AA0 infeed unit module
• Standard hardware installation and safety documentation bundle
• Comprehensive 12-month replacement warranty protecting against defects in materials and workmanship

Shipping and Logistics

• Rapid order processing with dispatch completed within 24 to 48 hours
• Secure international express shipping handled via trusted global carriers FedEx, UPS, and DHL
• Heavy-duty industrial cushioning and moisture-resistant crating to prevent transit damage

Target Equipment Applications and Diagnostic Capabilities

• Application Fit: Ideal for multi-axis printing presses, automated textile weaving lines, industrial material handling systems, and centralized machine tool power supplies.
• Practical Example: In a high-speed bottling plant, this infeed unit maintains a rigid DC bus level during sudden load surges, preventing nuisance undervoltage trips across secondary drives.
• Fault Diagnostics: Monitors input phase failure, DC link overvoltage, pre-charge circuit timeout faults, and internal thermal trip states.
• System Protection: Immediately signals master control racks upon detecting line imbalances to protect sensitive rectifying diodes from cascading failure.

Global PLC Spare HUB Review

Global PLC Spare HUB Review: The 6SE7024-1EB85-0AA0 infeed unit provides dependable DC bus generation for demanding multi-drive architectures. Its sturdy 11.34 Kg build and precise 15kW rating make it an optimal drop-in replacement for legacy automation panels. Plant engineers appreciate its straightforward cabinet footprint and reliable performance under fluctuating plant voltage conditions.

Frequently Asked Questions

Q: What key parameters should be evaluated when selecting this 15kW infeed unit for a legacy cabinet retrofit?
A: Verify that your incoming utility supply matches the 380V-480V 3-phase range, confirm that total continuous load consumption does not exceed 15kW, and ensure your cabinet environment provides adequate IP20 protection space.

Q: Why does this module utilize an open-frame enclosure design instead of a fully sealed casing?
A: The open-frame IP20 structure is optimized for installation inside dedicated, filtered electrical control cabinets where natural or forced cabinet ventilation handles thermal dissipation efficiently.

Q: What diagnostic step should be taken if the DC intermediate circuit fails to reach its normal operating voltage window?
A: Check incoming 3-phase line fuses for continuity, verify that the internal pre-charging contactor closes successfully, and inspect AC input terminals for loose wiring or phase imbalance.

Q: Can this power supply unit handle regenerative energy flowing backward from connected motor drives?
A: This standard infeed unit is a non-regenerative front-end rectifier; applications requiring continuous power regeneration back to the grid require a specialized active front-end module instead.

Q: What logistics workflow applies when ordering this replacement part for urgent plant repairs?
A: Orders are processed, securely packaged, and dispatched from inventory within 24 to 48 hours, shipping worldwide through expedited carriers including FedEx, UPS, and DHL.
