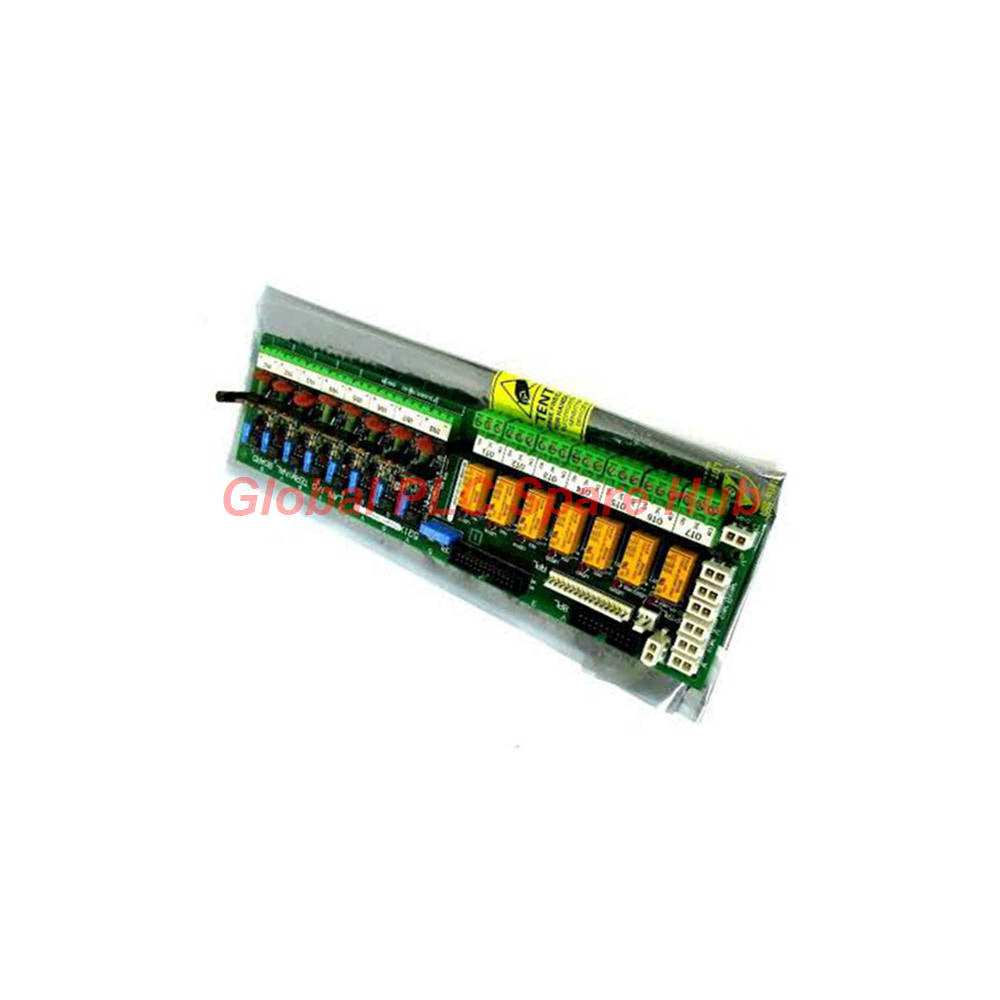

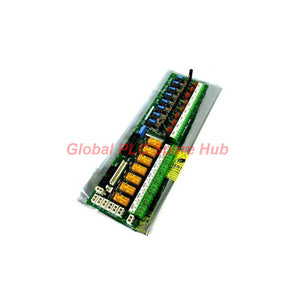

531X307LTBAKG1 GE Interface Module for DC2000 & EX2000 Drives

Technical Engineering Profile: 531X307LTBAKG1

The 531X307LTBAKG1 serves as a specialized LAN (Local Area Network) I/O Terminal Board within the GE 531X series architecture. It acts as a high-density signal bridge, converting versatile AC/DC input voltages (2V–240V) into standardized 24VDC logic. This conversion facilitates seamless communication between drive control boards, external contactors, and interlock systems.

Hardware Architecture & Specifications

• Manufacturer: General Electric (GE)
• Part Model: 531X307LTBAKG1
• Series: 531X
• Digital Inputs: 8 configurable control input ports
• Output Configuration: 7 Form C relay contact outputs (low voltage/current)
• Input Versatility: Accepts AC/DC range from 2V to 240V
• System Integration: Compatible with DC2000 and EX2000 drive platforms

Global PLC Spare HUB's Insight

Our engineering team highlights the 531X307LTBAKG1 as an essential node for multi-device synchronization. Its ability to aggregate disparate signal voltages into a unified 24VDC control stream simplifies troubleshooting in complex drive cabinets. We recommend this for facilities upgrading legacy exciters where signal isolation is paramount.

Diagnostic Capabilities & Applications

• Diagnostic Capability: Enables active monitoring of interlocks and indicator states across the LAN terminal, drive control board, and NTB terminals.
• Application Scenarios: Ideal for heavy-duty DC2000 drive systems and EX2000 exciter control loops. Perfect for industrial environments requiring reliable contactor status feedback and safety interlock integration.

Logistics & Quality Assurance

• Global Express: Fast transit via FedEx, UPS, and DHL.
• Processing: 24–48 hour rapid dispatch.
• Quality Guarantee: 12-month performance warranty on all units.
• Documentation: Shipped with standard technical compliance data for simplified integration.

Expert Frequently Asked Questions

What is the primary sign of an input voltage conversion failure?

Check the 24VDC logic side. If the card fails to trigger the control board despite valid 2-240V inputs, the internal opto-isolators or voltage-conditioning circuit may have degraded due to high-voltage transients.

Can this board be used for safety-critical interlocking?

While it supports contactors and interlocks, it is a general-purpose I/O board. For SIL-rated safety loops, ensure you are utilizing redundant logic paths outside of this board's standard relay suite.

What is the purpose of the Form C relay configuration on the outputs?

Form C relays provide both Normally Open (NO) and Normally Closed (NC) contacts, allowing you to configure the board to either activate or deactivate external devices based on the drive's logic state.

Selection Guide: How do I verify this board for my DC2000 drive?

Check the physical connection points on your existing terminal board against the datasheet. The 531X307LTBAKG1 has specific plug-in slots for the NTB terminal—ensure your physical space allows for proper seating of the eight input plugs.

Why are my output relays buzzing during operation?

This often indicates a fluctuating supply voltage or a loose load connection. Verify that your low-voltage/low-current outputs are not exceeding the relay's rated contact capacity, as inductive loads can cause arcing.
