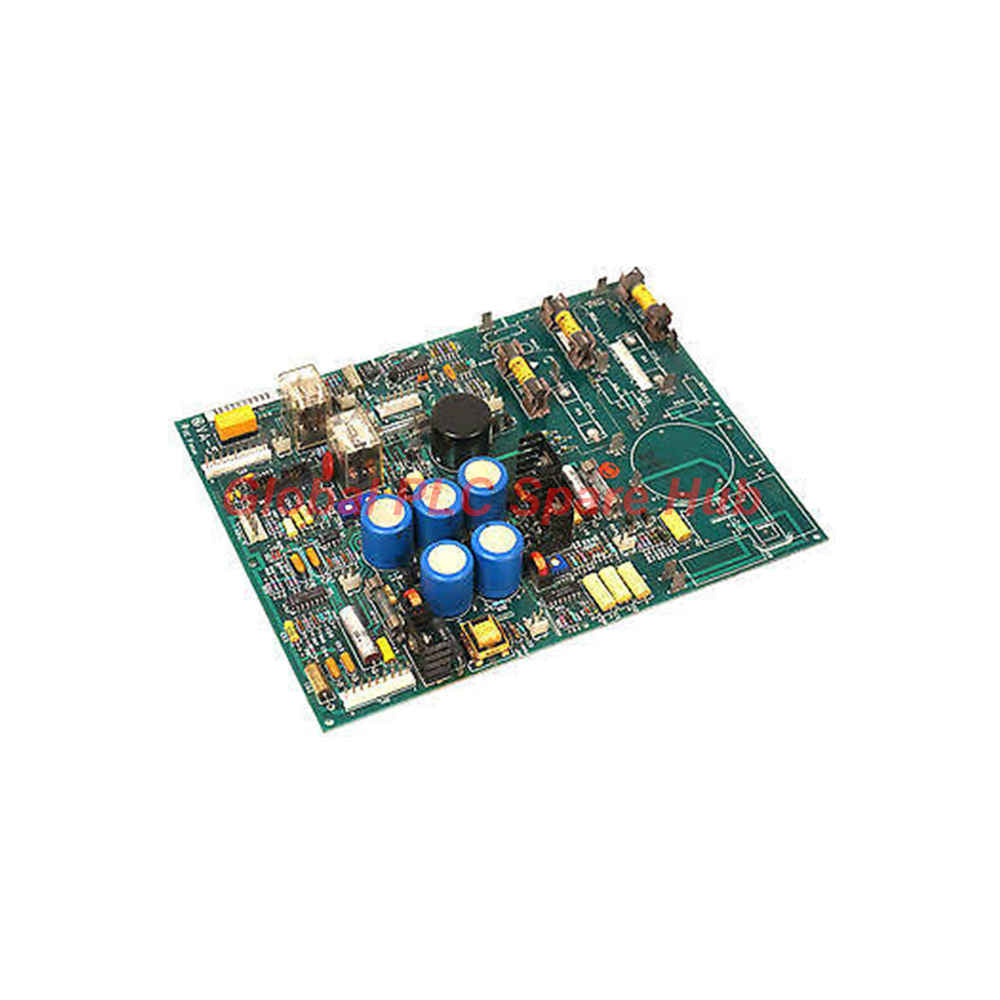

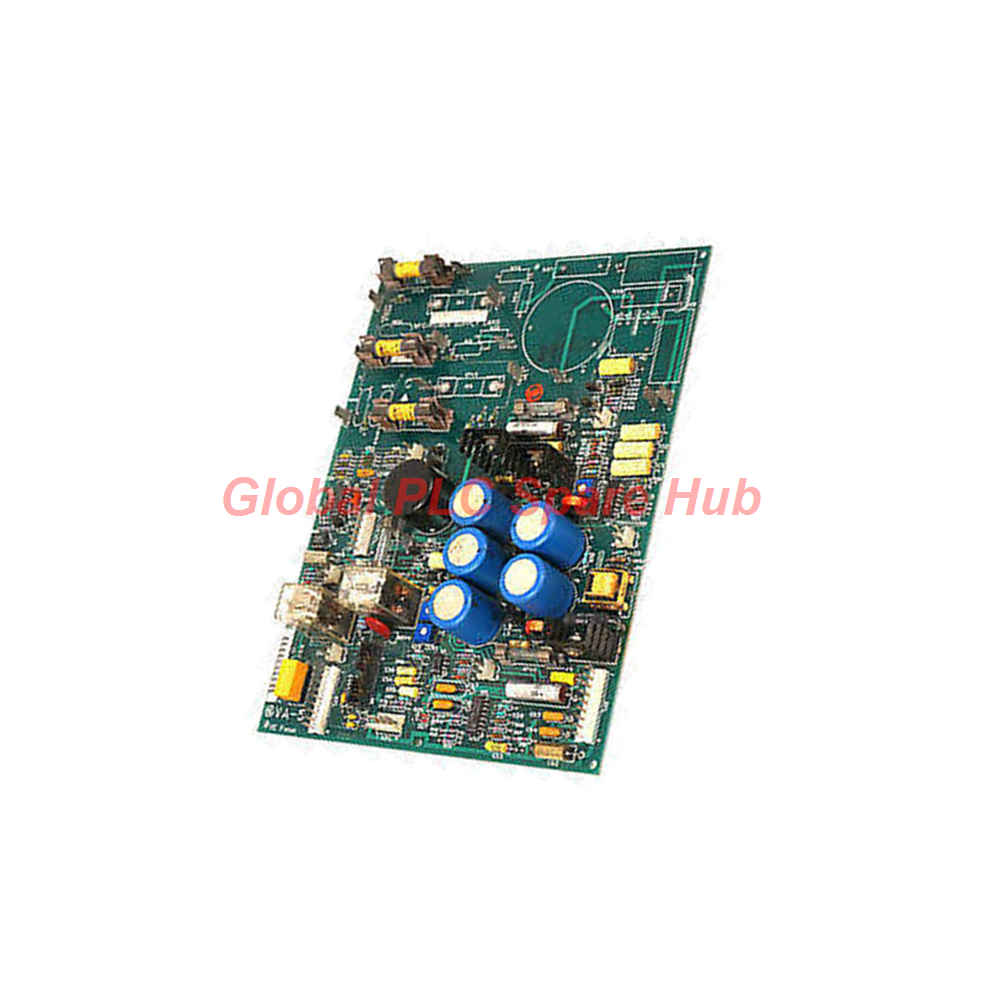

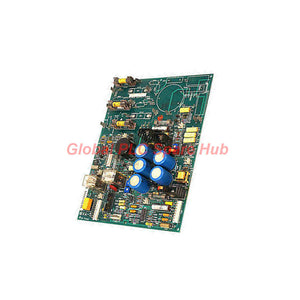

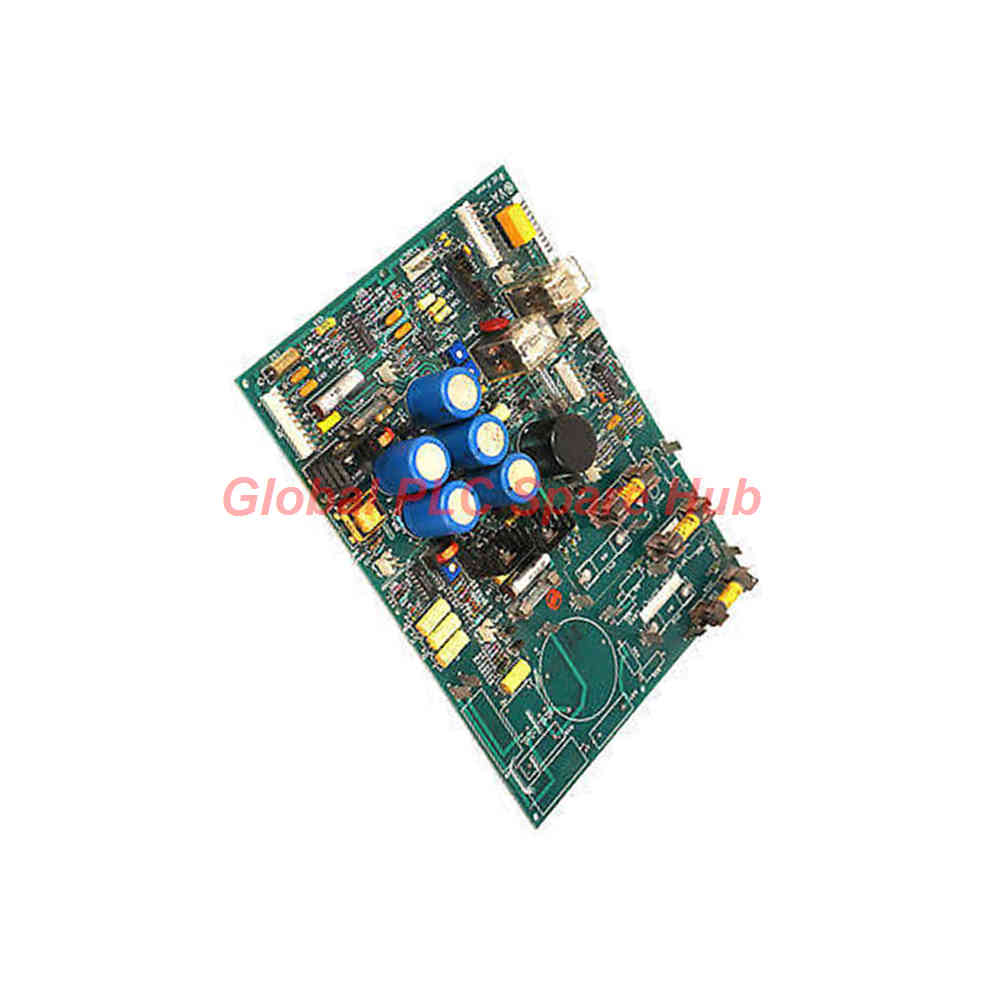

531X111PSHAPG2 GE Terminal Board | Drive Control Relay Card

Engineered Reliability: 531X111PSHAPG2 Overview

The 531X111PSHAPG2 serves as a critical terminal board and relay card within the General Electric 531X series ecosystem. Designed as a high-precision motor field control and power supply board, it delivers stable 5V, 15V, and 24V DC outputs essential for drive system operation. This G3 board version features integrated pulse transformers for motor field circuitry, ensuring robust performance in demanding industrial motion control environments.

Core Technical Capabilities

• Manufacturer/Series: General Electric 531X Series
• Model Number: 531X111PSHAPG2
• Primary Functions: Motor field control, power distribution, and relay switching.
• Power Regulation: Multi-voltage support (5V, 15V, 24V DC).
• On-Board Controls: Features 3 adjustable potentiometers for precise feedback regulation and 5 jumpers for signal calibration.
• Switching Logic: Includes 3 onboard relay points for comprehensive system function control.
• Protection: Dedicated motor field circuitry isolation via high-quality onboard pulse transformers.

Diagnostic and Operational Insight

The 531X111PSHAPG2 enables advanced diagnostics through its feedback loop architecture. The potentiometers allow for real-time fine-tuning of current and circuit feedback, which is vital for maintaining steady-state drive performance. Users can monitor system stability by checking these feedback signals, reducing the risk of downtime in motor control applications.

Global PLC Spare HUB Insight

Global PLC Spare HUB identifies the 531X111PSHAPG2 as an essential component for legacy GE drive systems, particularly where precise motor field modulation is required. This board is best suited for heavy-duty industrial drives found in steel mills, pulp and paper machinery, and large-scale manufacturing conveyor systems. It acts as the "heart" of the power regulation module, bridging control logic with physical motor field excitation.

Safety, Logistics, and Warranty

• Installation Safety: High-voltage warning; installation must be performed by certified personnel only. Ensure all power is isolated and workspace is moisture-free before servicing.
• Warranty: Protected by a comprehensive 12-month quality assurance guarantee.
• Global Logistics: Rapid worldwide shipping via FedEx, UPS, or DHL.
• Turnaround: Standard dispatch time of 24-48 hours.

Expert Frequently Asked Questions

What is the primary function of the onboard potentiometers?
The three potentiometers are designed to regulate current levels and circuit feedback, allowing you to calibrate the board specifically to the requirements of your host drive’s motor field.

Why are the AC line MOVs not placed directly on this board?
As a G3 version board, the design separates the AC line MOV protection from the control circuitry to improve thermal management and reduce the risk of board-level component failure during high-voltage transients.

How do I ensure the pulse transformer is functioning correctly?
Monitor the motor field output stability. If the drive experiences field loss errors, check the pulse transformer input/output signals against the nominal expected DC voltage levels to identify if the transformation stage is compromised.

What should I look for during the annual inspection of this board?
Verify the integrity of the jumper connections for signal calibration and inspect the potentiometers for signs of oxidation or drift. Ensure no environmental debris is present near the relay points to prevent arcing.

Selection Guide: Can I replace a different version of the 531X board with this unit?
Always verify the revision level of your existing board. The 531X111PSHAPG2 is a specific G3 version; ensure compatibility with your drive controller's software and hardware version before installation to avoid signal mismatch.
