43501-01-00-01 Bently Nevada Low Pressure Cable Seal

Product Overview

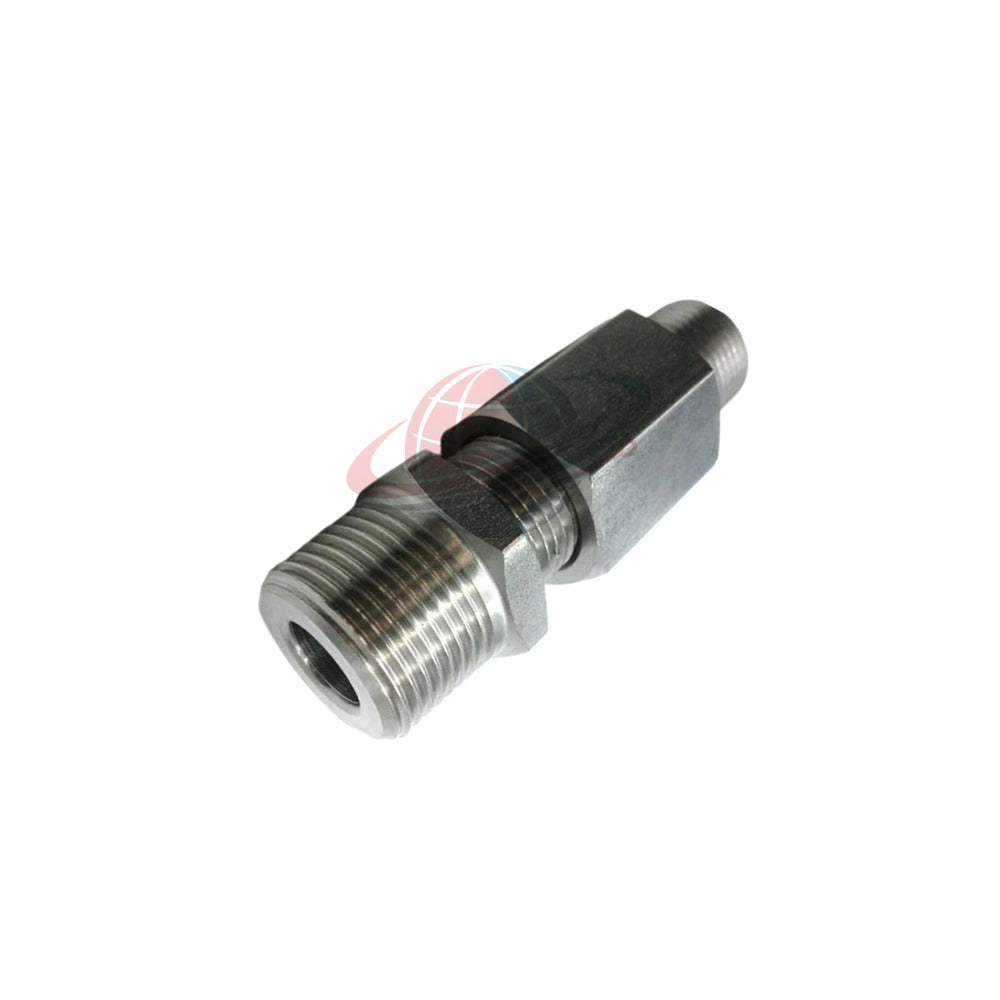

The 43501-01-00-01 is a heavy-duty mechanical pass-through fitting manufactured by Bently Nevada for industrial machinery monitoring. This Low Pressure Cable Seal enables the secure routing of delicate proximity transducer lines through a single case entry point. It establishes an absolute barrier on the outer jacket of the cabling, isolating critical proximity sensors from internal machine environments.

Equipped with a precision-molded silicone rubber grommet, the 43501-01-00-01 seals entry holes tapped with native NPT pipe threads. This configuration prevents high-velocity lube oil mist and fluid splashes from escaping bearing housings and rotating machinery casings. The compact dual-ended design accommodates standard external conduit or protective housings on both ends, ensuring integrated hardware armor across the entire wire run.

Global PLC Spare HUB's Insight

Field engineering experience reveals that the 43501-01-00-01 is essential for maintaining casing pressure stability in turbo-machinery layouts. When monitoring critical fluid-film bearings, oil containment is crucial to protect proximity probes and stop environmental fouling. This seal withstands up to 345 kPa (50 psi) across the silicone grommet from high-pressure to low-pressure boundaries. It is engineered specifically for the outer cable jacket, containing volatile lubricants within the casing while safeguarding external junction setups.

Technical Specifications

• Brand: Bently Nevada
• Model: 43501-01-00-01
• Product Type: Low Pressure Mechanical Cable Seal
• Cabling Accommodation: 1 to 4 standard 95-ohm transducer cables, or 1 to 2 heavy-duty 25mm/50mm DE cables
• Differential Pressure Rating: 345 kPa (50 psi) maximum continuous differential
• Absolute Pressure Minimum: Rated down to 1.0 psi absolute vacuum boundary
• Assembled Length: 35mm (1.4 inches) when torqued down to nominal specifications
• Sealing Media: High-grade molded silicone rubber grommet with compression washer
• Thread Selection Options: 1/2-14 NPT and 3/4-14 NPT global fitting standards
• Country of Origin: United States of America (USA)

Configuration Breakdown

The specific model structure of the 43501-01-00-01 is defined by the following hardware selection matrix:

• 43501 - Base Model: Low Pressure Cable Seal Assembly
• 01 - High Pressure Side Thread Size: 1/2-14 NPT thread fitting
• 00 - Cable Grommet and Washer: Solid grommet configuration (no pre-punched holes; custom holes must be field-punched)
• 01 - Low Pressure Side Thread Size: 1/2-14 NPT thread fitting

Diagnostic Capabilities & Field Verification

• Provides passive mechanical pressure-retaining isolation, sealing up to 50 psi differential across the housing boundary.
• Enables simple visual inspection of the outer cable jacket for compression tracking and alignment during maintenance reviews.
• Ensures continuous containment of lubrication sprays to stop oil tracking along the external instrumentation conduit.

Target Equipment & Application Scenarios

• Centrifugal compressor housings utilizing 3300 XL 5mm, 8mm, or 11mm proximity probe systems.
• Steam turbine fluid-film bearing pedestals requiring multi-cable exit routes through a single tapped casing port.
• Large industrial electric motor end-shields tracking shaft vibration, thrust position, and dynamic expansion.
• High-speed reduction gearboxes operating with active internal oil splash zones and pressurized spray bars.

Selection Comparison & Technical Recommendations

When engineering instrumentation paths, selecting the right suffix variant dictates deployment success. Below is a comparison against another common configuration:

• Model 43501-01-00-01 (This Model): Features 1/2-14 NPT threads on both high and low-pressure sides. It comes with a solid silicone grommet (00) that has no pre-drilled channels. This provides complete flexibility for technicians to punch custom hole layouts tailored to specialized cable combinations.
• Model 43501-01-04-02: Features a 1/2-14 NPT high-pressure thread combined with an expanded 3/4-14 NPT low-pressure thread. It includes a multi-hole pre-configured grommet layout. View this alternative configuration directly here: 43501-01-04-02 Seal Assembly.

Technical Selection Advice: If your field setup uses a standard 1/2-inch junction box conduit connection, select the 43501-01-00-01. The solid grommet allows you to drill precise, tight seals for mismatched cable diameters. If you are matching a larger 3/4-inch external conduit run to reduce cable pulling friction, use the alternative 43501-01-04-02 framework.

Installation & Cable Preparation Guide

• Thoroughly clean the tapped 1/2-NPT machine case hole and inspect the internal threads for burrs before insertion.
• Use an appropriate industrial punch tool to pierce the exact number of holes required through the solid silicone grommet.
• Thread the raw transducer cables carefully through the custom-punched grommet channels without twisting the jacket.
• Apply thread sealant to the external pipe threads before screwing the seal body into the machine casing.
• Tighten the outer compression nut using an open-ended wrench until the seal body measures 35mm to compress the silicone.

Logistics, Packaging & Warranty

• Package Contents: One premium Bently Nevada 43501-01-00-01 seal housing with solid grommet and compression washers.
• Warranty Term: Full 12-month industrial mechanical warranty against component defects.
• Fulfillment Schedule: Orders are securely packed and dispatch within 24 to 48 hours from the facility.
• Shipping Networks: Express international transit provided via priority carrier channels including FedEx, UPS, and DHL.

Frequently Asked Questions

Question: Why does this specific model configuration come with a solid grommet that has no pre-drilled holes?

Answer: The solid "00" option allows mechanical installers to punch custom-sized holes in the field, ensuring an optimal fit for non-standard cable configurations.

Question: Does the 43501 seal assembly stop lube oil leaks that travel through the inner metal braid of a damaged cable?

Answer: No, this hardware seals strictly along the outer cable jacket; it cannot block leaks traveling through inner braids or split center conductors due to cuts.

Question: What is the mechanical risk of over-tightening the outer compression nut past the 35mm length specification?

Answer: Over-tightening over-compresses the silicone rubber grommet, which can pinch and score the inner coaxial insulation of the transducer lines.

Question: Can this cable seal assembly be safely used in high-pressure hydraulic control lines exceeding 100 psi?

Answer: No, this is a low-pressure seal rated strictly for a maximum differential pressure of 345 kPa (50 psi), typical of lube oil bearing sumps.

Question: What tool should be used to create the wire paths through the solid silicone block during commissioning?

Answer: Experienced instrumentation techs recommend using a dedicated sharp leather punch or hollow gasket punch slightly smaller than the cable outer diameter.
