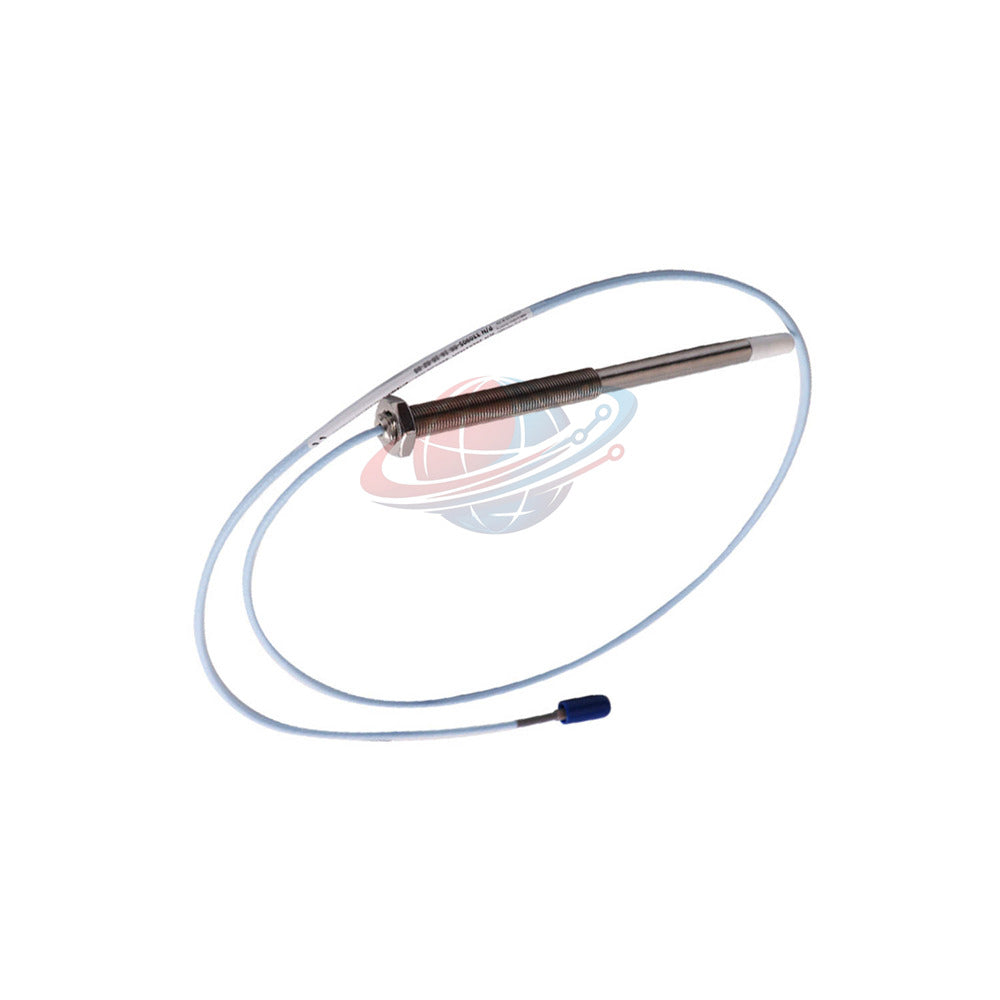

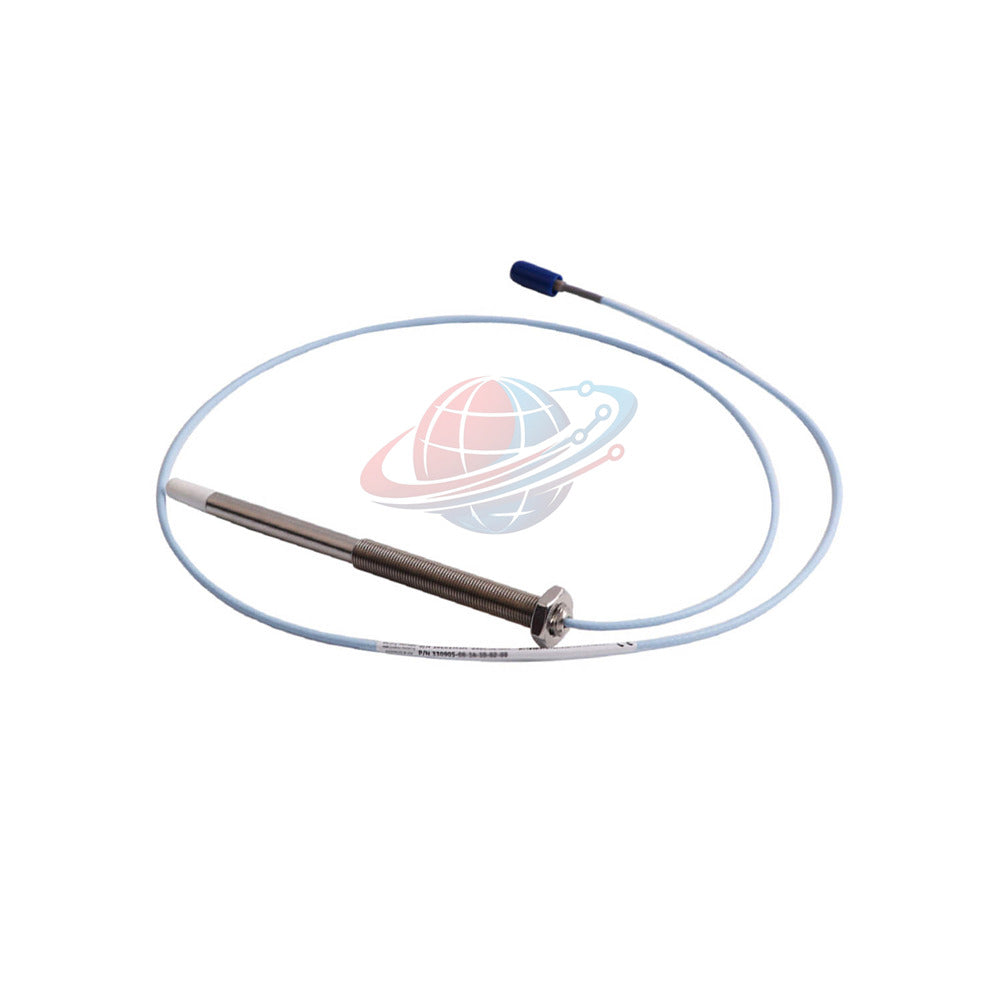

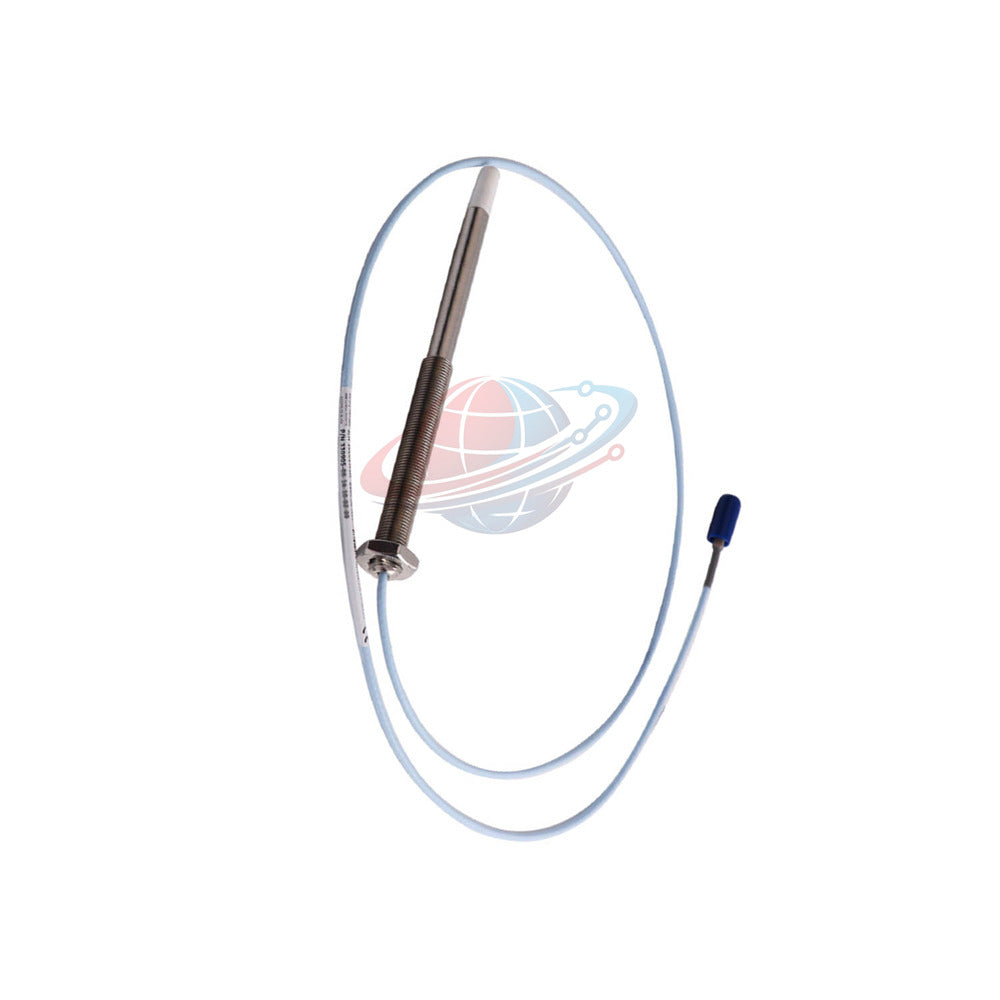

330905-00-25-05-01-00 | Bently Nevada 3300 NSv Proximity Probe

Technical Engineering Brief

The Bently Nevada 330905-00-25-05-01-00 is a specialized eddy-current transducer belonging to the high-density 3300 NSv proximity probe series.

Designed for narrow installation paths and small target profiles, this non-contacting sensor measures static gaps and dynamic displacement profiles effectively.

The M10X1 threaded stainless steel body houses an advanced polyphenylene sulfide tip, delivering superior chemical resistance for process compressor deployments.

By translating micro-inch mechanical movements into linear DC voltage shifts, this hardware ensures precise vibration data capture under strict space limitations.

Model Configuration Breakdown

• 330905 ── Core Proximity Probe Type
  • ↳ Series Type: 3300 NSv Transducer (Optimized for small targets)
  • ↳ Thread Profile: M10 x 1 metric thread
  • ↳ Armor Configuration: Unarmored standard coaxial cable design
• 00 ── Unthreaded Length Option
  • ↳ Dimension: 00 mm unthreaded sleeve area (Fully threaded casing)
• 25 ── Overall Case Length Option
  • ↳ Dimension: 250 mm total metallic housing length
• 05 ── Total Length Option
  • ↳ Dimension: 0.5 meter (20 inches) physical integration length
• 01 ── Connector & Cable-Type Option
  • ↳ Variant: Miniature coaxial ClickLoc connector equipped with integrated connector protector
• 00 ── Agency Approval Option
  • ↳ Status: Base variant, no localized hazardous zone certification tags required

Core Architecture & Technical Specifications

• Brand: Bently Nevada
• Model: 330905-00-25-05-01-00
• Series: 3300 NSv
• Component Type: Non-Contact Eddy Current Proximity Transducer
• Measurement Linear Range: 1.5 mm (60 mils) total displacement window
• Operational Gap Limits: Commences at 0.25 mm (10 mils) up to 1.75 mm (70 mils) from the target face
• Electrical Signaling Range: Corresponds linearly from -1 V DC to -13 V DC output levels
• Recommended Target Gap: Set at 1.0 mm (40 mils) installation distance
• Incremental Scale Factor: 7.87 V/mm (200 mV/mil) +12.5%/-20% accuracy profile
• Deviation From Best Fit Straight Line: Within ±0.06 mm (±2.3 mils) limits
• Frequency Response Bandwidth: 0 to 10 kHz; +0, -3 dB typical signal attenuation
• Flat Target Diameter Threshold: Minimum 8.9 mm (0.35 in); Recommended minimum 13 mm (0.5 in)
• Nominal Loop DC Resistance: 4.0 ohms ± 0.5 ohms measured center conductor to shield
• Extension Cable Capacitance Index: 69.9 pF/meter (21.3 pF/ft) typical value
• Housing Metallic Composition: AISI 304 austenitic stainless steel
• Tip Material Compounding: High-stability Polyphenylene Sulfide polymer
• Internal Insulation Wrap: Fluoroethylene propylene insulated 75-ohm coaxial design
• High-Pressure Process Sealing: Viton O-ring internal differential pressure barrier
• Minimum Cable Bend Radius: 25.4 mm (1.0 in) static physical routing radius
• Recommended Thread Torque: 7.5 N·m (66 in·lb) under standard mounting configurations
• Connector Finger Tightening Limits: 0.56 N·m (5 in·lb) maximum rated terminal threshold
• Standard Temperature Limits: Sustains internal components across a -52 °C to +177 °C operational spectrum

Host Equipment Interoperability

The Bently Nevada 330905-00-25-05-01-00 functions as a legacy-compatible analog capture mechanism, pairing directly with:

• Bently Nevada 3300 XL NSv Proximitor Sensors (5-meter or 7-meter baseline calibrations)
• Bently Nevada 3500/40M Proximitor Monitor Modules
• Bently Nevada 3500/42M Displacement Monitors
• Bently Nevada 3300 RAM legacy proximity extension paths

Target Field Implementations

• Radial vibration monitoring on small-diameter high-speed turbocharger rotor shafts.
• Axial thrust position tracking inside compact centrifugal gas process compressors.
• Structural oil-film clearance measurements within highly corrosive chemical blending pumps.
• Position tracking applications where the probe body is exposed to tight side-view metal constraints.

Network Diagnostics & Metrology Verification

• DC Resistance Cross-Checking: Measuring the 4.0-ohm nominal loop baseline helps identify shorted coils or missed shields early.
• High-Frequency Attenuation Audit: Technicians monitor the 10 kHz rolloff profile to check signal degradation on long field runs.
• Scale Factor Verification: Tracks deviation from the straight line calibration over the 1.5 mm range to prevent monitoring errors.
• ClickLoc Connection Integrity: Integrated connector protectors isolate the coaxial link from fluid ingress and physical loosening.

Global PLC Spare HUB's Insight

The Bently Nevada 330905-00-25-05-01-00 is a problem-solver for tight spaces.

Its enhanced side-view characteristics prevent cross-talk errors when mounting close to surrounding metal walls safely.

The 250 mm fully-threaded case offers deep reach into internal bearing housings easily.

Meanwhile, the FEP-insulated 0.5-meter cable layout withstands harsh chemical atmospheres reliably over long service intervals.

Cross-Model Selection Analysis

• 330905-00-25-05-01-00 (Current Model): Features a 250 mm extra-long fully-threaded case (00 mm unthreaded sleeve) and a 0.5-meter standard cable lead with ClickLoc terminal protection. It is optimized for deep machine casings with restricted target clearances.
• 330905-00-08-05-12-05: Features an 80 mm short fully-threaded case, 0.5-meter cable length, and alternative connector profiles. It fits compact housings where long probe cases are not required.

Technical Application Guidance

• Small Shaft Scaling: Adjust your scale factor math if monitoring shafts under 13 mm, or close the gap slightly to reduce scaling errors.
• Chemical Environment Rules: The PPS and Viton sealing layers handle corrosive gas processes well, making this module a reliable choice for compressor upgrades.
• System Integration Matching: Verify that your combined probe and extension cable length matches the 5-meter or 7-meter configuration required by your Proximitor sensor.

Logistical Logistics & Warranty Terms

• Standard Packaging: Factory-sealed anti-static shielding box with protective contact caps.
• Express Courier Distribution: Priority global air freight fulfilled via FedEx, UPS, or DHL networks.
• Processing Lead Time: Guaranteed automated packaging and dispatch completed within 24 to 48 hours.
• Extended Coverage: Backed by a comprehensive 12-month industrial replacement warranty covering functional performance.

Advanced Engineering FAQ

Why do axial position measurements shift unexpectedly when this probe is installed on small-diameter shafts?

Shafts under 13 mm do not cover the eddy-current field completely, which changes the scale factor values.

To correct this variation, reduce the physical gap distance slightly to focus the sensing area better.

What field advantage does the 3300 NSv series offer over older legacy 3300 RAM proximity components?

The NSv probe uses advanced PPS polymers to improve chemical resistance across aggressive environments.

This compounding prevents target face breakdown inside process compressor systems significantly.

Can I install this specific 250 mm long probe body without any external mechanical support sleeves?

No, long 250 mm probe casings should be supported across their length to prevent physical bending issues.

Unsupported installations risk severe fatigue failures caused by structural resonance and process fluid flows.

How can maintenance teams quickly check for a broken signal path without removing the probe from its mount?

Disconnect the ClickLoc terminal and measure the center-to-shield loop resistance using a multimeter.

A reading falling completely outside the 4.0 ohms ± 0.5 ohms window flags an electrical path failure.

What is the purpose of the connector protector pre-installed on this specific model option?

The protector seals the miniature coaxial connection against moisture, oil, and external airborne debris.

This preventative enclosure blocks signal distortion from high-humidity atmospheres during long-term machine operation.

Procurement Guidance

• Audit Casing Clearance Depth: Measure your internal housing clearances to ensure the 250 mm threaded length fits without contacting internal components.
• Verify Extension Cable Capacitance: Ensure any existing field wiring matches the 69.9 pF/m specification to prevent signal attenuation at high frequencies.
• Check Target Material Specs: These sensors are calibrated for standard ferromagnetic targets. Confirm your metallurgy requirements before finalizing your order.
