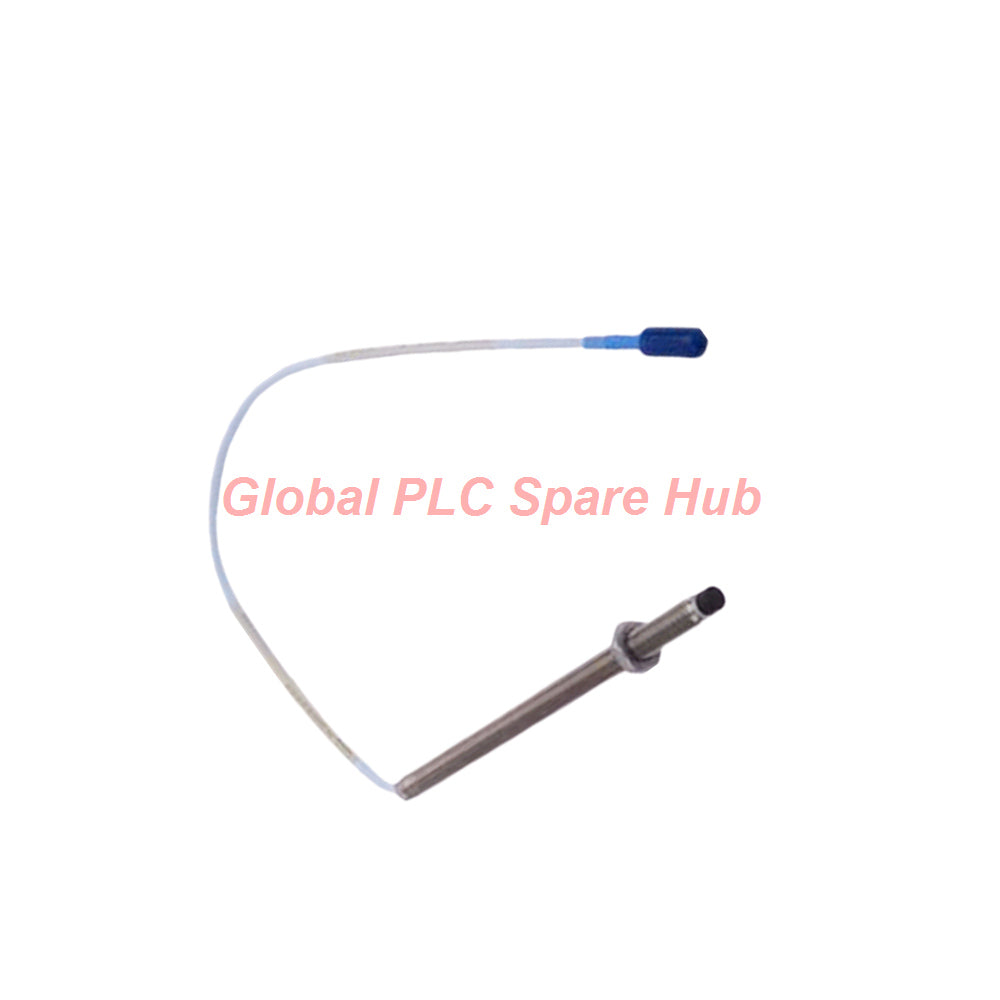

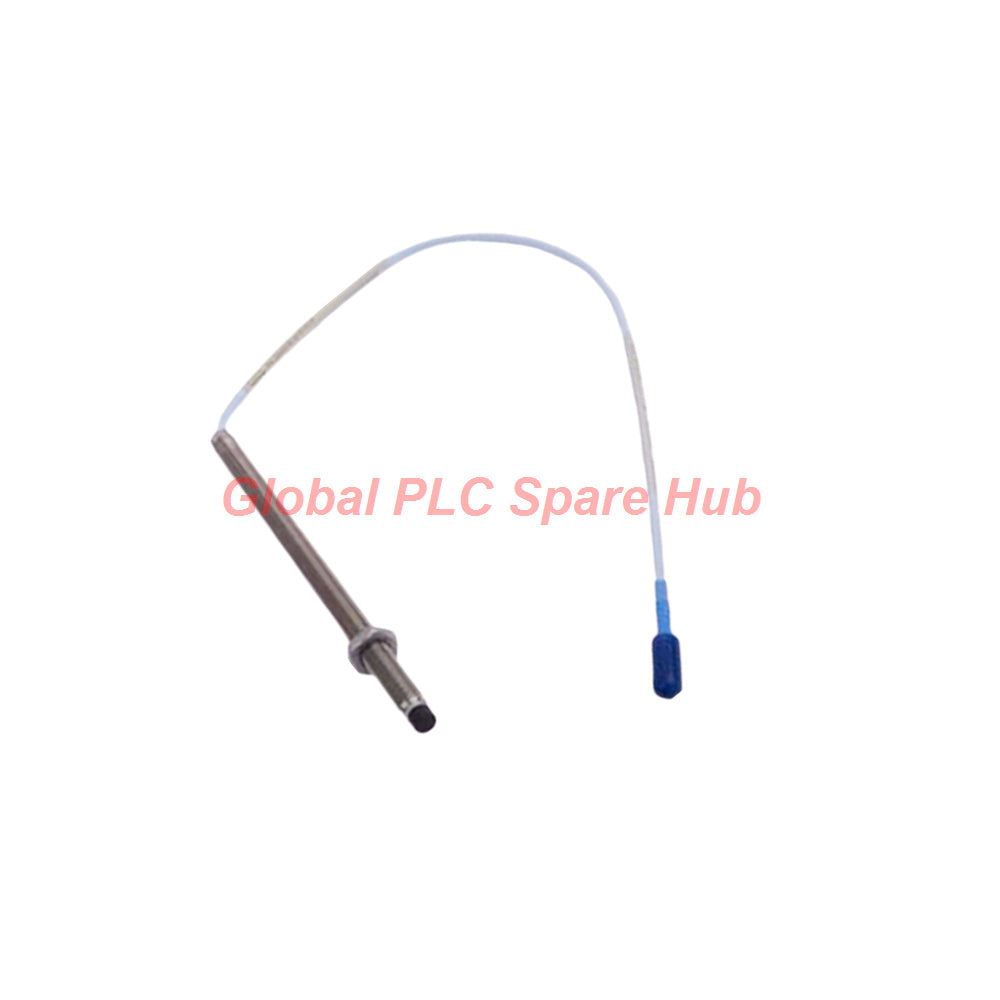

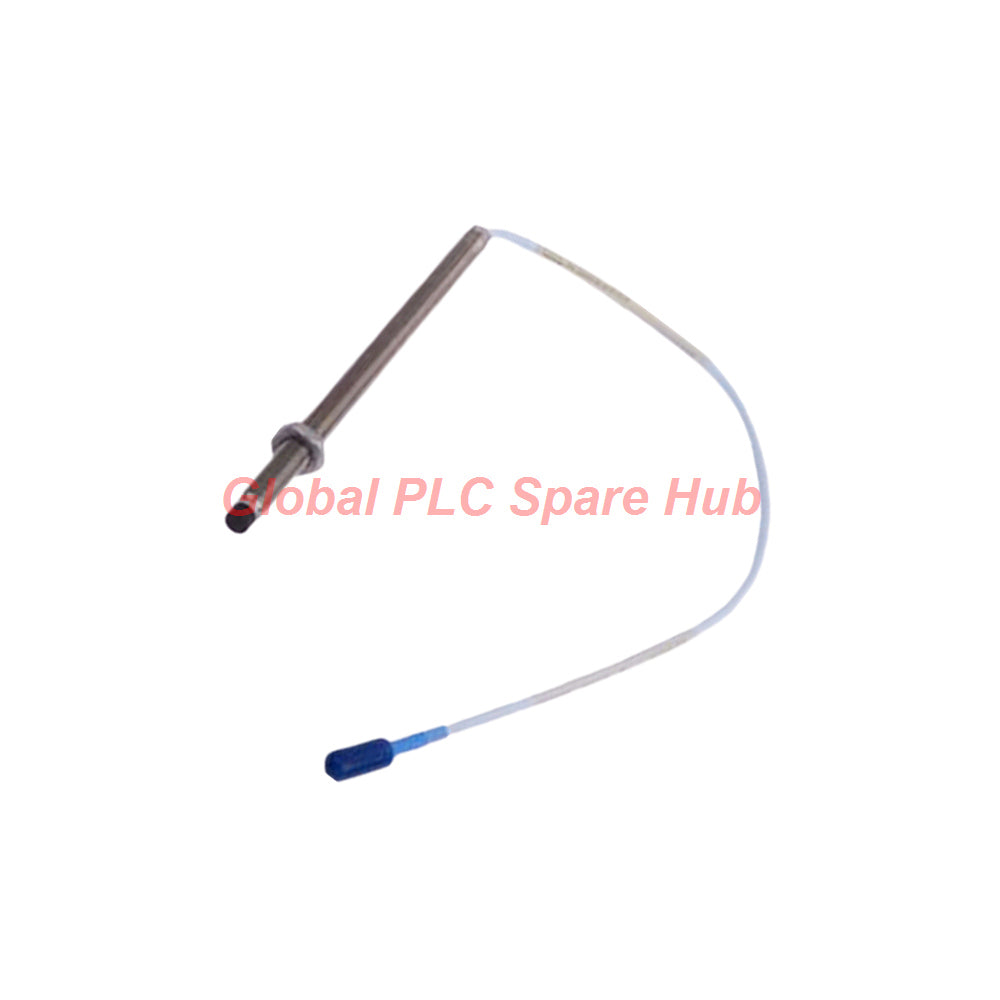

330903-00-05-70-01-05 Bently Nevada 3300 NSv Sensor Probe Quick Quote

Overview

The Bently Nevada 330903-00-05-70-01-05 is a high-precision proximity probe belonging to the industry-standard Bently Nevada 3300 NSv series. Engineered for tight-clearance machine applications, this eddy current transducer measures shaft vibration, position, and dynamic displacement with high accuracy. Automation and rotating machinery engineers utilize the 330903-00-05-70-01-05 in critical machinery protection systems where space constraints prevent the use of standard-size probes.

Featuring enhanced chemical resistance over legacy RAM probes, the Polyphenylene sulfide (PPS) tip and AISI 304 stainless steel case withstand corrosive hydrocarbon environments. The integrated Viton O-ring seals differential pressure between the tip and case, preventing process fluid leakage in high-pressure compressor housings and turbine skids.

Part Number Configuration Breakdown

• 330903 — Bently Nevada 3300 NSv Probe, M8x1 Thread, Without Armor
  • -00- — Unthreaded Length Option: 00 mm
  • -05- — Overall Case Length Option: 50 mm
  • -70- — Total Length Option: 7.0 meters (23.0 feet)
  • -01- — Connector and Cable Type Option: Miniature coaxial ClickLoc connector with standard cable and connector protector
  • -05- — Agency Approval Option: Multiple International Approvals

Technical Specifications

Diagnostic Capabilities

• Vibration & Gap Voltage Supervision
  • Continuous DC gap voltage verification confirms physical probe-to-target distance.
  • AC voltage modulation tracking provides real-time peak-to-peak shaft vibration measurements.
• Transducer Loop Health Check
  • Signal loss or short circuits force proximitor output to out-of-range limit states for instant alarm detection.
  • Integrates miniature coaxial ClickLoc connectors with molded protectors to eliminate signal attenuation from moisture ingress.

Suitable Equipment & Application Scenarios

• Centrifugal & Axial Process Compressors
  • Monitors shaft radial vibration and axial position inside narrow bearing housings.
  • PPS probe tip material offers superior resistance against aggressive chemical process gases compared to older probe designs.
• Small Steam Turbines & Auxiliary Pumps
  • Ideal for installation where side-view clearance is restricted or target shaft diameter is below 13 mm.
  • Prevents false vibration readings caused by adjacent metal side walls due to tight side-view characteristics.
• High-Speed Industrial Gearboxes
  • Tracks radial shaft motion and gear mesh frequencies across broad operating temperature ranges (-52 °C to +177 °C).

System Compatibility

• Interchangeability Assurance
  • Fully interchangeable electrically and mechanically with legacy Bently Nevada 3300 RAM proximity probes.
  • Direct replacement for 3000-series 190 probes with superior target gapping performance.
• Proximitor & Wiring Integration
  • Connects to 3300 XL NSv Proximitor Sensors using standard 75 Ω coaxial extensions.
  • Supports field wiring distances up to 305 meters (1,000 feet) using 3-conductor shielded triad cable.

Installation & Torque Guide

• Mechanical Mounting Procedures
  • Thread probe case into M8x1 tapped hole with maximum engagement length of 12 mm.
  • Hand-tighten probe body, maintaining recommended installation torque of 5.1 N•m (45 in•lb) up to max 7.3 N•m (65 in•lb).
  • Maintain minimum cable bend radius of 25.4 mm (1.0 in) during cable routing.
• Gapping & Electrical Zeroing
  • Set physical mechanical gap to 1.0 mm (40 mils) off shaft target.
  • Verify DC bias voltage reading at Proximitor output aligns with system calibration limits (-9 to -11 Vdc target center).

Commissioning & Maintenance

• Field Testing Routine
  • Check center-to-outer conductor probe resistance prior to installation (nominal 5.9 ± 0.9 ohms for 7m system).
  • Ensure ClickLoc coaxial connectors are fully seated and connector protectors are snapped tight.
• Routine Inspection
  • Regularly check cable jacket integrity for chemical attack or mechanical abrasion.

Certifications & Standards

Package & Delivery Information

• Shipping Logistics
  • Orders dispatch within 24 to 48 hours following order confirmation.
  • Express global shipping provided via FedEx, UPS, and DHL air transport.
• Warranty & Condition
  • 100% Brand New and Original item supplied in factory-sealed packing.
  • Includes comprehensive 12-Month full factory warranty coverage.

Global PLC Spare HUB's Insight

Our vibration monitoring specialists frequently specify the Bently Nevada 330903-00-05-70-01-05 for machinery retrofits with tight physical clearances. During a recent boiler feed pump upgrade, engineers could not install standard 8 mm probes due to narrow internal counterbores. The narrow side-view profile of the 3300 NSv probe allowed installation without side-wall interference affecting the scale factor. Utilizing the 7.0-meter integrated probe length simplified cable management by routing the coaxial connection directly outside the hot bearing housing without requiring internal extension jumpers.

Selection Guide

• Probe Selection: Standard 3300 XL vs. 3300 NSv
  • Select standard 8 mm 3300 XL probes for unobstructed shaft areas with target diameters above 30 mm.
  • Select the 330903-00-05-70-01-05 NSv probe for targets smaller than 13 mm or when mounting in tight counterbores.
• Cable Length Matching
  • Match probe length and extension cable total length exactly to the Proximitor calibration requirement (e.g., 7m probe system paired with 7m calibrated Proximitor).

Frequently Asked Questions (FAQ)

Q: What is the main structural advantage of the 3300 NSv probe over older 3000-series 190 probes?

A: The 330903-00-05-70-01-05 offers significantly reduced side-view sensitivity, preventing measurement errors caused by surrounding metal walls in small counterbores.

Q: Can I connect this 7.0-meter probe directly to a Proximitor sensor without an extension cable?

A: Yes. Because this specific part number has an integrated total length of 7.0 meters (-70 option), it connects directly to a 7.0-meter system Proximitor without requiring an intermediate extension cable.

Q: How does target shaft diameter affect the probe scale factor during measurement?

A: Target diameters smaller than 13 mm (0.5 in) alter the Incremental Scale Factor (ISF); reducing the operating gap setting slightly helps compensate for scale factor drift on small shafts.

Q: What electrical resistance should I measure across the probe connectors during a field health check?

A: For a healthy 7.0-meter 330903-00-05-70-01-05 probe, the DC resistance between the center conductor and outer shield should measure 5.9 ± 0.9 ohms.

Q: What is the correct tightening torque for installing the M8x1 probe thread into a bearing housing?

A: Recommended mounting torque is 5.1 N•m (45 in•lb), and you should never exceed the maximum rated torque of 7.3 N•m (65 in•lb) to prevent thread deformation.
