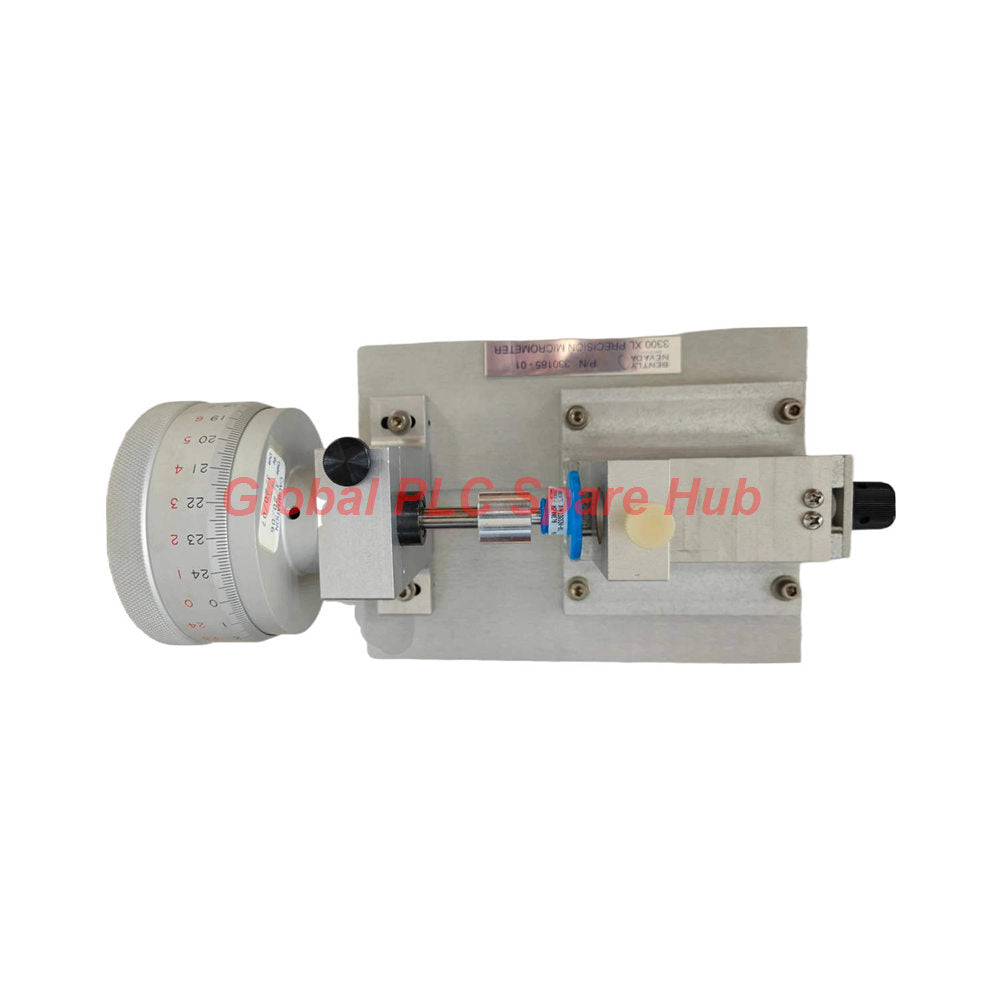

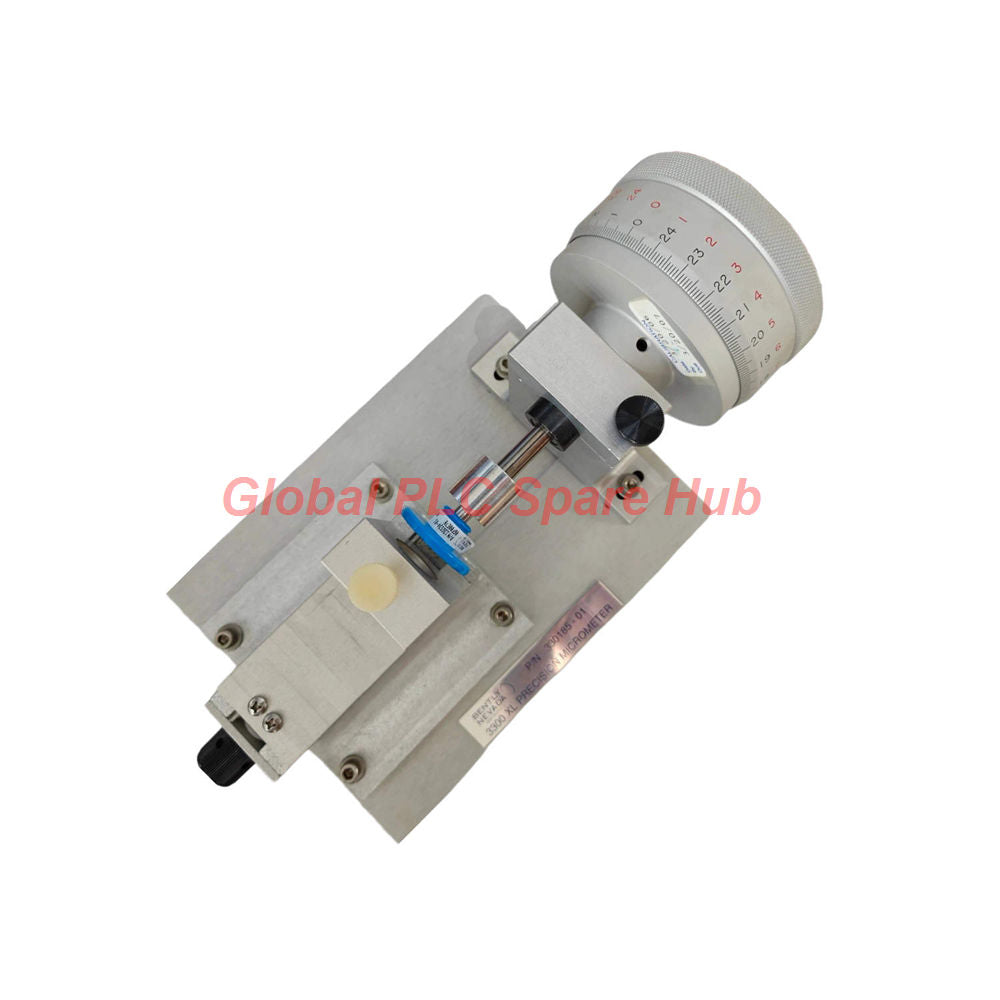

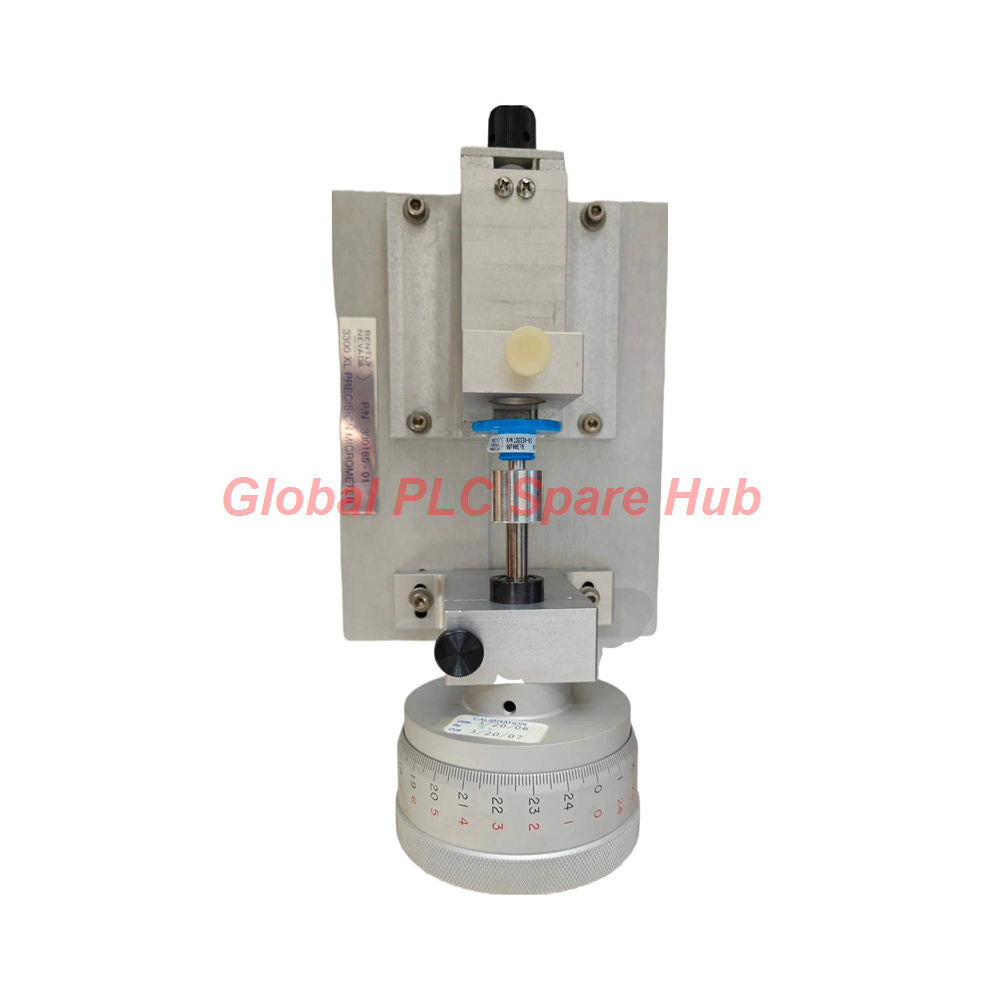

330185-02 3300 XL Precision Micrometer Bently Nevada Calibrator

Overview

The 330185-02 is a specialized precision calibration instrument manufactured by Bently Nevada within the 3300 XL series. Designed for metrology and condition monitoring quality assurance, this device is engineered to perform strict acceptance testing on proximity transducer systems. By utilizing a high-precision AISI 4140 alloy steel target button driven in exact increments, it simulates rotating shaft displacement to verify Average Scale Factor (ASF), Incremental Scale Factor (ISF), and Deviation from Straight Line (DSL) against API 670 standards.

Part Number & Configuration Breakdown

• Base Model: 330185 (3300 XL Precision Micrometer Platform)
• Suffix Extension (-02): Designates scale units configuration option 02 (Metric units calibration scaling from 0 to 25 mm).
• Brand: Bently Nevada
• Series: 3300 XL
• Condition: New & Original in Factory Packing

Technical Specifications Matrix

1. Metrology & Measurement Performance

• Measurement Range: 0 to 25 mm (Metric scale units)
• Resolution: 0.0005 mm
• System Accuracy: + 0.0004 mm

2. Mechanical Construction & Materials

• Target Button: AISI 4140 Alloy Steel, 30.5 mm (1.20 in) diameter flat target surface
• Casing Material (Precision Micrometer): Ruggedized fiberglass and high-impact plastic
• Casing Material (Shaft Micrometer variant): ABS Plastic structural housing
• Overall Case Dimensions: Height 226 mm (8.9 in); Width 274 mm (10.8 in); Length 356 mm (14.0 in)
• Net Weight: 6.8 kg (14.5 lb)

Calibration & Testing Workflow Guide

• Probe Mounting: Secure the proximity probe firmly into the built-in probe mounting adapter to ensure zero mechanical play or axial misalignment.
• Target Simulation: Rotate the micrometer dial to advance or retract the AISI 4140 target button toward the probe tip in precise metric increments.
• Signal Acquisition: Intercept the Proximitor sensor output signal using a high-impedance digital voltmeter to record DC gap voltages at each step.
• Curve Verification: Compare the newly generated displacement versus voltage curve against published Bently Nevada factory specifications or API 670 guidelines to validate linearity and scale factor compliance.

Diagnostic Capabilities & Verification Checks

• Linearity Range Assessment: Verifies whether the Proximitor sensor maintains its linear operating range without premature voltage clipping or flattening.
• Monitor Alarm Check: Validates proper trip point actuation and voltage scaling of connected machinery protection monitors (such as 3500 rack monitors) by injecting known gap displacements.

Global PLC Spare HUB's Insight & Expert Guidance

Global PLC Spare HUB's Insight highlights that physical wear or micro-burrs on the AISI 4140 target button surface can introduce sub-micron calibration errors during low-range testing. Technicians should inspect the target face before every calibration cycle and ensure the micrometer is stored in a temperature-controlled environment to prevent thermal expansion discrepancies in the metric lead screw.

Compatible Equipment & Target Application Scenarios

• Compatible Hardware: Bently Nevada 3300 XL 8mm and 5mm proximity transducer systems, Proximitor sensors, and 3500 monitoring system channels.
• Application Scenarios: In-house instrument metrology laboratories, pre-installation acceptance testing for critical turbomachinery turnarounds, and periodic diagnostic audits of vibration monitoring loops in oil refineries and power generation plants.

Logistics, Fulfillment & Warranty Protection

• Shipping Carriers: Express global dispatch via FedEx, UPS, and DHL.
• Fulfillment Speed: Guaranteed processing and dispatch within 24 to 48 hours.
• Warranty Terms: Fully backed by a 12-month factory replacement or repair warranty.

Professional Frequently Asked Questions

How does the 330185-02 verify API 670 compliance for a proximity system?

By stepping the target button across precise known metric increments from 0 to 25 mm, it maps the exact voltage output to check if the Incremental Scale Factor (ISF) and Deviation from Straight Line (DSL) fall within API 670 tolerances.

What maintenance is required for the micrometer lead screw mechanism?

Keep the metric lead screw clean and free of airborne metallic dust or grit, and periodically apply a light film of instrument-grade instrument oil to maintain smooth 0.0005 mm resolution feedback.

Can this micrometer be used for non-standard target materials like stainless steel or aluminum?

The standard target button is optimized for AISI 4140 alloy steel; testing probes against different target metallurgy requires applying correction factors because eddy current response varies with material electrical conductivity and magnetic permeability.

What are the best selection guidelines when ordering this calibration tool?

Ensure your facility operates under metric engineering standards; if your plant uses imperial measurement units, verify whether the metric -02 suffix model or an imperial variation aligns with your local quality assurance documentation.

Why is my voltmeter reading fluctuating during a static calibration test?

Voltage fluctuations usually stem from poor electrical grounding of the Proximitor power supply, electromagnetic interference from nearby variable frequency drives, or loose terminal connections on the voltmeter test leads.
