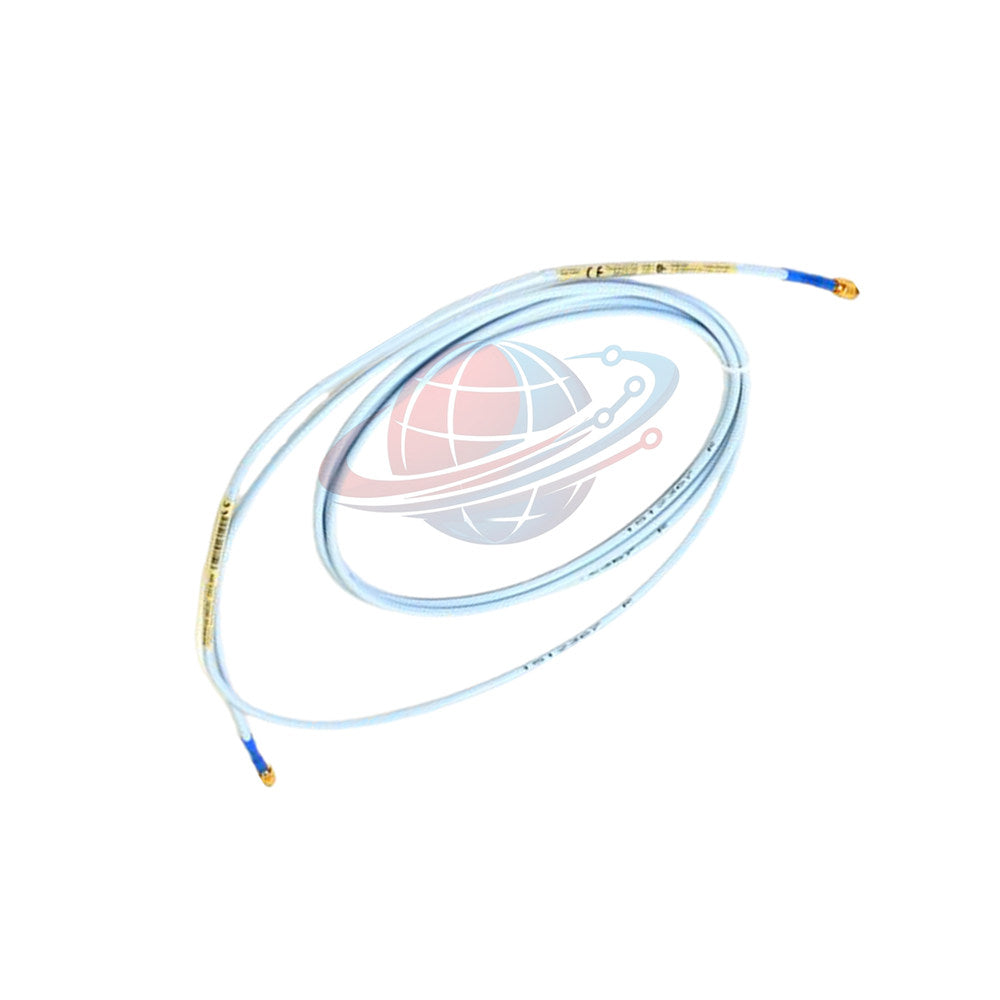

330130-075-02-05 Bently Nevada 3300 XL Series 7.5m Extension Cable Buy Online

Product Introduction & Engineering Overview

Maintaining signal fidelity across long distances in industrial monitoring setups requires precision cabling. The Bently Nevada 330130-075-02-05 is an engineered 3300 XL Series extension cable designed to link proximity probes with Proximitor sensors seamlessly. Global PLC Spare HUB Review highlights this 7.5-meter interconnect for maintaining low DC resistance and preventing signal attenuation in complex machinery layouts. Global PLC Spare HUB's Insight emphasizes that using proper connector protection prevents moisture ingress and preserves high-frequency vibration response across turbine skids.

Configuration Breakdown Matrix

Technical Specification Profile

Model Comparison & Technical Selection Guidance

Mechanical Installation & Setup Hierarchy

• ClickLoc Engagement: Hand-tighten the gold-plated ClickLoc connectors until a distinct mechanical snap or firm resistance is felt, ensuring low electrical contact resistance.
• Connector Protection: Utilize the included mechanical connector protector for general environments, or apply silicone tape only when turbine oil exposure is completely absent.
• Routing Discipline: Keep the 75-ohm triaxial cable away from high-voltage motor power lines and variable frequency drive conduits to eliminate induced electromagnetic noise.
• Bend Radius Control: Maintain smooth routing radiuses throughout cable trays to prevent internal conductor strain or micro-cracking of the FEP outer jacket.

Commissioning, Maintenance, and Diagnostics

• Loop Resistance Testing: Measure center-to-center conductor resistance using a precision micro-ohmmeter to verify values remain close to the 1.65 ohms baseline.
• Capacitance Verification: Ensure total loop capacitance does not exceed system design limits when combining probe, extension cable, and field wiring.
• Connector Inspection: Periodically check mated connectors during scheduled outages for signs of moisture accumulation, thread galling, or contamination.
• Signal Noise Auditing: Monitor Proximitor output channels for erratic spikes that indicate loose shields or compromised grounding paths.

Compatibility and Regulatory Compliance

• Directly compatible with standard Bently Nevada 3300 series 5 mm, 8 mm, and 3300 XL 8 mm proximity probes and Proximitor sensors.
• Equipped with hazardous area certifications including CSA, ATEX, and IECEx approvals for explosive atmosphere installations.
• Engineered to maintain strict scale factor stability under high-humidity operational conditions.

Fulfillment, Shipping, and Warranty Terms

• Includes one authentic 330130-075-02-05 extension cable with protective caps.
• Rapid dispatch processed within 24 to 48 hours from order verification.
• Secure global delivery provided by trusted logistics partners FedEx, UPS, and DHL.
• Supported by a dependable 12-month warranty protecting against material defects.

Target Equipment & Industrial Application Scenarios

• Interconnecting vibration probes inside heavy industrial steam turbine generator sets.
• Bridging internal casing sensors to external junction boxes on multi-stage gas compressors.
• Extending signal paths on large boiler feed water pumps in power generation facilities.
• Rotor monitoring setups across petrochemical cracking and refining machinery trains.

Frequently Asked Questions

Why should I avoid using silicone tape on the 330130-075-02-05 connector when turbine oil is present?
Turbine oil degrades standard silicone tape adhesives over time, causing the tape to unwrap and allow oil to penetrate the coaxial connection, which leads to signal noise and voltage drift.

How does upgrading from a 3-meter cable to the 7.5-meter version affect system performance?
The longer cable introduces additional electrical capacitance (69.9 pF/m), which slightly shifts high-frequency response limits, though it remains well within acceptable parameters for standard machinery vibration monitoring.

What diagnostics should I perform if the Proximitor output voltage drops to negative saturation?
Check for an open circuit in the center conductor of the extension cable, or verify that the ClickLoc connectors are fully engaged and locked together.

How do I choose between standard connector protectors and heat shrink options during plant retrofits?
Use standard mechanical connector protectors for applications requiring frequent maintenance checks or environments where moisture sealing without permanent adhesive bonding is preferred.

Can hazardous area approvals (ATEX/IECEx) on this cable be maintained if field splices are made?
No, field splicing voids factory safety certifications. Always use continuous, factory-terminated extension cables rated for the specific hazardous zone classification.
