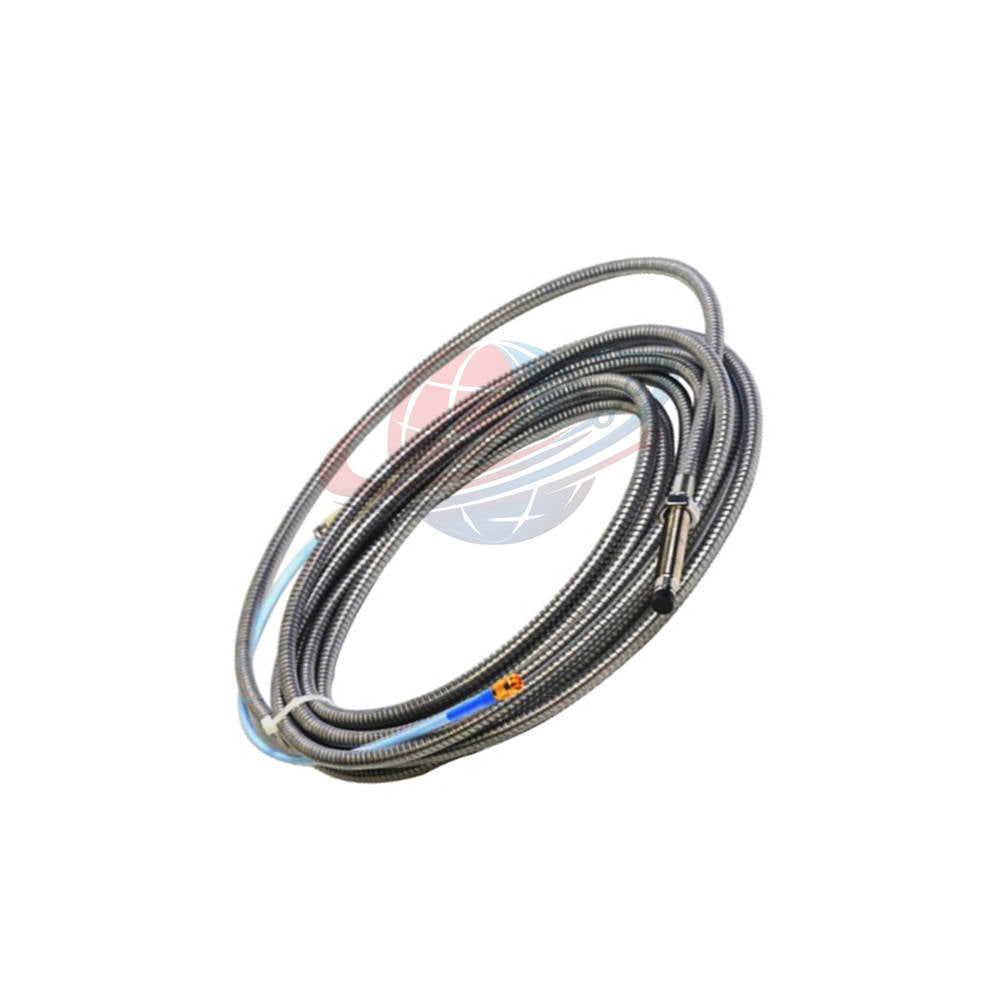

330130-035-03-00 Bently Nevada 3300 XL Extension Cable
Manufacturer: Bently Nevada
Product No.: 330130-035-03-00
Condition： In stock
Product Type: Extension Cable
Product Origin: USA
Payment: T/T, Western Union
Weight: 204g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
330130-035-03-00 Bently Nevada 3300 XL Extension Cable Overview
Engineered for high-reliability machinery protection systems, the 330130-035-03-00 extension cable bridges 3300-series 5 mm, 8 mm, and 3300 XL 8 mm proximity probes to their respective Proximitor sensors. Manufactured by Bently Nevada, this precision component incorporates patented ClickLoc gold-plated connectors, corrosion-resistant shielding, and robust mechanical coupling to maintain signal integrity in demanding turbine monitoring environments.
Part Number Configuration Breakdown
| Model Component | Code | Configuration Description |
|---|---|---|
| Base Model | 330130 | 3300 XL 8 mm Extension Cable Assembly |
| Cable Length Option | 035 | 3.5 meters total cable length |
| Connector Protector | 03 | Armored cable option equipped with a connector protector |
| Agency Approvals | 00 | Not required / Standard commercial grade |
Comprehensive Technical Specifications
- Brand / Series: Bently Nevada / 3300 XL Series
- Part Number: 330130-035-03-00
- Product Type: Proximity Transducer System Extension Cable
- Cable Length: 3.5 Meters (Weight: 0.618 kg for armored version)
- Conductor DC Resistance: RCORE center-to-center resistance of 0.77 ± 0.12 Ω
- Jacket DC Resistance: RJACKET outer-to-outer resistance of 0.23 ± 0.05 Ω
- Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical characteristic capacitance
- Output Resistance & Power: 50 Ω output resistance; operates on -17.5 Vdc to -26 Vdc supply voltage
- Linear Measurement Range: 2 mm (80 mils) linear range spanning 0.25 to 2.3 mm from target
Global PLC Spare HUB's Insight & Field Experience
When installing the 330130-035-03-00 cable in harsh turbine enclosures, Global PLC Spare HUB field engineers recommend avoiding the included silicone tape if the connection point is exposed to synthetic or mineral turbine oils, as oil infiltration can degrade sealing performance. Instead, rely on the integrated mechanical connector protector or rated environmental heat-shrink tubing. Furthermore, ensure that field wiring shielding is grounded strictly at one end to eliminate ground loops that can skew vibration monitoring displacement voltages.
Model Selection Comparison & Technical Advice
| Model Part Number | Cable Length | Mechanical Protection | Technical Recommendation |
|---|---|---|---|
| 330130-070-02-00 | 7.0 Meters | Standard Cable without Armor | Ideal for longer cabinet routing runs where physical crushing hazards are minimal, though higher capacitance applies. |
| 330130-035-03-00 | 3.5 Meters | Armored with Connector Protector | Best-suited for localized machine skids requiring mechanical armor protection against abrasive chips and heavy foot traffic. |
Installation & Hardware Integration Guidelines
- Connector Security: Fasten ClickLoc gold-plated connectors securely until finger-tight to maintain low contact resistance.
- Bending Radius: Maintain a minimum bend radius matching manufacturer recommendations to prevent internal conductor fracture or jacket kinking.
- System Calibration: Ensure the total loop is calibrated against an AISI 4140 steel target gapped at 1.27 mm for accurate average scale factor performance.
Advanced Diagnostics & Fault Detection Capabilities
- Signal Rolloff Monitoring: High-frequency attenuation can be tracked against standard response curves if extension cables exceed standard system length budgets.
- Bias Voltage Verification: Measuring probe gap voltage (typically -10 to -17 Vdc linear range) instantly exposes open-circuit extension cabling or loose connector pins.
- Humidity Resilience: Built to maintain less than 3% change in Average Scale Factor when subjected to 93% relative humidity up to 56 days.
Target Equipment & Typical Industrial Application Scenarios
- Steam & Gas Turbines: Monitoring radial vibration and shaft axial thrust position on high-speed turbine-generator trains.
- Centrifugal Compressors: Tracking rotor orbit and journal bearing displacement in petrochemical processing facilities.
- Large Industrial Pumps: Measuring dynamic shaft runout and mechanical clearance inside heavy feedwater pumps.
Global Logistics, Warranty & Procurement Guidelines
- Express Freight Carriers: Expedited international shipping dispatched securely via FedEx, UPS, and DHL.
- Fulfillment Speed: Orders are processed and shipped out within 24 to 48 hours.
- Quality Assurance Guarantee: Supported by a robust 12-month warranty covering manufacturing and material defects.
Frequently Asked Questions
Q: Why does the 330130-035-03-00 include silicone tape if it is not recommended for turbine oil environments?
A: The silicone tape provides a convenient moisture seal for general industrial applications, but petroleum-based turbine oils break down silicone adhesive over time, requiring mechanical connector protectors instead.
Q: How does selecting the 3.5-meter length option impact the overall transducer system frequency response?
A: A 3.5-meter extension cable matches standard system calibration parameters without introducing excessive signal rolloff, provided total field wiring to the monitor stays within 305 meters.
Q: Can I interchange the 330130-035-03-00 extension cable with older 7200-series Bently Nevada probes?
A: No, 3300 XL components are specifically engineered with optimized electrical characteristics and ClickLoc connectors that are incompatible with legacy 7200-series transducer systems.
Q: What troubleshooting step should be taken if the Proximitor sensor output voltage drifts outside the linear range?
A: Verify that the supply voltage is maintained strictly between -23 Vdc and -26 Vdc, as operation more positive than -23.5 Vdc directly reduces the linear measurement range.
Q: Purchasing Guidance: What should engineers verify regarding the armored option before placing a replacement order?
A: Confirm whether your cable tray routing requires physical mechanical protection (Option 03 armored jacket) to prevent damage from sharp sheet metal edges or heavy vibration.
Tags
Q: Are these parts 100% original and new?
A: Yes. Every component is guaranteed to be 100% original, brand-new, and factory-sealed. We also provide a 12-month comprehensive warranty for your peace of mind.
Q: How fast is the shipping to my country?
A: For in-stock items, we offer same-day dispatch. International express shipping (DHL/FedEx/UPS) typically delivers within 3–5 business days worldwide.
Q: Can I get a formal quotation with shipping costs?
A: Absolutely. Our sales team is ready to provide a detailed Proforma Invoice (PI) including the most competitive shipping rates for your location.
Q: Do you offer discounts for bulk orders?
A: We provide volume-based pricing for large projects or multiple-item orders. Please contact us to get our Best Price Guarantee.
12-Month Comprehensive Warranty
Every part supplied by Global PLC Spare Hub is covered by a 12-month warranty from the date of invoice.
- Coverage: Functional defects and hardware failures under normal operating conditions.
- Commitment: We provide immediate repair, replacement, or a full refund for any verified defective components to minimize your operational downtime.
Returns & Exchange Policy
We offer a 30-day return policy to ensure you receive the exact part your system requires.
- Eligibility: Returns are accepted for uninstalled items in their original, factory-sealed packaging.
- RMA Process: Please contact our support team to obtain a Return Merchandise Authorization (RMA) number before shipping.
- Fast Processing: Refunds or exchanges are processed within 3–5 business days after the returned item passes our technical inspection.
Need Technical Assistance?Not sure if this part is compatible with your system? [Consult our Engineers] before purchasing to ensure 100% compatibility.
