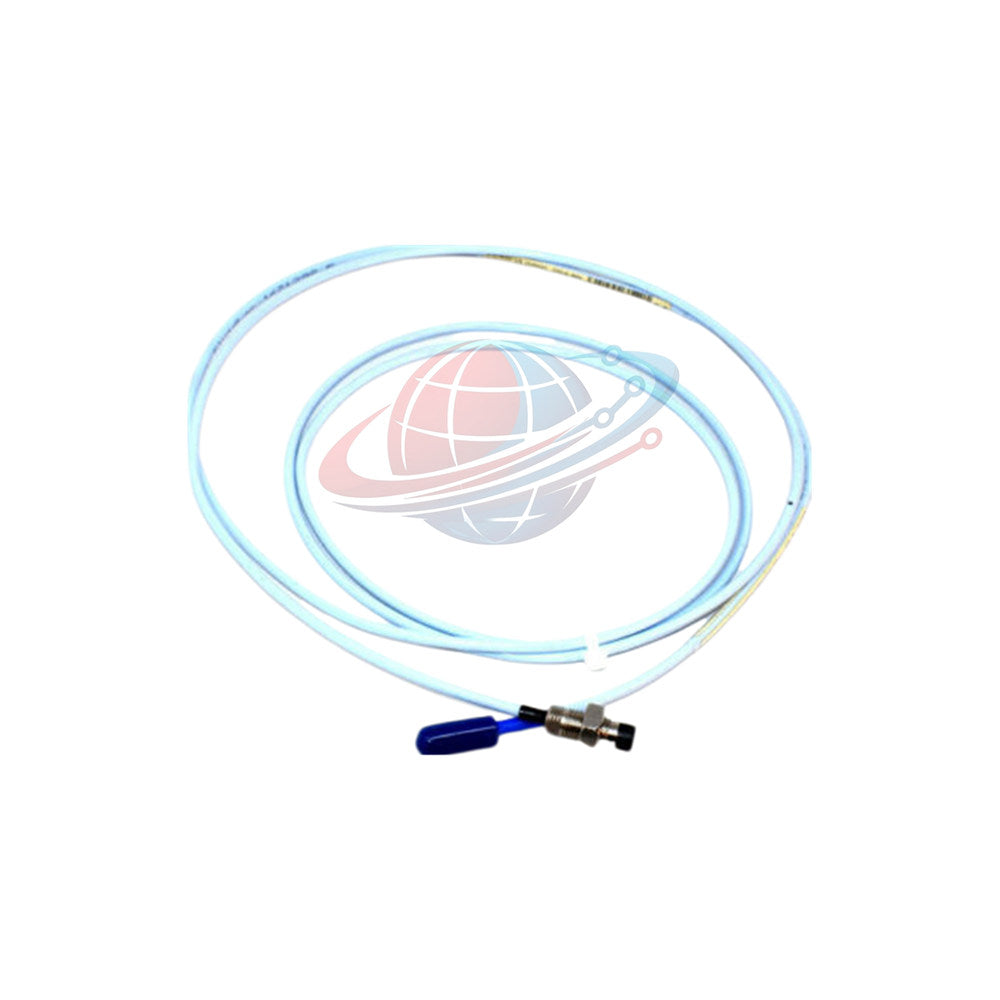

330130-070-02-00 Bently Nevada 3300 XL Cable Premium
Manufacturer: Bently Nevada
Product No.: 330130-070-02-00
Condition： In stock
Product Type: Extension Cable
Product Origin: USA
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Overview
The 330130-070-02-00 is a high-precision proximity transducer extension cable.
It belongs to the industry-standard Bently Nevada 3300 XL series.
This cable transmits high-frequency radio frequency signals between probes and sensor electronics.
It delivers excellent signal stability and precise physical vibration measurement capabilities.
The overall construction provides long-term resistance to harsh industrial factory environments.
Part Number Configuration Breakdown
-
330130 — Base Model: 3300 XL Standard Extension Cable
- -070 — Cable Length Option: 7.0 meters (22.9 feet) overall length
- -02 — Connector & Cable Option: Standard cable with factory-installed ClickLoc connector protector
- -00 — Agency Approval Option: Standard non-hazardous area approval / Not required
Technical Specifications
| Specification Category | Engineering Parameter Value |
|---|---|
| Manufacturer Brand | Bently Nevada |
| Product Model Number | 330130-070-02-00 |
| Transducer Series | 3300 XL 8 mm Transducer System |
| Total Physical Length | 7.0 meters (22.9 feet) |
| Cable Weight | 34 g/m (0.4 oz/ft) nominal, 0.204 kg total mass |
| Center Conductor Resistance (RCORE) | 1.54 Ω ± 0.23 Ω DC resistance |
| Outer Shield Resistance (RJACKET) | 0.46 Ω ± 0.09 Ω DC resistance |
| Capacitance Rating | 69.9 pF/m (21.3 pF/ft) typical capacitance |
| Linear Range Capability | 2.0 mm (80 mils) total linear range |
| Power Consumption | 12 mA maximum current draw at -24 VDC nominal supply |
| Output Resistance | 50 Ω standard output impedance |
| Humidity Resistance | Less than 3% ASF change under 93% humidity (IEC 68-2-3) |
| Country of Origin | United States of America (USA) |
Cross-Model Comparison & Selection Guidance
| Feature / Parameter | 330130-070-02-00 | 330130-030-12-05 |
|---|---|---|
| Cable Length | 7.0 meters (22.9 feet) | 3.0 meters (9.8 feet) |
| Protection Option | Standard cable with connector protector | |
| Armoring Type | Unarmored outer jacket | Flexible stainless steel armor sheath |
| Hazardous Approvals | Option 00 (Not required) | Option 05 (Multiple agency approvals) |
| Primary Engineering Choice | Ideal for clean conduit runs in standard enclosures. | Ideal for exposed cable trays requiring mechanical protection. |
Installation & Engineering Guidelines
- Always match cable length options with the target Proximitor sensor calibration system length.
- Ensure total system length equals 9.0 meters when combining a 2.0m probe with this 7.0m cable.
- Tighten ClickLoc coaxial connectors firmly until you feel the internal locking mechanism engage.
- Slide the rubber connector protector over joined connectors to prevent moisture ingress.
- Avoid bending cables tighter than the minimum recommended 25.4 mm (1.0 inch) bend radius.
System Compatibility
- Fully compatible with all Bently Nevada 3300 XL 8 mm eddy current probes.
- Connects seamlessly to 3300 XL DIN-rail mounted Proximitor Sensors.
- Interfaces directly with Bently Nevada 3500 and 3300 machinery protection rack channels.
Compliance & Warranty Terms
- Manufactured under ISO-certified quality management procedures in the USA.
- Tested extensively for long-term environmental durability per IEC 68-2-3 standards.
- Backed by a standard 12-Month factory warranty covering operational defects.
Package Contents & Global Express Delivery
- 1 x Bently Nevada 330130-070-02-00 Extension Cable
- 1 x Pre-installed ClickLoc Connector Protector boot
- Ships globally via DHL express services within 24 to 48 hours.
- Fast express options available via FedEx and UPS door-to-door freight.
Typical Application Scenarios & Diagnostic Capabilities
- Transmits critical shaft vibration signals on large steam turbine generators.
- Relays continuous axial thrust position readings from high-speed boiler feed pumps.
- Monitors dynamic shaft orbit movements inside heavy centrifugal compressors.
- Provides keyphasor timing signals on large industrial gearbox drive shafts.
Global PLC Spare HUB's Insight
Field technicians often face signal noise caused by improperly seated coaxial extensions.
During a plant overhaul, an engineer reported erratic vibration readings on a gas turbine deck.
Our analysis revealed oil contamination inside an unprotected connector junction point.
Using the 330130-070-02-00 with its installed ClickLoc protector resolved the signal breakdown immediately.
Always verify center core resistance with a multimeter before sealing junction boxes.
Frequently Asked Questions (FAQ)
Q: How do I test the physical integrity of the 330130-070-02-00 core before startup?
A: Measure DC resistance across the center conductor pins. A healthy 7.0m cable reads 1.54 ± 0.23 Ω.
Q: Can I cut or shorten this 7.0m cable to fit a smaller junction box?
A: Never cut extension cables. The system calibration depends strictly on total system electrical length.
Q: Should I use silicone tape or the included connector protector in oily environments?
A: Always use the connector protector. Silicone tape degrades when exposed to continuous turbine lube oil.
Q: How do I determine if my installation requires an armored extension cable instead?
A: Choose armored cables when routing through open paths where mechanical crushing risks exist.
Q: What Proximitor sensor calibration matches a 7.0m extension cable?
A: Combine a 7.0m cable with a 1.0m probe for an 8.0m system, or a 2.0m probe for a 9.0m system.
