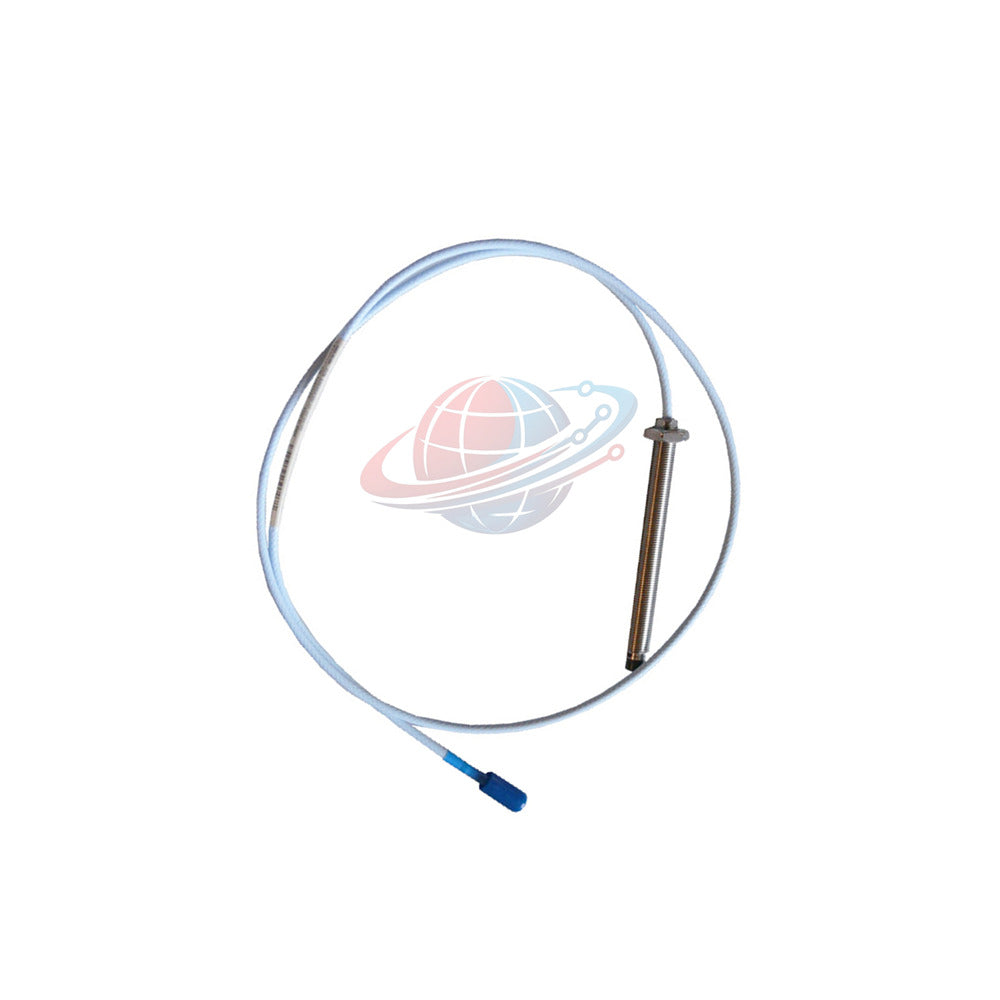

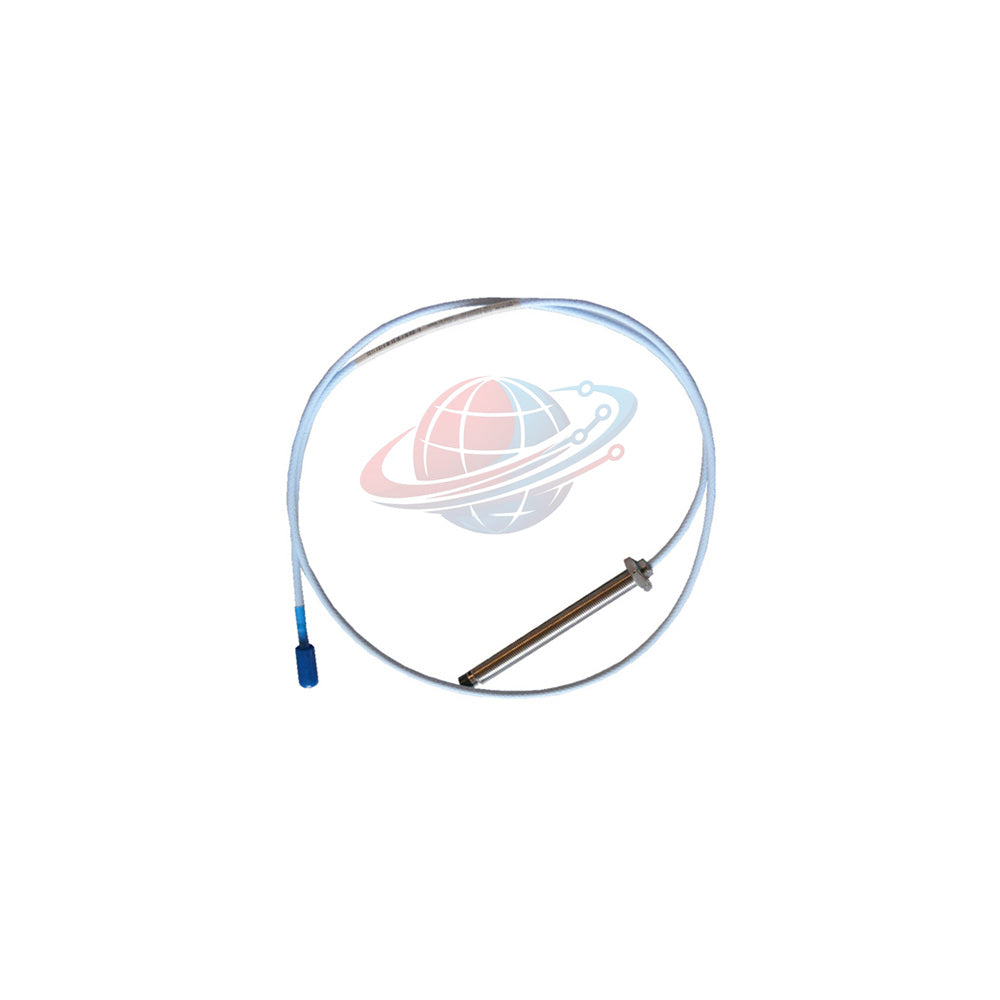

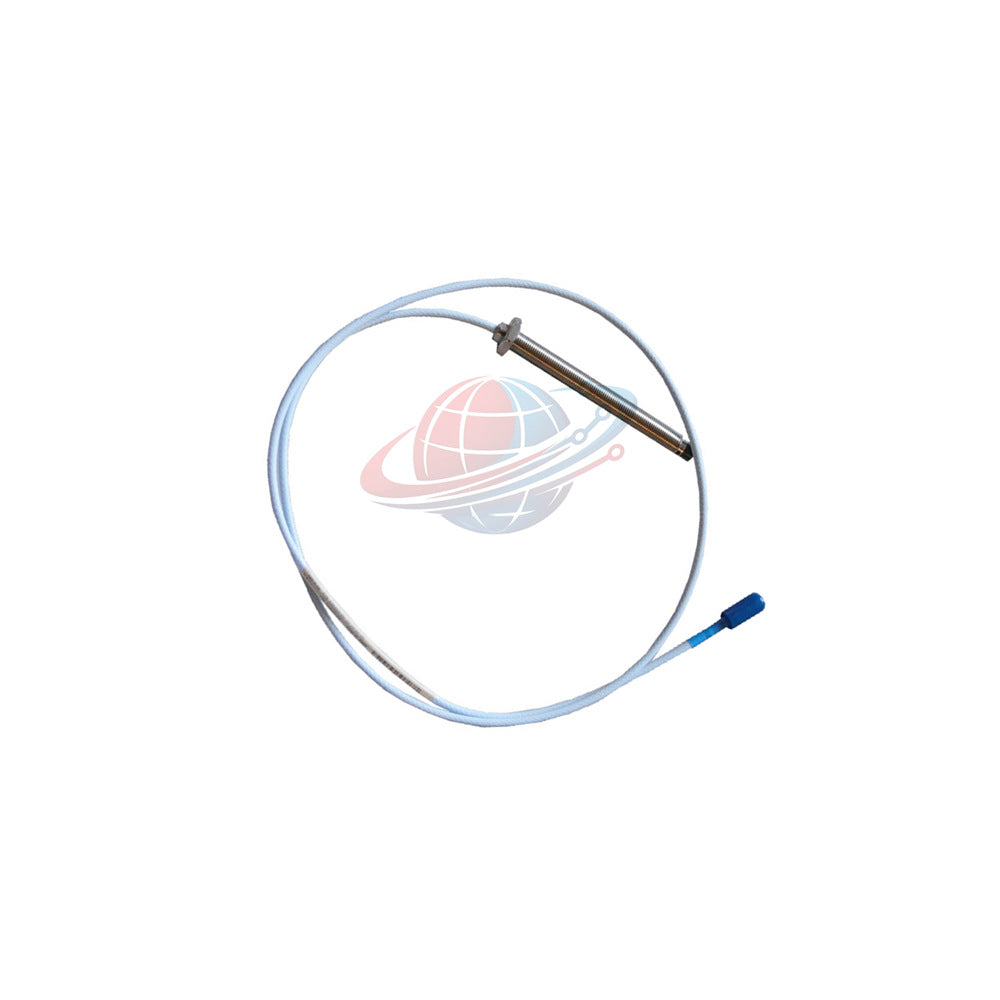

330103-08-13-10-02-05 Bently Nevada 8mm Eddy Current Proximity Probe

Overview

330103-08-13-10-02-05 Bently Nevada 3300 XL 8 mm proximity probe engineered for precise vibration and displacement monitoring across rotating machinery. This 330103-08-13-10-02-05 eddy current transducer delivers high-frequency response and exceptional signal linearity in harsh industrial environments.

Part Number Configuration Breakdown

Technical Specifications Data Sheet

• Manufacturer: Bently Nevada
• Product Model: 330103-08-13-10-02-05
• Product Series: 3300 XL Series
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Linear Measurement Range: 2 mm (80 mils) from 0.25 to 2.3 mm (-1 to -17 Vdc)
• Recommended Radial Gap: -9 Vdc (~1.27 mm / 50 mils)
• Nominal DC Resistance: 7.59 ± 0.50 ohms (Center to outer conductor for 1.0m length)
• Standard Temperature Range: -52°C to +177°C (-62°F to +350°F)
• Physical Weight: 323 g/m (11.4 oz)
• Thread Specification: M10 x 1 with 15 mm maximum thread engagement

Mechanical Mounting and Installation Guide

Thread the 330103-08-13-10-02-05 probe into the designated machine mounting hole using a calibrated torque wrench to prevent case distortion. Ensure the Viton O-ring seats correctly to seal differential pressure between the probe tip and case. Route the coaxial cable away from high-power motor leads to avoid electromagnetic interference, securing field wiring with a maximum length of 305 meters to the Proximitor sensor.

Calibration and Upkeep Protocols

Verify linear scale factor calibration periodically using a dynamic target simulator to ensure output voltage tracks displacement accurately. Inspect the ClickLoc connector periodically for moisture ingress or particulate contamination, cleaning contacts with electronic-grade isopropyl alcohol when necessary.

Hazardous Area Certifications

• Intrinsically Safe: Class I, Zone 0: AEx/Ex ia IIC T5...T1 Ga; Groups A, B, C, D
• Nonincendive / Energy Limited: Class I, Zone 2: AEx/Ex nA/ec IIC T5...T1 Gc; Division 2, Groups A, B, C, D

Shipment Contents and Warranty Protection

• One 330103-08-13-10-02-05 8 mm Proximity Probe Assembly
• Attached Miniature Coaxial ClickLoc Cable
• Hazardous Area Installation Drawing Reference
• Comprehensive 12-Month Factory Replacement Warranty

Logistics and Expedited Dispatch

We process and dispatch orders for the 330103-08-13-10-02-05 within 24 to 48 hours of verification. We utilize premier international freight carriers including FedEx, UPS, and DHL to guarantee secure transit.

Target Machinery and Application Sectors

• Large Steam Turbine Generator Sets
• Centrifugal and Axial Compressors
• Heavy Industrial Gas Turbines
• Multi-Stage Boiler Feed Pumps
• Critical Hydroelectric Generator Bearings

Real-Time Diagnostic Capabilities

The 330103-08-13-10-02-05 transducer system continuously delivers raw gap voltage data to monitoring racks, allowing protection systems to detect shaft radial vibration, axial thrust wear, and eccentric rotor orbits instantly before catastrophic mechanical failure occurs.

Global PLC Spare HUB's Insight

Global PLC Spare HUB diagnostic specialists emphasize that when matching the 330103-08-13-10-02-05 to extension cables and Proximitor sensors, total system electrical length must match calibration specifications exactly to maintain sub-micron displacement accuracy.

Model Comparison and Technical Advice

For alternative configuration requirements, compare this unit against the 330103-00-08-10-12-00 model variant. While the compared model features different unthreaded lengths, connector options, and agency approvals suited for general industrial zones, selecting the 330103-08-13-10-02-05 provides certified explosion-proof compliance and customized physical reach configurations required for deep-bore machinery casings.

Frequently Asked Questions

What precautions protect the Viton O-ring seal during probe installation?

Avoid exposing the probe tip and sealing area to temperatures below -34°C prior to installation, as thermal contraction can cause premature pressure seal degradation.

Can I use standard coaxial cables to extend the distance between the probe and Proximitor sensor?

No, system calibration relies on matched electrical impedance; any cable modifications require approved Bently Nevada 3300 XL extension cables.

How does target material composition affect proximity probe output linearity?

Eddy current probes calibrate against standard AISI 4140 steel; using different shaft metallurgies requires application-specific scale factor adjustments.

What is the primary function of the ClickLoc connector mechanism?

The ClickLoc connector prevents loosening under severe machinery vibration while maintaining a reliable electrical connection without requiring specialized tightening tools.

Why is maintaining the recommended -9 Vdc gap setting critical during commissioning?

Operating at the -9 Vdc midpoint positions the shaft vibration linear range perfectly within the linear voltage region, preventing signal clipping during high-amplitude excursions.
