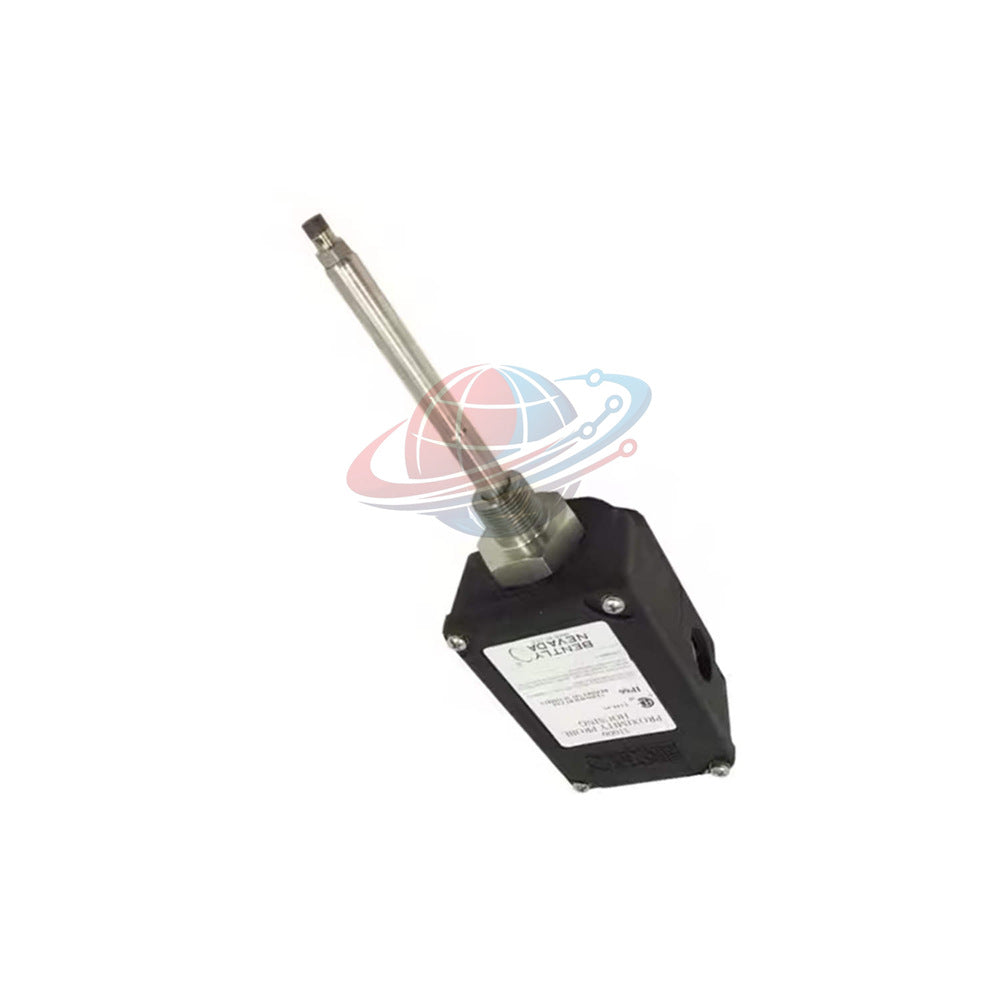

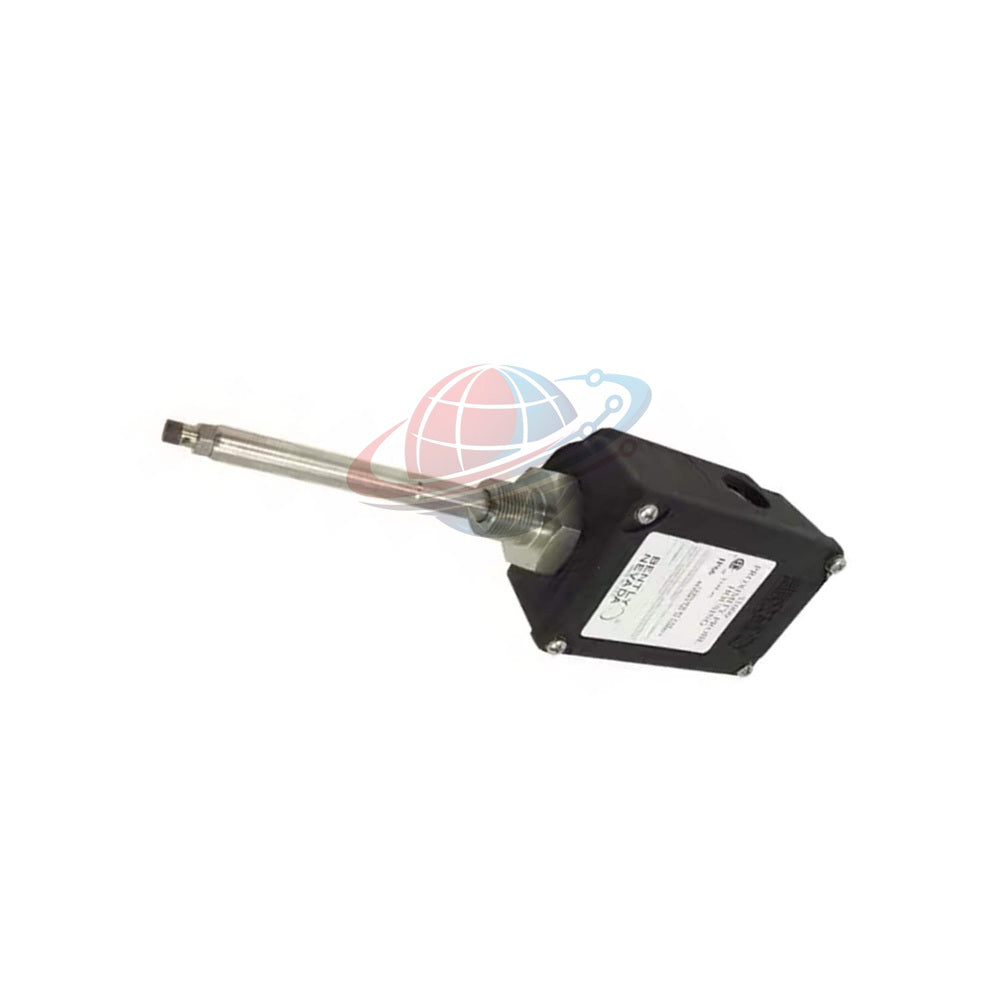

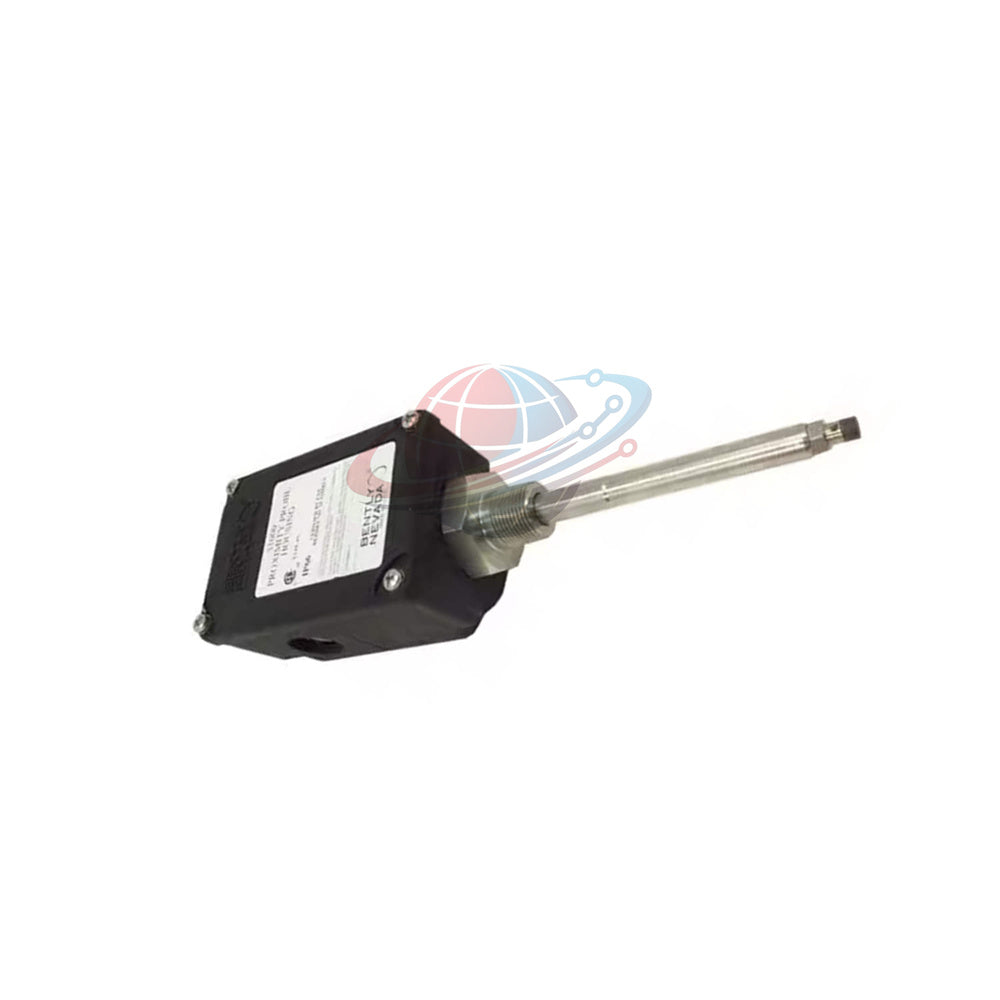

32000-29-05-10-080-07-02 Bently Nevada Metric Proximity Probe Housing
Manufacturer: Bently Nevada
Product No.: 32000-29-05-10-080-07-02
Condition： In stock
Product Type: Proximity Probe Housing Assembly
Product Origin: USA
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Overview
The 32000-29-05-10-080-07-02 assembly by Bently Nevada serves within the 32000 Series metric housing family. This enclosure protects 3300 XL eddy current proximity probes in harsh plant environments. The shell utilizes glass-reinforced polyphenylene sulfide with conductive fibers for electrostatic discharge compliance. Stainless steel hardware prevents atmospheric corrosion across hazardous installations.
Part Number & Configuration Breakdown
| Option Identifier | Suffix Code | Engineering Scope & Specification |
|---|---|---|
| Probe Option | 29 | 3300 XL 8 mm probe with connector protector included |
| Cable Length | 05 | 0.5-meter integral probe cable configuration |
| Standoff Adapter | 10 | 100 mm extension standoff component |
| Probe Penetration | 080 | 80 mm total probe tip depth insertion |
| Fittings Option | 07 | One PG21 x M20 fitting with two sealing plugs |
| Mounting Thread | 02 | 3/4-14 NPT threaded connection base |
Technical Specifications Matrix
| Technical Parameter | Engineering Specification |
|---|---|
| Brand & Series | Bently Nevada / 32000 Series |
| Exact Model | 32000-29-05-10-080-07-02 |
| Housing Material | Conductive glass-reinforced Polyphenylene Sulfide (PPS) |
| Hardware & Sleeve | AISI 303 / 304 stainless steel components |
| Temperature Rating | -51°C to +105°C continuous operation limit |
| Environmental Seal | CSA Type 4X and IP66 certified protection |
| Impact Resistance | Withstands up to 7 Joules at ambient temperature |
| Physical Weight | 1.2 kg total unit mass |
Installation, Setup & Logistics
- Thread Sealing: Apply proper thread sealant to the 3/4-14 NPT mounting base to maintain pressure integrity.
- Cable Routing: Secure the 0.5-meter probe cable inside the housing cavity before attaching the connector protector.
- Fulfillment Protocol: Secure dispatch via FedEx, UPS, or DHL within 24 to 48 hours.
- Warranty Terms: Backed by a full 12-month operational guarantee.
Application Compatibility & Diagnostics
- Target Machinery: Steam turbine generators, centrifugal gas compressors, hydro turbines, and large boiler feed pumps.
- Diagnostic Strengths: Houses proximity transducers securely to maintain precise radial vibration and axial position measurements without signal distortion.
Global PLC Spare HUB's Insight
Instrument technicians often face ground loop issues when metallic housings contact structural skids in hazardous zones. The composite PPS material on the 32000-29-05-10-080-07-02 prevents ground loops naturally while dissipating static charges safely through its embedded conductive fibers.
Field Example: A refinery experienced erratic radial vibration readings on a high-speed cracked gas compressor due to electrical noise interference. Replacing standard metallic enclosures with this PPS composite housing eliminated electromagnetic coupling and stabilized the 3300 XL probe output signals completely.
Frequently Asked Questions
Question: Why select a PPS composite housing over traditional cast aluminum enclosures?
Answer: PPS composite material resists chemical corrosion better and provides built-in electrostatic dissipation without requiring external grounding straps.
Question: What is the purpose of the 100 mm standoff adapter in this build?
Answer: The standoff adapter provides physical clearance through thick machinery thermal insulation blankets to reach the bearing housing tap.
Question: How do I ensure proper environmental sealing when installing conduit fittings?
Answer: Use approved thread sealing compounds on the PG21 x M20 fittings and ensure O-rings seat correctly inside the cover groove.
Question: Can this housing withstand sub-zero outdoor weather conditions?
Answer: Yes, the neoprene seals and thermoplastic shell maintain structural integrity down to -51°C.
Question: What precautions prevent thread galling on the stainless steel screws?
Answer: Apply an anti-seize lubricant compatible with stainless steel hardware before tightening cover screws to final torque.
