21504-20-32-10-02 Bently Nevada 8mm Vibration Transducer Probe

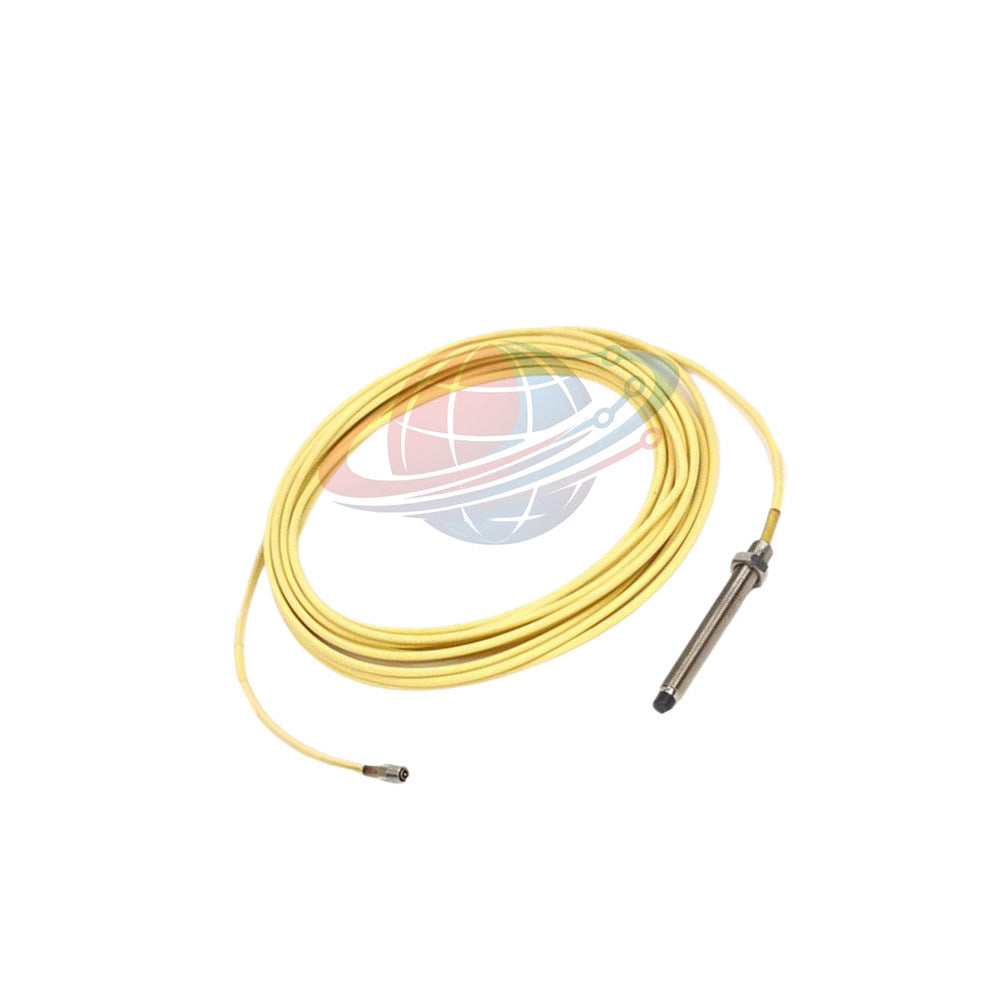

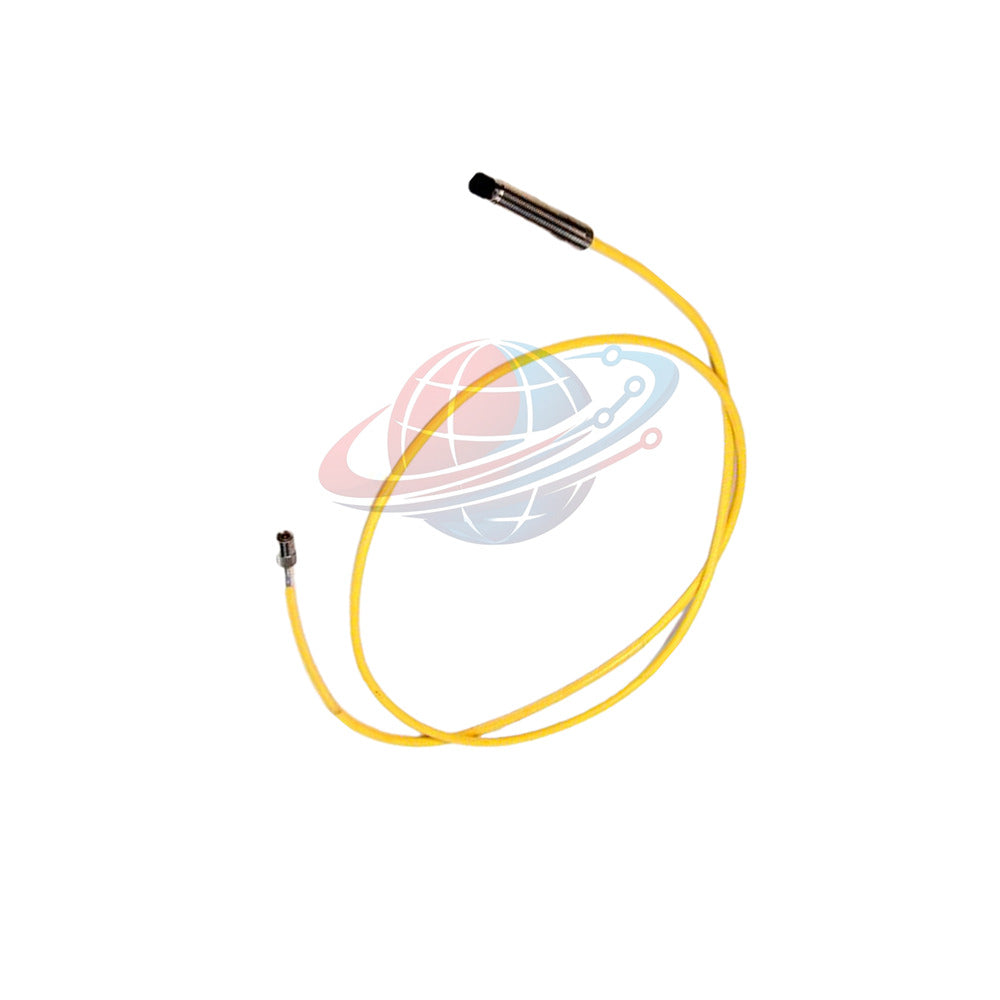

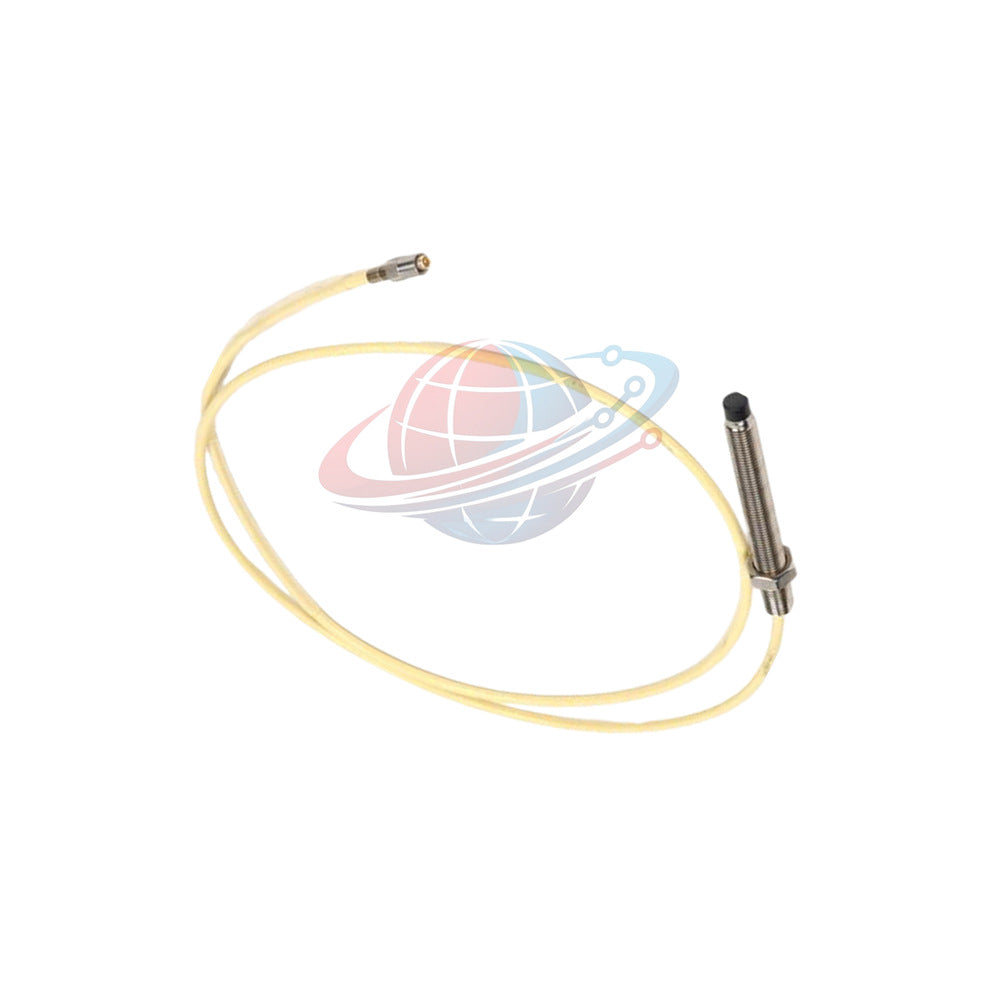

Bently Nevada 21504-20-32-10-02 7200 Series Proximity Transducer Architecture

The Bently Nevada 21504-20-32-10-02 is an industrial-grade 8mm eddy current proximity probe operating within the legacy 7200 Proximity Transducer System family. Engineered for non-contact shaft dynamic displacement and static position monitoring, this transducer measures micro-inch changes in gap distance between the probe tip and rotating target shafts. Automation engineers and machinery diagnostic teams rely on this sensor to capture continuous radial vibration, axial thrust movement, and phase references across critical rotating machinery.

The probe utilizes a high-frequency RF excitation signal generated by a paired 7200 Proximitor Sensor. As the target metallic surface approaches the 8mm ceramic probe tip, eddy currents form in the target material, attenuating the RF signal. The associated Proximitor demodulates this impedance shift into a linear output voltage directly proportional to the physical gap clearance.

21504-20-32-10-02 Configuration Breakdown & Part Number Tree

• Base Part Model: 21504
  • Tip Diameter & Thread: 8 mm Tip Diameter | 3/8-24 UNF Standard Thread
  • Armoring Option: Standard Cable (Non-Armored)
• Unthreaded Length Option [-20]:
  • Value: 200 mm (Unthreaded case portion for deep sleeve mounting)
• Overall Case Length Option [-32]:
  • Value: 3.2 inches (Total threaded plus unthreaded stainless steel body)
• Total Length Option [-10]:
  • Value: 1.0 meter (39 inches) | Cable Length Tolerance: +0.25 m / -0.10 m (+10 in / -4 in)
• Connector Option [-02]:
  • Value: Miniature Male Coaxial Connector (Fitted with insulating rubber boot)

21504-20-32-10-02 Technical Parameters & Performance Specifications

Vibration Diagnostic Capabilities & Signal Integrity

The Bently Nevada 21504-20-32-10-02 delivers clean analog signals across high-bandwidth dynamic diagnostic bands (up to 600,000 cpm). Operating engineers hook up raw signal buffered outputs from matching 7200 monitors to diagnostic spectrum analyzers to execute critical rotor dynamic evaluations:

• Shaft Orbit Tracking: Pair orthogonal X-Y probe mounts at 90-degree spacing to visualize dynamic shaft orbit trajectories and identify fluid-film bearing instabilities (such as oil whirl or whip).
• Axial Thrust Position Monitoring: Tracks sub-millimeter shaft displacement relative to thrust bearing shoes to trigger automatic trip protection prior to mechanical wipeout.
• Phase Keyphasor Reference: Captures once-per-revolution pulse timing signals from shaft keyways to calculate exact 1X phase angles and dynamic balancing vectors.
• Sub-Synchronous Fault Detection: High linearity allows detection of micro-vibration harmonics associated with looseness, misalignment, and structural resonance.

Target Equipment & Industrial Machinery Applications

• Heavy Mechanical Turbomachinery: Steam turbines, industrial gas turbines, and boiler feed pumps in power generation facilities.
• High-Pressure Centrifugal Compressors: Multi-stage gas reinjection and process gas compressors in petrochemical refineries.
• Large Industrial Motors & Generators: Fluid-film sleeve bearing monitoring in paper mills, mining crushers, and water pump stations.
• Industrial Gearboxes: High-speed pinion and bull gear shaft vibration oversight under heavy variable loads.

Logistics, Packaging & Warranty Terms

• Condition & Packaging: Brand new and original unit supplied in original factory packaging with quality assurance certificates.
• Fast Express Shipping: Orders process and dispatch within 24 to 48 hours via top-tier global express carriers (FedEx, UPS, DHL).
• 12-Month Factory Warranty: Fully backed by a comprehensive 12-month operational replacement warranty starting from the date of dispatch.

Global PLC Spare HUB Field Engineering Insight

When installing or replacing the Bently Nevada 21504-20-32-10-02, mechanical assembly tolerances and electrical tuning are paramount. During a recent turnaround audit at an ethylene plant, engineers encountered severe scale factor errors on a turbocompressor thrust monitor channel. The issue stemmed from improper mechanical cable handling: field contractors had tightly zip-tied non-armored probe cables to rigid conduit structures, exceeding the minimum bend radius and damaging the internal coaxial shield.

Our vibration specialists recommend maintaining a physical cable bend radius of no less than 25.4 mm (1.0 inch) and isolating coaxial connectors inside insulated 7200 connector protectors. Furthermore, always verify total system electrical length—combining this 1.0-meter probe with the matching extension cable to equal the exact system length (typically 5 meters or 9 meters) required by the installed 7200 Proximitor module. Mixing cable lengths distorts the 200 mV/mil scale factor linearity.

Frequently Asked Questions & Practical Selection Advice

Q: How do I select between a 21504 probe with a 1.0-meter system cable versus a 0.5-meter cable?

A: The choice depends on where your extension cable junction box is mounted relative to the bearing housing. A 1.0-meter probe cable allows you to route the connection point further outside hot, oil-misted bearing housings before mating to the extension cable.

Q: What is the primary difference between legacy 7200 series 8mm probes and newer 3300 XL 8mm probes?

A: While both output 200 mV/mil, the 7200 system uses different RF carrier frequencies and cable impedance matching compared to the 3300 XL series. You cannot interchange a 7200 probe like the 21504 with a 3300 XL Proximitor without causing severe calibration and linearity errors.

Q: What target material is the standard 200 mV/mil scale factor calibrated for?

A: The standard factory calibration target is AISI 4140 steel. If your rotating shaft uses a different metallurgy (such as 17-4 PH stainless steel or 316L), the actual scale factor will deviate from 200 mV/mil, requiring custom target calibration at the Proximitor or monitor level.

Q: How can I verify if a 21504-20-32-10-02 probe cable has suffered internal damage prior to installation?

A: Measure the DC resistance using a digital multimeter across the miniature coaxial connector pins. The center conductor to outer shield resistance should match Bently Nevada factory baseline bench values (typically a few ohms for the center conductor, and open circuit to the probe outer thread/case).

Q: What is the critical mechanical rule when adjusting the physical gap of the probe during assembly?

A: Set the mechanical gap using a feeler gauge or voltage meter to position the probe face within the center of its linear range (~50 mils / 1.27 mm gap, corresponding to approximately -10.0 Vdc raw output at the Proximitor test points) before tightening the 3/8-24 locknut.
