21000-28-10-20-095-04-02 Bently Nevada Proximity Probe Housing Assembly

21000-28-10-20-095-04-02 Bently Nevada Proximity Probe Housing Assembly Overview

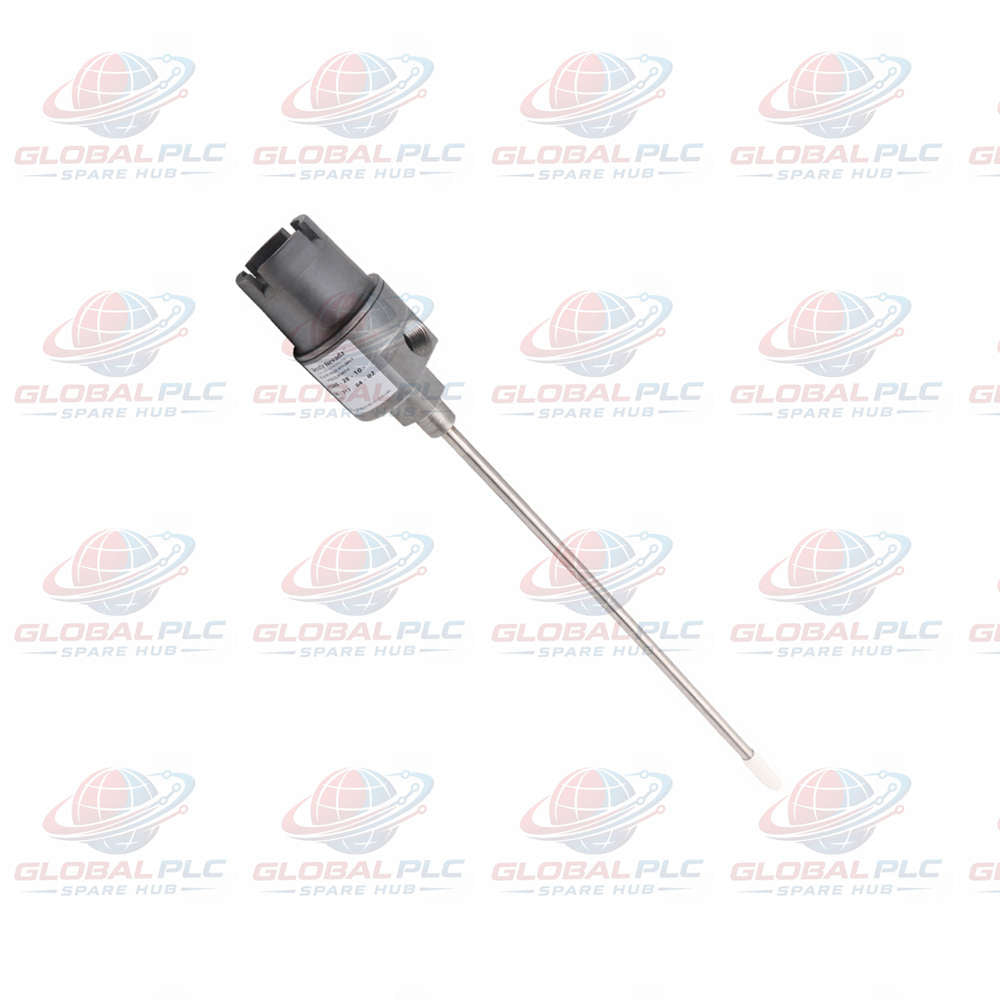

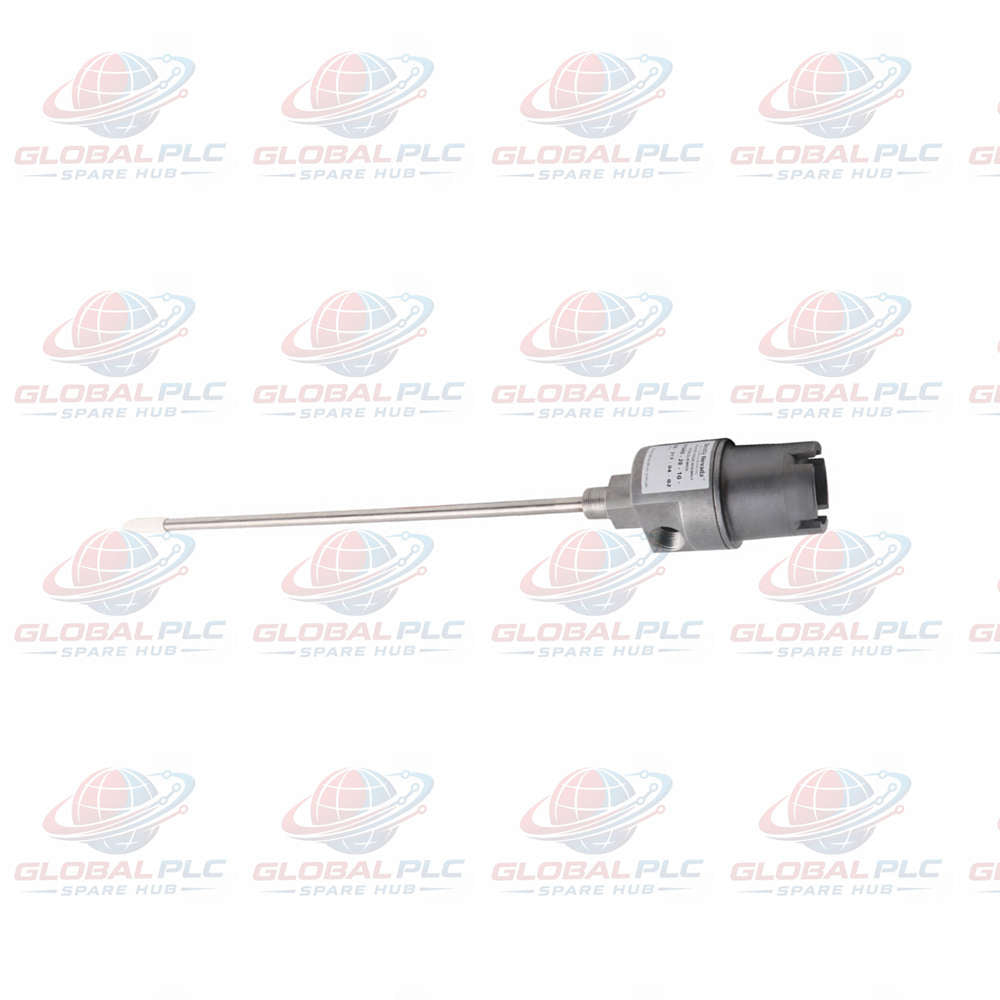

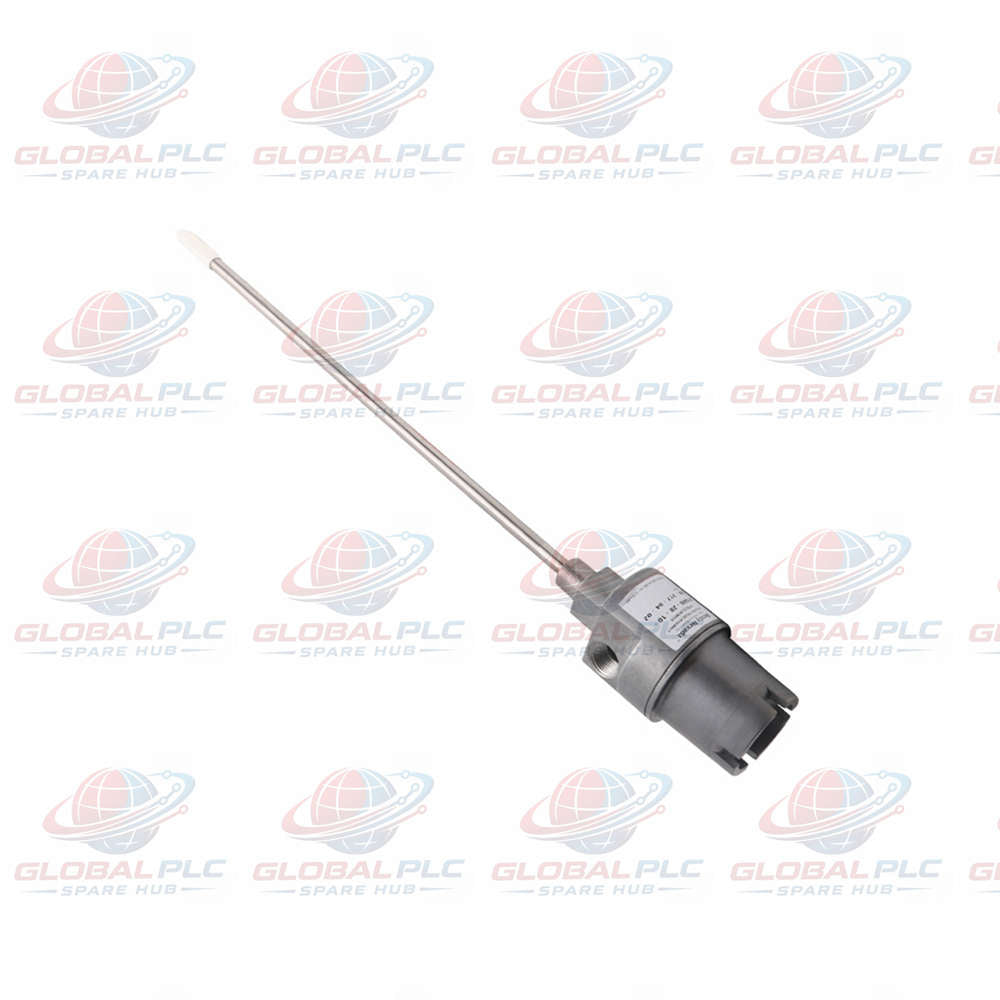

The Bently Nevada 21000-28-10-20-095-04-02 is an API 670 compliant, explosion-proof proximity probe housing assembly engineered for heavy-duty machinery protection systems. Consisting of an anodized aluminum body paired with a 304 stainless steel probe sleeve, the 21000-28-10-20-095-04-02 allows field engineers to install, adjust, or replace internal 3300 XL 8 mm proximity transducers externally without dismantling machine casing covers or interrupting process operations.

Part Number Configuration Breakdown

Technical Specifications

• Manufacturer & Series: Bently Nevada 21000 Series
• Full Ordering Part Number: 21000-28-10-20-095-04-02
• Body & Sleeve Materials: Corrosion-resistant cast aluminum housing body with 304 stainless steel sleeve
• Internal Transducer: 3300 XL 8 mm reverse-mount proximity probe
• Maximum Penetration Dimensions: Maximum (C) + (D) dimension up to 32.9 inches (83.5 cm); visible probe P/N & S/N inspection limit 17.0 inches (43.18 cm)
• Typical Net Weight: 1.1 kg (2.4 lbs) baseline assembly without auxiliary conduit fittings
• Enclosure Protection Rating: CSA Certified Type 4 (NEMA 4 equivalent) moisture/dust seal
• Hazardous Area Rating: Class I Div 1 & 2 (Groups C, D); Class II Div 1 & 2 (Groups E, F, G); Class III; T5 (@ -50 °C to +40 °C), T4 (@ -50 °C to +80 °C)
• Industry Standard Compliance: Fully compliant with API 670 standard for external proximity probe hardware; RoHS Directive 2011/65/EU compliant

Target Equipment and Application Scenarios

Machinery health specialists install the 21000-28-10-20-095-04-02 housing across critical rotating assets operating in harsh, hazardous environments, including:

• Centrifugal Gas Compressors: Mounting radial vibration and axial thrust probes through machine casing walls without breaching pressurized seals.
• Steam & Gas Turbines: Protecting eddy current transducers against high ambient temperatures, steam washing, and airborne hydrocarbon vapor exposure.
• Boiler Feed Pumps & Gearboxes: Providing robust mechanical enclosure protection for keyphasor and shaft position sensors against industrial washdowns.
• Refinery & Petrochemical Skids: Implementing explosion-proof, API 670 compliant sensor installations in hazardous Class I Division 1 plant zones.

Installation Guide

Inspect internal O-rings and thread seals on the 21000-28-10-20-095-04-02 for proper seating prior to insertion. Thread the 3/4-14 NPT standoff adapter onto the machine housing port using appropriate thread sealant. Insert the 304 stainless steel probe sleeve through the standoff to achieve the target 9.5-inch penetration depth, ensuring precise electrical gap calibration between the 3300 XL 8 mm probe tip and target shaft. Tighten the dome cover securely onto the aluminum body to maintain Type 4 environmental sealing and thread explosion-proof conduit into the secondary connection ports.

Advanced Diagnostic Capabilities

The 21000-28-10-20-095-04-02 housing enables seamless online machine diagnostic routines without stopping critical processes:

• External Gap Calibration: Allows technicians to unbolt the outer dome cover and adjust or measure probe DC bias voltage gaps directly while the machine remains operational.
• Physical Probe Inspection: Features a sleeve design allowing partial retraction (up to 17.0 inches combined C+D length) to visually verify probe part numbers and serial numbers without complete dismounting.
• Environmental Isolation: Dual internal O-rings isolate field wiring and proximity sensor connectors from process gas leaks, atmospheric moisture, and mechanical vibration degradation.

Compatibility Matrix

The 21000-28-10-20-095-04-02 connects directly into standard machinery monitoring frameworks:

• Monitoring Systems: Bently Nevada 3500 and 3300 Machinery Protection Systems
• Extension Cable Interconnects: 3300 XL 7200/3300 series 1.0 m extension cables and standard 3300 XL Proximitor Sensors
• Process Fittings: 3/4-14 NPT standard process taps (option 02) with 2-inch standoff spacing (option 20)

Certifications and Industrial Standards

This Bently Nevada housing complies with rigorous global standard frameworks: CSA certified explosion-proof for Class I, Div 1/2 hazardous locations; compliant with non-incendive wiring specs per drawing 140979; tested for Type 4 weatherproof enclosures; built in strict accordance with American Petroleum Institute API 670 machinery protection requirements.

Package Contents, Warranty, and Express Logistics

• In the Box: 1 x New & Original Bently Nevada 21000-28-10-20-095-04-02 Probe Housing Assembly in factory packaging
• Warranty Terms: Covered by a 12-Month factory replacement warranty from dispatch date
• Express Shipping Options: Worldwide priority handling via premium couriers including FedEx, UPS, and DHL

Global PLC Spare HUB's Insight

A common error we observe in offshore turbomachinery maintenance is incorrect calculation of total probe insertion length when retrofitting custom standoff adapters. When ordering the 21000-28-10-20-095-04-02, remember that option code -20 specifies a 2.0-inch standoff adapter, while option code -095 defines a 9.5-inch sleeve penetration depth. If field technicians fail to account for the standoff height during initial probe gap positioning, the 3300 XL probe tip may bottom out against the rotating shaft or sit too far back in the sleeve, causing DC voltage saturation on the 3500 monitor. Always measure overall sleeve clearance from the top of the standoff flange to the target shaft surface prior to final locking screw torque application.

Selection Guide and Technical FAQ

Selection Tip: Specify the aluminum 21000 series housing for standard industrial installations requiring high strength-to-weight ratios and API 670 compliance. If your facility requires extreme resistance to highly corrosive marine or acidic atmospheres, consider the 24701 stainless steel housing series.

Question: How is the probe penetration depth calculated on the 21000-28-10-20-095-04-02 housing?

Answer: Option code 095 indicates a 9.5-inch penetration depth. This measurement represents the overall effective length of the stainless steel sleeve extending from the process connection thread into the machine casing to position the probe tip accurately.

Question: Can I adjust the internal proximity probe gap without removing the housing from the turbine casing?

Answer: Yes, unthreading the top dome cover exposes the reverse-mount probe sleeve assembly, allowing field technicians to set gap voltages using a multimeter without unthreading the main 3/4-14 NPT process fitting.

Question: What cable length is integrated with the probe inside this assembly?

Answer: Option code 10 specifies a 1.0-meter (39-inch) probe cable length attached to the 3300 XL 8 mm transducer, which routes through internal conduit ports to reach external junction boxes.

Question: Is the 21000 housing certified for outdoor wet installations?

Answer: Yes, the housing features dual high-temperature O-rings and precision thread seals, earning a CSA Type 4 rating that prevents water ingress, rain penetration, and heavy industrial washdown damage.

Question: Why is mounting thread option 02 required when selecting a standoff adapter?

Answer: Option 02 provides the 3/4-14 NPT process interface thread necessary to securely anchor the 2.0-inch standoff adapter (option 20) onto the outer machine casing wall.
