21000-28-10-00-217-04-02 Proximity Probe Housing Bently Nevada

Bently Nevada 21000-28-10-00-217-04-02 Proximity Transducer Housing Architecture

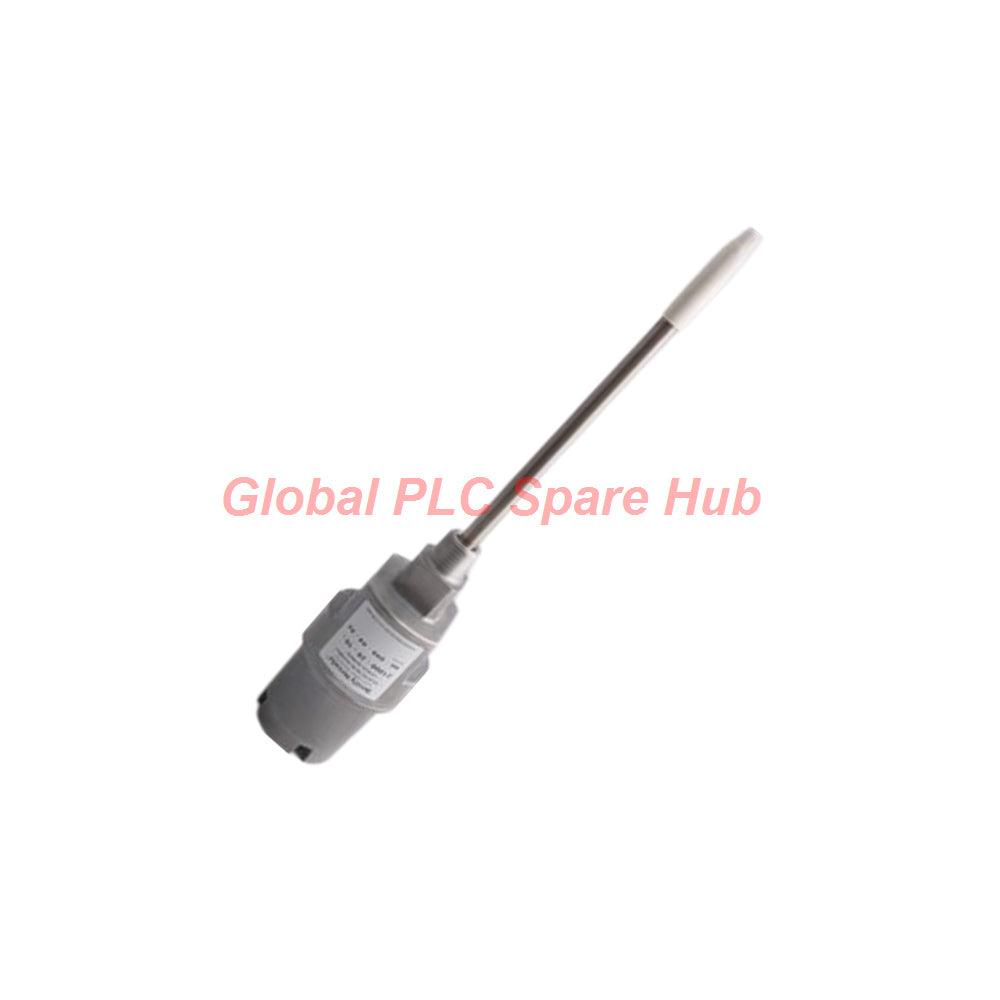

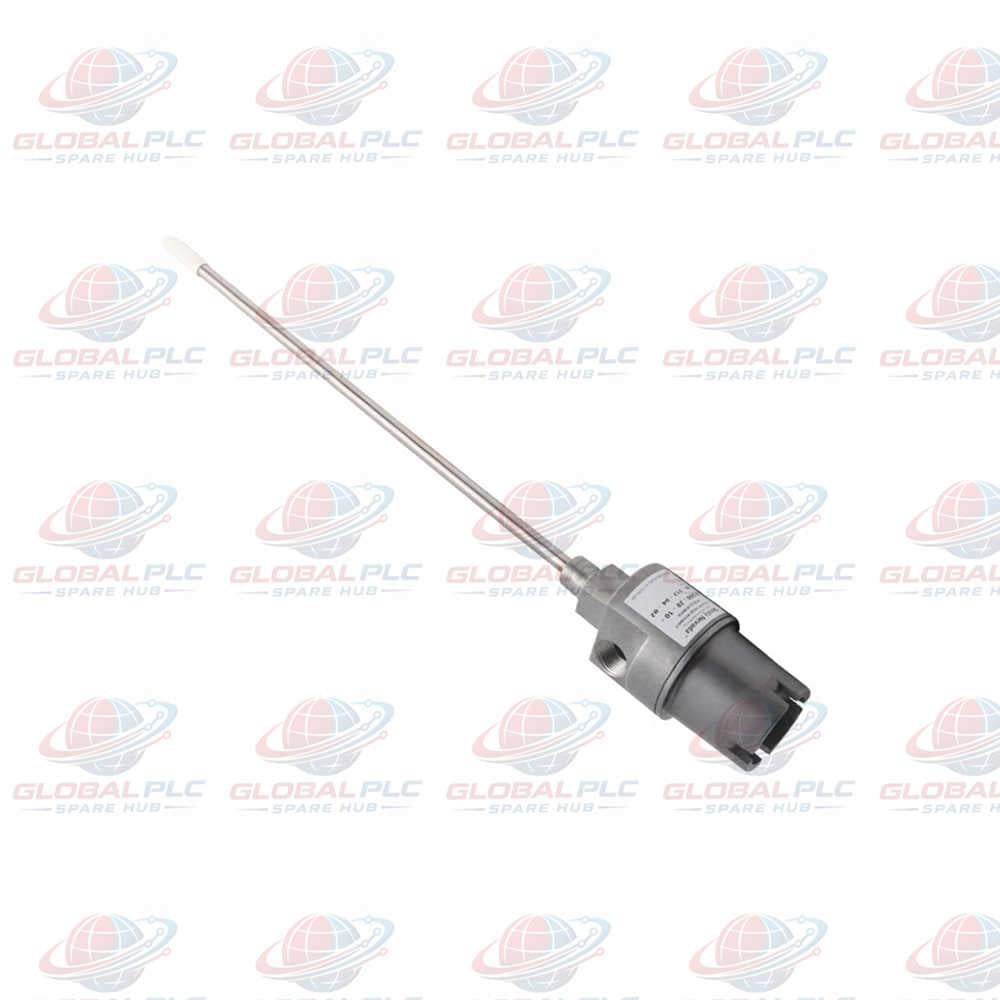

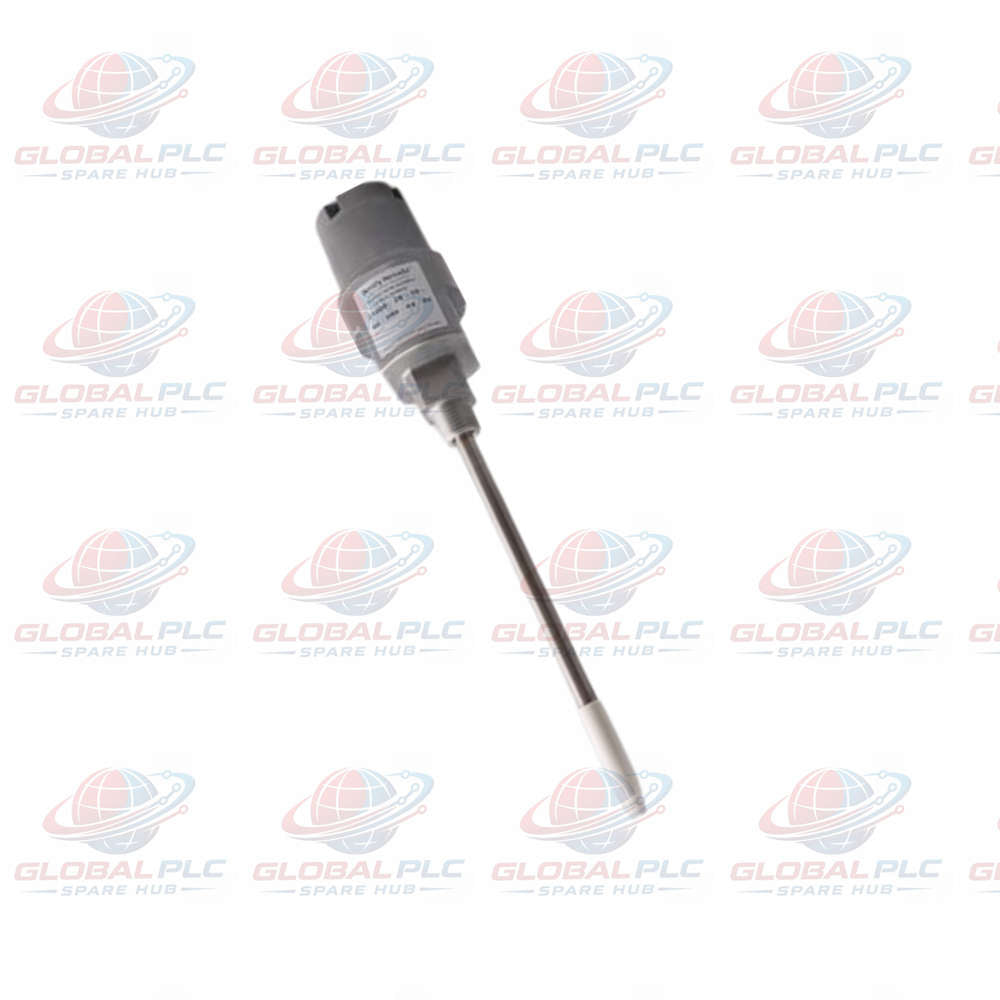

The Bently Nevada 21000-28-10-00-217-04-02 is an industrial-grade external probe housing assembly designed for non-contact eddy current transducer systems. Engineered to protect proximity sensors installed on hazardous or harsh rotating machinery, this rugged enclosure features a durable cast aluminum main body paired with a 304 stainless steel penetration sleeve. Mechanical engineers utilize this explosion-proof assembly to adjust, inspect, or replace proximity probes externally without dismantling machine casings or shutting down plant operations.

This housing unit isolates the internal eddy current probe from process pressure, harsh atmospheric conditions, and dirty bearing environments. Rated as a Type 4 enclosure with hazardous area approvals, the assembly maintains environmental sealing while permitting precise mechanical positioning of the internal 3300 XL 8 mm proximity probe relative to the target shaft surface.

21000-28-10-00-217-04-02 Configuration Breakdown & Ordering Structure

• Base Model Family: 21000
  • Construction Material: Heavy-Duty Aluminum Body with 304 Stainless Steel Sleeve
  • Enclosure Protection: Type 4 Rated, Explosion-Proof with Specific Hazardous Options
• Probe Option [-28]:
  • Selection: 3300 XL 8 mm Probe with Multiple Agency Approvals
• Probe Cable Length Option [-10]:
  • Selection: 1.0 Meter (39 Inches) Integrated Probe Cable
• Standoff Adapter Option [-00]:
  • Selection: No Standoff Adapter Included
• Probe Penetration Option [-217]:
  • Selection: 21.7 Inches Sleeve Insertion Depth
• Fitting Option [-04]:
  • Selection: One 3/4-14 NPT Plug Only
• Mounting Thread Option [-02]:
  • Selection: 3/4-14 NPT Threads (Required when no standoff adapter is selected)

21000-28-10-00-217-04-02 Technical Specifications

Machinery Monitoring & Diagnostic Utility

The Bently Nevada 21000-28-10-00-217-04-02 housing protects critical transducer channels configured for continuous machinery protection. By supporting precise sleeve positioning and probe gap adjustments, the assembly ensures high-fidelity signal output for key vibration diagnostic methods:

• External Probe Gap Calibration: Allows technicians to verify voltage gap settings (-9.0V to -11.0V DC standard baseline) externally without exposing workers to rotating shafts or hazardous process gases.
• Shaft Radial Dynamic Vibration: Protects dual orthogonal (X-Y) probe pairs measuring dynamic shaft orbit motion in high-speed fluid-film sleeve bearings.
• Axial Thrust Position Tracking: Delivers rigid mechanical alignment for axial displacement probes tracking rotor position relative to thrust collar faces.
• Phase Reference Keyphasor Inputs: Provides secure physical positioning for once-per-turn phase timing measurements over keyways or notches.

Target Equipment & Industrial Application Scenarios

• Large Centrifugal Compressors: Heavy-duty refinery wet gas compressors, pipeline boosters, and cracked gas machinery trains.
• Industrial Steam & Gas Turbines: Power generation turbine main bearings requiring hazardous area explosion-proof conduit sealing.
• High-Pressure Boiler Feed Pumps: Multi-stage feed pumps subject to high ambient temperatures and steam/water washdowns.
• Large Electric Motors & Gearboxes: Sleeve-bearing induction motors, planetary gearsets, and heavy industrial blowers.

Logistics, Packaging & Warranty Terms

• Packaging Condition: Brand new and original Bently Nevada 21000-28-10-00-217-04-02 assembly in factory sealed packaging with complete certification documentation.
• Fast Express Shipping: Orders process and dispatch within 24 to 48 hours via premium express carriers (FedEx, UPS, DHL).
• 12-Month Factory Warranty: Backed by a full 12-month operational replacement guarantee starting from the dispatch date.

Global PLC Spare HUB Field Engineering Insight

During field installations of the Bently Nevada 21000-28-10-00-217-04-02, mechanical sleeve measurement and thread sealing require strict execution. On a recent overhaul project at a fertilizer synthesis plant, maintenance teams encountered signal instability on a high-pressure synthesis gas compressor. Inspection revealed that installers had over-torqued the internal probe sleeve set screw, crushing the internal coaxial cable sheath inside the 21.7-inch stainless steel sleeve.

Our specialists recommend executing a full sleeve length dry fit prior to final installation. Ensure the internal 1.0 m probe cable glides freely without twisting during penetration sleeve adjustment. Always apply NPT-rated explosion-proof thread sealant on the 3/4-14 NPT mounting threads to maintain Type 4 ingress protection, and verify that cable seal fittings prevent oil mist from wicking into external junction boxes.

Frequently Asked Questions & Practical Field Advice

Q: How do I measure the correct penetration depth when selecting a 21000 series housing?

A: Measure the distance from the outer surface of the machine mounting boss or standoff flange to the outer diameter of the rotating shaft target. Subtract the required probe tip clearance (typically 50 mils / 1.27 mm) to determine your exact sleeve penetration length (such as the 21.7-inch option specified here).

Q: Can the 3300 XL 8 mm probe installed inside this housing be replaced independently of the aluminum body?

A: Yes. The modular design allows field engineers to loosen the sleeve locknut, withdraw the stainless steel sleeve and probe assembly, and replace the internal transducer element without unthreading the main 3/4-14 NPT aluminum housing from the machine casing.

Q: What is the mechanical function of the 304 stainless steel sleeve in high-vibration applications?

A: The 304 stainless steel sleeve acts as a rigid, non-magnetic guide sheath that prevents structural resonance flexing of long probe bodies under high bearing oil turbulence or windage within the machine housing.

Q: Why is NPT thread sealant required on the 3/4-14 NPT mounting threads during hazardous area installation?

A: To comply with explosion-proof and Type 4 ingress standards, tapered NPT threads must form a gas-tight flame path seal. Using appropriate conductive conduit thread sealant prevents corrosive atmospheric gases from entering the aluminum housing while preventing process fluid leaks.

Q: How can I verify that the internal 1.0 m probe cable hasn't twisted inside the housing during installation?

A: Before tightening the outer fitting plugs, perform a continuity and resistance test on the coaxial connector while rotating the sleeve adjustment mechanism. Resistance should remain constant; any variance indicates cable pinching or internal torsional stress.
