Engineering Performance Review

Welcome to Global PLC Spare HUB's Insight. High-performance industrial automation relies on deterministic control hardware. The Allen-Bradley 1769-L30 controller delivers robust processing capabilities for modern manufacturing cells. Plant engineers deploy this PAC platform to manage demanding task schedules and complex multi-axis motion networks.

Core Processor Architecture & Specifications

• Manufacturer Brand: Allen-Bradley / Rockwell Automation
• Core Model Number: 1769-L30
• Controller Series: CompactLogix 5370 PAC
• Processor Classification: Programmable Automation Controller Module
• User Memory Allocation: 1 MB standard capacity
• Non-Volatile Storage: 1 GB via included 1784-SD1 Secure Digital card
• Task & Program Capacity: 32 independent tasks supporting up to 100 programs per task
• Backplane Current Draw: 800 mA at +5V DC

Communication Connectivity & Network Topologies

• Ethernet Interfaces: Dual integrated 10/100 Mbps ports with built-in switch function
• Supported Network Topologies: **Linear** and **Device Level Ring (DLR)**
• Connection Limits: Up to **256 Ethernet I/P** and **120 TCP I/P connections**
• Legacy Serial Ports: **Two (2) RS232 channels** utilizing **1747-CP3** or **1756-CP3** cables
• USB Port Specification: **1 USB port** supporting **12 Mbps** data transmission

Mechanical Mounting & Environmental Tolerances

• Physical Footprint: Compact dimensions measuring **118 x 50 x 87 mm** weighing **360 grams**
• Chassis Expansion Limit: Supports up to **16 total I/O modules** across **3 physical banks**
• Operating Temperature Range: **Zero to sixty degrees Celsius**
• Vibration & Shock Ratings: **10G operating vibration** at **500 Hz** with a **30G shock threshold**
• Enclosure Protection: Standard open-type hardware with **IEC Class 2 galvanic surge immunity**

System Diagnostics & Operational Health Monitoring

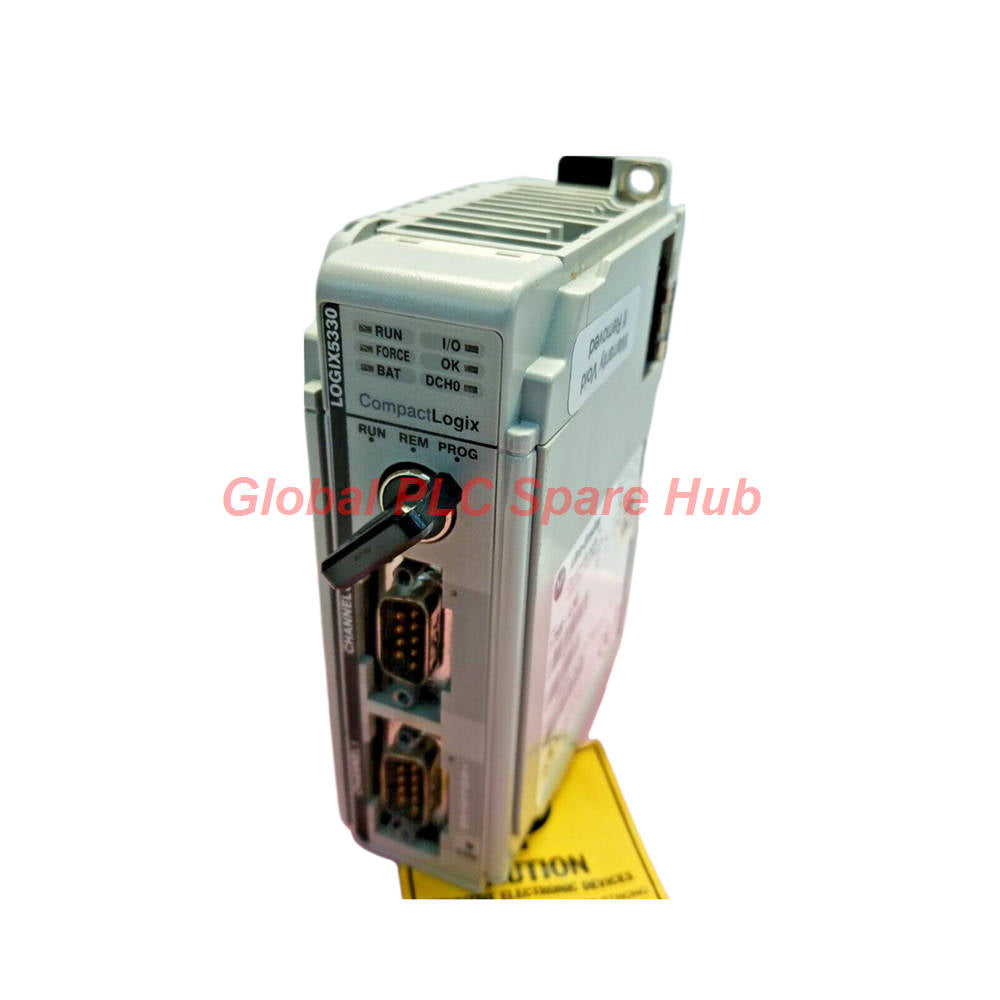

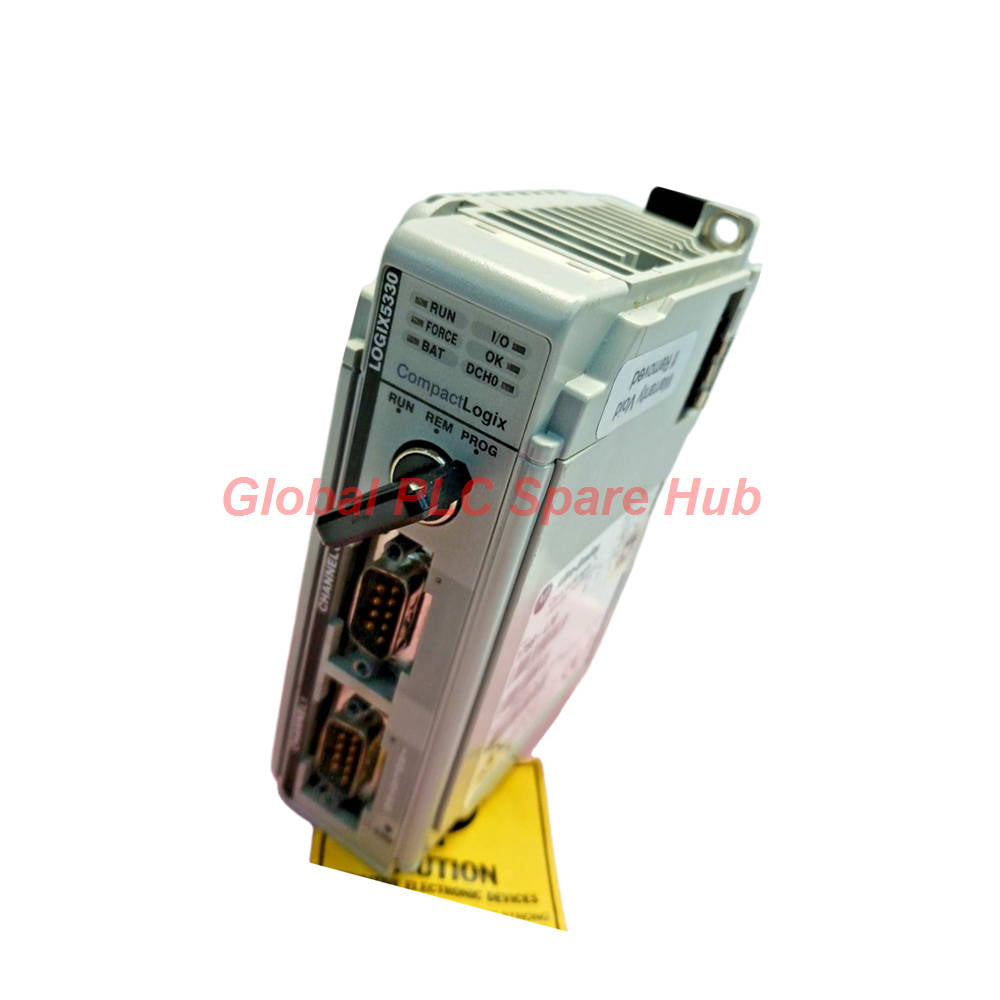

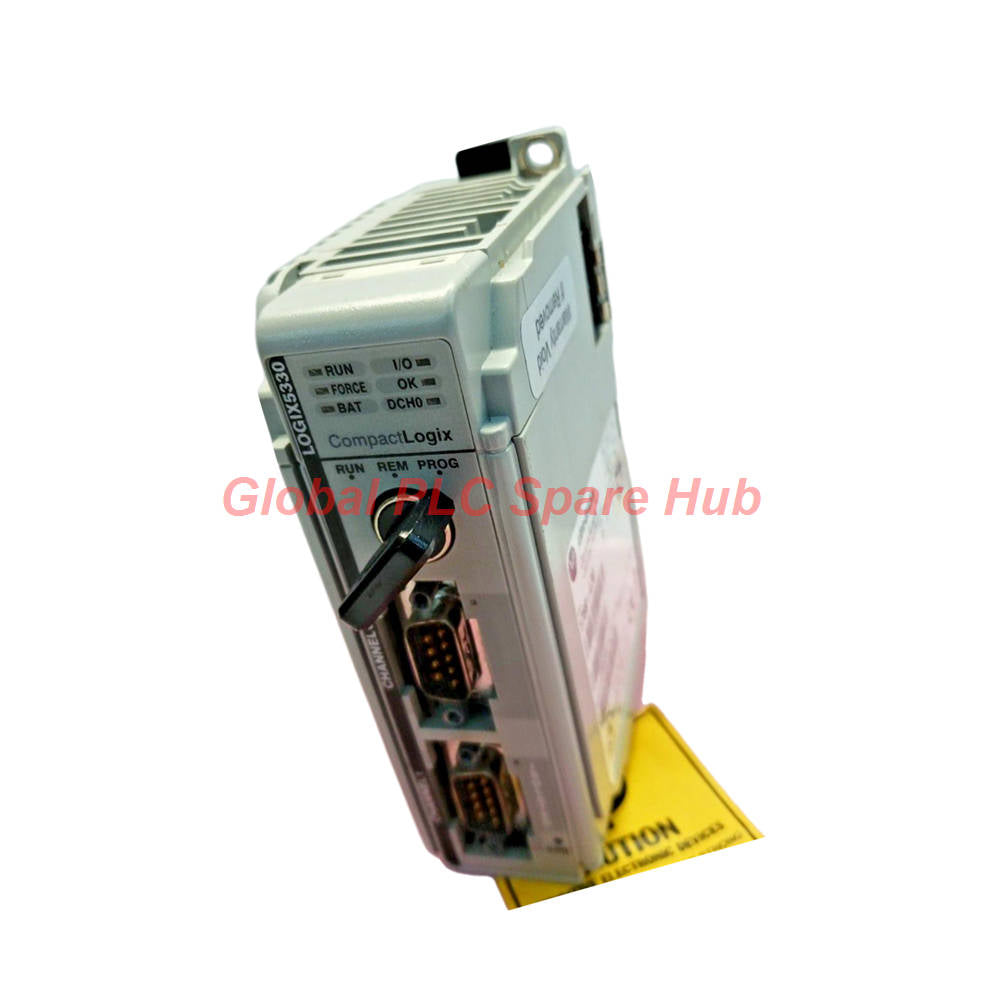

Active processor troubleshooting requires precise system feedback. The front panel features a physical key switch providing manual control over **RUN, PROG, and REM** operating modes. Integrated status indicators display network traffic, battery health, and fault conditions instantly. Software-based task monitoring enables real-time execution tracking during live machine commissioning.

Logistics, Warranty & Quality Assurance

• Warranty Coverage: Comprehensive **12 months** manufacturer defect protection.

Target Industrial Application Scenarios

• High-speed discrete packaging machinery and automated sorting lines.
• Distributed wastewater treatment plant telemetry networks.
• Harsh chemical processing skid monitoring systems.
• Automotive robotic assembly cell coordination.

Expert Purchasing Guide & Technical FAQ

How do I select between standard and motion-capable sub-series variants?

Choose standard models like the **1769-L30ER** for general discrete control, or specify the **1769-L30ERM** variant if your application requires integrated motion over Ethernet I/P for up to four axes.

What precautions prevent SD card corruption during unexpected power loss?

Always use industrial-grade SD cards like the included **1784-SD1** and ensure the controller project is safely stored in non-volatile memory before performing maintenance cycles.

Why is the power supply distance rating critical when adding expansion I/O?

The controller carries a power supply distance rating of four, restricting how far away expansion modules can sit from the system power supply to maintain stable internal voltage.

Can I recover the processor configuration if the internal backup battery fails?

Yes, the non-volatile SD card preserves user programs and configuration data independently of the physical **1747-BA** lithium battery status.

What engineering strategy helps when replacing a legacy processor with this unit?

Verify that your Logix Designer project version matches the firmware revision of the controller and check that your total backplane current draw does not exceed power supply limits.
