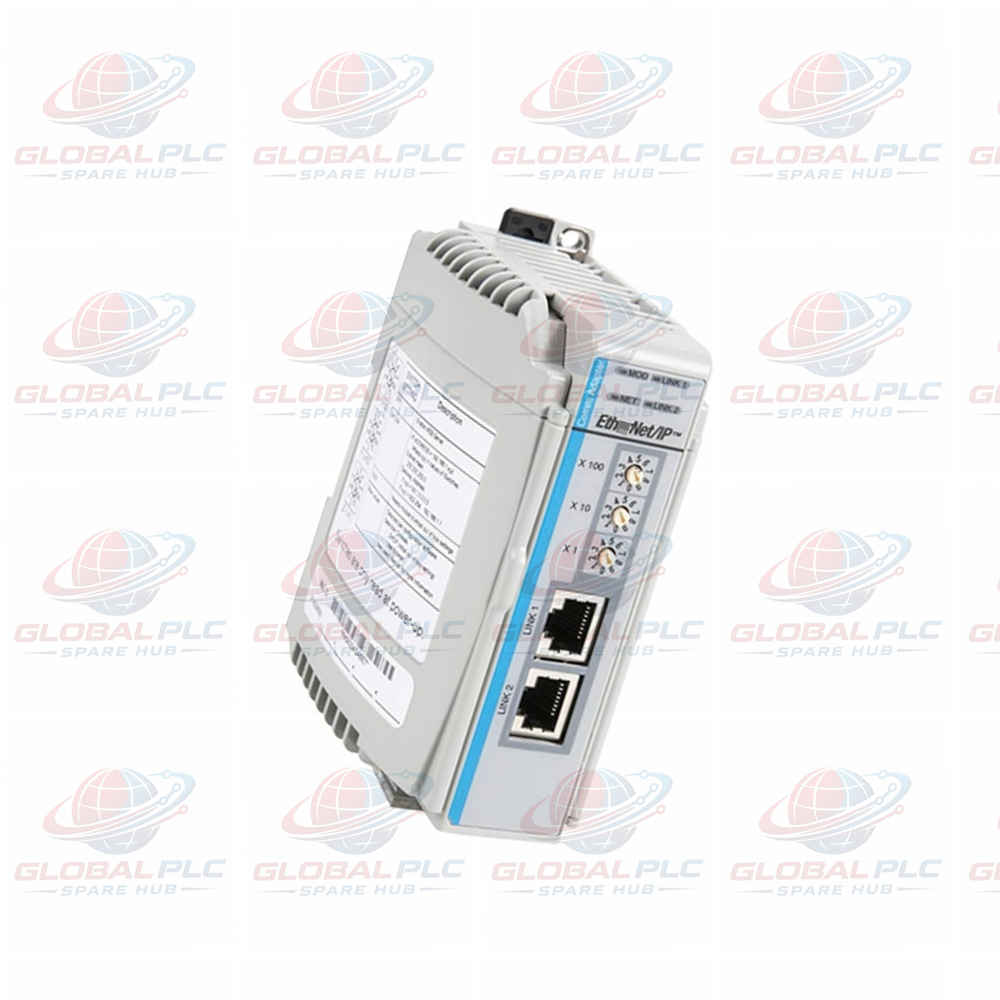

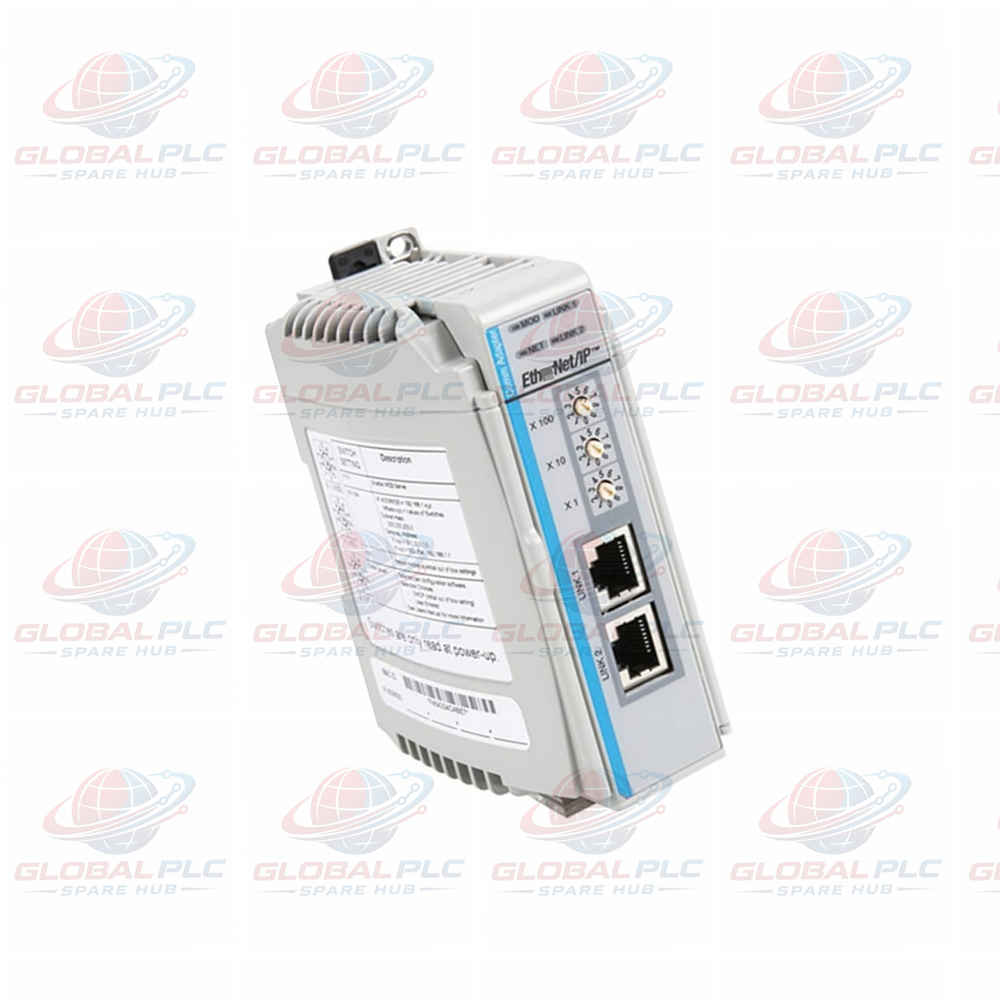

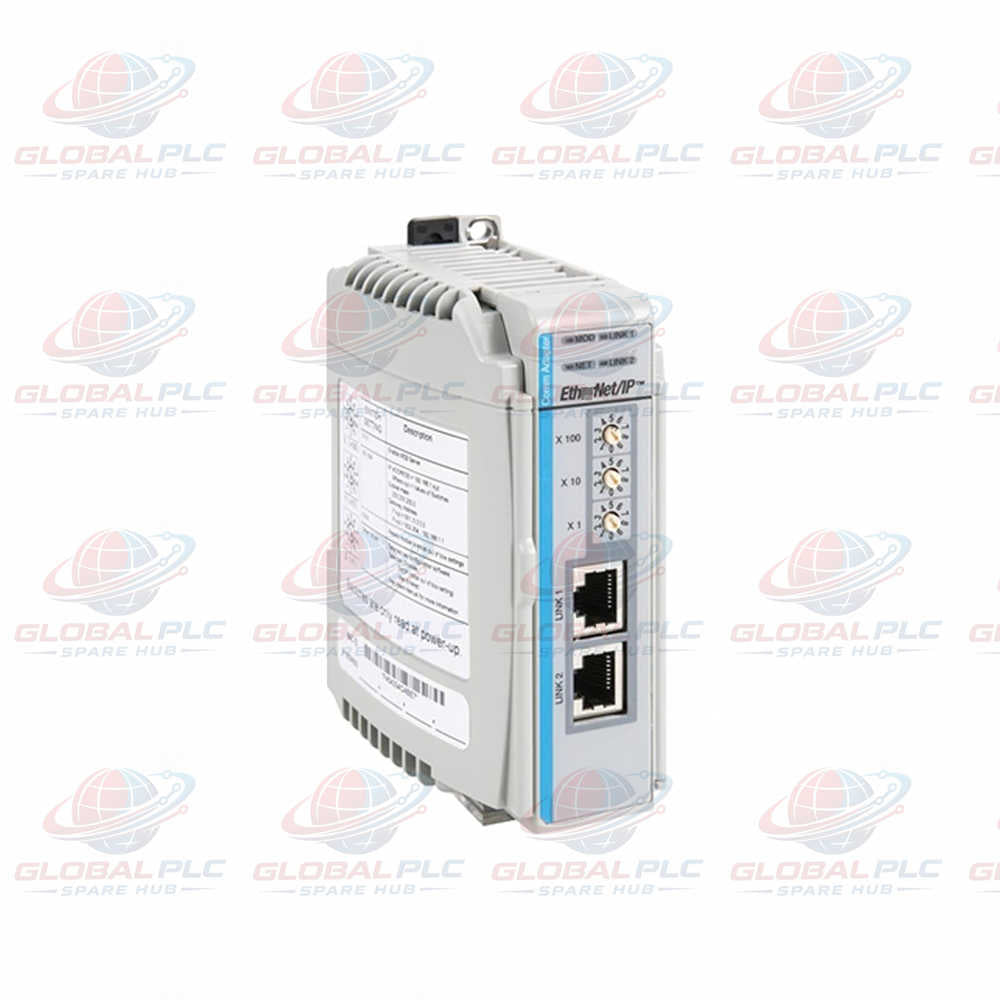

1769-AENTR Allen-Bradley CompactLogix EtherNet/IP Adapter

Engineering Overview & Architecture

The 1769-AENTR is an advanced distributed I/O adapter engineered within the CompactLogix and Bulletin 1769 series by Allen-Bradley. Designed to facilitate seamless migration paths, this communication module allows automation engineers to reuse legacy 1769 I/O chassis while upgrading core control processing hardware. Global PLC Spare HUB's Insight highlights that integrating this adapter simplifies network topologies, drastically reducing spare parts inventory overhead and minimizing costly system rewiring during plant modernization projects.

Configuration Breakdown & Model Suffix Tree

• Base Catalog Number: 1769-AENTR - CompactLogix EtherNet/IP Adapter
• Communication Interfaces: Dual embedded Ethernet ports functioning as an integrated managed switch supporting DLR, Star, and Linear layouts.
• Addressing Mechanism: Hardware IP address configuration managed via front-accessible rotary switches.
• System Footprint: Single-slot width module requiring 500 mA backplane current draw at 5V DC.

Advanced Technical Specifications Matrix

Diagnostic Capabilities & Industrial Applications

• Diagnostic Intelligence: Real-time network health monitoring via embedded web servers, link status LEDs, and ring supervisor tracking for fault isolation in DLR topologies.
• Target Equipment: Distributed skid packages, packaging machinery, water treatment filtration lines, and automated material handling transport systems.
• Global PLC Spare HUB Review: Field deployment reports indicate that leveraging the dual-port DLR architecture eliminates single-point network failures across critical factory floor automation nodes.

Logistics, Warranty & Fulfillment Infrastructure

• Fulfillment Carriers: Expedited international shipping serviced strictly via FedEx, UPS, and DHL.
• Dispatch Lead Time: Guaranteed dispatch window within 24 to 48 hours from verified order placement.
• Factory Quality Assurance: Backed by a comprehensive 12-month operational and performance warranty.
• Condition Guarantee: Supplied strictly as brand new, original factory stock complete with standard manufacturer packaging.

Model Selection Guidance & Technical Recommendations

• Selection Advice: When planning network node expansions, ensure that total logical connections do not exceed the 128-connection ceiling per adapter to maintain deterministic packet transmission.
• Cabling Standard: Always utilize minimum Category 5e cabling complying with TIA 568-B.1 alongside standard IEC 60603-7 RJ45 connectors to prevent packet loss in high-noise environments.

Engineering Frequently Asked Questions

Q: How does the rotary switch block simplify network configuration during replacement?

A: The physical rotary switches allow maintenance personnel to set the final octet of the IP address manually without requiring BOOTP/DHCP software tools or complex laptop re-flashing.

Q: Can this adapter interface directly with PanelView HMI terminals and third-party SCADA systems?

A: Yes, the adapter supports standard explicit and implicit messaging, allowing smooth data exchange with PanelView HMI units, supervisory software, and multi-vendor controllers.

Q: What precautions should be taken when implementing a Device Level Ring (DLR) topology?

A: Ensure one node on the ring is configured as the active ring supervisor through your programming software to manage beacon traffic and prevent packet loop storms.

Q: How does upgrading to the adapter impact existing controller power supply distance ratings?

A: The adapter consumes 500 mA from the 5V backplane rail; always verify that your system power supply distance rating (typically max 8 modules from the supply) is respected to avoid voltage sag.

Q: What is the most efficient channel to secure pricing and delivery timelines?

A: Submit your project bill of materials directly through our quotation inquiry portal to receive instant priority handling and 24-48 hour fulfillment dispatch options.
