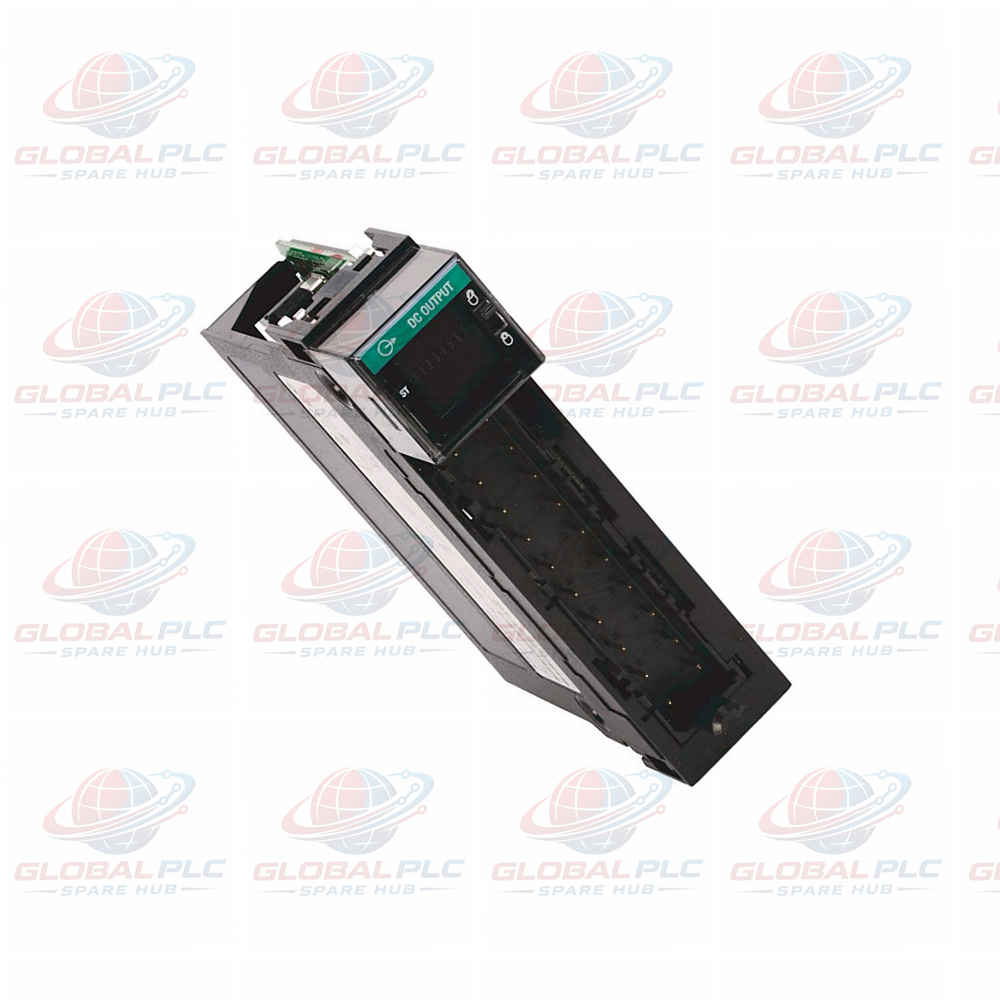

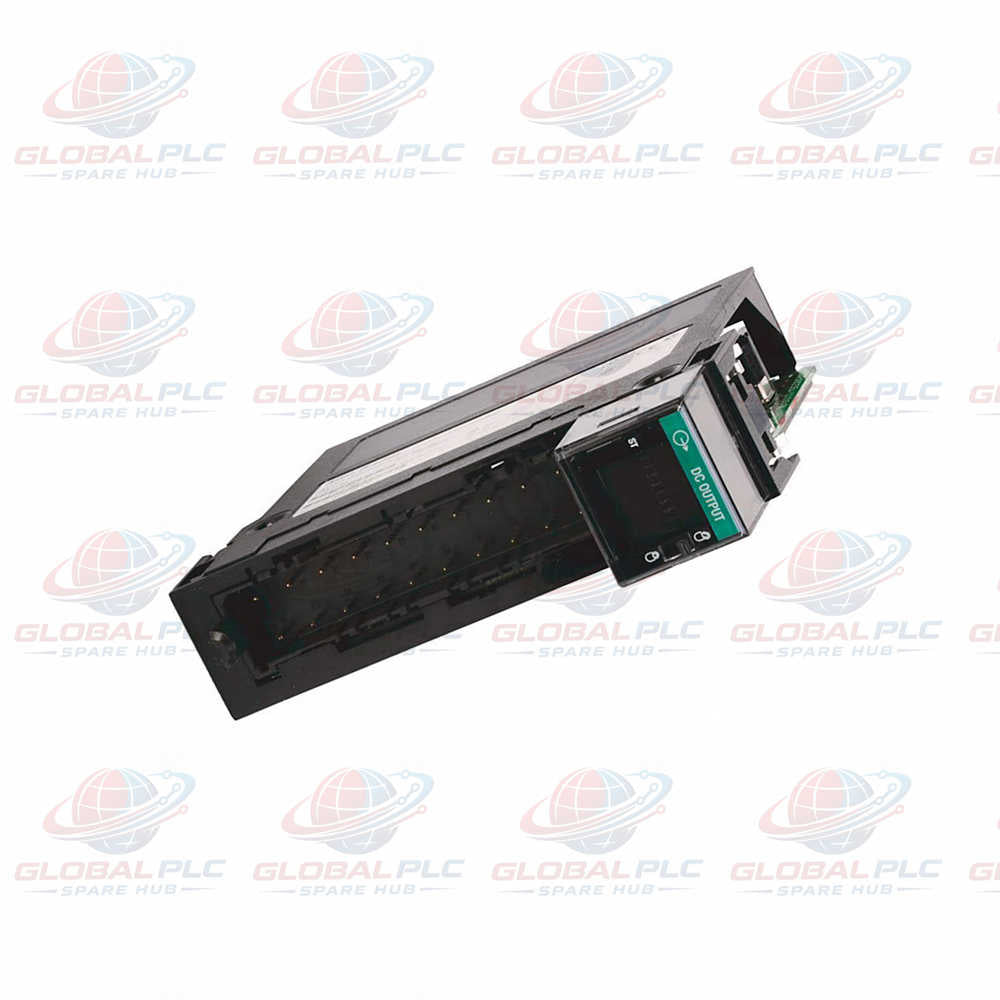

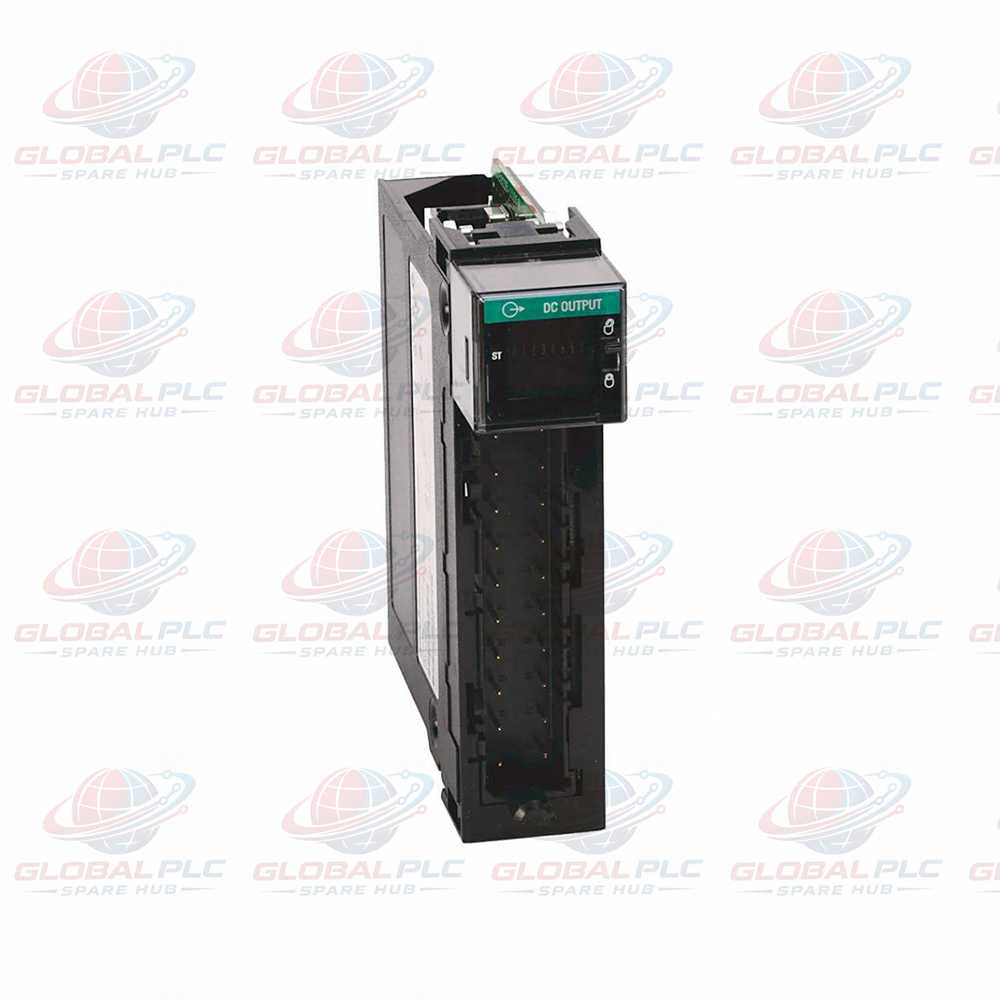

1756-OB8 Allen-Bradley ControlLogix Digital Output Module | 8-Point 24V DC

Engineering Overview

The 1756-OB8 is a high-performance discrete output module engineered by Allen-Bradley for the ControlLogix architecture. Plant automation specialists deploy the 1756-OB8 to switch and energize DC-powered industrial actuators, solenoid valves, and pilot-duty indicators across demanding manufacturing environments.

Technical Specifications & Core Metrics

• Manufacturer: Allen-Bradley / Rockwell Automation
• Series: ControlLogix
• Module Type: 1756-OB8 Digital DC Output Module
• Number of Outputs: 8 points arranged in 2 isolated groups of 4
• Nominal Output Voltage: 24V DC Source
• Operating Voltage Range: 10 to 30V DC
• Current Rating per Point: 2 A max at 60°C (140°F)
• Current Rating per Module: 8 A max at 60°C (140°F)
• Signal Switching Speed: 1 ms max ON transition, 2 ms max OFF transition
• Backplane Power Consumption: 0.89 W total (165 mA at 5.1V DC, 2 mA at 24V DC)
• Power Dissipation: 2.5 W max at 60°C
• Compatible Removable Terminal Blocks (RTB): 1756-TBNH and 1756-TBSH (20-pin)

Environmental Specifications & Operating Limits

• Operating Ambient Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95% non-condensing
• Continuous Isolation Voltage: 250V isolation rating

Configuration & System Integration Framework

• Slot Placement: Occupies any single available chassis slot except the leftmost processor or communication slot.
• Communication Formats: Supports rack optimization, listen-only rack optimization, output data, listen-only output data, and scheduled output data.
• Programmable Fault States: Configurable per-point behavior during fault or program mode (Hold Last State, On, or Off).

Fulfillment, Packaging & Warranty Terms

• Condition: Brand New & Original in Factory Packing
• Factory Warranty: Comprehensive 12-Month Coverage
• Logistics & Dispatch: Rapid 24-48 hour fulfillment via FedEx, UPS, and DHL

Equipment Compatibility & Industrial Application Scenarios

Automation engineers integrate the 1756-OB8 into large-scale distributed control setups, material handling systems, and automated assembly lines. Typical application targets include driving multi-stage pneumatic valve manifolds, heavy industrial relay coils, and optical signaling towers.

Diagnostic Capabilities & System Insight

The module's built-in status reporting allows control systems to track point-level execution and verify load continuity. Plant technicians rely on these diagnostics to catch off-state leakage currents exceeding 1 mA or flag thermal overloads before unexpected line stoppages occur.

Global PLC Spare HUB Review

Global PLC Spare HUB's Insight confirms that utilizing authentic 1756-OB8 hardware prevents backplane voltage drop anomalies often triggered by substandard third-party replacement cards. Rigorous pre-shipment bench testing ensures each unit meets Rockwell's precise switching threshold criteria.

Frequently Asked Questions (FAQ)

Q: What selection criteria should engineers follow when choosing between the 1756-OB8 and high-density output modules?

A: Choose the 1756-OB8 when individual channel current loads reach up to 2 Amps, as high-density cards typically restrict per-point current capacity significantly.

Q: How does Global PLC Spare HUB ensure the structural integrity of the 1756-OB8 prior to dispatch?

A: Global PLC Spare HUB's Insight verifies pin alignment, backplane communication handshake response, and thermal dissipation metrics under load simulation.

Q: What wiring practice prevents inductive kickback from damaging the 1756-OB8 transistor outputs?

A: Always install flyback diodes across DC inductive loads like solenoid coils to suppress high-voltage transient spikes during the OFF transition.

Q: Why is proper RTB keying essential when installing the 1756-OB8 into a live chassis?

A: User-defined mechanical keying on the 1756-TBNH or 1756-TBSH terminal block prevents accidental insertion into mismatched voltage slots, safeguarding field wiring.

Q: What troubleshooting step resolves intermittent output dropouts on a single 1756-OB8 channel?

A: Inspect the 20-pin removable terminal block wiring for loose screw terminations and verify that the module's maximum point current of 2 A is not being exceeded.
