174985-89-99-90 Bently Nevada Proximity Probe 3300 XL Series

Engineering Overview & Submerged Sensing Architecture

The 174985-89-99-90 manufactured by Bently Nevada is an advanced 25mm underwater proximity probe engineered for continuous vibration and radial position monitoring in fluid-immersed environments. As part of the industry-standard 3300 XL series, this specialized transducer utilizes a 304 stainless steel sealed case and protective Tefzel tubing to safeguard internal leads against harsh processing fluids. Reliability engineers deploy this probe to monitor hydro turbines, submerged pumps, and industrial compressors where standard sensors fail.

Technical Specifications & Operational Ratings

Part Number Configuration Breakdown

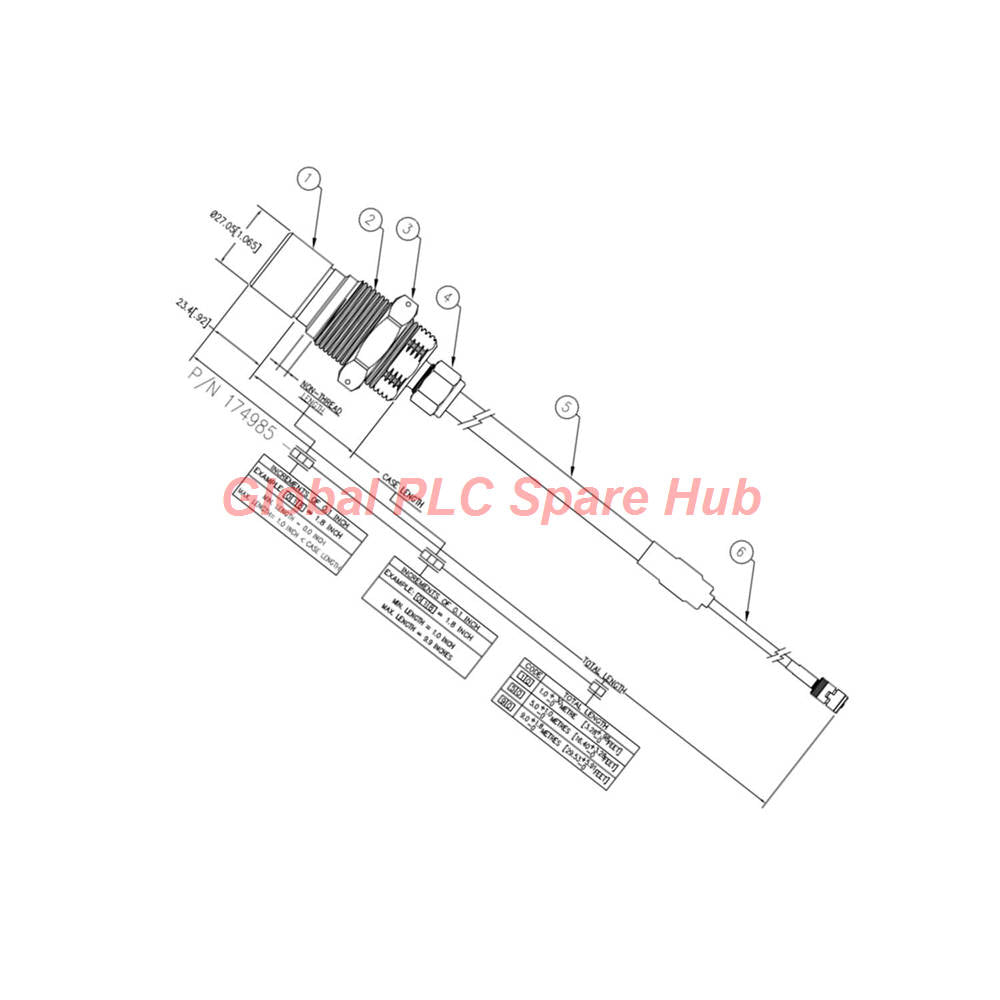

The probe part number 174985-AA-BB-CC follows a precise dimensional configuration code:

• AA (Unthreaded Length Option): Set to 89 (8.9 inches unthreaded length; configurable from 0.0 to 8.9 inches in 0.1-inch increments).
• BB (Overall Case Length Option): Set to 99 (9.9 inches overall case length; configurable from 1.2 to 9.9 inches in 0.1-inch increments).
• CC (Total Length Option): Set to 90 (9.0 metres / 29.5 feet total integrated cable length).

Installation & Mechanical Deployment

• Ensure the mounting thread is torqued correctly into the machine housing using proper sealing compound.
• Route the protective Tefzel tubing carefully to avoid sharp metal edges or excessive bending radius.
• Keep the connector end outside the fluid boundary, as the connector terminal is not liquid-sealed.
• Verify that the process fluid is compatible with 304 Stainless Steel and avoid salt-water applications.

Commissioning & Operational Usability

• Connect the probe lead to a calibrated 3300 XL proximity sensor extension cable and proximitor driver.
• Perform initial gap voltage checks using a digital multimeter to confirm correct mechanical clearance.
• Verify zero-position stability and vibration signal output through the monitoring rack software.

Equipment Compatibility & System Integration

• Fully compatible with 3300 XL 25mm proximitor sensors and extension cables.
• Integrates seamlessly with rack-based machinery protection systems like 3500 series monitors.
• Complies with intrinsic safety barriers per drawing 141092 and approved galvanic isolators.

Quality Standards, Warranty & Fulfillment

• Manufactured under rigorous quality control standards for critical rotating machinery protection.
• Backed by a comprehensive 12-month operational replacement warranty.
• Expedited global dispatch within 24 to 48 hours via FedEx, UPS, and DHL.

Typical Industrial Applications & Suitable Equipment

• Submerged hydroelectric turbine generator shaft vibration monitoring.
• Large industrial water-cooling pumps and deep-well booster units.
• Petrochemical fluid-processing reaction vessels and agitators.
• Submersible compressor bearings requiring continuous radial measurement.

Built-In Diagnostic Capabilities

• Real-time gap voltage monitoring to detect probe shifting or mechanical looseness.
• Signal continuity checks to identify cable damage inside the protective tubing.
• Self-diagnostic fault flagging through connected machinery protection monitor racks.

Model Selection and Technical Comparison

When selecting underwater vibration transducers, matching length options to your specific mounting nozzle depth is critical. For instance, comparing the current configuration with 174985-00-12-90 highlights key dimensional differences. While model 174985-89-99-90 features an 8.9-inch unthreaded section and a 9.9-inch overall case, the alternative 174985-00-12-90 features a 0.0-inch unthreaded length with a 1.2-inch case length, making it suitable for shallower nozzle penetrations. Always verify your machine's penetration depth before ordering.

Global PLC Spare HUB's Insight

During an overhaul of a vertical hydroelectric generator, technicians experienced erratic vibration spikes on a submerged bearing. Field inspection revealed that while the probe body remained sealed, moisture had wicked into the unsealed connector end because it was mounted too close to the splash zone inside the housing drain. Extending the Tefzel tubing and relocating the terminal block above the fluid line completely eliminated signal noise and restored stable vibration monitoring.

Frequently Asked Questions (FAQ)

Question: Can this underwater probe be installed in marine or salt-water environments?

Answer: No, the probe case is constructed from 304 Stainless Steel and is explicitly unsuitable for salt-water applications due to corrosion risks.

Question: Is the entire assembly submersible including the connector end?

Answer: No, only the probe tip and tubing are protected against fluids; the connector end is not liquid-sealed and must never be submerged.

Question: What maximum pressure can the probe tip seal withstand during operation?

Answer: The probe is rated to seal up to 34 Bar (500 psi) of Nitrogen pressure under normal operating conditions.

Question: How do I interpret the '89-99-90' suffix numbers in the part string?

Answer: They represent the unthreaded length (8.9 inches), overall case length (9.9 inches), and total cable length (9.0 metres) respectively.

Question: What maintenance steps should be performed during routine plant shutdowns?

Answer: Inspect the Tefzel tubing for abrasion, check the mounting threads for mechanical security, and verify that the connector dry-well remains entirely free of moisture.

Selection & Purchasing Guide

When selecting a specialized proximity probe for submerged applications, verify your mounting well depth, required cable length, and process fluid compatibility. Choosing authentic manufacturer-certified sensing hardware ensures uninterrupted machinery protection and prevents costly catastrophic equipment failures.
