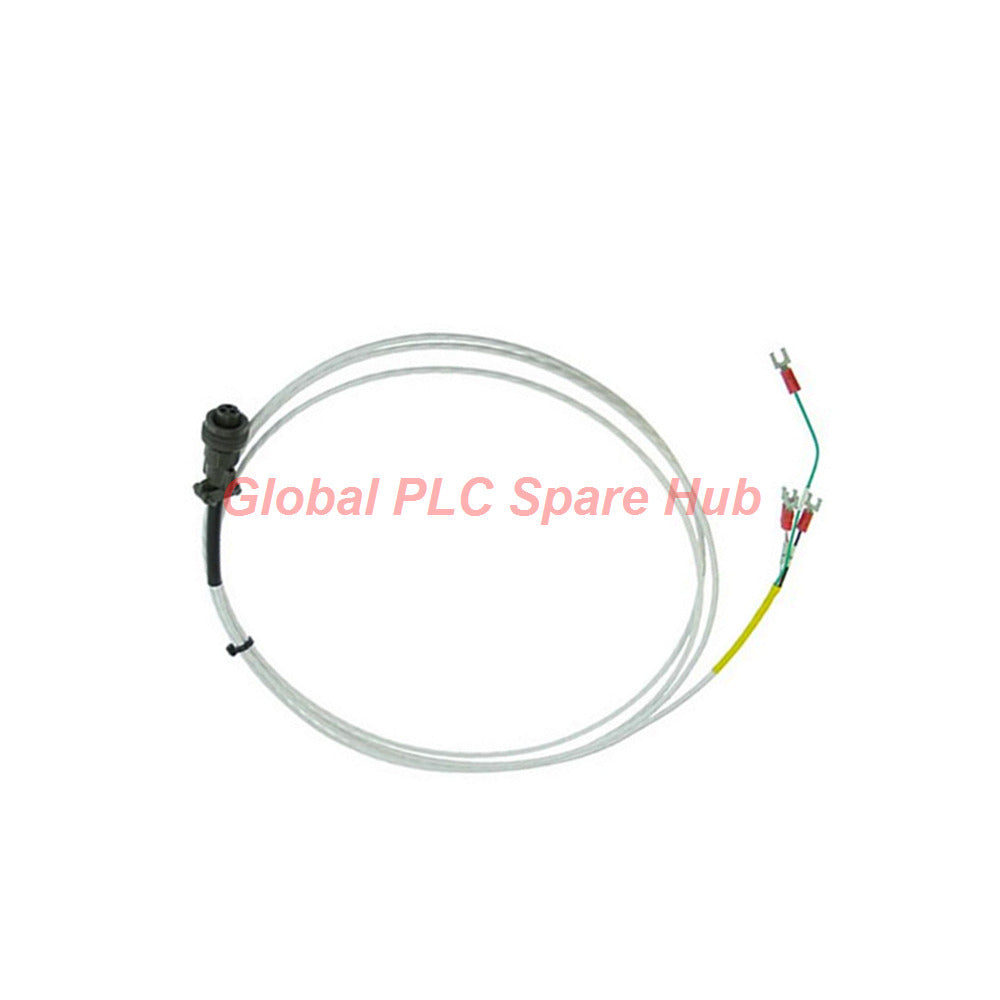

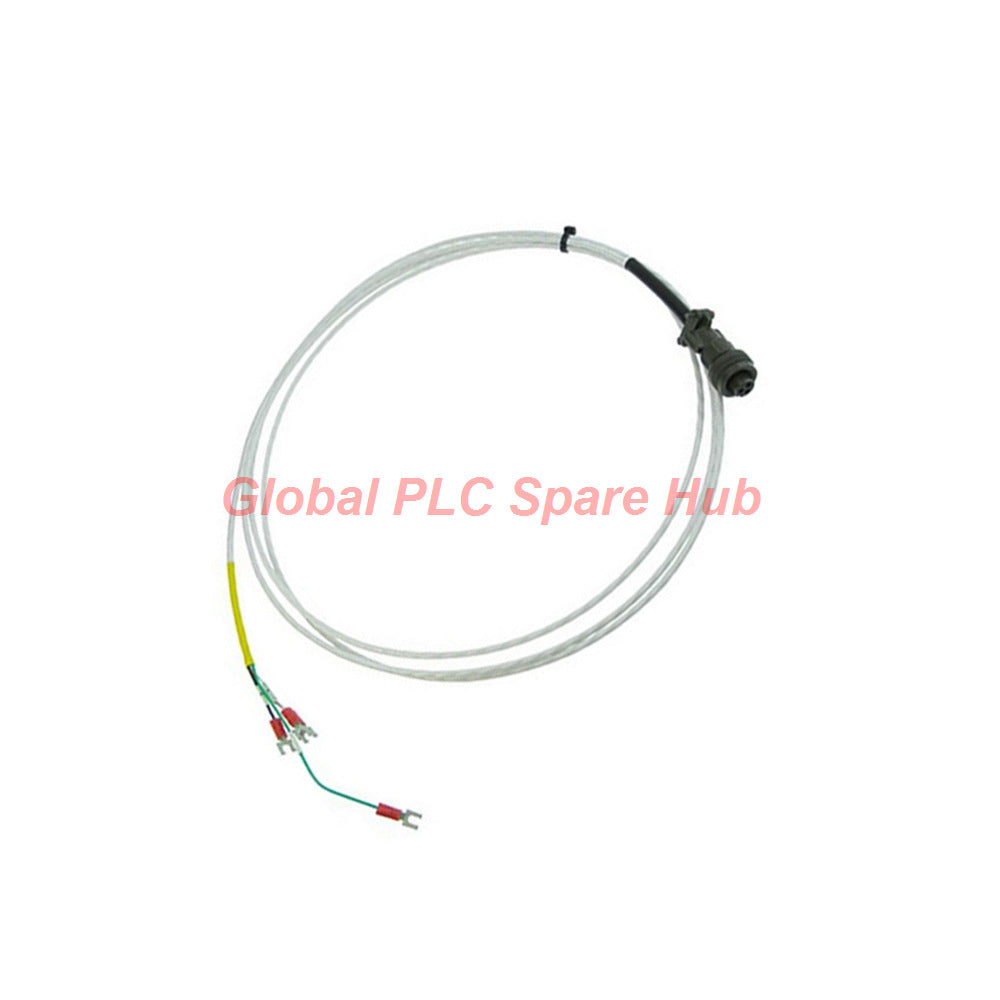

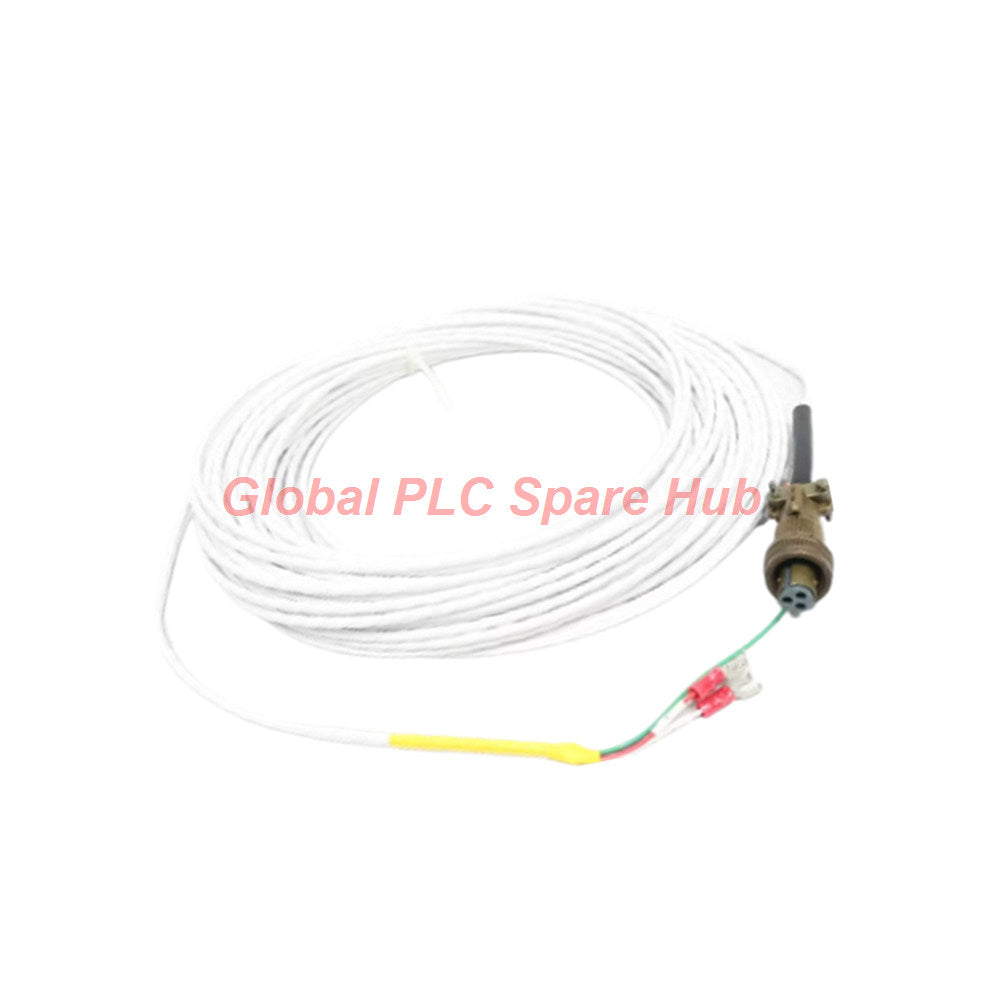

16925-99 Bently Nevada 3-Conductor Shielded Interconnect Cable
Manufacturer: Bently Nevada
Product No.: 16925-99
Condition： In stock
Product Type: Interconnect Cable
Product Origin: USA
Payment: T/T, Western Union
Weight: 1130g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Overview
The 16925-99 interconnect cable from Bently Nevada provides dependable signal transmission between monitoring systems and field hardware. This 3-conductor shielded assembly ensures noise-free signal delivery across extended equipment runs in industrial environments.
Configuration Breakdown & Technical Specifications
| Cable Parameter | Engineering Specification |
|---|---|
| Brand & Part Number | Bently Nevada | 16925-99 (Interconnect Cable Series) |
| Length Option (-99 Suffix) | 99 feet (30 meters) total custom-cut length (Range: 2.0 ft to 99 ft) |
| Conductor Specification | 3-conductor shielded 22 AWG (0.5 mm2) stranded copper wiring |
| Termination Design | 3-socket plug at one end, bare terminal lugs at the opposite end |
| Shielding & Noise Immunity | Continuous overall electrostatic shield to suppress electromagnetic interference |
Compatibility and System Integration
The 16925-99 wire harness integrates seamlessly with standard Bently Nevada rack monitors and signal conditioning units. It links remote terminal blocks to front-panel inputs without signal attenuation.
Installation Guide
- Measure the exact routing distance between your monitor rack and terminal box prior to cutting.
- Connect the 3-socket plug securely into the designated module receptacle.
- Attach the terminal lugs firmly to screw-type barrier strips in the junction box.
- Ensure the cable shield is grounded correctly at a single end to eliminate ground loops.
- Secure the cable along cable trays using nylon ties while respecting minimum bend thresholds.
Commissioning and Maintenance Convenience
Pre-terminated ends save instrument technicians considerable time during plant startup phases. The flexible 22 AWG stranded construction permits smooth pulling through congested conduit pipes. Clear terminal lug identification minimizes wiring errors during multi-channel loop checks.
Application Scenarios and Diagnostic Capabilities
- Rack Interfacing: Links control room monitoring racks to field termination panels.
- Data Acquisition: Transmits raw vibration and position signals to external diagnostic computers.
- Noise Mitigation: Prevents industrial plant electrical noise from corrupting low-voltage dynamic signals.
Certification, Packing List, and Warranty Terms
- Compliance: Manufactured to standard industrial instrumentation specifications.
- Packing List: One 16925-99 cable assembly in original protective packaging.
- Warranty Terms: Covered by a comprehensive 12-month manufacturer warranty.
- Logistics: Fast dispatch within 24-48 hours via premium carriers including FedEx, UPS, and DHL.
Global PLC Spare HUB's Insight & Field Experience
Our engineering team at Global PLC Spare HUB frequently encounters intermittent signal noise caused by improper shield grounding. When installing the 16925-99, always verify that the drain wire connects strictly to the designated instrument ground terminal and remains isolated from structural earth.
Selection Guide
Select your total cable length suffix based on actual physical routing paths plus a 10 percent slack allowance. Ensure 3-conductor configurations match your specific monitor input requirements before ordering custom-tailored lengths.
Frequently Asked Questions (FAQ)
Q: Can the 16925-99 cable length be shortened on-site during installation?
A: Yes, technicians can cut the terminal lug end to fit shorter runs, but the 3-socket molded plug end cannot be modified in the field.
Q: Why is a 3-conductor shielded design necessary for vibration monitor interconnects?
A: The three conductors handle power supply, common return, and signal transmission, while the shield blocks external electromagnetic interference.
Q: What is the maximum allowable distance when utilizing this interconnect cable type?
A: The maximum factory-supported length option for this series is 99 feet (30 meters) to prevent excessive capacitive signal loading.
Q: How does stranded 22 AWG wire perform under continuous mechanical vibration?
A: Stranded copper conductors offer superior flexibility and fatigue resistance compared to solid core wire in vibrating industrial settings.
Q: Are replacement terminal lugs required if the wire is pulled through narrow conduits?
A: It is recommended to protect the terminal lug end with pulling socks during tight conduit pulls to prevent lug deformation or detachment.
