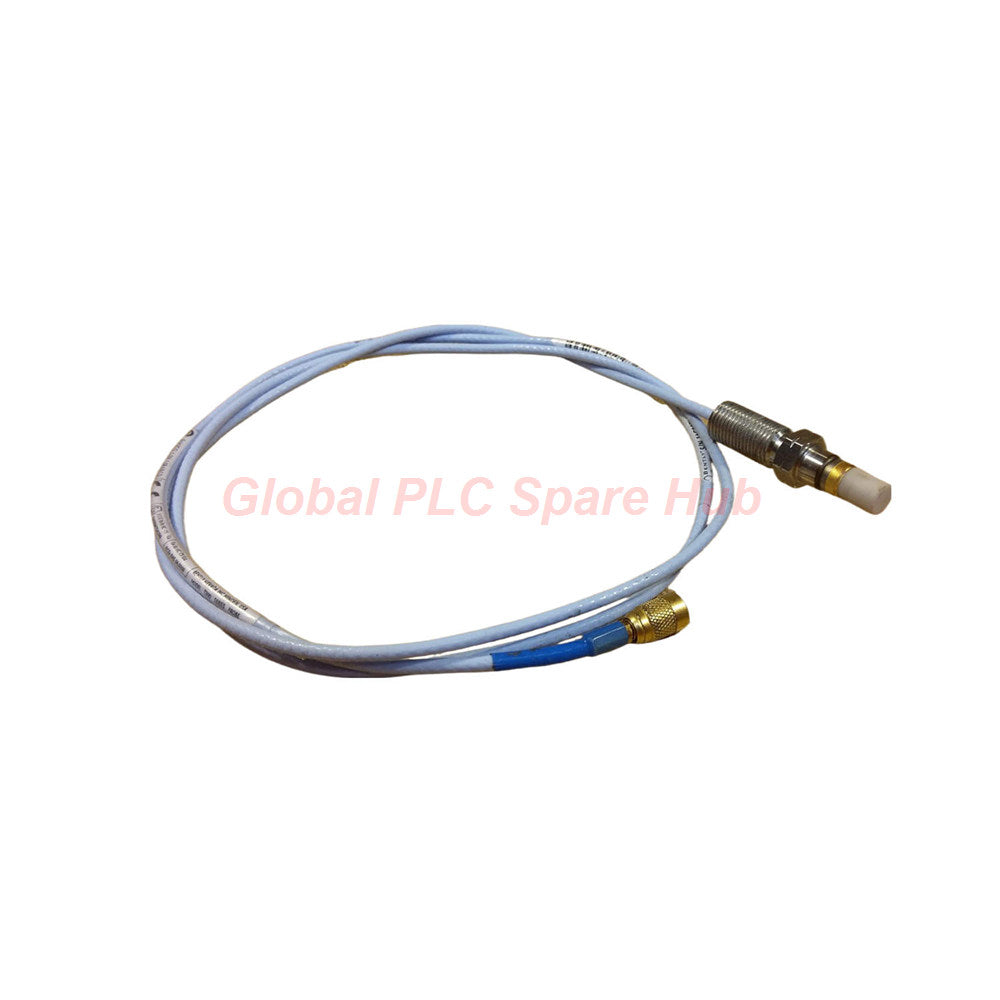

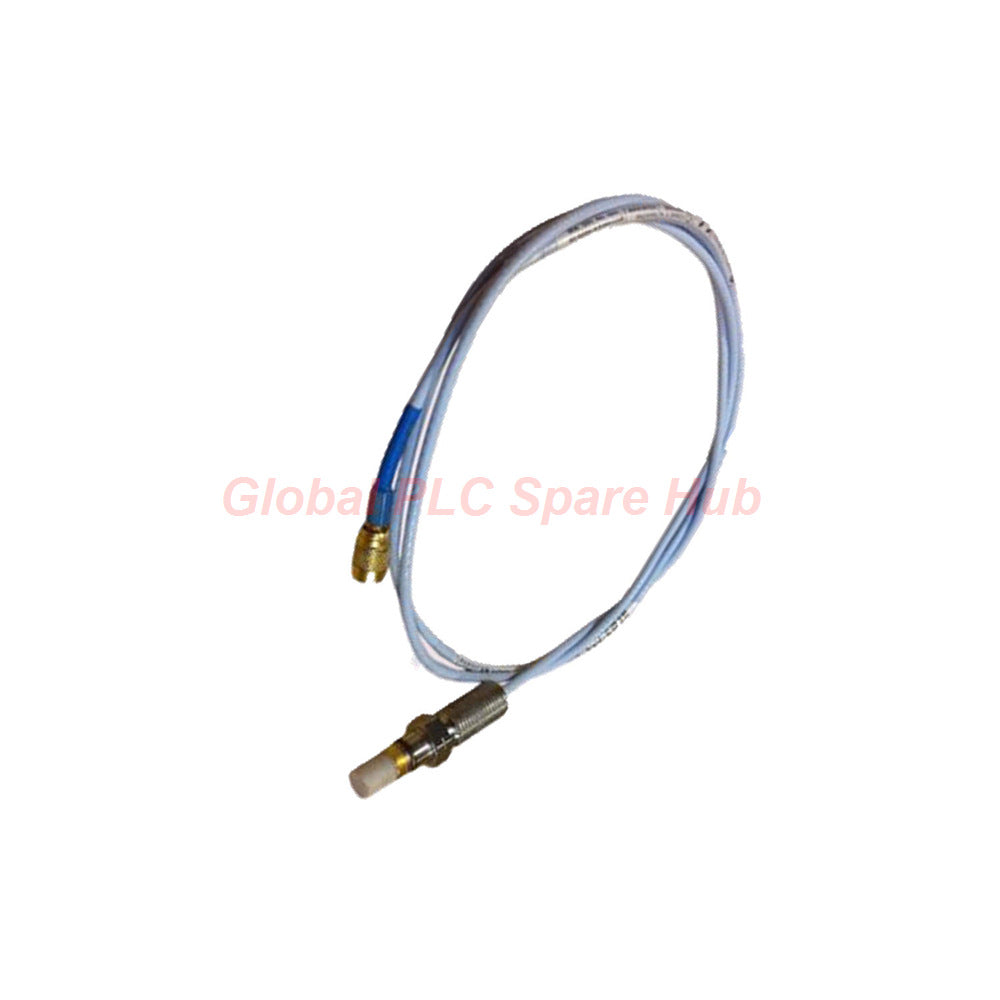

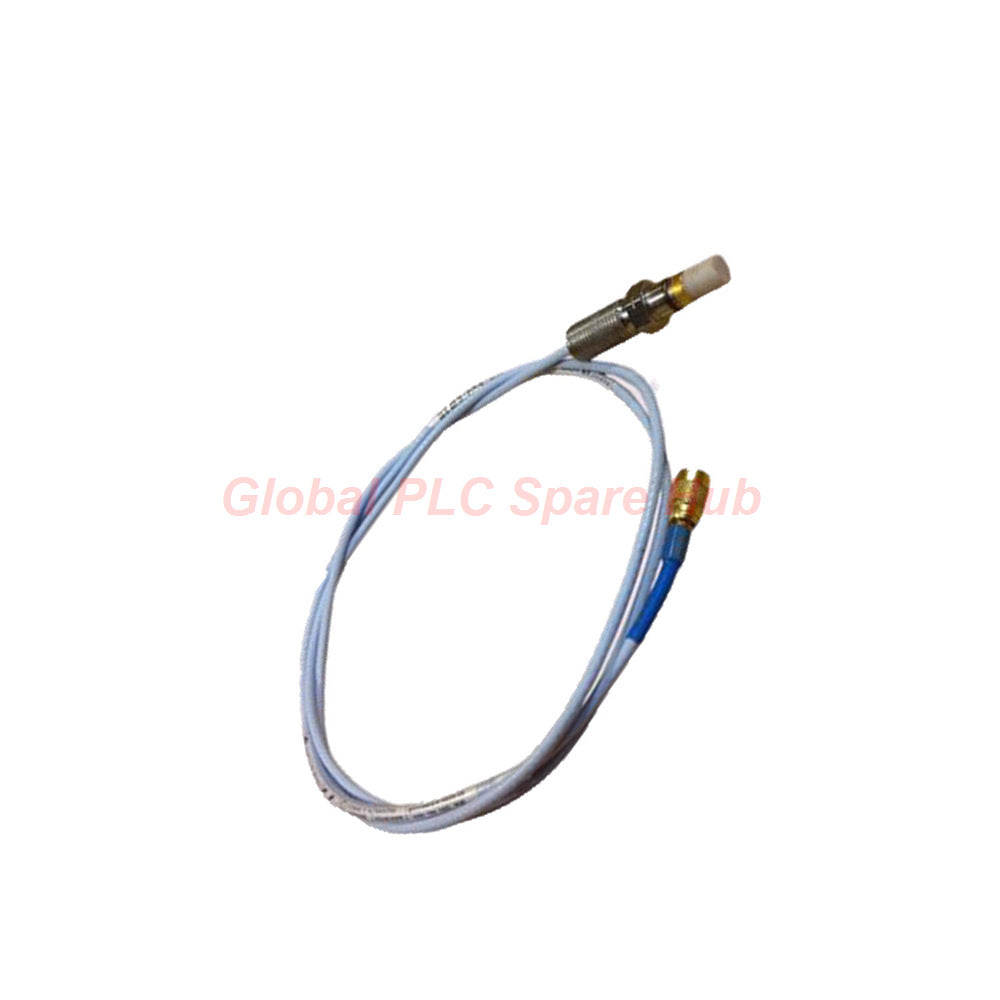

146055-10-02-00 Series 3300 Bently Nevada Reverse Mount Sensor

Manufacturer: Bently Nevada
Product No.: 146055-10-02-00
Condition： In stock
Product Type: Ceramic Capped Reverse Mount Probe
Product Origin: USA
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Engineering Profile: 3300 Ceramic Capped Probe

The 146055-10-02-00 is a high-precision reverse-mount transducer developed by Bently Nevada. Designed for the 3300 series monitoring systems, this probe utilizes an Alumina ceramic tip (Al2O3) to provide exceptional thermal stability and electrical isolation in demanding rotating machinery environments.

Configuration Breakdown: 146055-AA-BB-CC

146055: 3/8-24 UNF threads

A (Length): 10 = 1.0 meter (3.3 feet)
B (Connector): 02 = Miniature ClickLoc coaxial connector
C (Agency): 00 = Not required

Technical Specifications

Probe Thread: 3/8-24 UNF
Linear Range: 0.25 mm to 1.78 mm (10 to 70 mils)
Scale Factor: 7.87 V/mm (200 mV/mil)
Resistance: 7.59 Ω ± 0.50 Ω
Pressure Rating: 34 Bar (500 psi) nitrogen
Temperature Range: -51°C to +177°C

Global PLC Spare HUB Insight

The 146055-10-02-00 is optimized for high-pressure, high-temperature casing penetrations. Our technical team identifies this probe as essential for steam turbines and centrifugal compressors where electrical noise must be minimized.

Selection & Comparison

Ensure your cable length matches your cabinet distance:

146055-10-02-00: 1.0m - Optimized for local monitoring.
146055-90-02-00: 9.0m - Required for remote Proximitor mounting.

Logistics and Warranty

Shipping: Expedited via FedEx, UPS, or DHL.
Warranty: Full 12-month quality guarantee.

Frequently Asked Questions

Q: Why is ceramic preferred for the probe tip?
A: Alumina ceramic offers superior dielectric strength and withstands higher thermal/pressure spikes.

Q: Can I calibrate this probe against a non-AISI 4140 target?
A: Accuracy is strictly validated for AISI 4140 steel; other materials will induce linearity errors.

Q: What is the benefit of the ClickLoc connector?
A: It ensures a vibration-resistant, secure signal link.

Q: How do I store the probe for longevity?
A: Store in original packaging in a climate-controlled area to prevent dielectric degradation.

Q: Can I modify the cable length?
A: No, the system is calibrated as an integrated assembly; modification will compromise accuracy.
