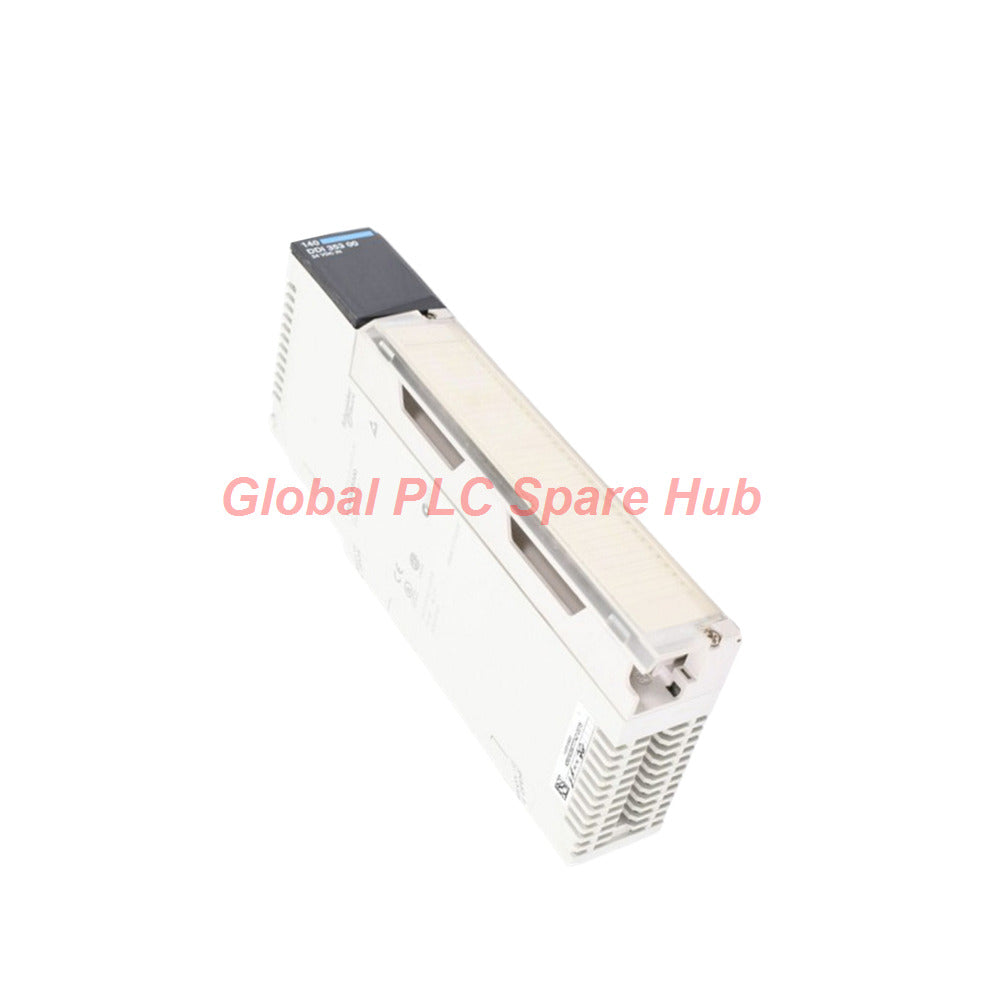

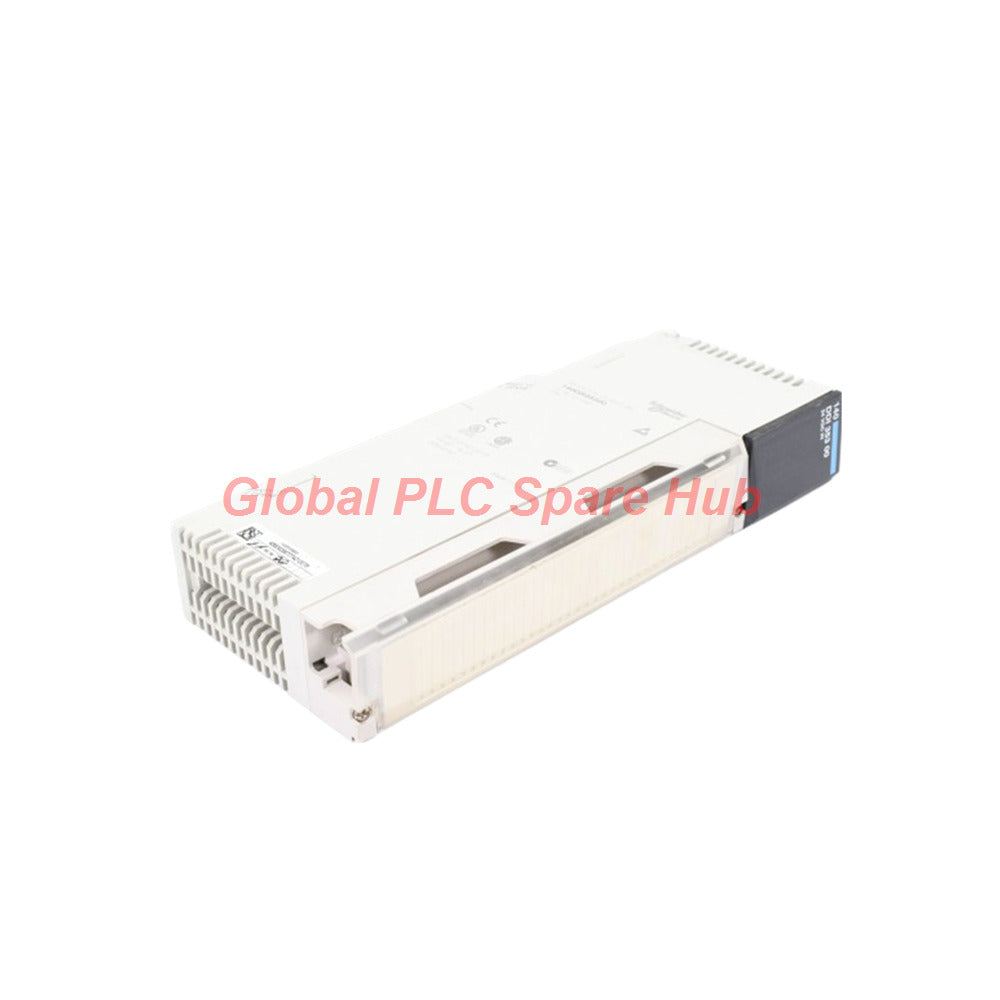

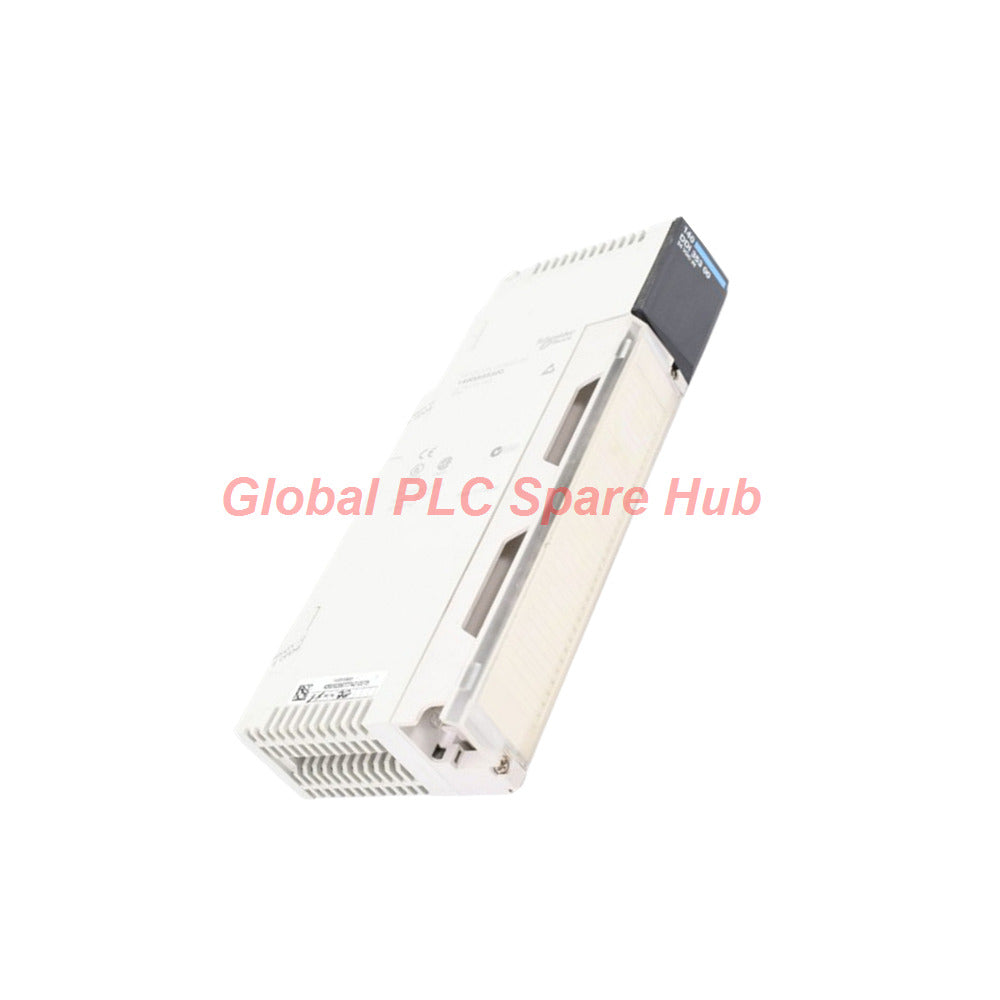

140DDI35300 Schneider Modicon Quantum 32-Channel 24V DC Digital Input Module

Executive Product Summary

Engineered for rigorous industrial plants, the Schneider Electric Modicon Quantum 140DDI35300 is a high-performance 32-channel low-voltage DC discrete input module. Built to interface seamlessly with complex field instrumentation, this card processes 24 V DC signals utilizing positive logic configuration across 4 isolated groups. It features advanced resistor-limited input protection, rapid 1 ms response times, and comprehensive front-panel LED diagnostics. Designed for fault-tolerant automation architectures, the 140DDI35300 ensures optimal signal integrity and long-term operational durability.

Core Engineering Specifications

• Manufacturer & Series: Schneider Electric Modicon Quantum
• Model Identification: 140DDI35300
• Channel Architecture: 32 discrete inputs divided into 4 groups
• Signal Logic: Positive (sink) logic
• Voltage Parameters: 24 V DC nominal; State 1 (15...30 V), State 0 (-3...5 V)
• Current Parameters: ≥ 2 mA (State 1); ≤ 0.5 mA (State 0)
• System Interface: 2 input words; 330 mA bus current requirement
• Impedance & Limits: 2500 Ω input impedance; 30 V continuous, 56 V (1.3 ms pulse)
• Dynamic Response: ≤ 1 ms (State 0 to 1 and State 1 to 0)
• Thermal & Power: Power dissipation 1.7 W + (0.36 × active points)
• Physical Profile: Standard module format; 0.7 lb (0.3 kg)

Mechanical Setup & Installation Protocol

• Insert the 140DDI35300 module into an unpopulated slot on your standard Modicon Quantum backplane.
• Ensure the module engages securely with the backplane connector before locking the top and bottom retention latches.
• Terminate incoming field sensor cables to the removable screw terminal block, maintaining clean wire bundling to minimize electromagnetic pickup.
• Verify that field input voltage remains within the safe operating window of 19.2 to 30 V DC prior to energizing the rack.
• Inspect terminal screws periodically to prevent high-resistance joints caused by continuous industrial vibration.

Commissioning & Diagnostic Capability

• Energize the system backplane and confirm that the green Active LED turns on steadily to indicate active bus communication.
• Observe the 32 individual green input status LEDs during field device activation to verify direct point mapping.
• Monitor the red external fault LED (F) for immediate notification of external loop anomalies or power supply dips.
• Leverage internal resistor-limited protection and optical isolation (1780 Vrms group-to-bus) to prevent transient voltage spikes from migrating into the central processor.
• Utilize diagnostic registers in your programming software to track channel-level status and isolate intermittent field sensor faults.

Platform Compatibility & Target Applications

• Hardware Compatibility: Fully compatible with all legacy and modern Modicon Quantum central processing units and standard backplanes.
• Target Equipment: Ideal for interfacing with proximity switches, photoelectric sensors, dry-contact limit switches, and pushbuttons.
• Application Scenarios: Highly suited for oil and gas distribution skids, municipal water treatment plants, discrete manufacturing assembly lines, and heavy metal processing facilities.

Regulatory Certifications & Compliance

• Industrial Safety: UL 508 and CSA C22.2 No 142 compliance for industrial control equipment.
• Marine & Offshore: DNV, RINA, RMRS, BV, and ABS certifications for marine installations.
• Global Standards: CE conformity marking and GOST certification.
• Electromagnetic Immunity: Compliant with IEC 801-2 (4 kV contact, 8 kV air ESD) and IEC 801-3 (9.1 V/m to 10 V/m RF field resistance).

Logistics, Fulfillment & Warranty Terms

• Dispatch Window: Fast global fulfillment within 24-48 hours.
• Carrier Network: Secure worldwide delivery options via FedEx, UPS, and DHL.
• Quality Assurance: Backed by a solid 12-month warranty covering operational integrity.
• Package Specifications: PCE package measuring 1.83 in × 6.48 in × 12.19 in (4.65 cm × 16.45 cm × 30.97 cm) with a gross weight of 14.4 oz (409.2 g).

Global PLC Spare HUB's Insight

In brownfield plant migrations, engineers frequently face ghost-switching issues when long signal cable runs pick up induced AC/DC noise from neighboring high-power VFD cables. At Global PLC Spare HUB, we recommend pairing the 140DDI35300 with shielded twisted-pair cabling grounded exclusively at the panel end. Furthermore, because the module requires 2 input words, verifying your PLC project configuration allocation prior to download prevents word-overlap faults in large racks.

Professional Frequently Asked Questions

What is the primary cause of the red external fault LED illuminating on the 140DDI35300?

This indicator typically trips when external loop power drops below acceptable operating thresholds or when an overvoltage transient exceeds rated input limits. Verify your field supply stability with a digital multimeter.

How should I configure my hardware scan table for the 140DDI35300 module?

The module demands exactly 2 input words in the Quantum configuration utility. Ensure your software rack layout matches this allocation to prevent addressing offset errors.

What precautions should be taken when connecting inductive sensors to the 140DDI35300?

Ensure that the sensor leakage current does not exceed the guaranteed State 0 limit of 0.5 mA to prevent false-positive logic states from registering in the PLC program.

How does the module handle high-frequency voltage spikes from industrial machinery?

The 140DDI35300 features internal resistor-limited protection and robust group-to-bus isolation (1780 Vrms), which absorbs standard switching transients and protects sensitive backplane electronics.

What are the key selection criteria when upgrading from older discrete cards to the 140DDI35300?

Confirm that your control scheme utilizes positive (sink) logic wiring architecture and that your rack power supply can comfortably supply the required 330 mA bus current.
