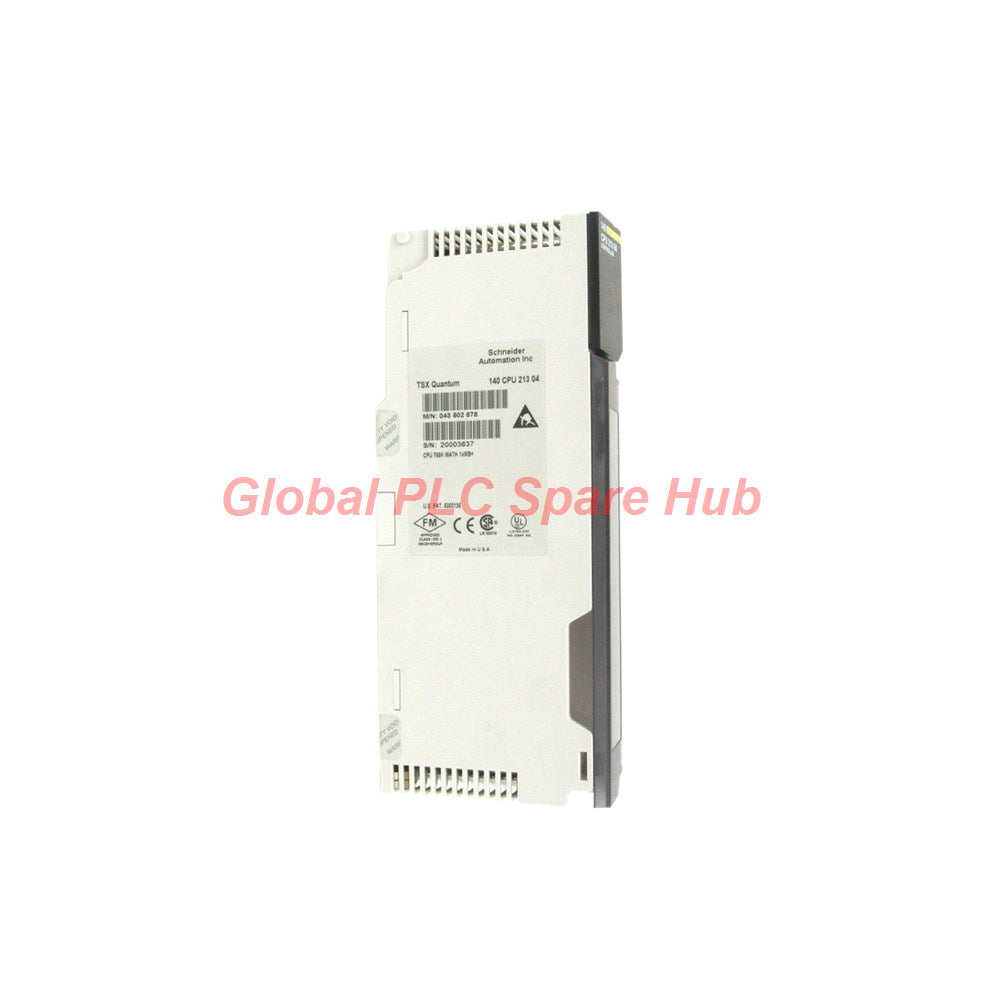

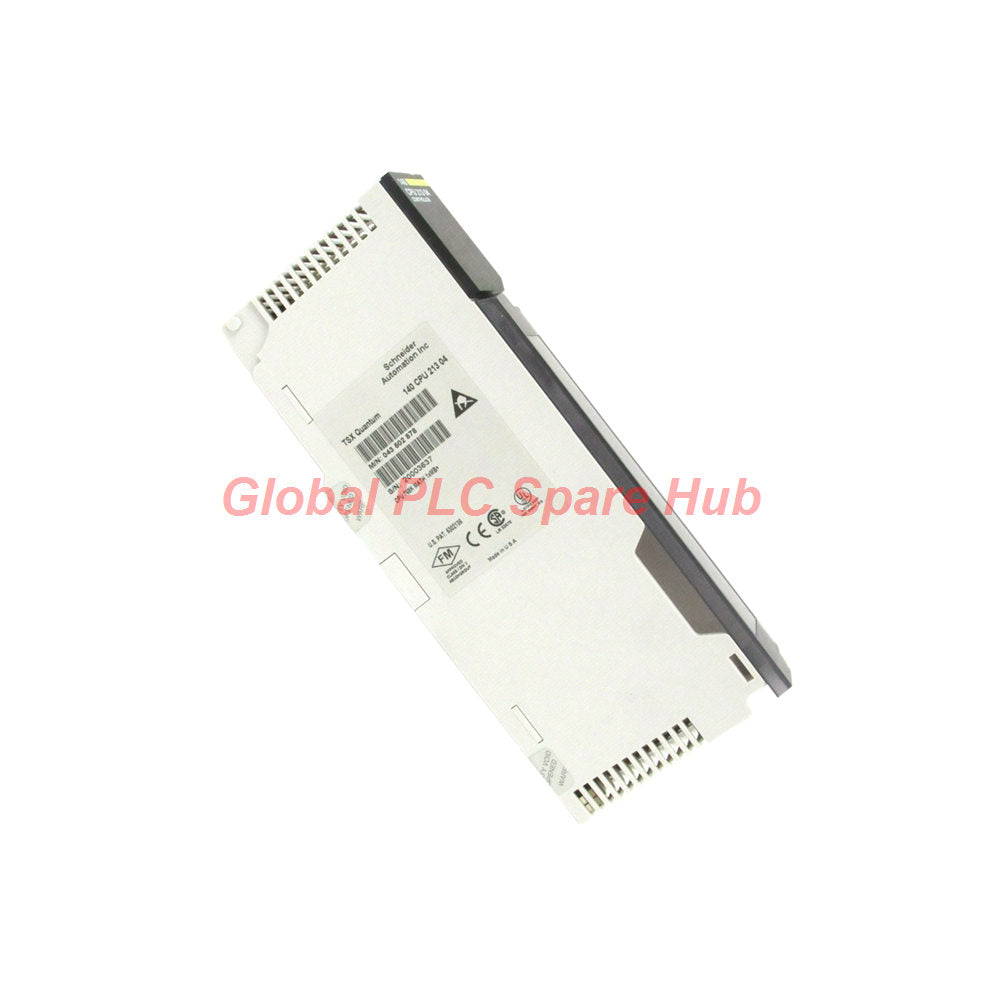

140CPU21304 Schneider Modicon Quantum CPU Controller Module

Overview

The 140CPU21304 serves as a core processing engine within the Modicon Quantum architecture, utilizing a dedicated 20 MHz math processor to execute complex control algorithms and deterministic logic tasks. Built for high-availability industrial nodes, this Schneider Electric controller coordinates backplane data traffic and manages 768 kB of internal application memory. Its balanced architecture ensures reliable execution cycles for discrete manufacturing and continuous process loops.

Core Performance Matrix

• Brand & Series: Schneider Electric Modicon Quantum
• Exact Model: 140CPU21304
• Processing Unit: Math Processor operating at 20 MHz
• System Memory: 768 kB non-volatile RAM/Flash configuration
• Communication Protocol: Integrated Modbus Plus networking port
• Electrical Ratings: 24 V DC input voltage, 250 mA maximum power consumption, 200 mA backplane bus current draw
• Physical Profile: Dimensions optimized for standard Quantum racks; net weight approximately 0.80 kg to 0.91 kg
• Thermal Envelope: Operating range 0 °C to 60 °C (32 °F to 140 °F); storage range -40 °C to 85 °C (-40 °F to 185 °F)

Deployment & Hardware Integration Guide

• Rack Placement: Must be slotted into the primary CPU slot designated on the Modicon Quantum backplane to ensure proper power distribution and master communication token passing.
• Network Termination: When connecting via Modbus Plus, ensure proper RG6/drop cable termination resistors (75 Ohm) are applied at both ends of the trunk line to prevent packet corruption.
• Firmware Synchronization: Verify that programming software version matches the executive firmware loaded on the 140CPU21304 before executing a program download.

Diagnostic Capabilities & Fault Interpretation

• Status LEDs: Front-panel indicator lights monitor processor health, memory status, battery backup integrity, and active Modbus Plus token transmission.
• Watchdog Monitoring: Internal hardware watchdog triggers an automatic system fault transition if program execution scan time exceeds predefined safety thresholds.
• Error Logging: Diagnostic buffers record internal parity errors, rack communication timeouts, and I/O expansion anomalies for post-mortem analysis.

Global PLC Spare HUB's Insight & Expert Guidance

Global PLC Spare HUB's Insight notes that legacy Quantum processors like the 140CPU21304 rely heavily on internal lithium backup batteries to maintain RAM contents during power cycles. Engineers should establish a rigorous battery replacement schedule every 2 to 3 years to prevent unexpected memory loss during scheduled plant shutdowns.

Compatible Devices & Target Application Scenarios

• Compatible Hardware: Modicon Quantum I/O drops, 140NOM network modules, local and remote drop adapter bases.
• Application Scenarios: Large-scale water treatment pumping stations, continuous chemical distillation columns, automotive assembly transfer lines, and legacy power generation turbine control systems.

Logistics, Fulfillment & Warranty Protection

• Shipping Carriers: Express global dispatch via FedEx, UPS, and DHL.
• Fulfillment Speed: Guaranteed processing within 24 to 48 hours from order confirmation.
• Warranty Terms: Backed by a comprehensive 12-month replacement or repair warranty covering all hardware defects.

Professional Frequently Asked Questions

How can I prevent data loss when replacing a legacy 140CPU21304 controller?

Always upload a backup of the current application program using your programming terminal and verify the internal lithium backup battery voltage before powering down the rack.

What causes a constant watchdog fault indication on this processor?

A watchdog fault typically occurs due to an infinite loop in custom ladder logic, excessive scan time caused by heavy math block processing, or a corrupted executive firmware file.

Is the Modbus Plus port isolated from field ground potentials?

Yes, the integrated Modbus Plus communication port features built-in galvanic isolation to protect the processor board from ground loops and common-mode voltage spikes across long cable runs.

What are the best selection guidelines when upgrading or sourcing a replacement unit?

Ensure that the replacement part number strictly matches 140CPU21304 and verify that your system architecture does not require higher memory models like the 1MB variants based on your current project tag count.

Why does the processor reject my program download attempt?

Check that the processor switch is set to the correct operating mode (such as Stop or Remote) and verify that the communication driver settings match the baud rate of your programming cable.
