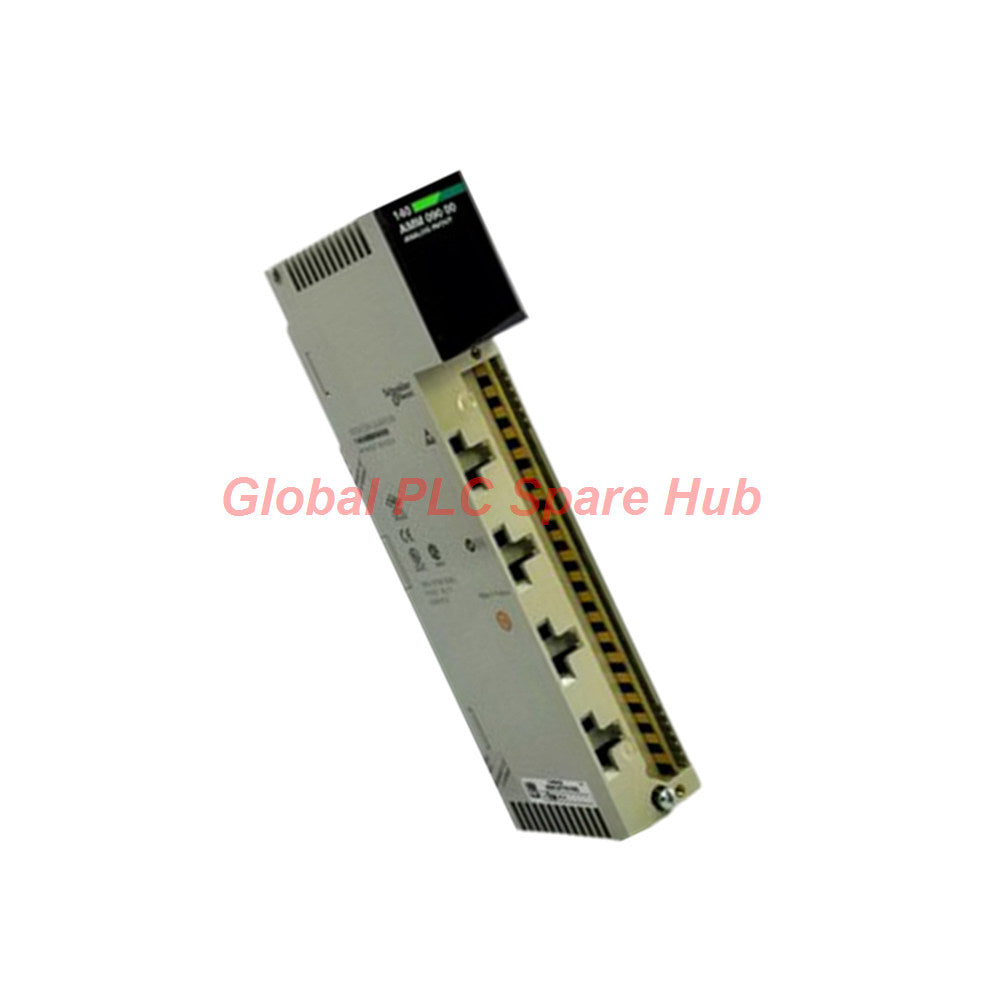

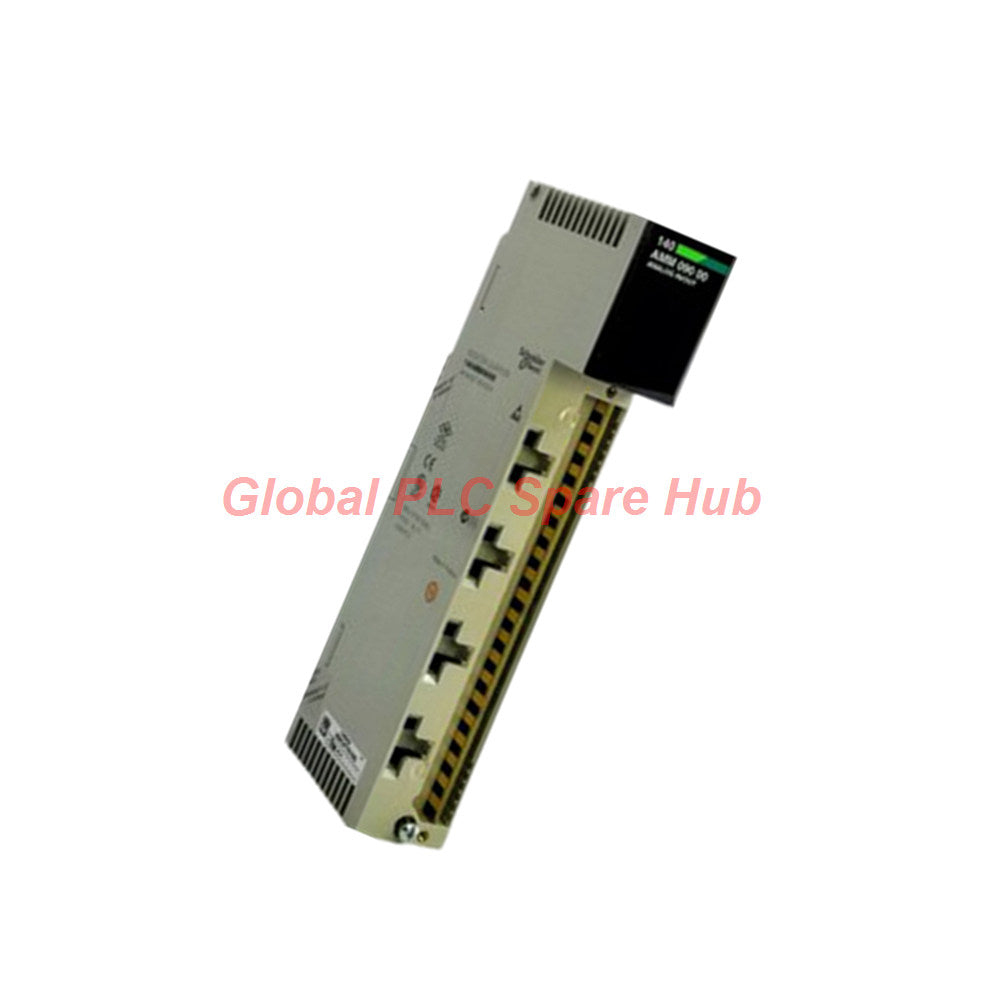

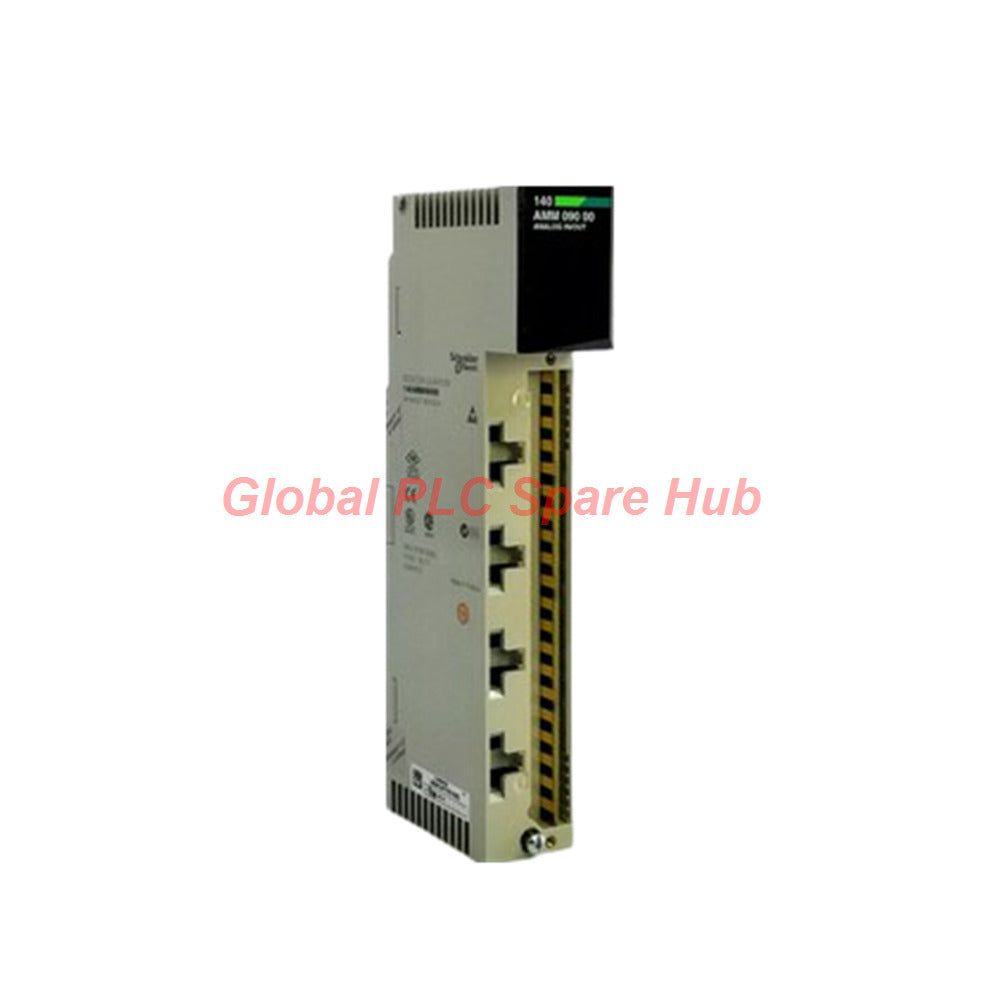

140AMM09000 Schneider Electric Modicon Quantum Analog I/O Module

Overview

The Schneider Electric 140AMM09000 is a high-performance mixed analog input and output module designed specifically for the Modicon Quantum automation platform. Engineered for demanding industrial control environments, this hardware unit bridges field sensors and actuators with the central processor. It features 4 analog input channels and 2 analog output channels, supporting comprehensive process monitoring and control loops. With robust channel isolation and advanced diagnostic capabilities, the module ensures high data integrity and process reliability across critical infrastructure applications.

Comprehensive Technical Specifications

Following the MECE principle, all module parameters are categorized below without overlap or omission:

1. Measurement Range & Input/Output Performance

• Brand: Schneider Electric
• Series: Modicon Quantum
• Model: 140AMM09000
• Module Type: Analog Input / Output Module
• Analog Inputs: 4 channels (Bipolar/Unipolar current and voltage configurations)
• Input Signal Types: Bipolar current (±20 mA, 15 bits); Bipolar voltage (±10 V, 16 bits; ±5 V, 15 bits); Unipolar current (0...20 mA, 15 bits; 4...20 mA, 14 bits); Unipolar voltage (0...10 V, 16 bits; 0...5 V, 15 bits; 1...5 V, 14 bits)
• Analog Outputs: 2 channels (4...20 mA)
• Output Resolution: 12 bits

2. Frequency Response & Timing

• Filter Type: Single pole low pass (3 dB at 21 Hz ± 20 % input circuit)
• Update Time: 320 ms (input circuit), 15 ms (output circuit)
• Setting Time: 900 μs to ± 0.1 % of the final value (output circuit)

3. Sensitivity, Accuracy & Linearity

• Absolute Accuracy Error: ± 0.03 % at 77 °F (25 °C) (input circuit), ± 0.20 % of full scale at 77 °F (25 °C) (output circuit)
• Linearity: 2.4 % over and under range voltage; 2.4 % over range, and - 9.6 % under range current
• Monotonicity: ± 1 LSB input and output
• Gain Shift: ± 0.002 % of full scale maximum (0...60 °C input circuit)

4. Resolution & Electrical Characteristics

• Addressing Requirement: 5 input words, 2 output words
• Input Impedance: > 10 MOhm (voltage), > 250 Ohm (current)
• Loop Voltage: 0...60 V DC with external resistance; 7...30 V DC (output circuit)
• Bus Current Requirement: 350 mA

5. Temperature Range & Environment

• Operating Temperature: 32...140 °F (0...60 °C)
• Storage Temperature: -40...185 °F (-40...85 °C)
• Relative Humidity: 95 % without condensation
• Operating Altitude: <= 16404.2 ft (5000 m)

6. Environmental Tolerance & Interference Rejection

• Common Mode Rejection: > 80 dB (50/60 Hz input circuit)
• Resistance to Electromagnetic Fields: 9.1 V/m (10 V/m) 80...2000 MHz (IEC 801-3)
• Channel Isolation: 500 V AC or 750 V DC for 1 minute (between channels, channels and bus, input and output channels)

7. Certifications & Compliance

• Product Certifications: FM Class 1 Division 2, C-Tick.1
• Standards: UL 508, CSA C22.2 No 142
• Marking: CE

Installation Guide & Mechanical Data

• Module Format: Standard Quantum drop-in format
• Net Weight: 0.7 lb(US) (0.3 kg)
• Mounting Procedure: Insert the 140AMM09000 into an available slot within the Modicon Quantum rack while the backplane is powered down or hot-swapped if supported by the CPU architecture. Secure the top and bottom retaining screws to ensure proper grounding and mechanical stability. Connect field wiring to the removable terminal block observing correct shielding practices for analog signals.

Commissioning, Maintenance & Diagnostic Capabilities

• Local Signalling:
  • 1 green LED indicating active bus communication
  • 1 red LED indicating external fault status
  • 6 green LEDs indicating active channel status
  • 6 red LEDs indicating individual channel faults
• Fault Detection: Built-in hardware monitoring detects open circuit conditions on both input and output loops, scale overtracking on unipolar inputs, and reports status via internal registers.
• Maintenance Ease: Removable terminal blocks allow fast module replacement without rewiring field cables, minimizing mean time to repair during routine maintenance cycles.

Compatibility & System Integration

• Processor Compatibility: Fully compatible with all Modicon Quantum CPU processors using Quantum addressing schemes.
• Software Environment: Configured seamlessly via Unity Pro or Concept programming software environments.

Package Contents & Logistics

• Package Contents: One Schneider Electric 140AMM09000 module and installation instruction sheet
• Warranty: 12 months comprehensive replacement or repair warranty
• Shipping & Delivery: Fast 24-48 hour dispatch. Secure international delivery available via FedEx, UPS, and DHL

Typical Application Scenarios

• Process Control Systems: Monitoring level, pressure, and temperature transmitters in chemical and petrochemical plants.
• Water Treatment Facilities: Driving modulating valves and recording flow meter measurements across expansive municipal water networks.
• Energy Management: Interfacing turbine sensors and power monitoring actuators within heavy industrial power distribution grids.

Global PLC Spare HUB's Insight & Expert Guidance

Global PLC Spare HUB's Insight emphasizes that analog loop accuracy in high-noise industrial environments relies heavily on proper cable shielding and grounding practices. When deploying the 140AMM09000, always terminate drain wires at a single dedicated ground bar to prevent ground loops that can degrade the 15-bit and 16-bit measurement resolution.

Frequently Asked Questions

Can the 140AMM09000 module handle mixed current and voltage inputs simultaneously?

Yes, the four input channels support independent configuration via software and hardware wiring to accept a combination of voltage and current signals within the specified bipolar and unipolar ranges.

What does the red external fault LED indicate during operation?

The red external fault LED activates when the module detects a critical loop issue, such as an open circuit on an active channel or an input signal exceeding the maximum unipolar scale threshold.

How should I troubleshoot a fluctuating analog reading on channel one?

Verify that your signal cables use shielded twisted pairs and that the common mode rejection parameters match your site environment. Check for nearby variable frequency drives that might introduce electromagnetic interference exceeding the IEC 801-3 standard.

What is the recommended procedure for replacing a faulty unit?

Power down the rack slot if hot-swapping is not enabled in your CPU configuration, unlatch the removable terminal block without disturbing field wires, unfasten the module retaining screws, slide out the old unit, and slide in the replacement 140AMM09000.
