100630-82-89-90-02 Bently Nevada 3300 XL 8mm Underwater Sensor

100630-82-89-90-02 Bently Nevada 3300 XL 8mm Underwater Proximity Probe

Submersible Transducer Architecture

Engineered for high-pressure fluid environments, the 100630-82-89-90-02 forms an integral part of Bently Nevada's fluid-immersed vibration and displacement telemetry lineup. Built around a 304 stainless steel housing paired with specialized protective tubing, this specialized sensor architecture shields internal coaxial paths while permitting full body submersion in industrial process fluids (excluding saline environments).

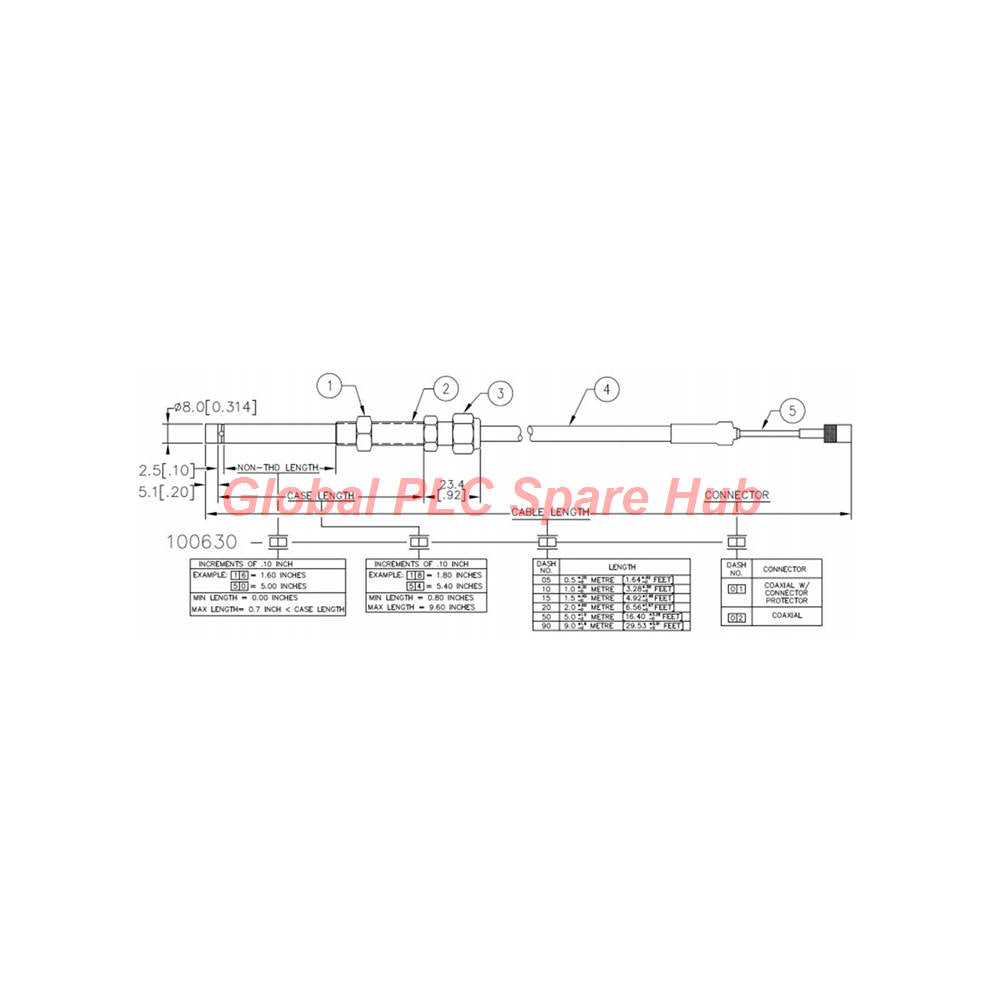

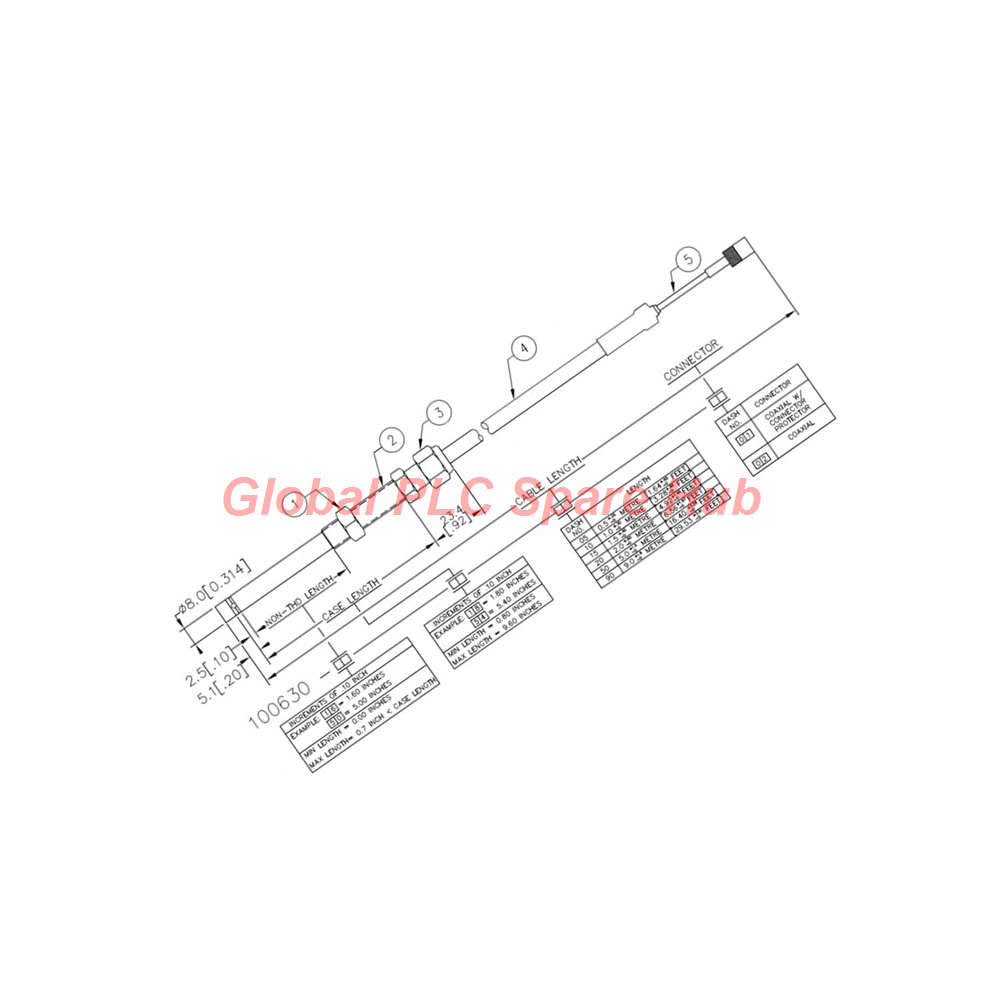

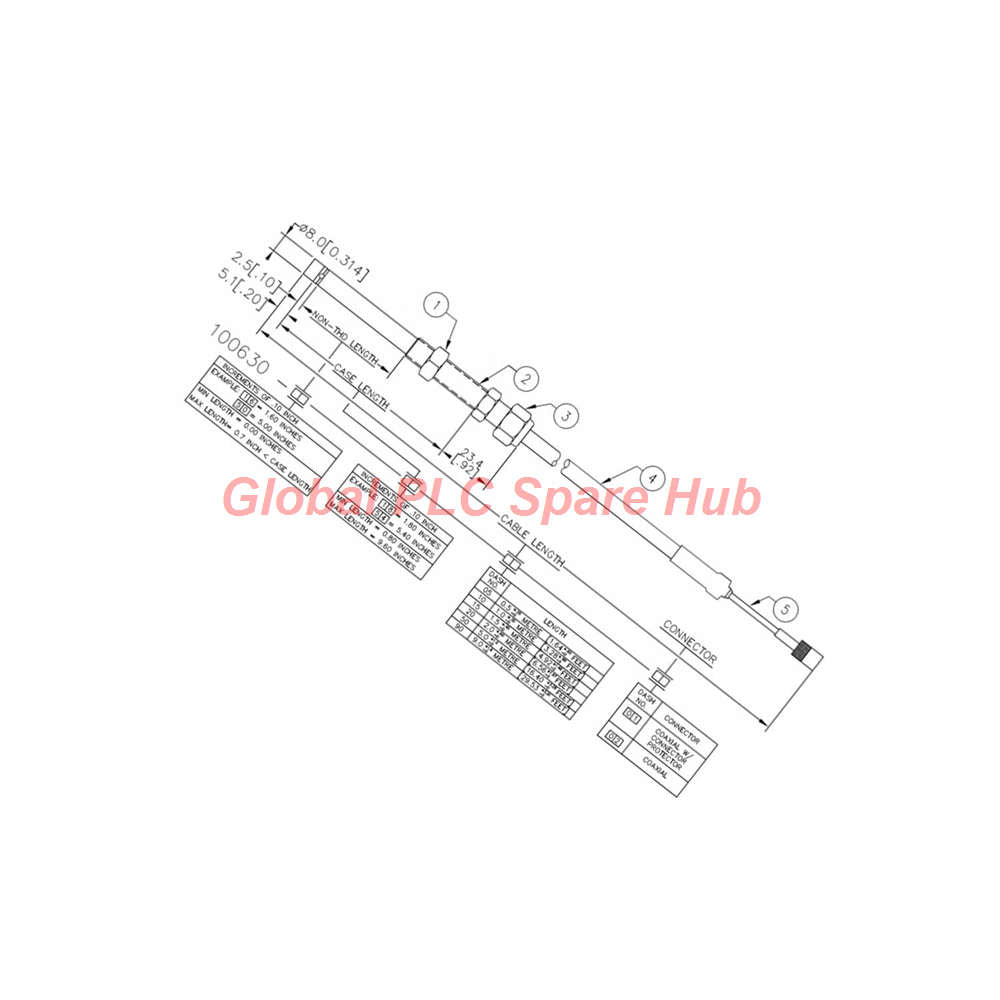

Part Number Breakdown & Suffix Configuration Tree

Metrological Parameters & Environmental Constraints

• Sensing Tip & Body: 8mm tip design housed in 304 Stainless Steel with integrated Tefzel tubing jacket.
• Pressure Integrity: Factory rated to seal up to 34 Bar (500 psi) Nitrogen environments across the wetted seal interface.
• Thermal Envelope: Continuous operating and storage range from -51 °C to +177 °C (-60 °F to +351 °F).
• Hazardous Area Certifications: Intrinsically safe (ia Class I, Zone 0; Div 1 Groups A-G) when paired with approved zener barriers or galvanic isolators; non-sparking (nA, ec Zone 2) compliance configurations supported.

Target Industrial Plant Equipment & Application Scenarios

Reliable telemetry is achieved in harsh process applications including submerged boiler feedwater pumps, hydro-turbine runner bearing housings, deep-well vertical centrifugal pumps, oil-lubricated gearbox sumps, and closed-loop chemical reactor agitator shafts where standard probes risk moisture ingress and terminal shorts.

Real-Time Diagnostics & Operational Tracking Capabilities

The sensor generates unbuffered dynamic and static voltage outputs to monitor radial shaft vibration, axial thrust position, eccentric shaft rotation, and fluid-induced instabilities. Early telemetry indicators allow plant engineers to detect fluid-film whirl, hydraulic turbulence impacts, and progressive sleeve bearing degradation prior to catastrophic machine trip events.

Global PLC Spare HUB's Insight

Our rotating machinery technical group highlights that while the probe case and Tefzel tubing tolerate aggressive submersion, the terminal ClickLoc connector end remains unsealed and must be housed in a dry terminal box or enclosure away from liquid splashes. When replacing obsolete units, verifying the exact unthreaded length and probe case material prevents seating discrepancies in tight threaded mounting ports.

Logistics, Fulfillment & Warranty Assurance

• Dispatched promptly within 24 to 48 hours following order confirmation.
• Shipped globally via premium logistics carriers including FedEx, UPS, and DHL.
• Packaged in antistatic, heavy-duty industrial cushioning to guarantee transit safety.
• Protected by our robust 12-month operational warranty.

Cross-Model Compatibility & Selection Advisory

When engineering replacement paths or evaluating alternative configurations within the same hardware lineage, reference the matched base compatibility baseline below:

• Compare with 100630-08-15-15-01 Bently Nevada Submersible Proximity Probe to analyze how shorter unthreaded barrel dimensions and alternative total lengths impact mechanical clearance and physical thread engagement depths in retrofitted machinery casings.

Engineering FAQ & Selection Guide

Q: Why is 304 stainless steel restricted from marine or salt-water installations?

A: Chloride-rich salt water accelerates pitting corrosion and stress-corrosion cracking on standard 304 stainless steel alloys over prolonged exposure periods.

Q: What specific protective measures must be taken with the Tefzel tubing during installation?

A: Avoid sharp pinch points, high-frequency vibration rubbing against internal frame struts, and excessive mechanical torsion along the tubing length.

Q: How does selecting a 9.0-meter total system length impact the proximitor calibration loop?

A: The proximitor unit is tuned precisely to match the combined electrical length of the probe and extension cable; altering this length introduces signal attenuation and phase shifts.

Q: Can this probe handle pressure spikes exceeding the standard 34 Bar rating?

A: The standard seal handles up to 500 psi Nitrogen; higher pressure requirements necessitate factory modification requests and custom pressure test verifications.

Q: What are the primary diagnostic indicators that a submerged probe cable seal has been breached?

A: Technicians typically observe erratic baseline voltage jumps, sudden drops in gap impedance, and grounding faults induced by fluid permeation through compromised outer protective layers.
