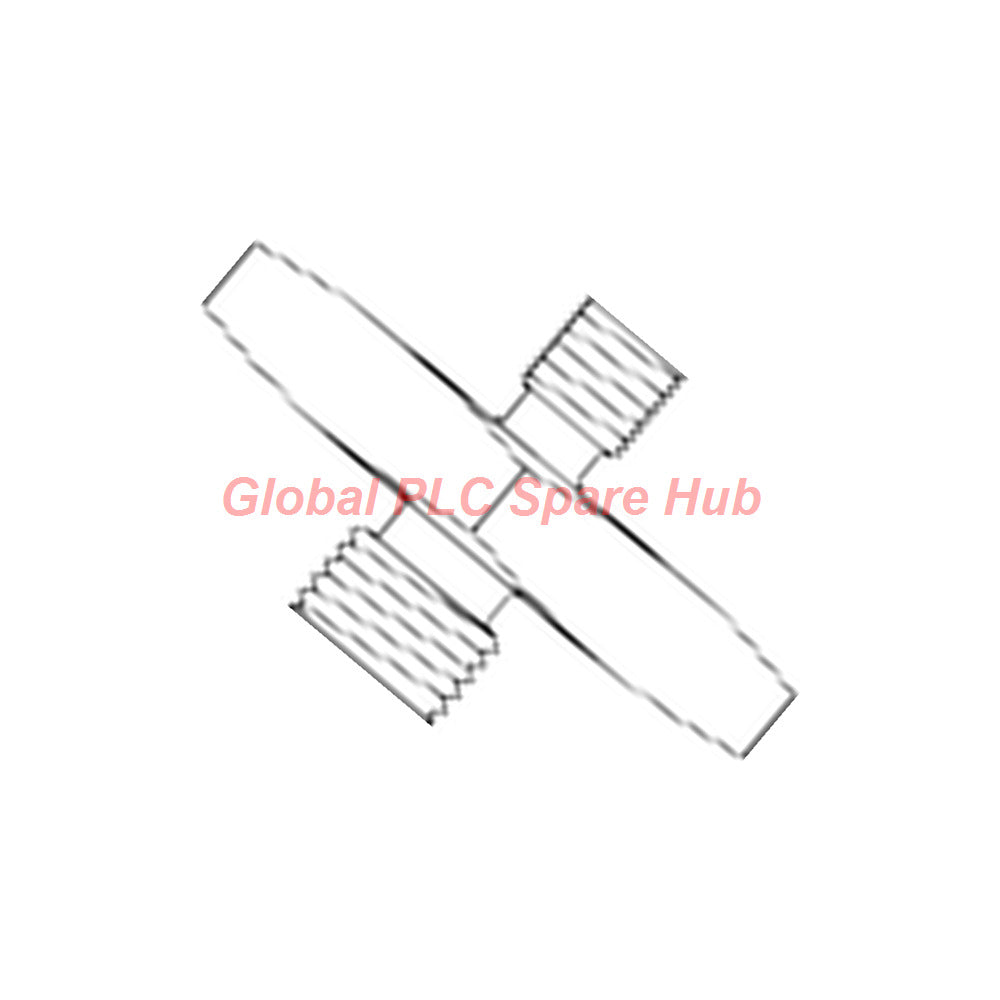

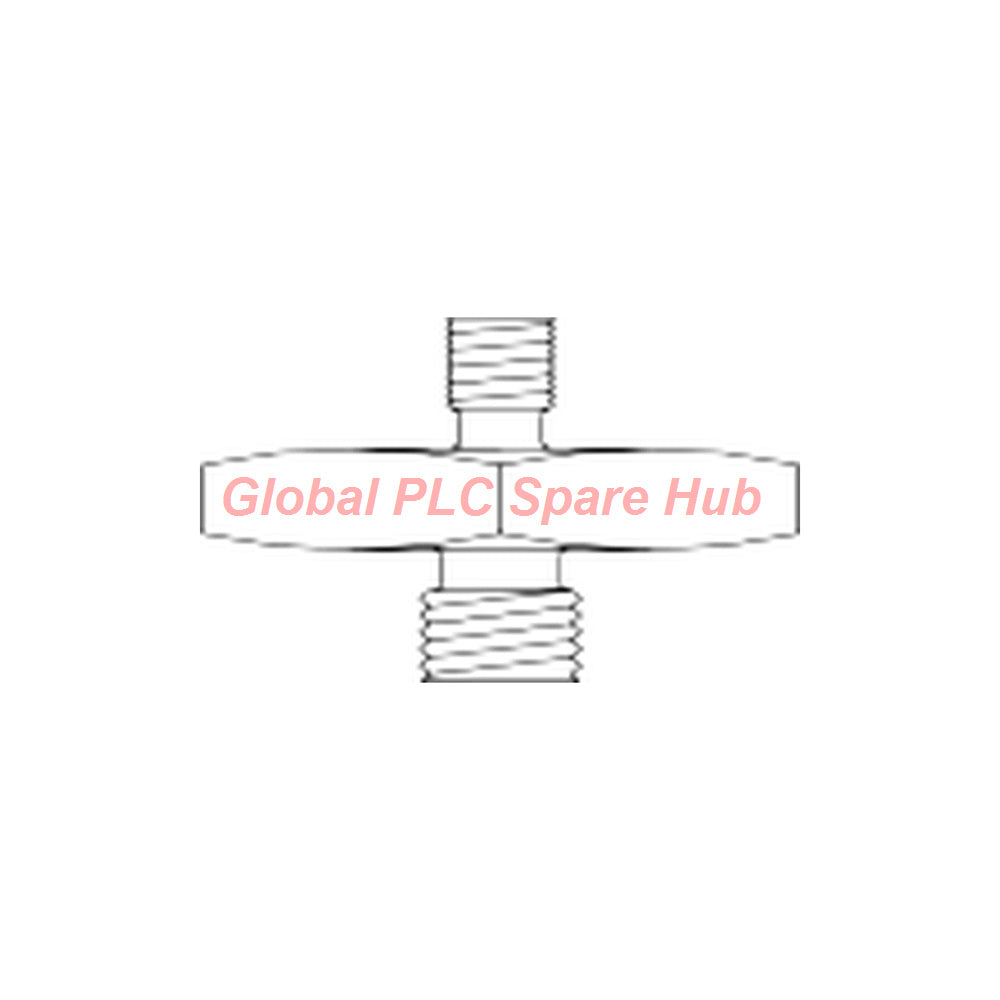

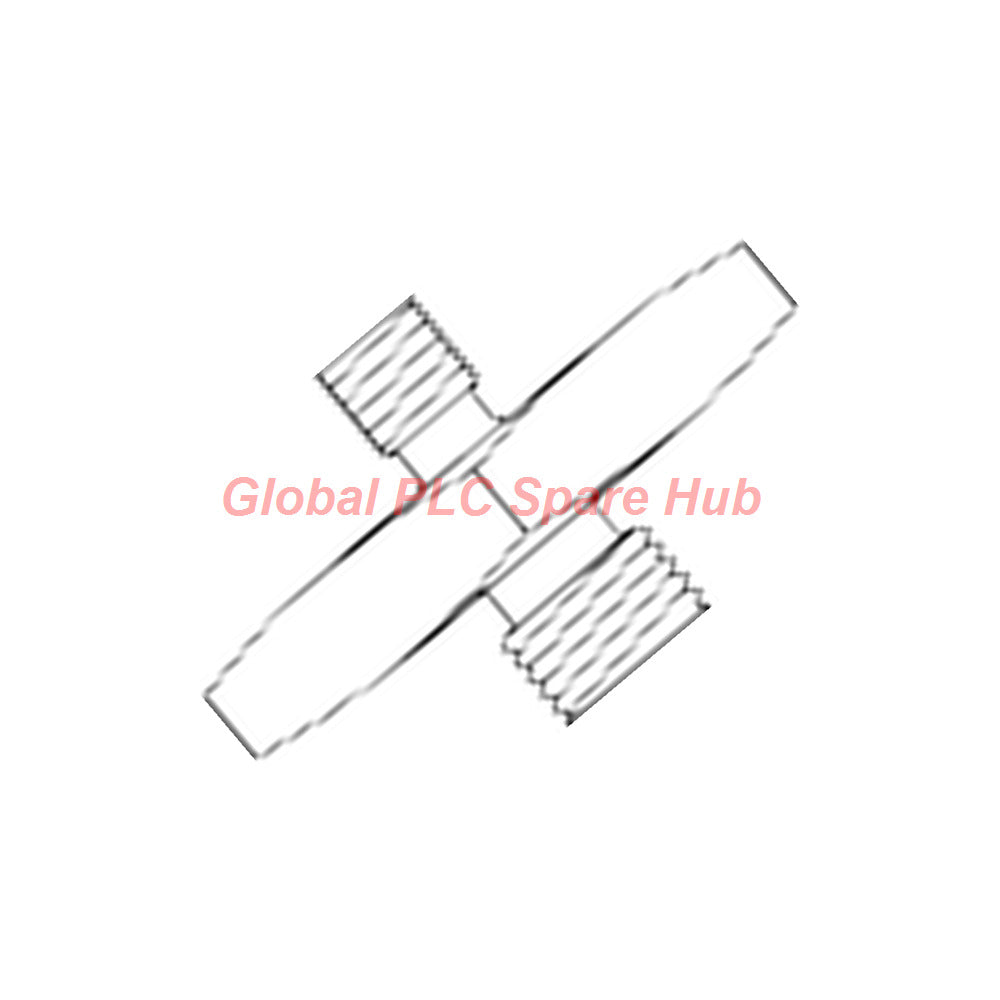

03839201 Bently Nevada 1/2-in NPT Fitting | Liquid-Tight Connector

Engineering Overview & Architecture

The 03839201 Bently Nevada hardware item serves as a heavy-duty conduit fitting. Plant engineers deploy this component to secure flexible, liquid-tight metal armor to housing adapters. This exact 03839201 model protects sensitive field wiring from severe environmental degradation.

Technical Specifications & Thread Matrix

Field Installation Guide

• Strip outer conduit jacket cleanly to expose the designated grounding ferrule zone.
• Thread the 1/2-inch NPT male end into the housing port using thread sealant.
• Tighten the compression nut firmly to secure the liquid-tight flexible jacket.
• Verify continuity of the protective shield across the assembled connection.

Commissioning, Inspection & Maintenance

• Inspect compression seals annually for signs of rubber hardening or cracking.
• Verify mechanical ground bonding during routine control panel safety audits.
• Keep threads free from dirt debris during wiring modifications.

System Compatibility & Standards

• Designed for integration with Bently Nevada rack enclosures and junction boxes.
• Complies with industrial hazardous location wiring protection guidelines.

Logistics, Package Checklist & Warranty

• Package Contents: One 03839201 conduit fitting unit and locking hardware.
• Warranty Terms: Covered by a comprehensive 12-month operational warranty.
• Global Fulfillment: Rapid 24-48 hour dispatch via FedEx, UPS, and DHL.

Target Industrial Equipment & Applications

Instrumentation technicians install the 03839201 fitting around heavy rotating machinery installations. Typical deployment areas include steam turbine monitoring skids, compressor junction enclosures, and outdoor proximity probe terminal housings exposed to chemical washdowns.

Advanced Diagnostic Contribution

Secure mechanical cabling protection enabled by the 03839201 fitting prevents electromagnetic interference (EMI) from corrupting weak sensor signals. Reliable shielding ensures condition monitoring systems receive pristine vibration data, avoiding false alerts caused by transient electrical noise.

Global PLC Spare HUB's Insight

Field audits demonstrate that moisture ingress through poorly sealed cable entries is a leading cause of signal drift in vibration racks. Using the factory-specified 03839201 fitting guarantees proper sealing pressure. For instance, wiring displacement transducers on offshore platforms requires certified liquid-tight hardware to withstand relentless salt spray and thermal cycling.

Expert FAQ & Selection Guide

Question: How does the 03839201 fitting achieve a liquid-tight seal?

Answer: It utilizes an internal compression ring that clamps tightly against the outer jacket of flexible metal conduit.

Question: What factors should guide engineers when selecting conduit fittings for hazardous areas?

Answer: Always match the thread standard (NPT vs. metric) and verify that the ingress rating matches the plant's washdown requirements.

Question: Can the 03839201 be used with unarmored standard PVC tubing?

Answer: No, this fitting is specifically engineered for flexible metal or liquid-tight armored conduit structures.

Question: What field mistake frequently damages this type of fitting during installation?

Answer: Over-tightening the compression nut can distort the internal ferrule and compromise the fluid seal.

Question: Does this component require specialized wrenches for proper assembly?

Answer: Standard open-end wrenches matching the body hex dimensions are sufficient for secure installation.
