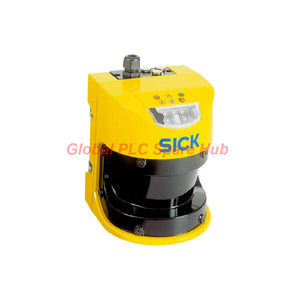

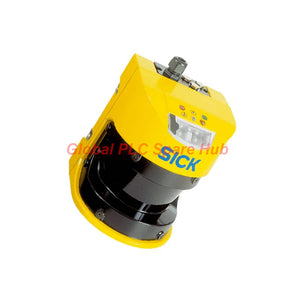

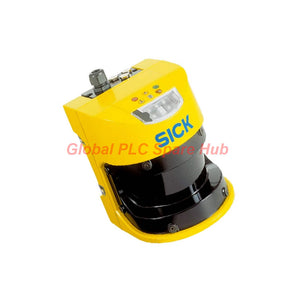

SICK S30A-4011CA Safety Scanner S3000 Advanced Series Unit

Engineering Architecture & Core Identification

The S30A-4011CA safety laser scanner represents a state-of-the-art optical protection device from the SICK S3000 Advanced series. Engineered for industrial area safeguarding, the S30A-4011CA utilizes pulsed laser technology to establish multi-zone monitoring fields, ensuring high-speed personnel and obstruction detection without requiring heavy physical barriers.

Technical Performance Specification Matrix

• Manufacturer Brand: SICK
• Model / Part Designation: S30A-4011CA
• Scanner Series: S3000 Advanced
• Device Type: Safety Laser Scanner (Sensor without system plug)
• Application Environment: Indoor industrial workspace
• Protective Field Range: Up to 4 m
• Warning / Measurement Range: Up to 49 m (20 m at 20% reflectivity)
• Scanning Angle & Resolution: 190° angular range with configurable resolution (30 mm to 150 mm)
• Response Time: 60 ms nominal transmission delay
• Safety Integrity Standards: Type 3 (IEC 61496), SIL2 (IEC 61508), Category 3 (EN ISO 13849), PL d
• Electrical Inputs/Outputs: 24 V DC supply (16.8V - 28.8V range), 2 x 500 mA OSSDs, 3 x 100 mA diagnostic outputs
• Physical Build & Dimensions: Aluminum die-cast housing (RAL 1021 yellow), 155 mm x 185 mm x 160 mm, weight 3.3 kg
• Environmental Rating: IP65 enclosure protection, operating temperature range -10 °C to +50 °C

Deployment Workflow & Setup Protocol

• Mechanical Mounting: Secure the S30A-4011CA onto stable machine frames or AGV chassis using proper vibration isolation brackets to prevent optical misalignment.
• Electrical Termination: Connect power and signal lines using the M12 5-pin male connector configuration, maintaining strict separation from high-voltage motor lines.
• Field Configuration: Program field sets (up to 4 active monitoring cases and 12 total fields) using SICK configuration software prior to operational start.
• Functional Test: Verify OSSD safety switching states and clear optical window surfaces to ensure precise response timing.

Diagnostic Capability & Operational Efficiency

• Real-Time Status Monitoring: Diagnostic outputs transmit internal fault codes and contamination warnings directly to the primary PLC, minimizing troubleshooting duration.
• Contamination Detection: Built-in algorithms monitor front screen dust accumulation, signaling maintenance before false trips occur.
• Fault State Safety: Automatically forces at least one OSSD into the OFF state during any optical or electrical anomaly, preserving fail-safe integrity.

Target Machinery & Industrial Application Scenarios

• Automated Guided Vehicles (AGVs): Front and rear obstacle detection for navigation and collision avoidance in dynamic factory lanes.
• Robotic Cell Perimeters: Access protection around automated welding, palletizing, and assembly cells.
• Hazardous Material Handling: Automated transfer systems requiring dynamic field switching based on machine velocity.

Warranty Protection & Global Logistics

• Fulfillment Timelines: Orders are processed, tested, and dispatched within 24-48 hours.
• Global Carriers: Secure shipping supported via FedEx, UPS, and DHL network channels.
• Warranty Coverage: Fully backed by a 12-month manufacturer defect warranty from the date of purchase.

Frequently Asked Questions (FAQ)

Q: How does the S30A-4011CA handle multi-zone protection configurations on AGVs?

A: The scanner supports up to 4 dynamic monitoring cases, allowing the AGV control system to switch field sets automatically based on vehicle speed and turning direction.

Q: What maintenance steps prevent dust-induced optical errors on the scanner window?

A: Routinely inspect the scratch-resistant polycarbonate front screen and clean it gently with a non-abrasive anti-static cleaner to prevent beam reflection distortion.

Q: Why is a system plug not included with the standard S30A-4011CA delivery?

A: The sensor ships as a standalone replacement unit, allowing maintenance teams to retain existing cabling and system plugs from previously installed hardware.

Q: How does ambient lighting affect the laser measurement performance of the S30A-4011CA?

A: The pulsed 905 nm laser diode and integrated optical filters provide high immunity to ambient factory lighting and sunlight interference.

Q: Are units provided by Global PLC Spare HUB fully verified original equipment?

A: Global PLC Spare HUB supplies authentic industrial automation safety hardware subjected to strict functional testing and protected by our 12-month warranty.
