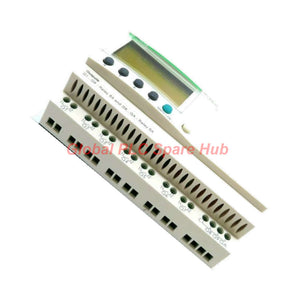

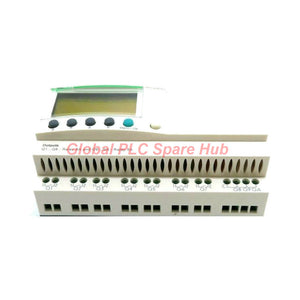

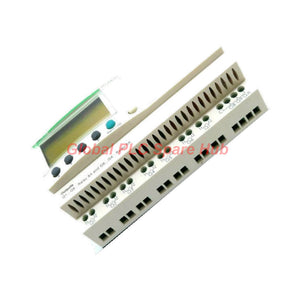

SR3B261FU Schneider Electric Zelio Logic Smart Relay Controller

Engineering Architecture & Core Identification

The SR3B261FU compact controller represents a versatile modular smart relay from the Schneider Electric Zelio Logic series. Engineered for small-scale automation logic, the SR3B261FU features an integrated LCD display, real-time clock, and flexible AC power handling, making it a reliable solution for independent machine control and building management.

Technical Performance Matrix

• Manufacturer Brand: Schneider Electric
• Model / Part Designation: SR3B261FU
• Product Series & Type: Zelio Logic Modular Smart Relay
• Total I/O Capacity: 26 I/O points
• Digital Inputs: 16 AC inputs (including 6 configurable analog inputs for 100-240V AC)
• Digital Outputs: 10 heavy-duty relay outputs (rated 5 A per output)
• Supply Voltage Range: 100-240V AC (85-264V operational window, 50/60 Hz)
• Programming Capacity: 240 ladder lines or 500 FBD function blocks
• Human-Machine Interface: Integrated LCD display with multi-direction navigation buttons
• Physical Build & Mounting: 35 mm DIN rail mount, dimensions 90 x 124.6 x 59.5 mm, weight 0.30 kg
• Component Lifespan: 10,000,000 mechanical cycles, 500,000 electrical cycles (AC-12, 230V 1.5A)

Deployment Workflow & Configuration Protocol

• DIN Rail Installation: Snap the SR3B261FU securely onto standard 35 mm industrial rails inside control enclosures.
• Power Wiring: Connect 100-240V AC supply lines directly to terminal blocks, ensuring proper grounding and line protection.
• Logic Programming: Develop control logic using Zelio Soft software, uploading via programming cable or modifying parameters directly via the front LCD panel.
• Extension Expansion: Attach modular communication or I/O expansion modules to the side bus connector if extended control points are required.

Diagnostic Capability & Operational Efficiency

• Real-Time System Monitoring: Front LCD screen displays live I/O states, system time, and custom diagnostic text messages without requiring a connected PC.
• Error Flag Tracking: Built-in software registers track logic faults, timer overflows, and communication dropouts across extension blocks.
• Relay Status Audit: Mechanical cycle ratings allow engineers to estimate wear and schedule preventive replacements before contact welding occurs.

Target Machinery & Industrial Application Scenarios

• HVAC Control Panels: Air handling units, boiler sequencing, and chiller plant automation systems.
• Water Treatment Skids: Small municipal pump stations, chemical dosing units, and automated valve control loops.
• Packaging & Conveyor Lines: Compact sorting systems, material handling lifts, and automated gate interlocks.

Warranty Protection & Global Logistics

• Fulfillment Timelines: Orders are processed, tested, and dispatched within 24-48 hours.
• Global Carriers: Secure shipping supported via FedEx, UPS, and DHL network channels.
• Warranty Coverage: Fully backed by a 12-month manufacturer defect warranty from the date of purchase.

Frequently Asked Questions (FAQ)

Q: How do the configurable analog inputs function on the AC-powered SR3B261FU unit?

A: Out of the 16 digital AC inputs, 6 can be configured to process analog signals, allowing direct connection of standard sensors without requiring dedicated analog expansion cards.

Q: Can technicians modify ladder logic programs directly on the SR3B261FU hardware?

A: Yes, the integrated LCD screen and navigation buttons permit users to adjust parameters, view error states, and tweak basic ladder lines on-site.

Q: What prevents contact degradation when driving inductive loads with the relay outputs?

A: Installing external RC snubbers or flyback diodes across inductive coils protects the 5 A relay contacts from arcing and extends electrical lifespan.

Q: Is an external power supply required to run the real-time clock during power outages?

A: The smart relay includes an internal backup capacitor/battery mechanism to maintain real-time clock operation during brief power interruptions.

Q: Are units supplied by Global PLC Spare HUB fully verified original equipment?

A: Global PLC Spare HUB supplies authentic industrial automation hardware subjected to strict functional testing and protected by our 12-month warranty.

Expert Selection Guide & Global PLC Spare HUB's Insight

• Selection Checklist: Verify your total input/output count, voltage type (AC vs DC), and expansion needs before specifying smart relays for machine builds.
• Global PLC Spare HUB's Insight: Field experience shows that inductive load spikes are the leading cause of premature relay contact failure. Utilizing protective suppression circuits alongside robust controllers like the SR3B261FU ensures multi-year operational reliability in demanding industrial environments.
